Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge Featured Image
  • Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge

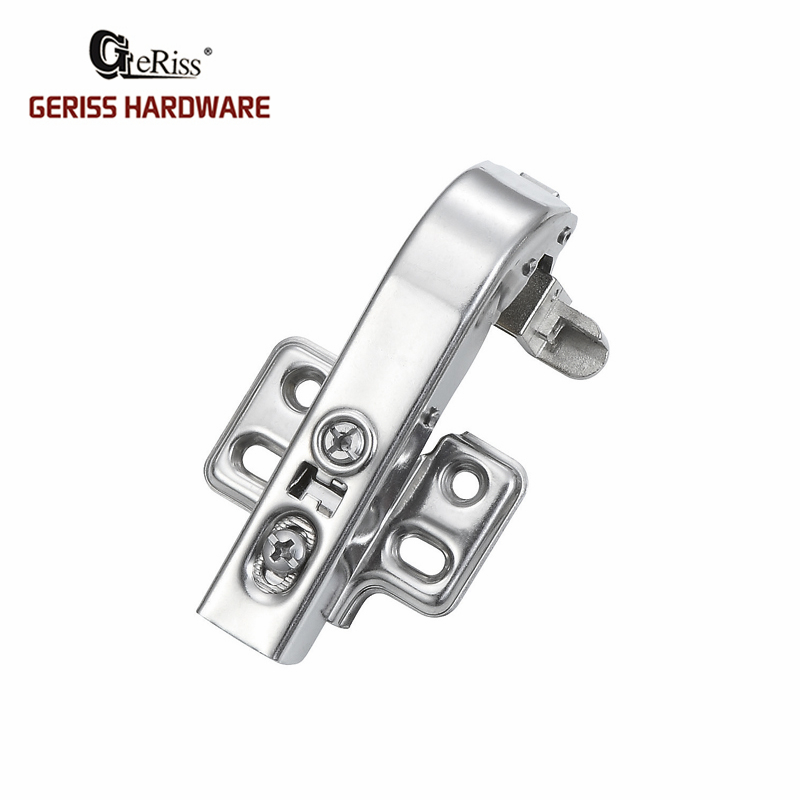

Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge

Short Description:

Item No.: AF90FS

Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge
Material:  Cold rolled steel
Surface:  Nickel plated as standard, customize is available.
Opening angle:  110 Degree
Hinge angle:  90 Degree
Drilling dimension on aluminum profile hinge head:  28 mm
Range of width of aluminum profile:  18-27 mm
Optional close type:  Soft close or non-hydraulic
Available accessories:  Arm cover, tapping screws
Available package:  - 200 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

H = Height of mounting plate

D = Required overlay on the cabinet side panel

W= Range of widht of aluminum profile

ADVANTAGES AND BENEFITS:

- Waredrobe aluminum frame door hydraulic soft close furniture concealed hinge

- Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Hinge Type Mounting Plates Item No.
Aluminum frame door hinge 4 Holes AF90FS4
2 Holes AF90FS2

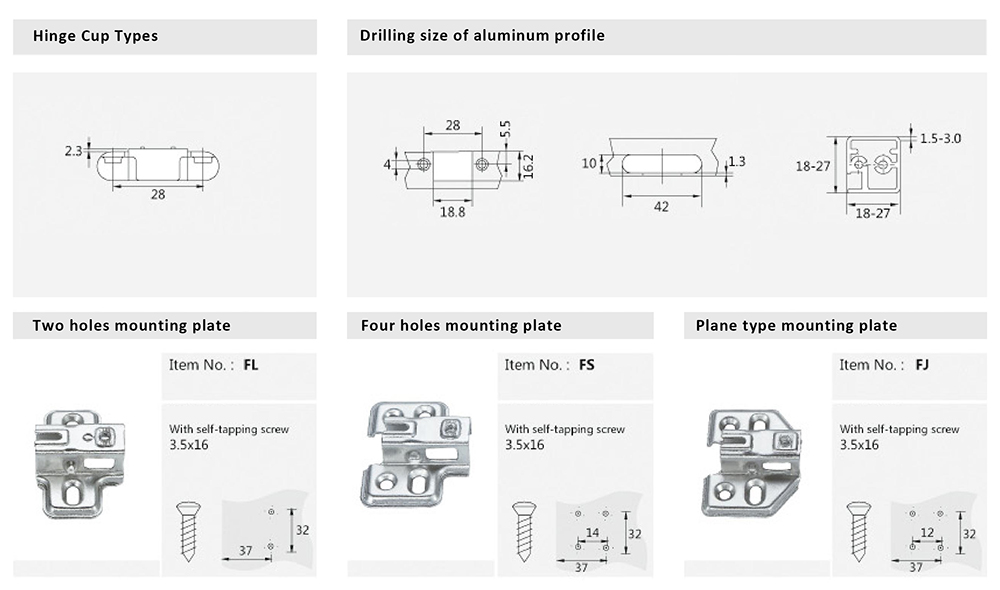

AVAILABLE HINGE CUPS & MOUNTING BASES:

Aluminum frame door hinge AF45FS 003

PACKAGE DETAILS:

Waredrobe aluminum frame door hydraulic soft close furniture concealed hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
