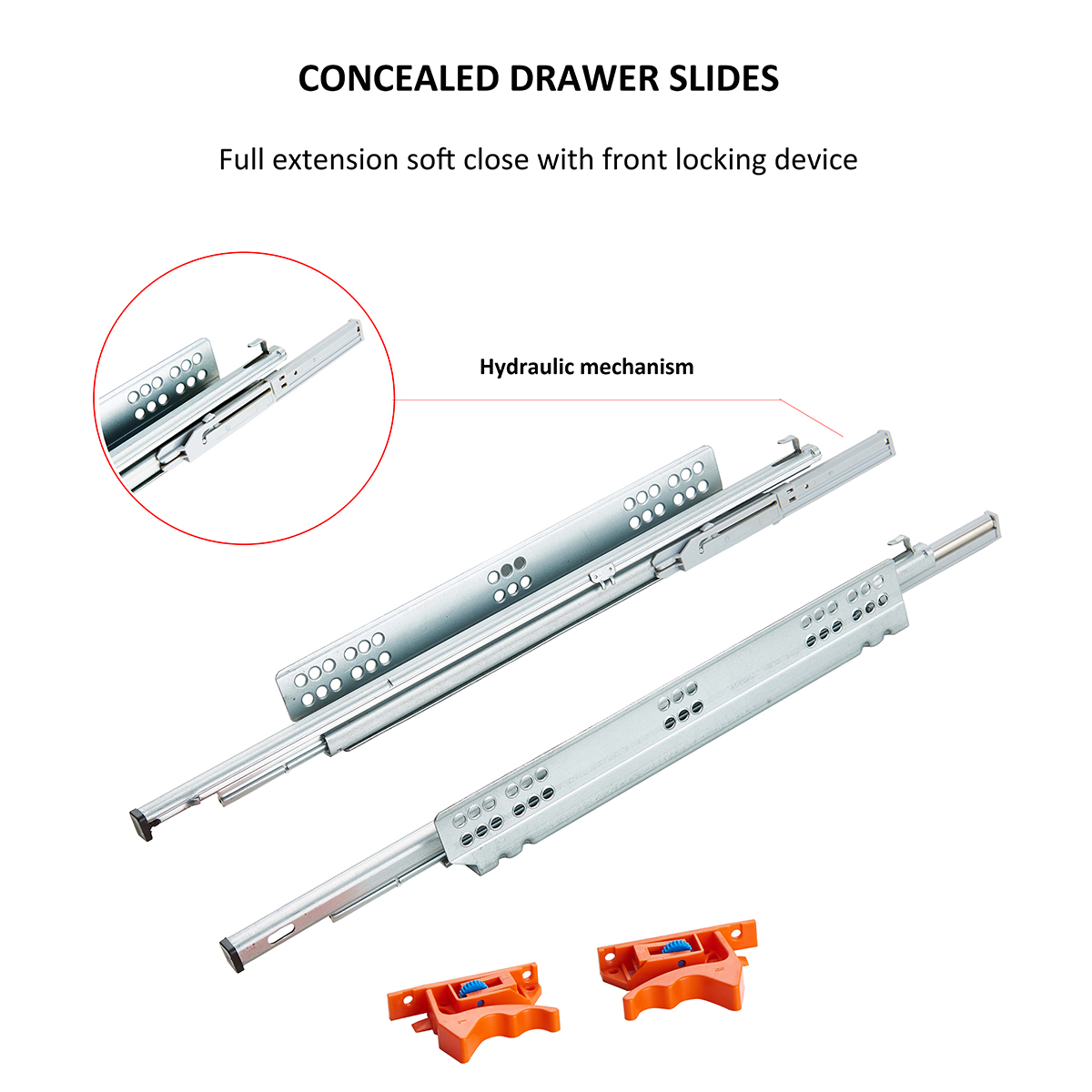

V6 Silent soft close three section concealed drawer slide channel

Short Description:

Model No.: EUR-V6

V6 Silent soft close three section concealed drawer slide channel usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use front clips to fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

concealed drawer slide

Description:

Product Name:

 Concealed Drawer Slides

Item No.:

  EUR-V6

Brand:

  GERISS

Materials:

  Galvanized Sheet

Material Thickness:

  1.8 x 1.5 x 1.0 mm

Surface:

  Zinc Plated

Size Range:

  10 Inch -22 Inch(250mm-550mm)

Load Capacity:

  35.0kg

Opening:

  Full Extension

Installation:

  Bottom Mount of Drawer

Separate Way:

  Front locking devices

Application:

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

  Over 50,000 times

Features:

  Drawer pull out and close without noise, soft close.

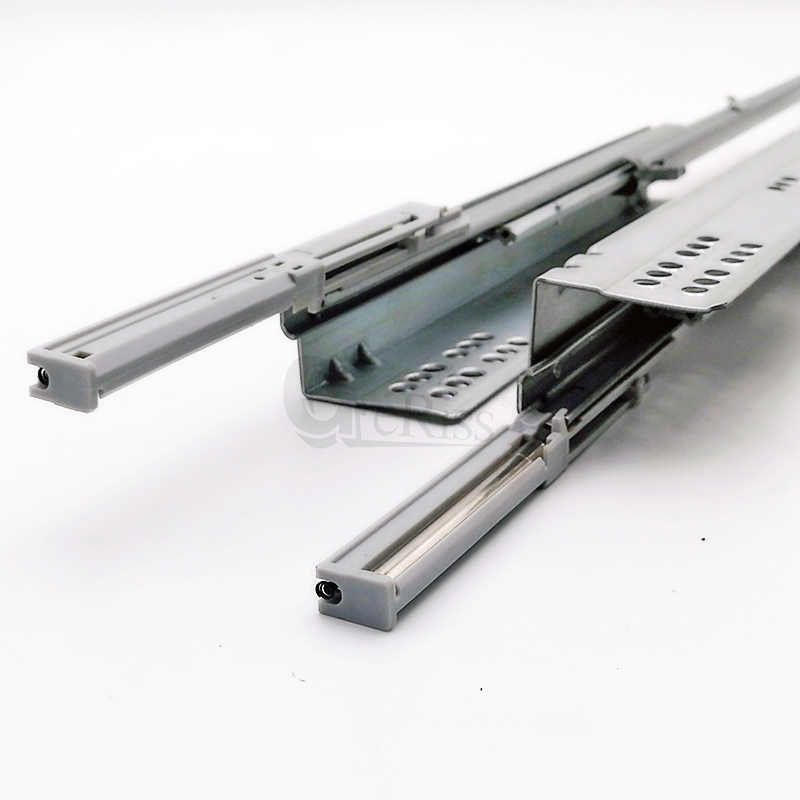

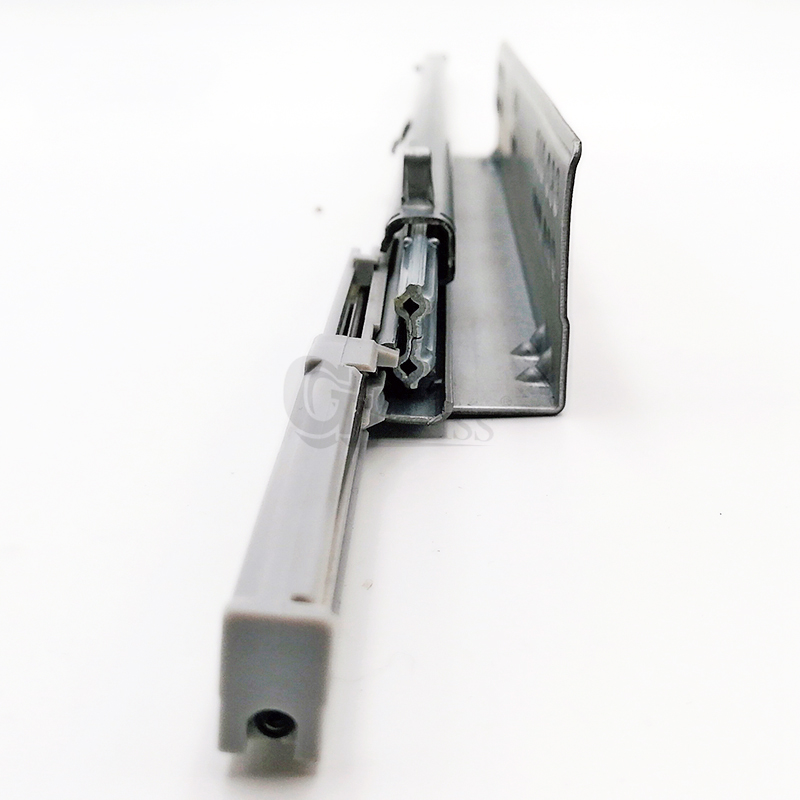

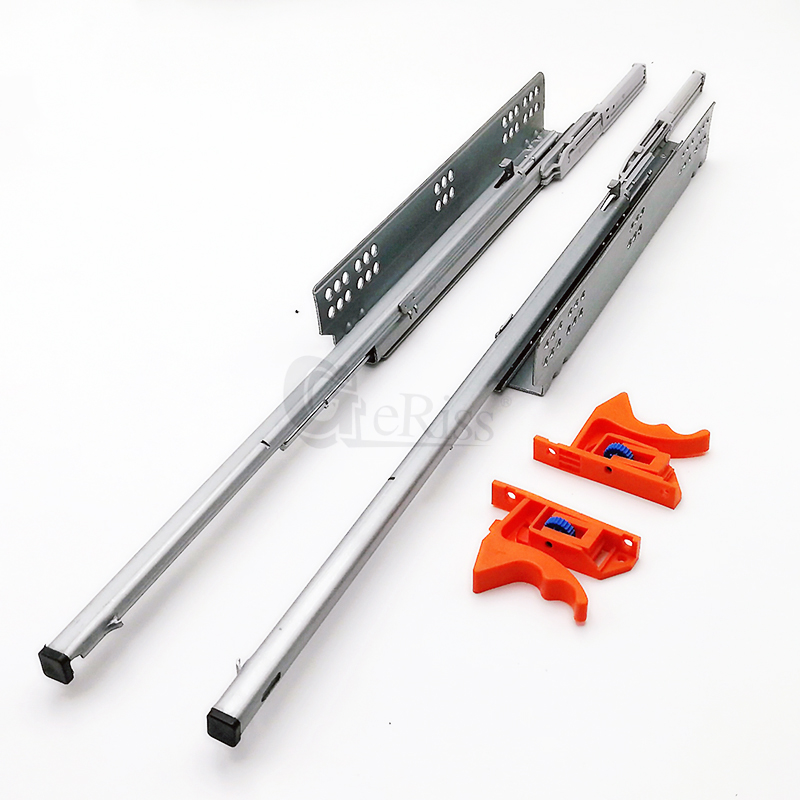

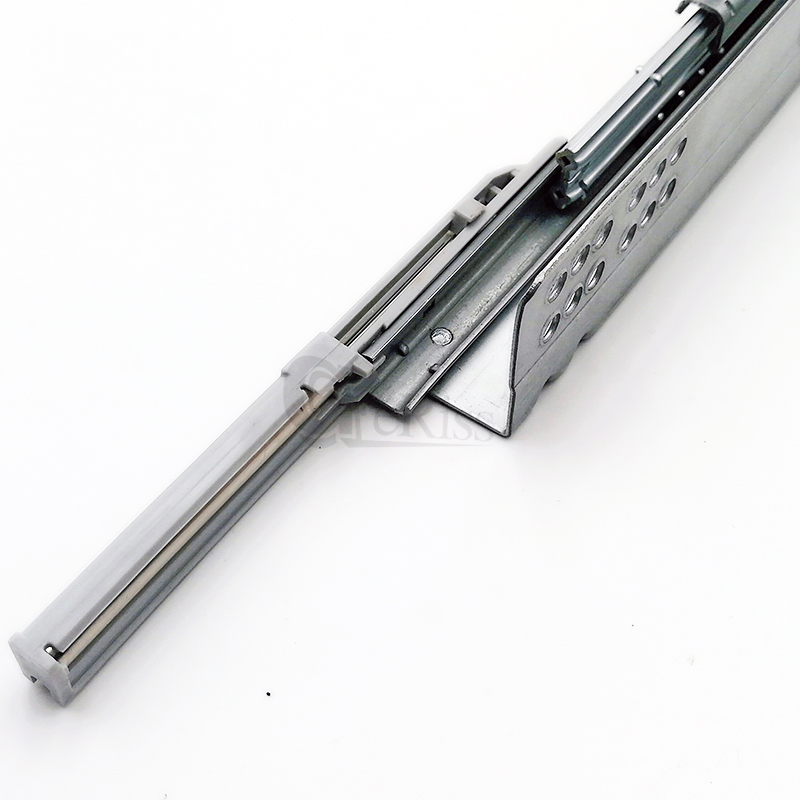

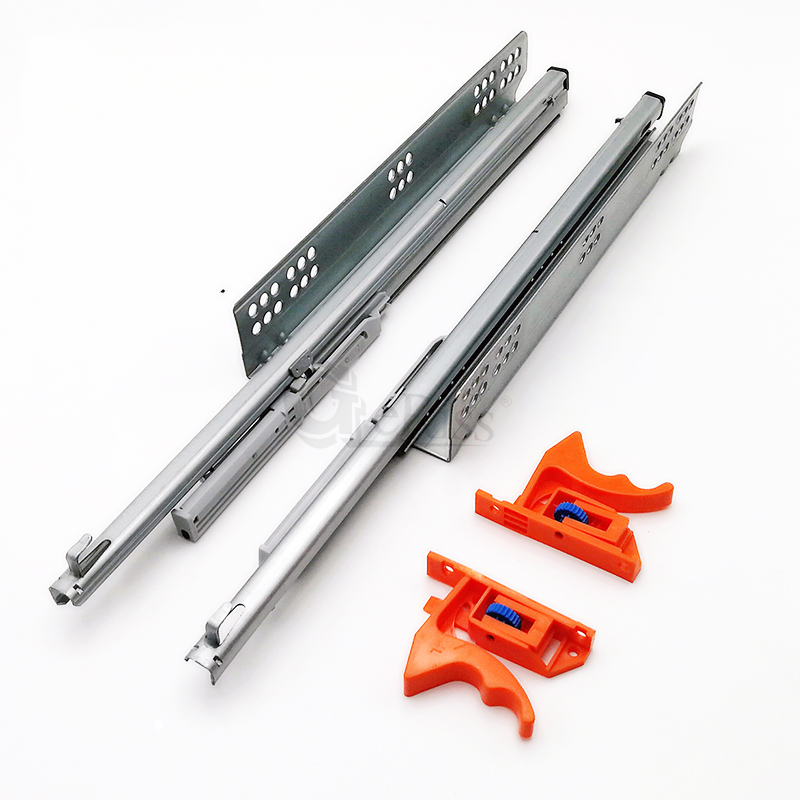

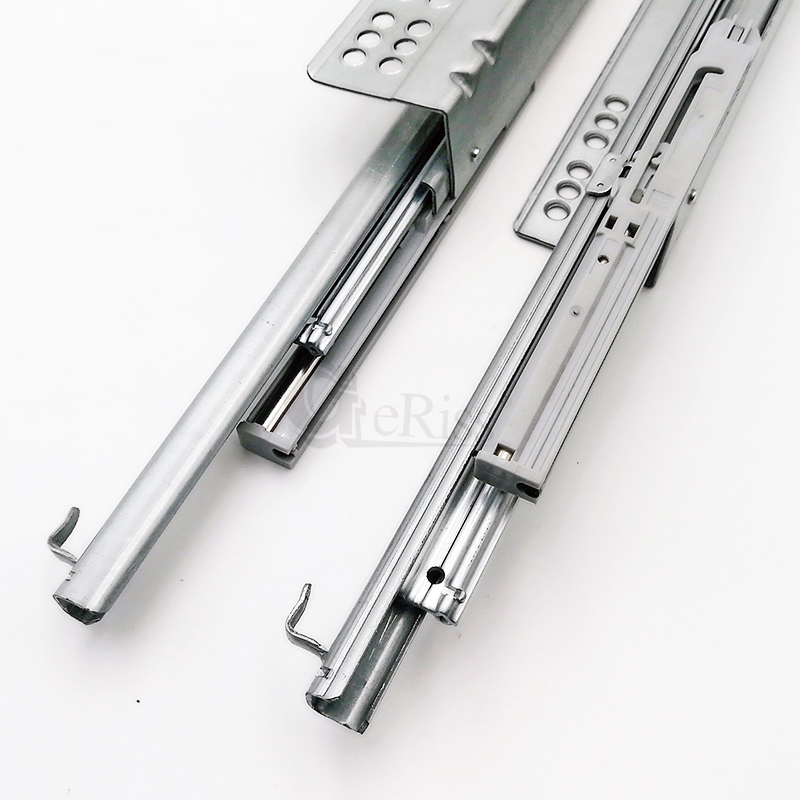

Details Photos:

Mounting Holes Location:

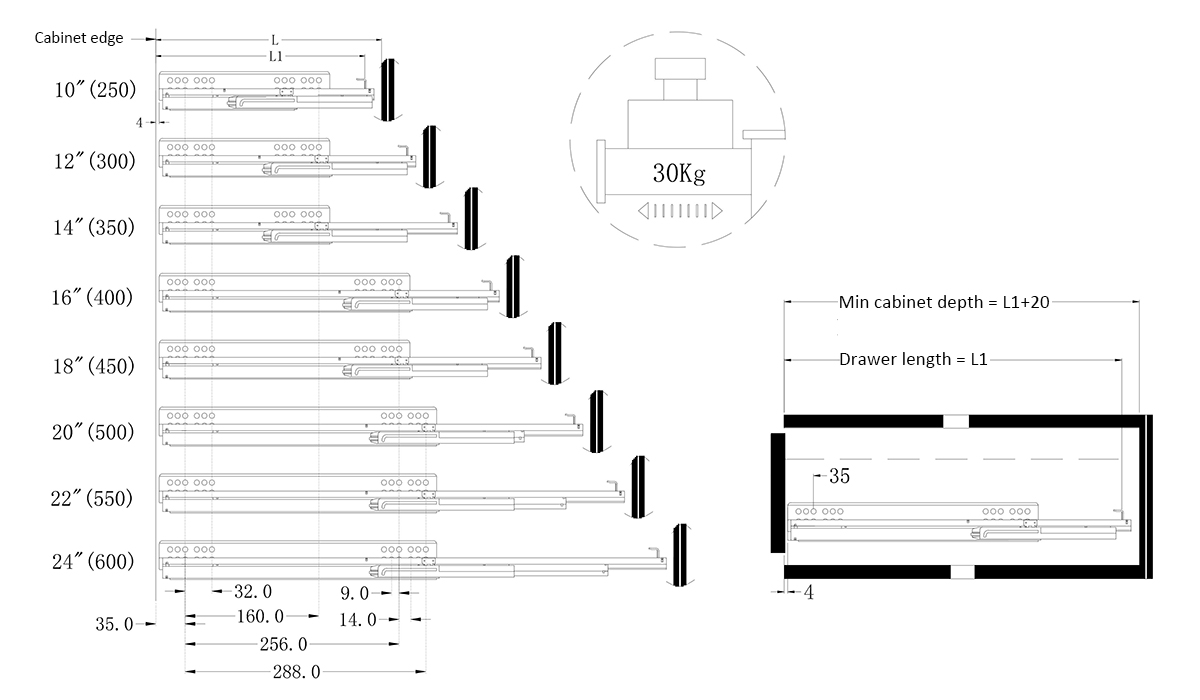

concealed drawer slide size

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit (set)/Box

EURV6-10”/250

257mm

250mm

270mm

10

EURV6-12”/300

307mm

300mm

320mm

10

EURV6-14”/350

357mm

350mm

370mm

10

EURV6-16”/400

407mm

400mm

420mm

10

EURV6-18”/450

457mm

450mm

470mm

10

EURV6-20”/500

507mm

500mm

520mm

10

EURV6-22”/550

557mm

550mm

570mm

10

Installation:

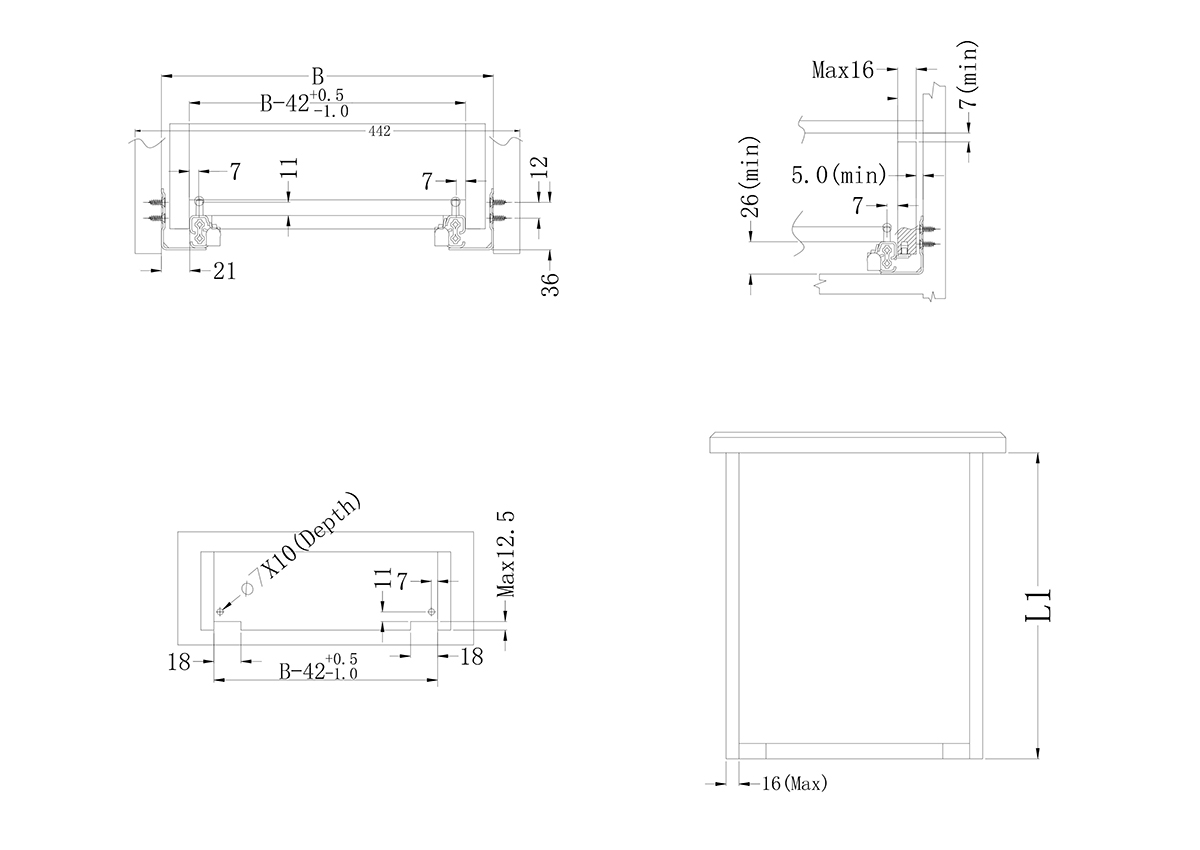

cabinet inside space

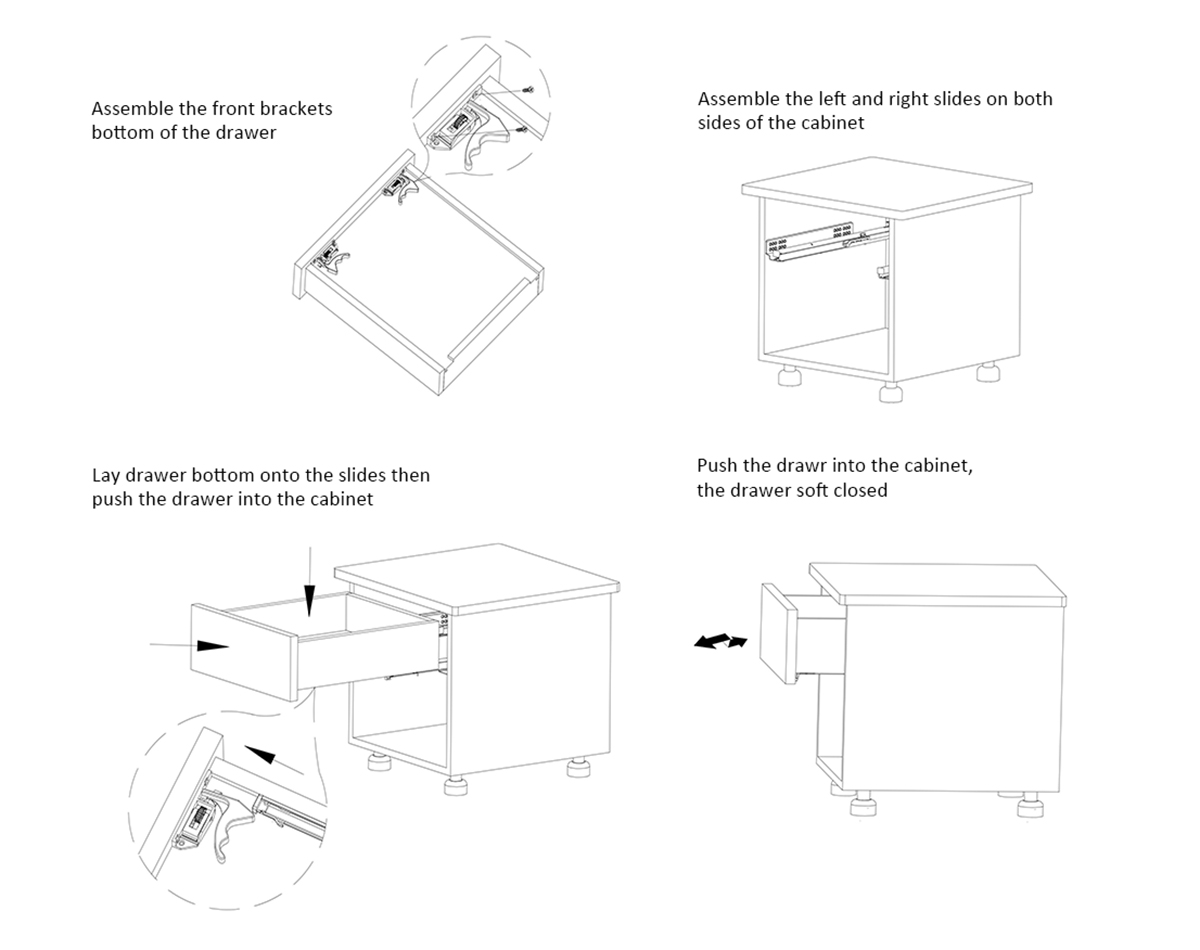

Installation

Certification:

Packing Details:

Package

Workshop:

WORKSHOP
