V2 Single extension hydraulic drawer slides concealed

Short Description:

Model No.: EUR-V2

V2 Single extension hydraulic drawer slides concealed usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

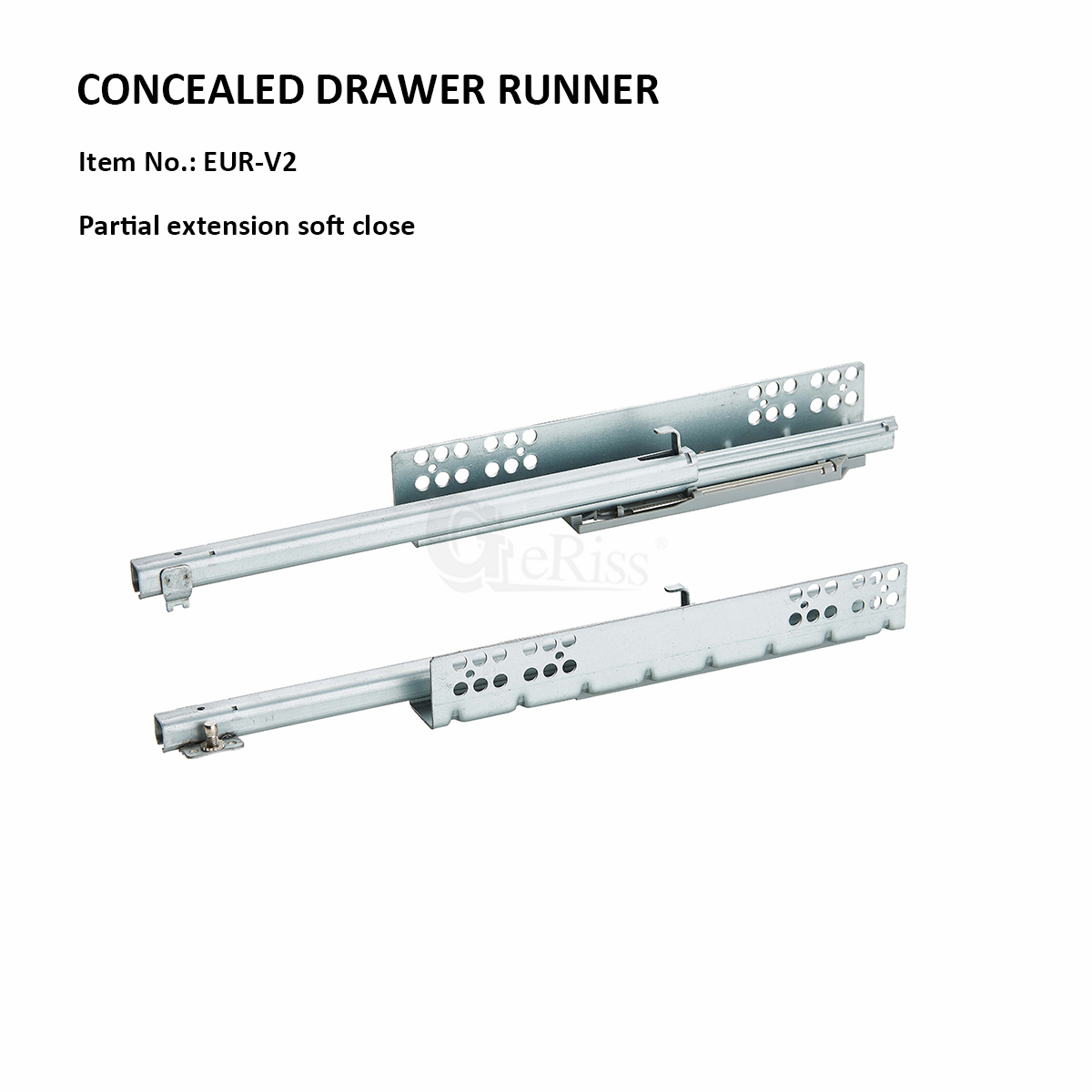

Concealed Drawer Runner

Description:

Product Name:

  Concealed Drawer Slides

Item No.:

  EUR-V2

Brand:

  GERISS

Materials:

  Galvanized Sheet

Material Thickness:

  1.5 x 1.5 mm

Surface:

  Zinc Plated

Size Range:

  10 Inch -22 Inch(250mm-550mm)

Load Capacity:

  25.0kg

Opening:

  Single Extension

Installation:

  Bottom Mount of Drawer

Separate Way:

  Adjustable screws

Application:

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

  Over 50,000 times

Features:

  Drawer pull out and close without noise, soft close.

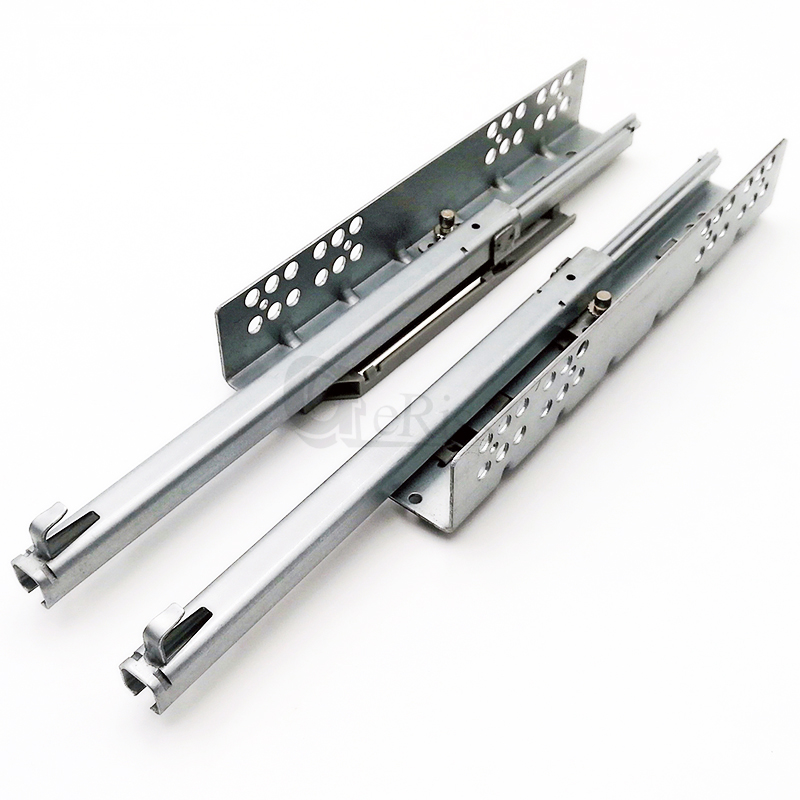

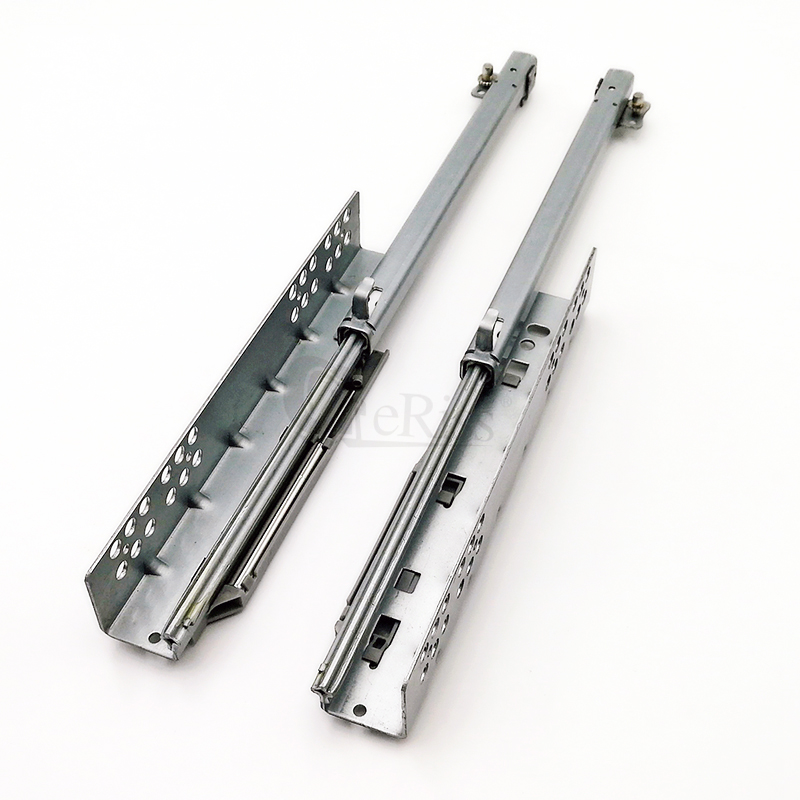

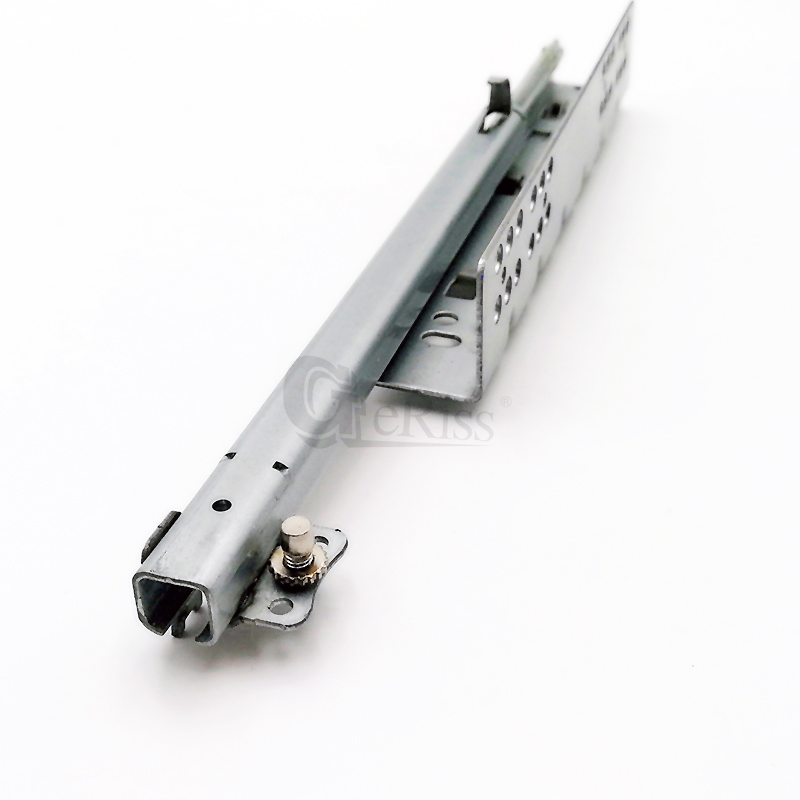

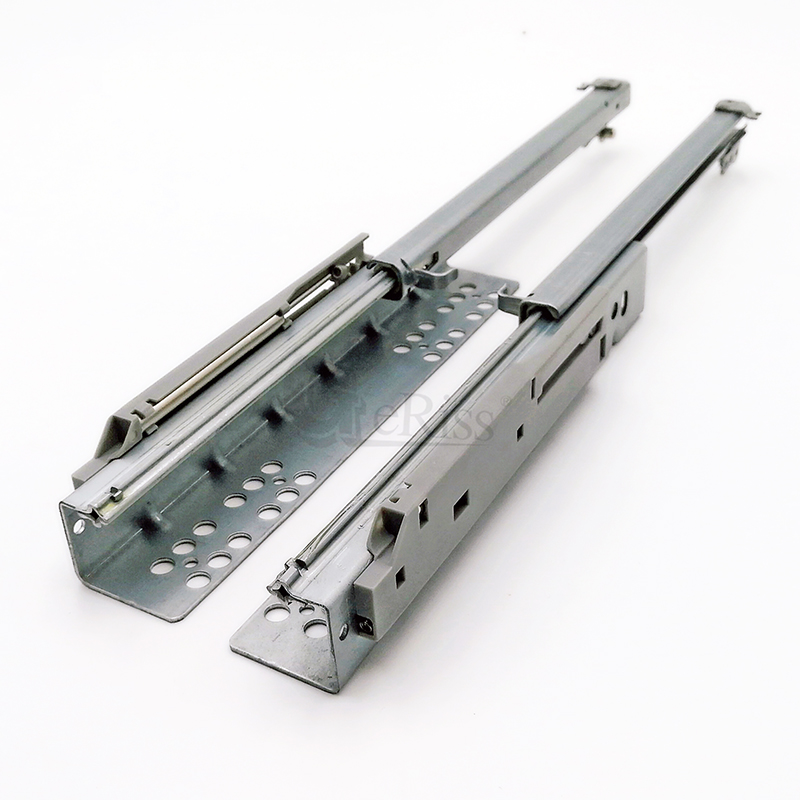

Details Photos:

Mounting Holes Location:

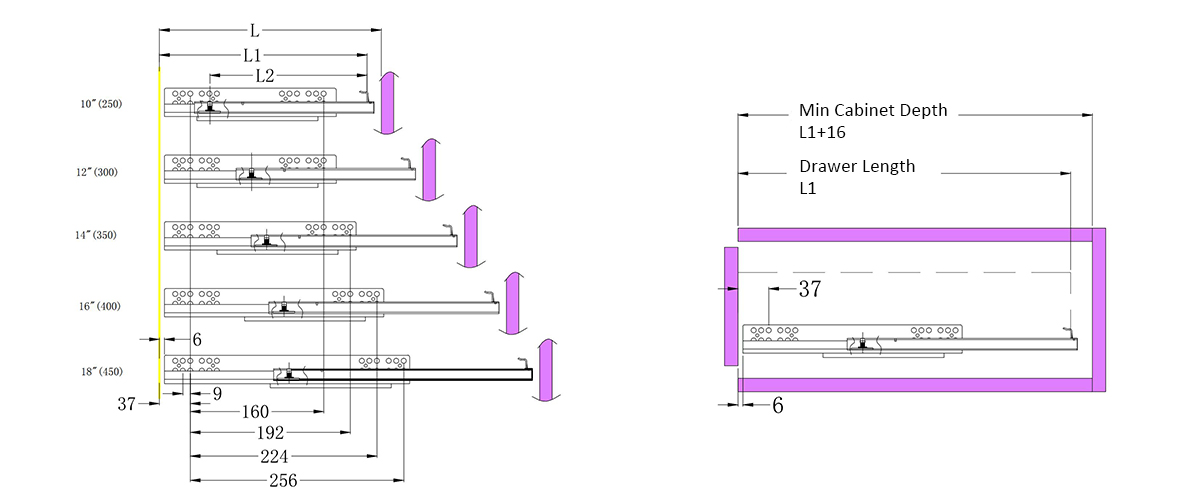

Concealed Drawer Slide Size
Item No. Slide Length Drawer Length(L1) Min Cabinet Depth(L) Assembling Hole(L2)
EURV2-250 251mm 250mm 266mm 188.5mm
EURV2-300 301mm 300mm 316mm 188.5mm
EURV2-350 351mm 350mm 366mm 220.5mm
EURV2-400 401mm 400mm 416mm 149.5mm
EURV2-450 451mm 450mm 466mm 183.5mm

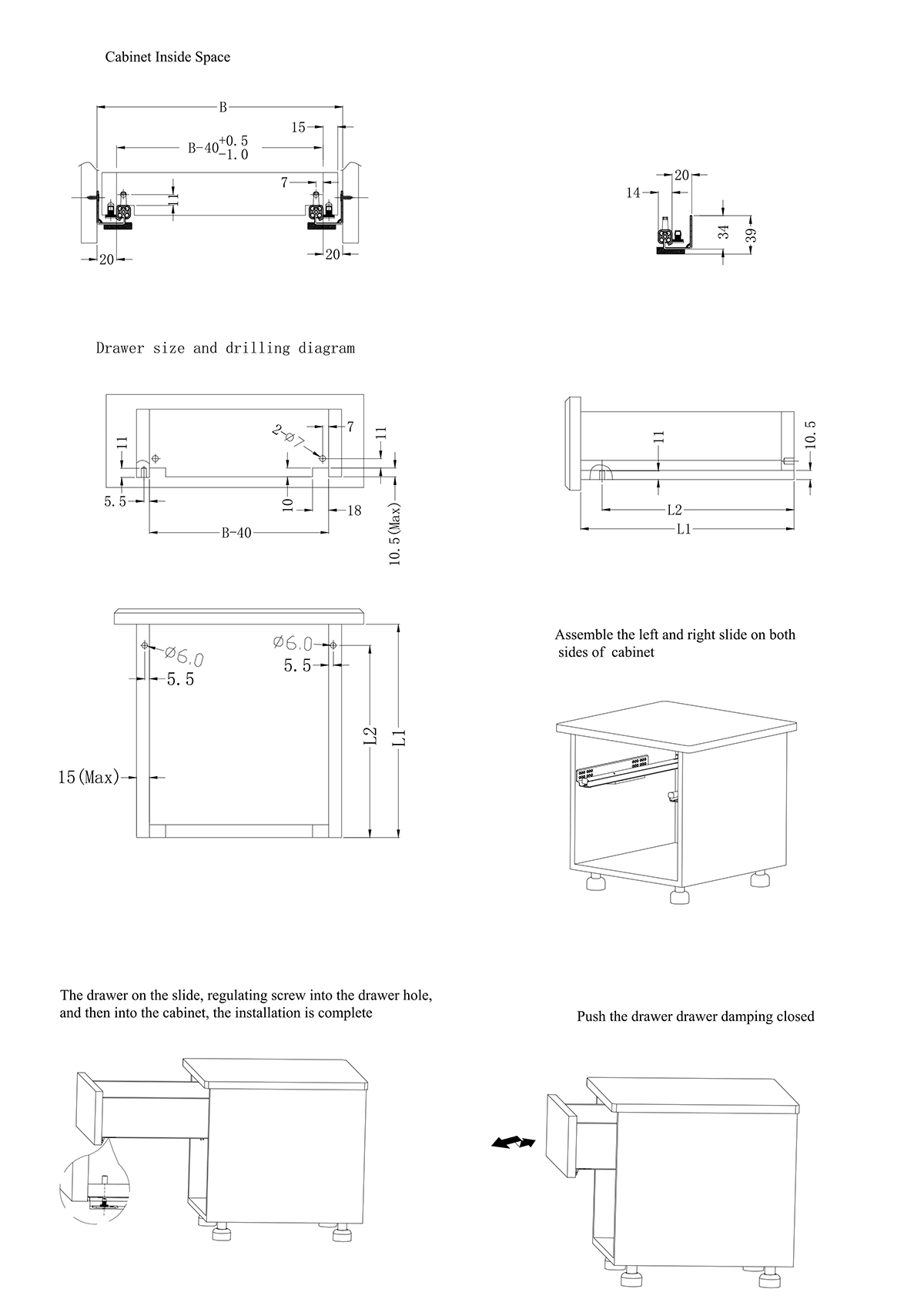

Installation:

Installation

Certification:

Packing Details:

Item No. PACKAGE(SET/CTN) N.W(KG)/CTN G.W(KG)/CTN
EUR-V2-250 10 5.60 5.80
EUR-V2-300 10 6.00 6.20
EUR-V2-350 10 6.50 6.70
EUR-V2-400 10 7.50 7.70
EUR-V2-450 10 8.50 8.70
Package

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
