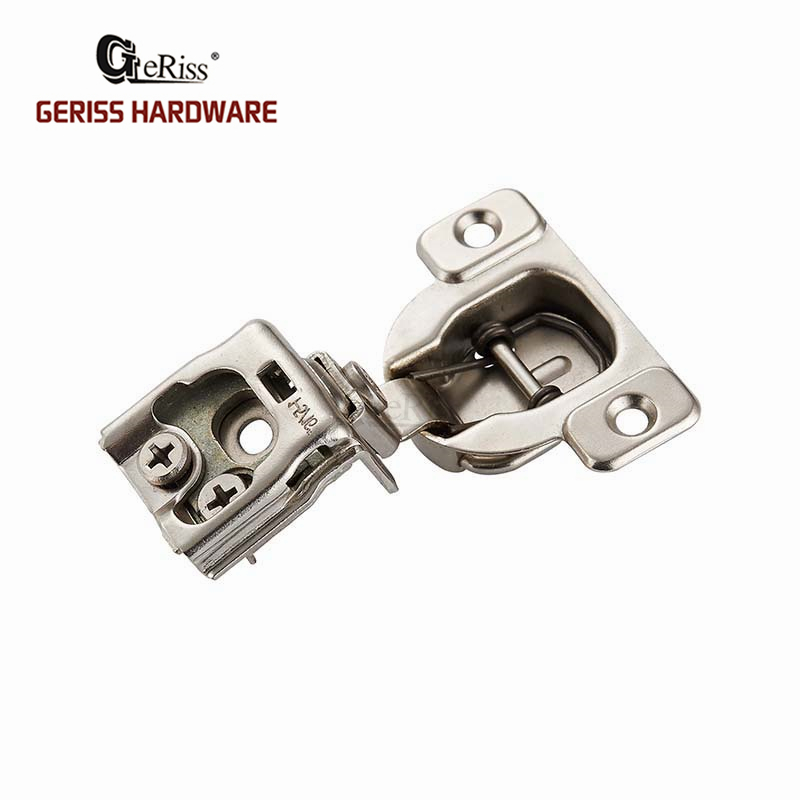

1-5/16″ American type face frame cabinet 3D adjustable normal concealed door hinge
Description:
| Product Name: | 1-5/16" American type face frame cabinet 3D adjustable normal concealed door hinge |
| Hinge cup diameter: | 35 mm |
| Hinge cup pattern | 45 mm |
| Depth of hinge cup: | 11 mm |
| Opening angle: | 105° |
| Drilling distances on door (K): | 3-7 mm |
| Door thickness: | 14-26 mm |
| Surface: | Nickel plated |
| Function: | 3D adjustable |
| Available accessories: | Dowels |
| Available package: | - 300 pcs with bulk in a Moisture Barrier Bag and in the carton; |
| - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements. | |
| Application: | Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc... |

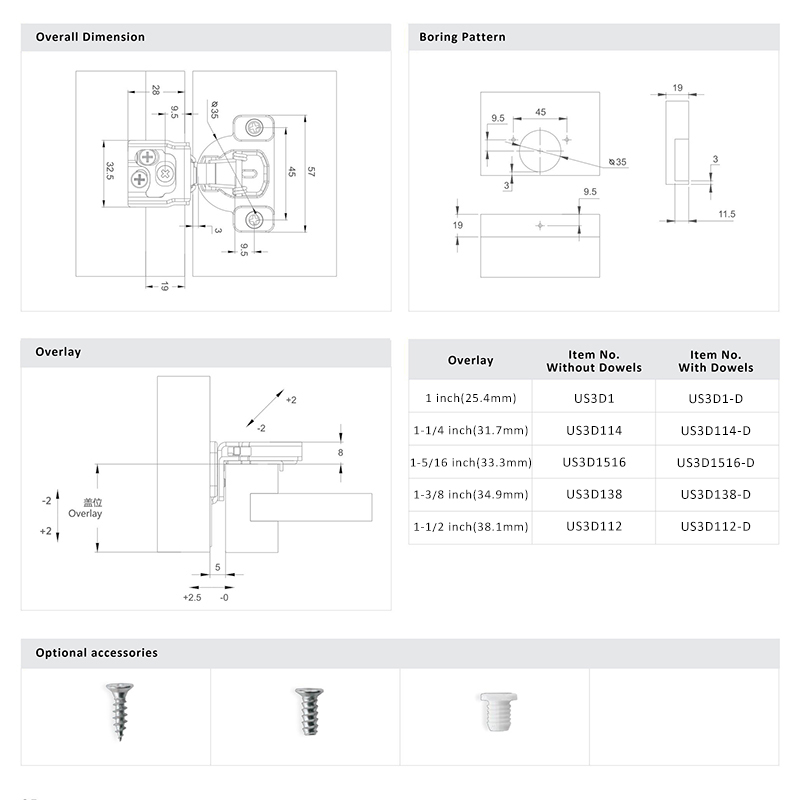

PRODUCT DETAILS:
ADVANTAGES AND BENEFITS:
- 1-5/16" American type face frame cabinet 3D adjustable normal concealed door hinge
- 3D adjustable
- Self closing function
- Nickel plated
- Over 48 hours salt spay test
ORDER INFORMATION:
|
Cup hole pitch |
Item No. |
(PCS/BOX) |
|
45mm |
US3D1516 |
300 |
PACKAGE DETAILS:
1-5/16" American type face frame cabinet 3D adjustable normal concealed door hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
