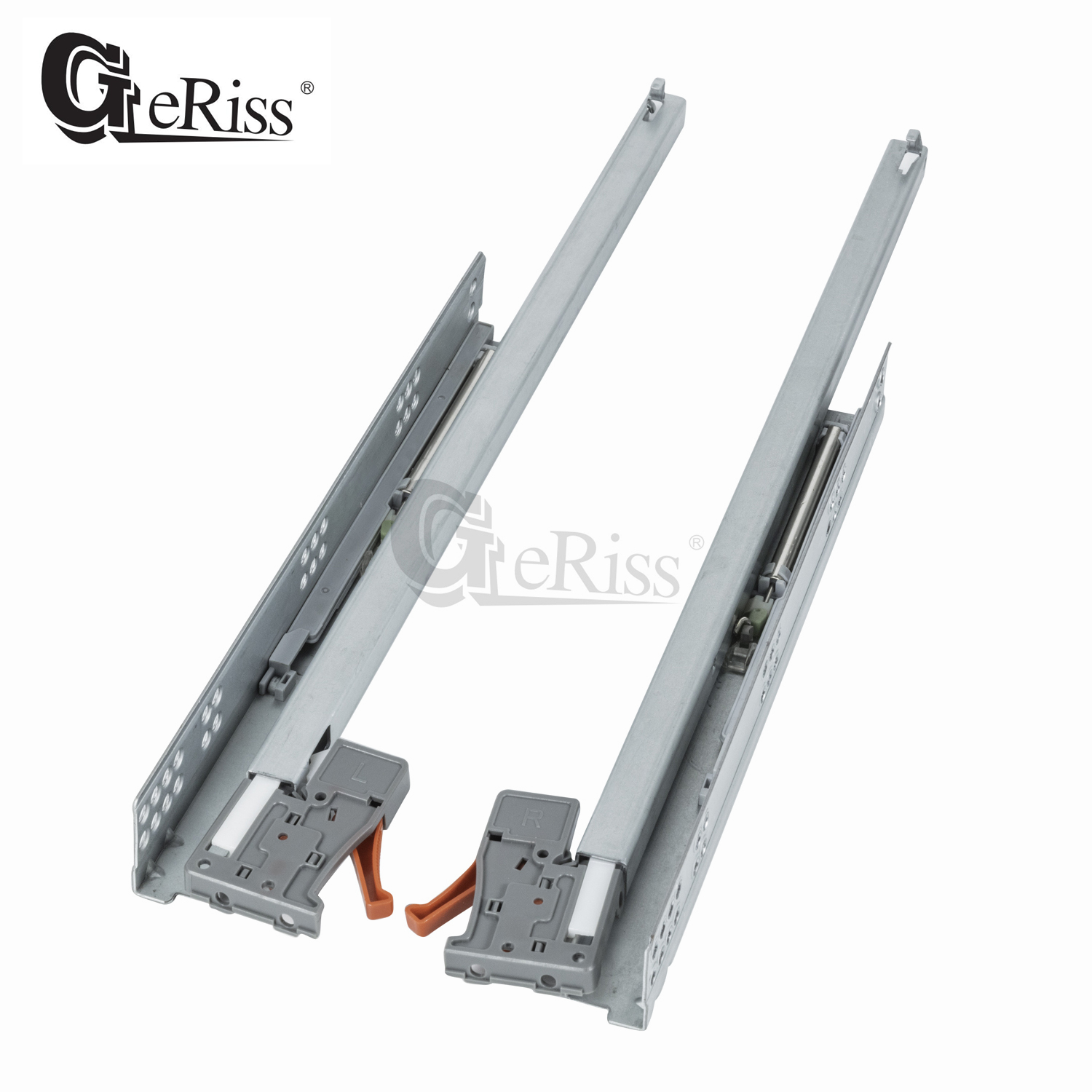

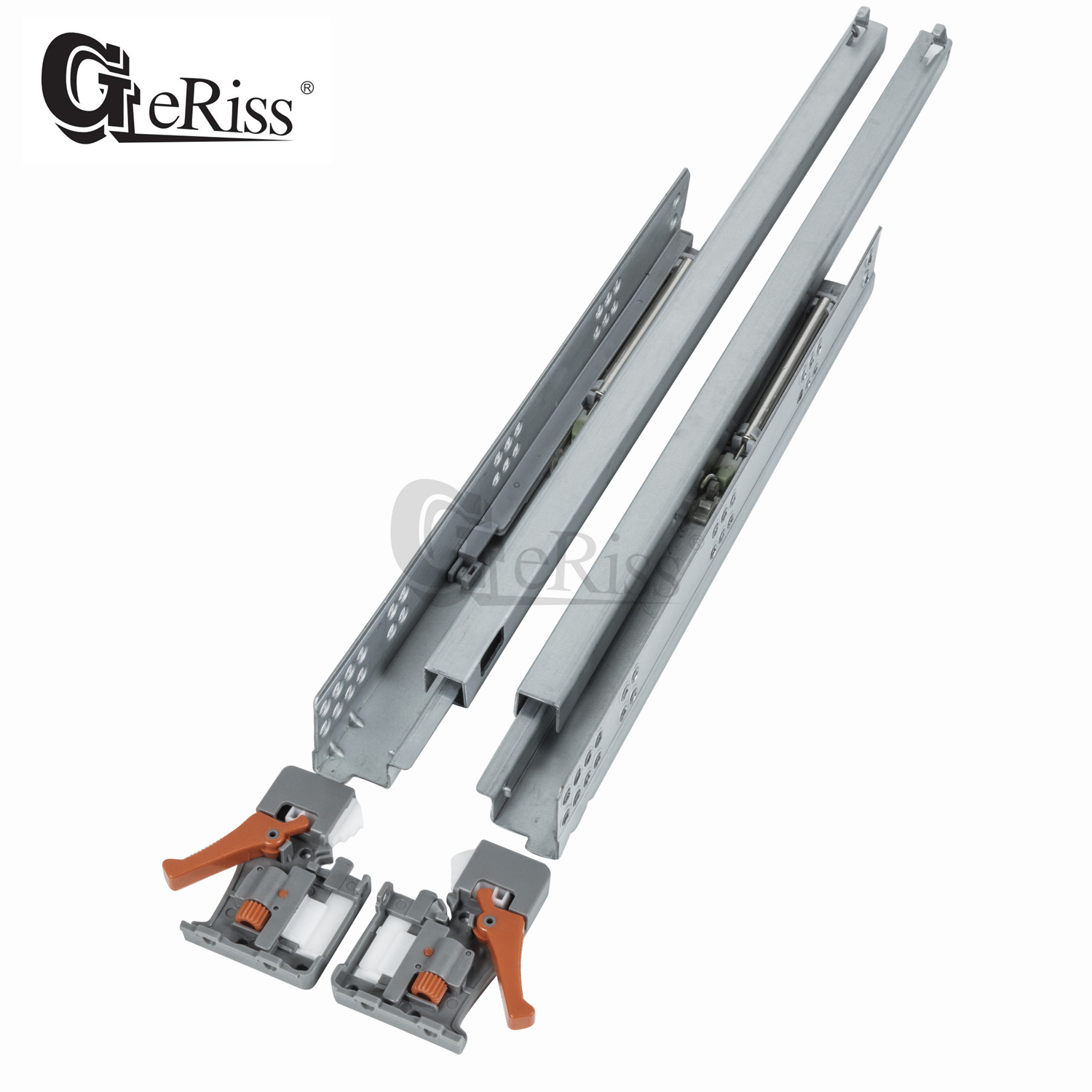

Single Extension Soft Close Undermount Drawer Slides
With Front Locking Device
Product Name: |
Concealed Drawer Slides |
Item No.: |
EUR23B |
Brand: |
GERISS |
Materials: |
Galvanized Sheet |
Material Thickness: |
1.5 x 1.5 mm |
Surface: |
Zinc Plated |
Size Range: |
10 Inch -22 Inch(250mm-550mm) |
Load Capacity: |
25.0kg |
Opening: |
Single Extension |
Installation: |
Bottom Mount of Drawer |
Separate Way: |

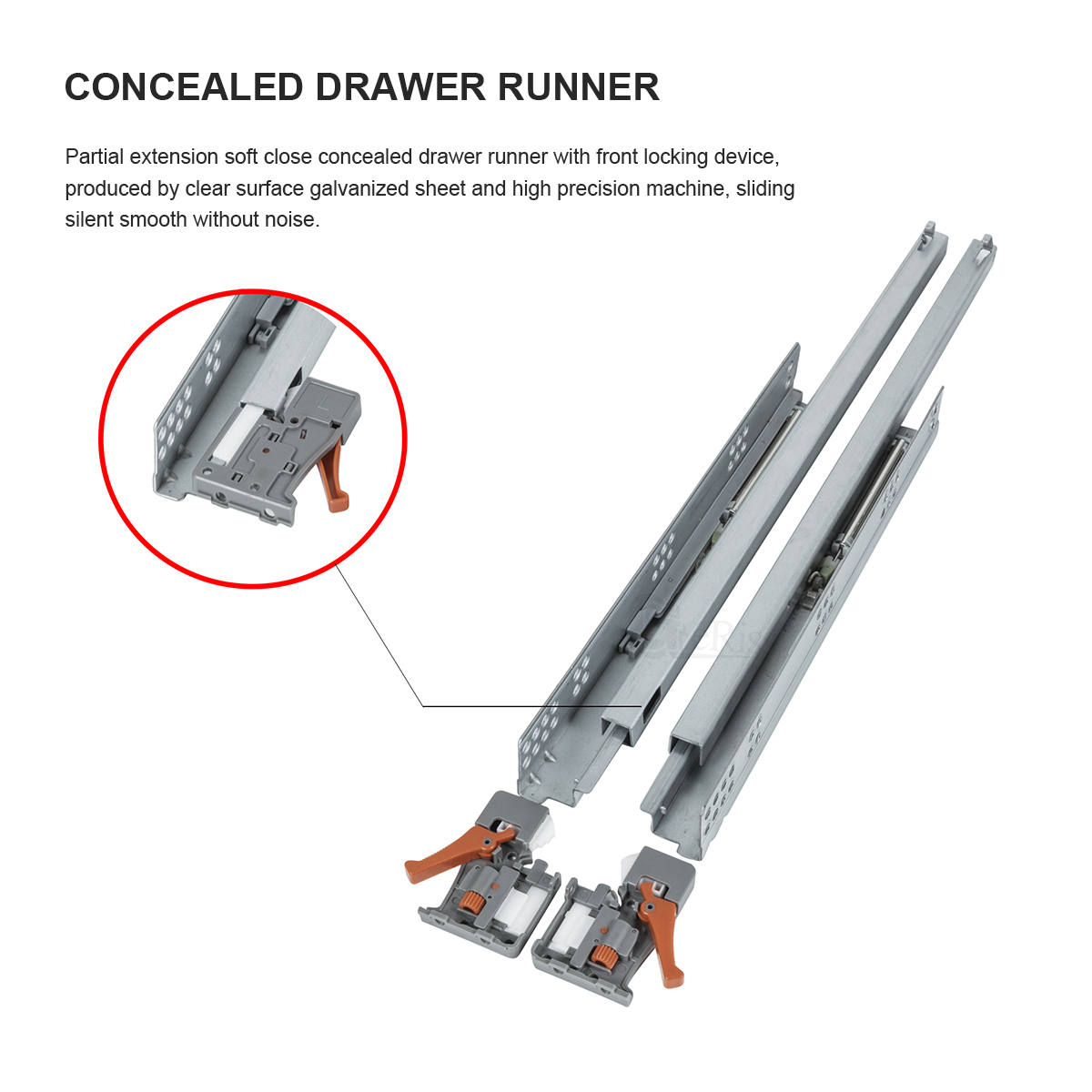

Front locking device |
Application: |
Kitchen & Bathroom Drawers, Furniture Drawers etc. |
Cycling Test: |
Over 50,000 times |
Features: |

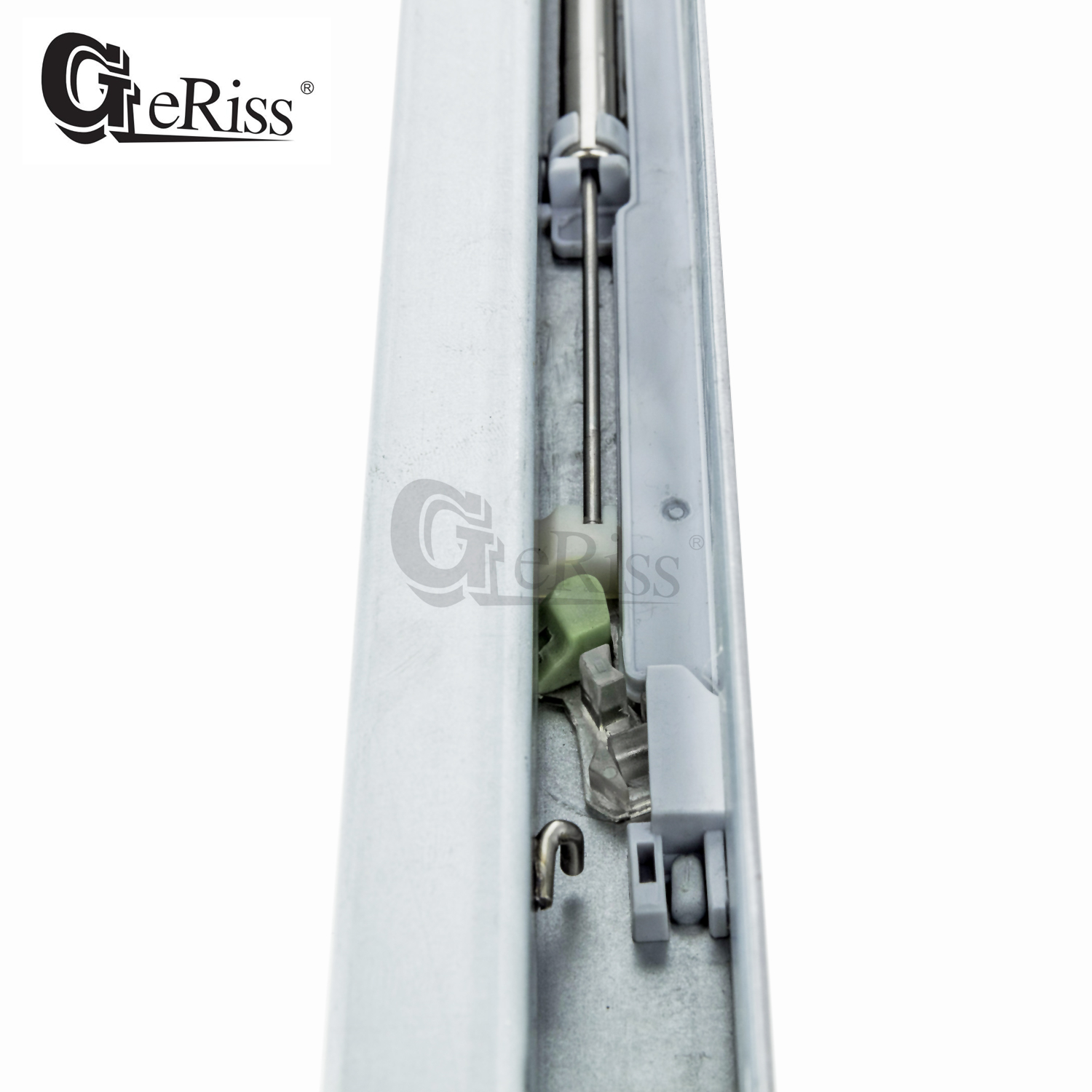

Drawer pull out and close without noise, soft close. |

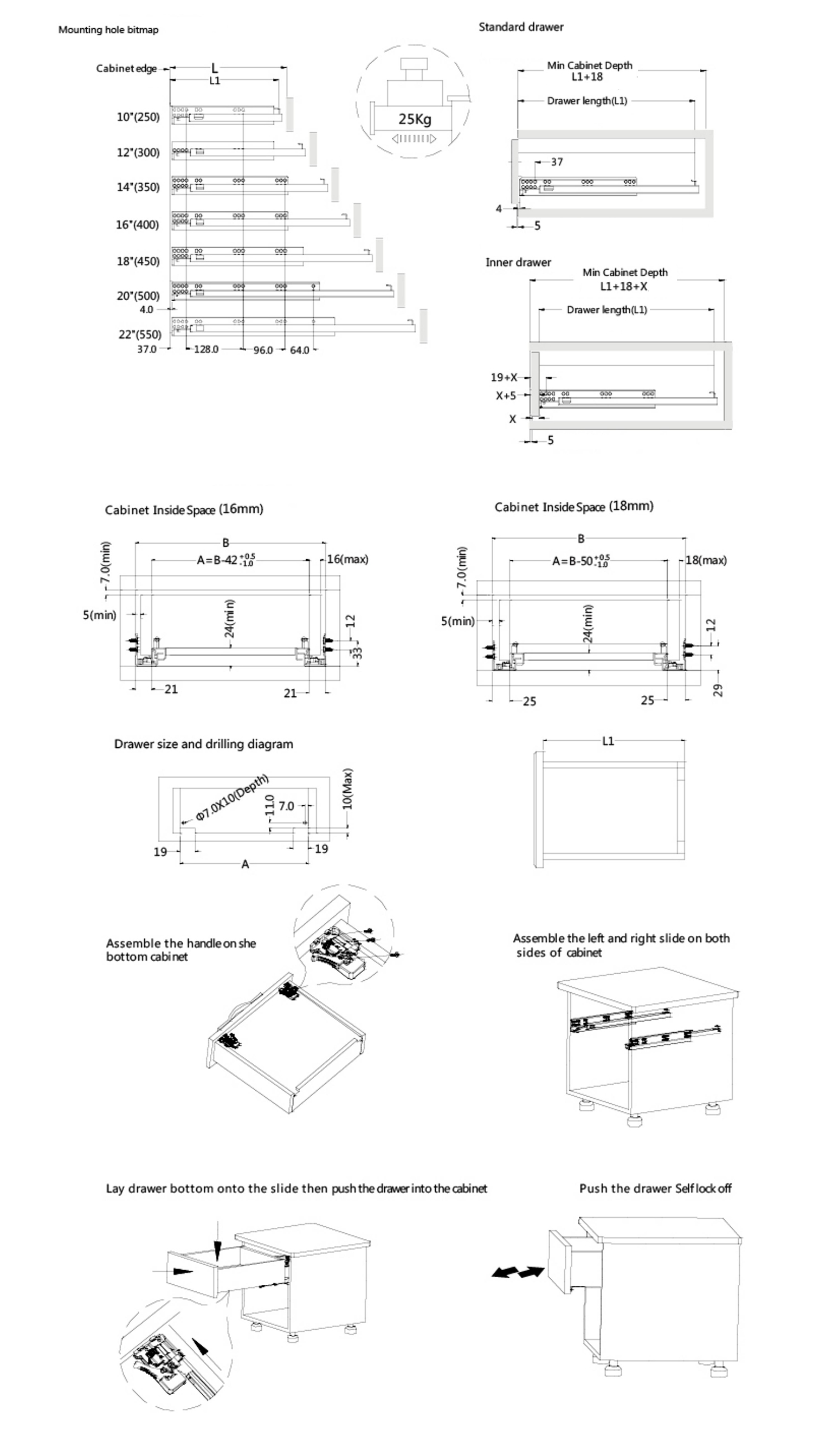

Installation Details:
Item No.-16mm |
Item No.-18mm |
Slide Length |
Drawer Length (L1) |
Min Cabinet Depth(L) |
Packing Unit (set)/CTN |
EUR23B16.250 |
EUR23B18.300 |
256mm |
250mm |
318mm |
10 |
EUR23B16.300 |
EUR23B18.300 |
305mm |
300mm |
318mm |
10 |
EUR23B16.350 |
EUR23B18.350 |
355mm |
350mm |
368mm |
10 |
EUR23B16.400 |
EUR23B18.400 |
405mm |
400mm |
418mm |
10 |
EUR23B16.450 |
EUR23B18.450 |
455mm |
450mm |
468mm |
10 |
EUR23B16.500 |
EUR23B18.500 |
505mm |
500mm |
518mm |
10 |
EUR23B16.550 |
EUR23B18.550 |
555mm |
550mm |
568mm |
10 |
Item No. -16mm |
Item No. -18mm |
Package(SET/CTN) |
N.W(KGS) |
G.W(KGS) |
MEAS(CM) |
20' GP |
EUR23B16-250 |
EUR23B18-250 |
10 |
5.90 |
6.10 |
33x23x9.5 |
32,000 |
EUR23B16-300 |
EUR23B18-300 |
10 |
6.55 |
6.75 |
38x23x9.5 |
28,000 |
EUR23B16-350 |
EUR23B18-350 |
10 |
6.17 |
9.47 |
43x23x9.5 |
20,000 |
EUR23B16-400 |
EUR23B18-400 |
10 |
10.48 |
10.78 |
48x23x9.5 |
18,000 |
EUR23B16-450 |
EUR23B18-450 |
10 |
11.79 |
12.09 |
53x23x9.5 |
16,000 |
EUR23B16-500 |
EUR23B18-500 |
10 |
13.10 |
13.40 |
58x23x9.5 |
14,800 |
EUR23B16-550 |
EUR23B16-550 |
10 |
14.30 |
14.60 |
58x23x9.5 |
13,000 |
