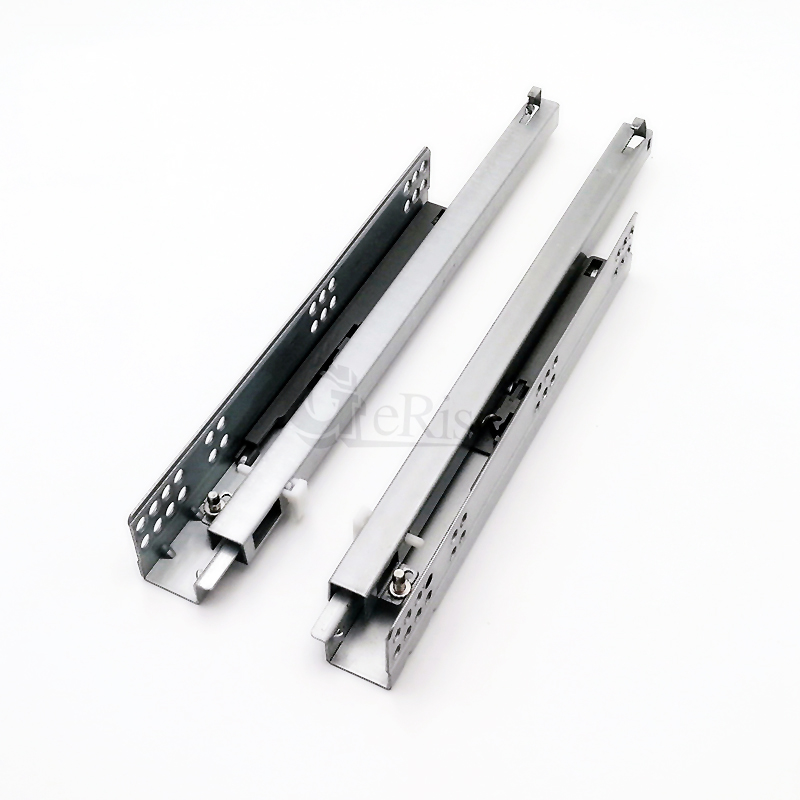

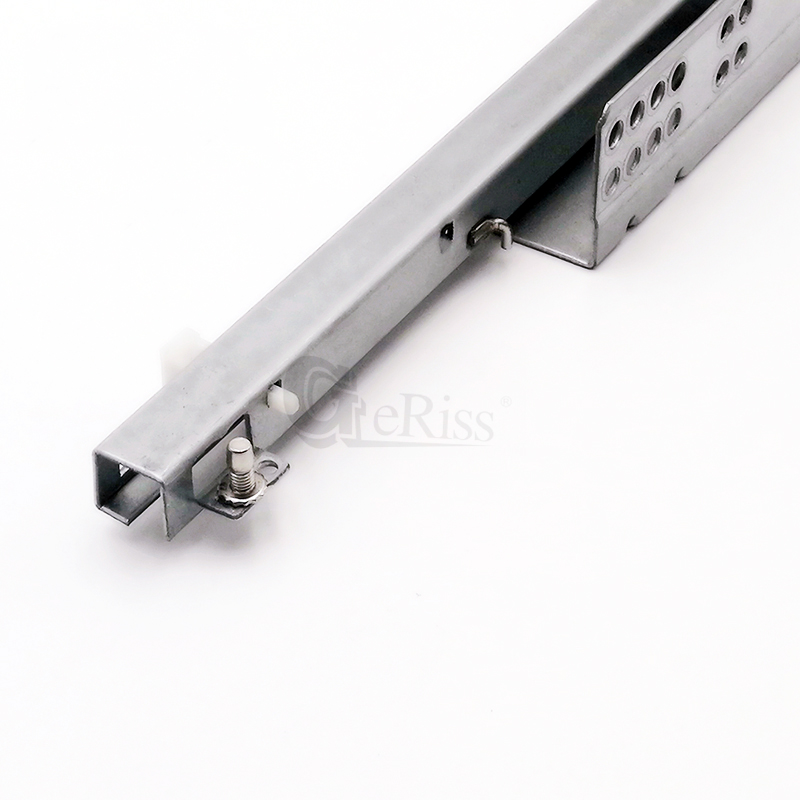

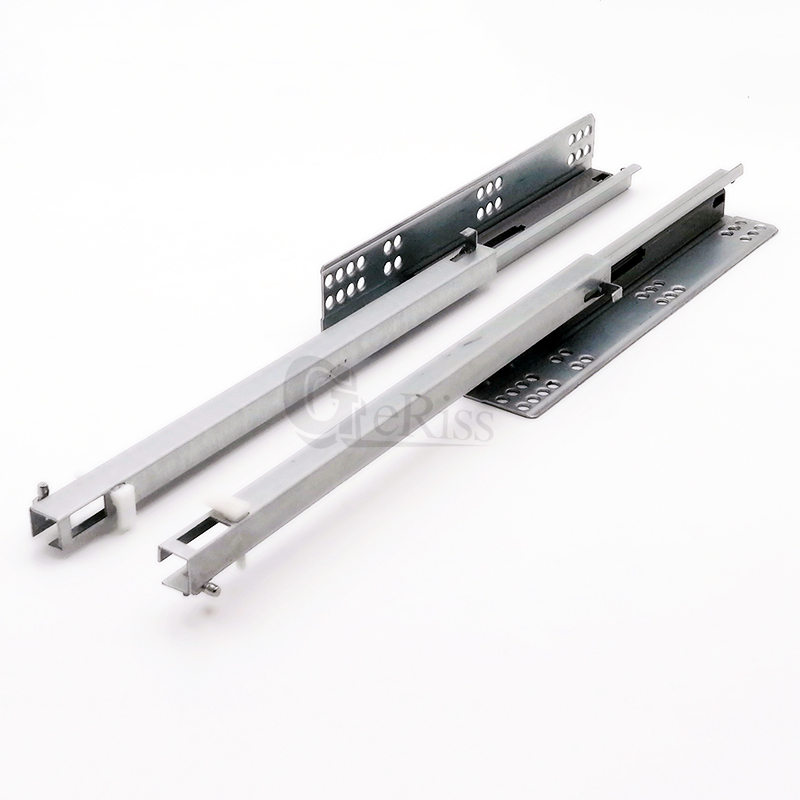

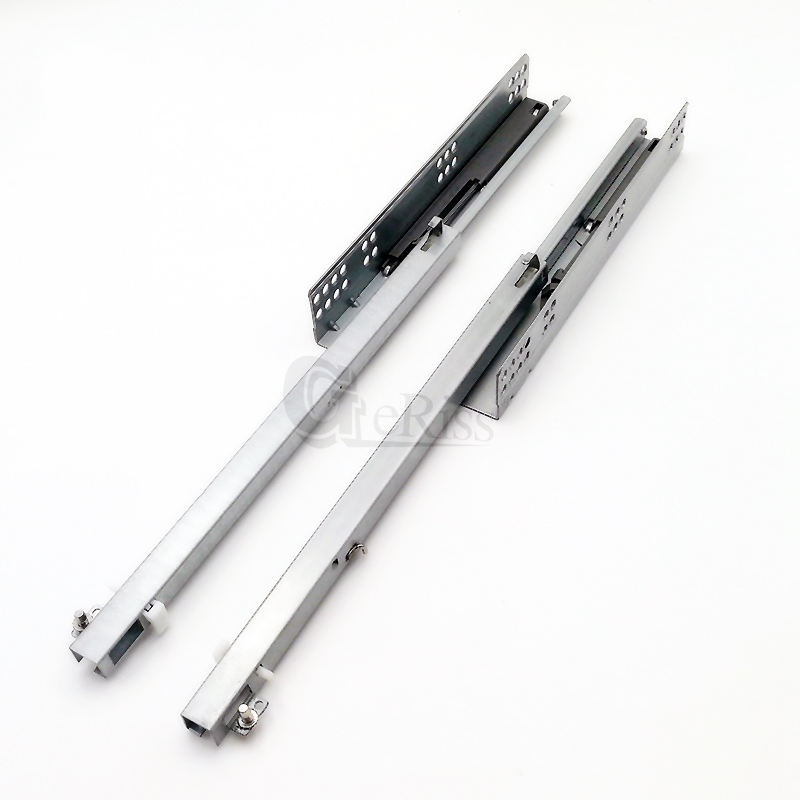

Single Extension Push-open Undermount Drawer Slide with Adjustable Screws

Short Description:

Model No.: EUR23C

Single Extension Push-open Undermount Drawer Slide with Adjustable Screws usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws and plastic plugs fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

Description:

Concealed Drawer Runners,Partial Extraction,Push to Open System

Product Name:

  Concealed Drawer Slides

Item No.:

  EUR23C

Brand:

  GERISS

Materials:

  Galvanized Sheet

Material Thickness:

  1.5 x 1.5 mm

Surface:

  Zinc Plated

Size Range:

  10 Inch -22 Inch(250mm-550mm)

Load Capacity:

  25.0kg

Opening:

  Single Extension

Installation:

  Bottom Mount of Drawer

Separate Way:

  Adjustable screws and plastic plugs

Application:

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

  Over 50,000 times

Features:

  Drawer pull out and close without noise, soft close.

Product Details:

Specification:

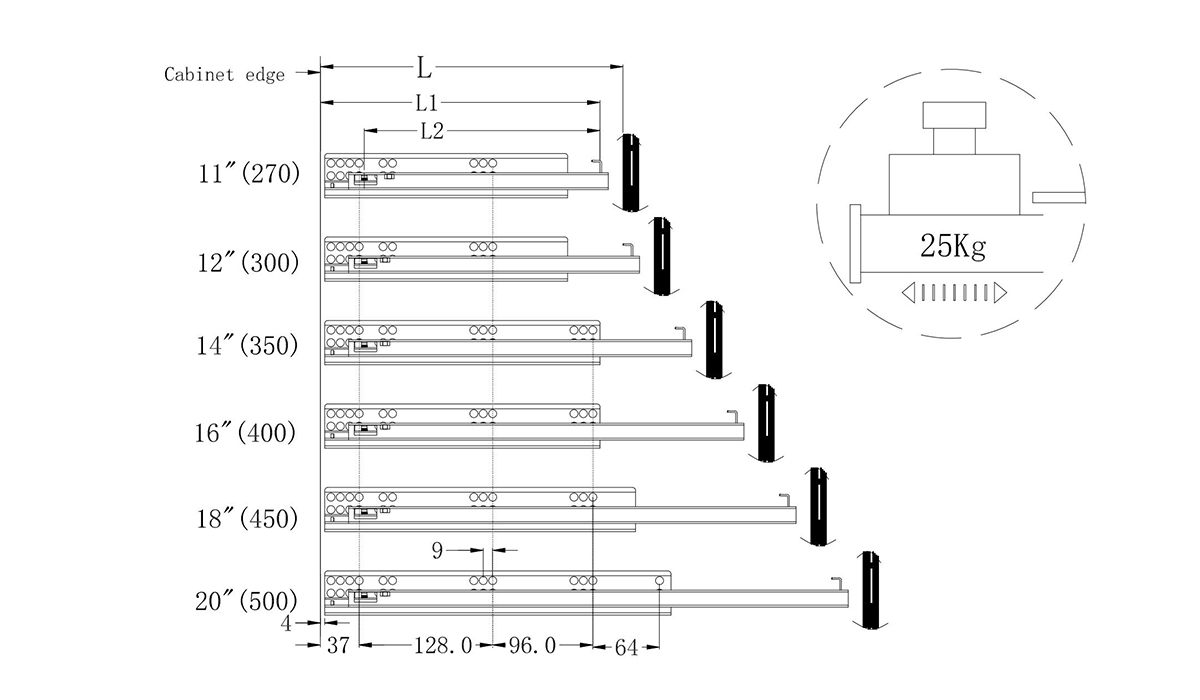

Concealed Drawer Slide Size

Item No.

Slide Length

Drawer Length (L1)

Min Cabinet Depth(L)

Assembling Hole(L2)

EUR23C-300

306mm

300mm

320mm

256mm

EUR23C-350

356mm

350mm

370mm

306mm

EUR23C-400

406mm

400mm

420mm

356mm

EUR23C-450

456mm

450mm

370mm

406mm

EUR23C-500

506mm

500mm

520mm

456mm

Installation:

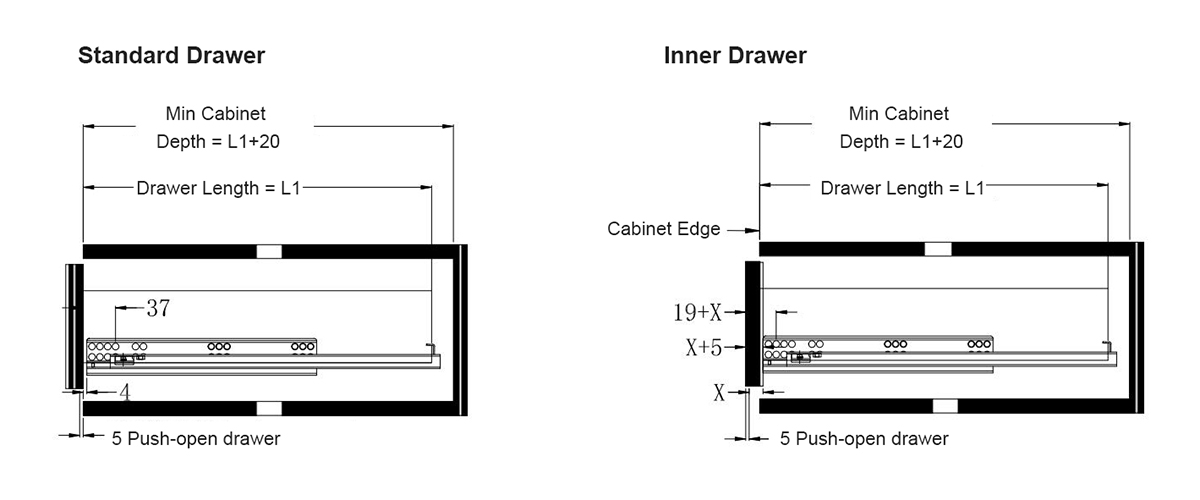

Drawer Slide Installation 001

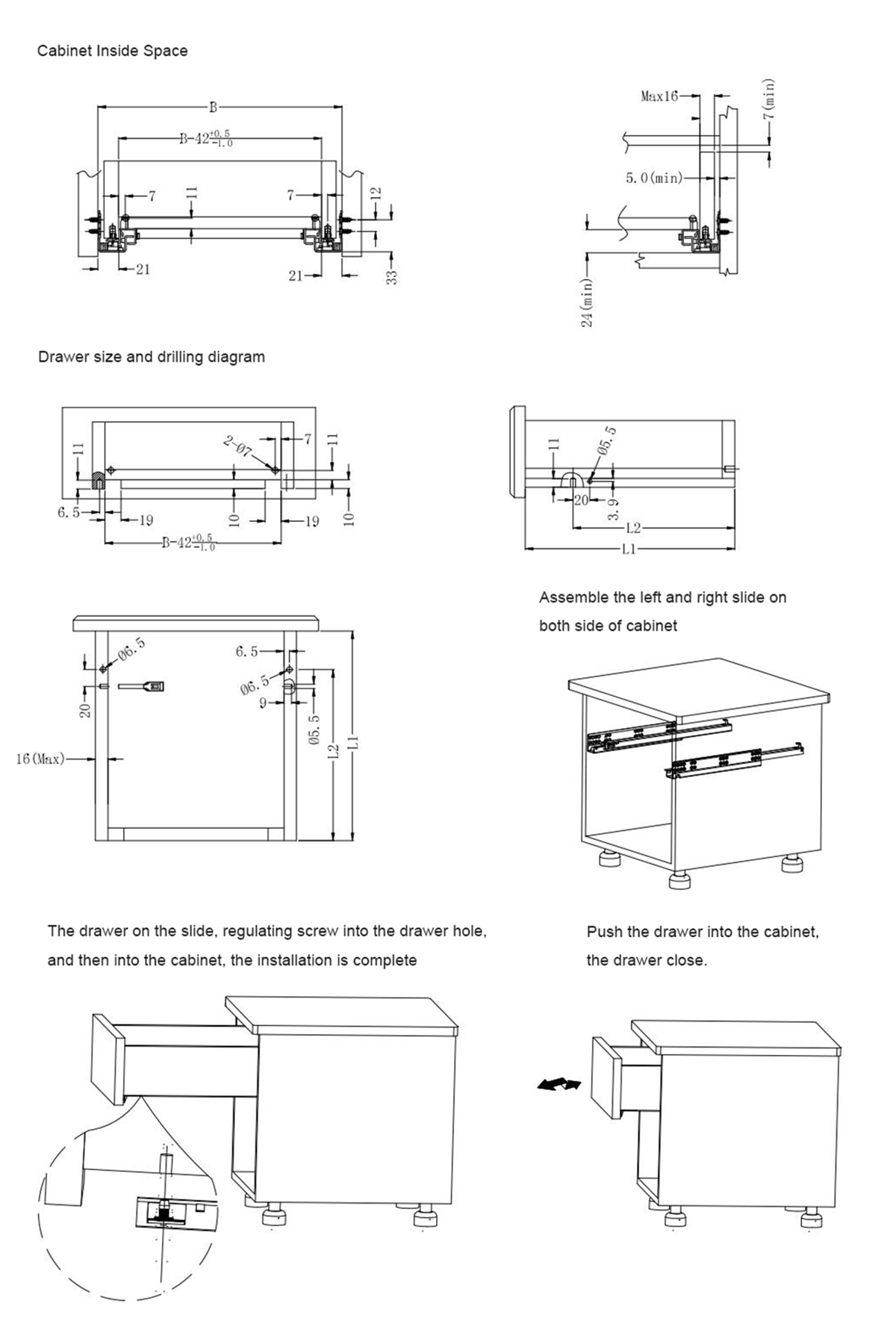

Drawer Slide Installation 002

Certification:

Packing Details:

Item No.

Package
(SET/CTN)

N.W(KGS)

G.W(KGS)

MEAS(CM)

20' GP

EUR23C-300

10

6.55

6.75

38x23x9.5

28,000

EUR23C-350

10

6.17

9.47

43x23x9.5

20,000

EUR23C-400

10

10.48

10.78

48x23x9.5

18,000

EUR23C-450

10

11.79

12.09

53x23x9.5

16,000

EUR23C-500

10

13.1

13.4

58x23x9.5

14,800

Package
