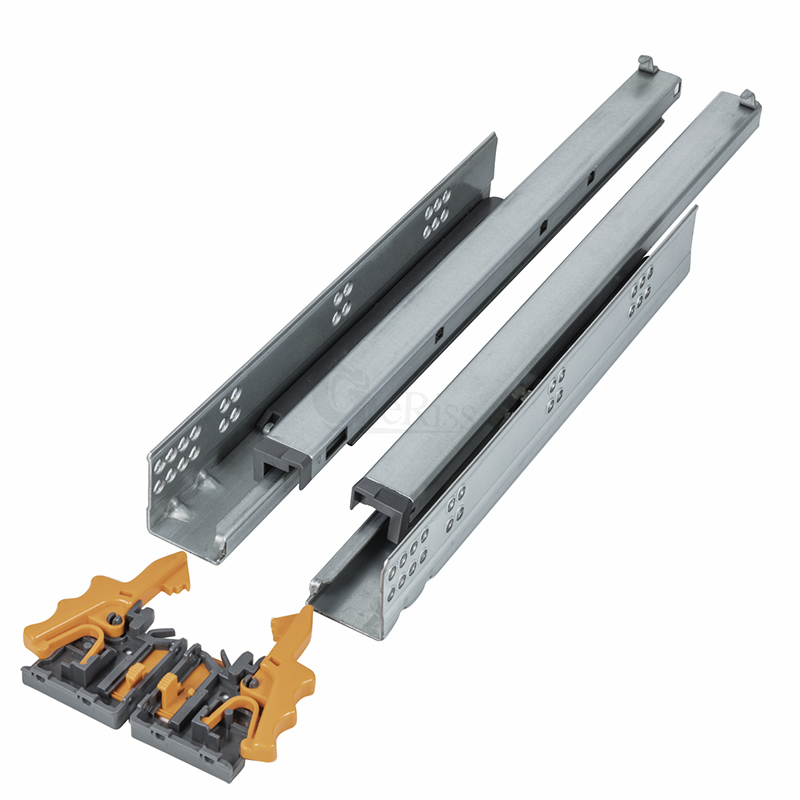

Silent soft close undermount hidden drawer slide full extension with front clips

Short Description:

Model No.: EUR33B

Silent soft close undermount hidden drawer slide full extension with front clips usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use front brackets to fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

bottom mount drawer slide

Full Extension Undermount Drawer Slides,

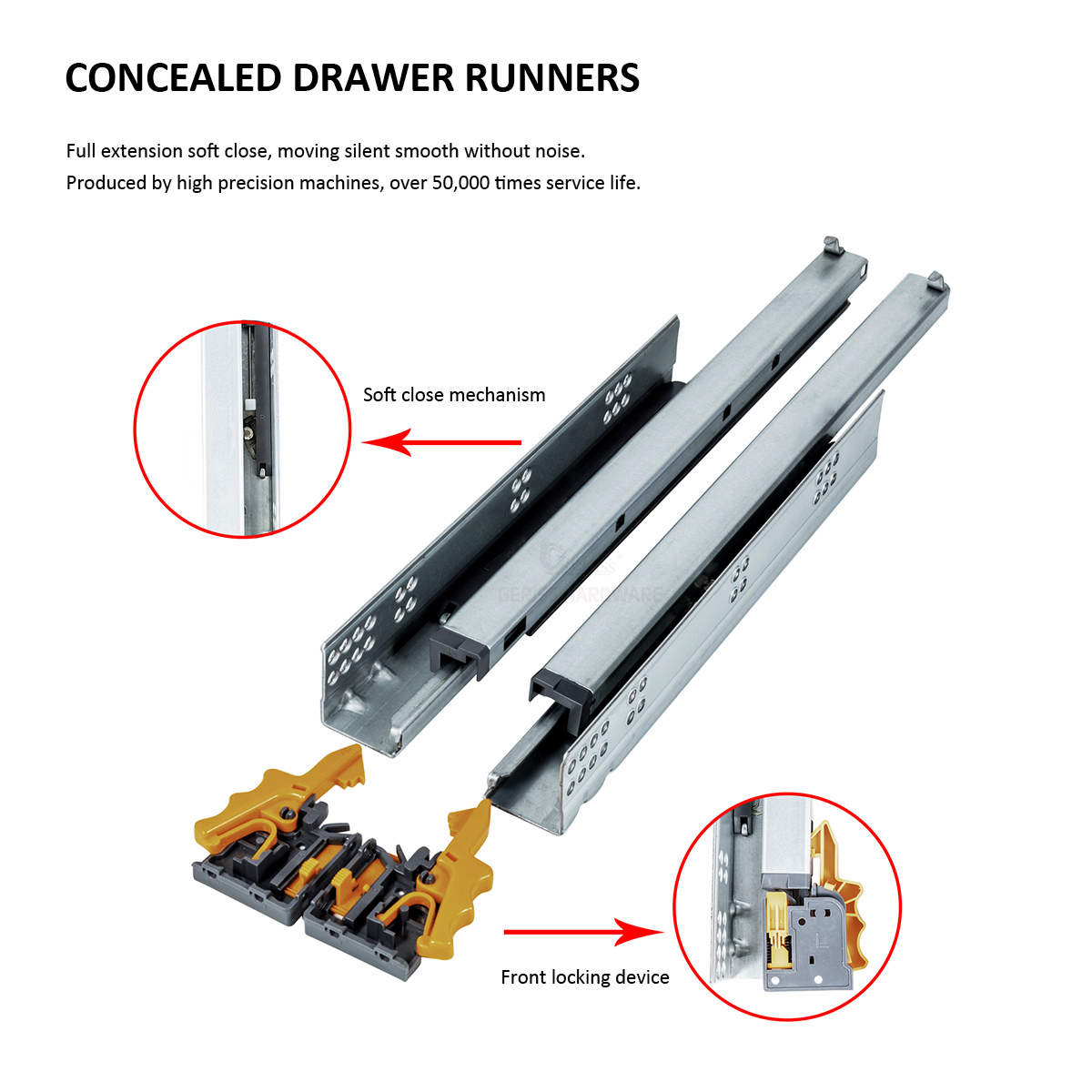

 Soft Close Concealed Drawer Runners, Come with Front Locking Devices

Product Name:

 Concealed Drawer Slides

Item No.:

  EUR33B

Brand:

  GERISS

Materials:

  Galvanized Sheet

Material Thickness:

  1.8 x 1.5 x 1.0 mm

Surface:

  Zinc Plated

Size Range:

  10 Inch -22 Inch(250mm-550mm)

Load Capacity:

  35.0kg

Opening:

  Full Extension

Installation:

  Bottom Mount of Drawer

Separate Way:

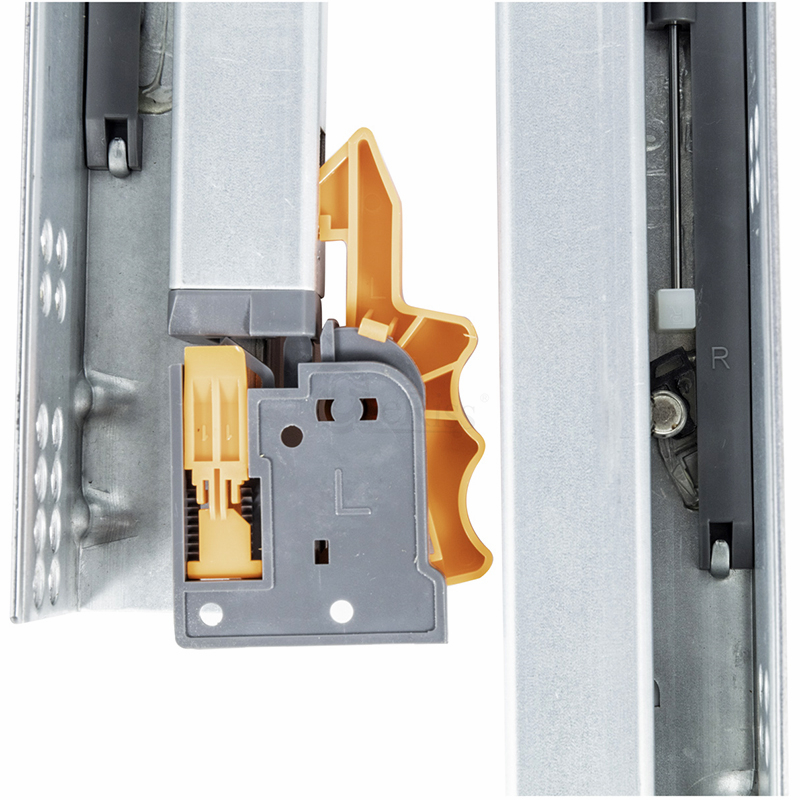

  Front locking devices

Application:

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

  Over 50,000 times

Features:

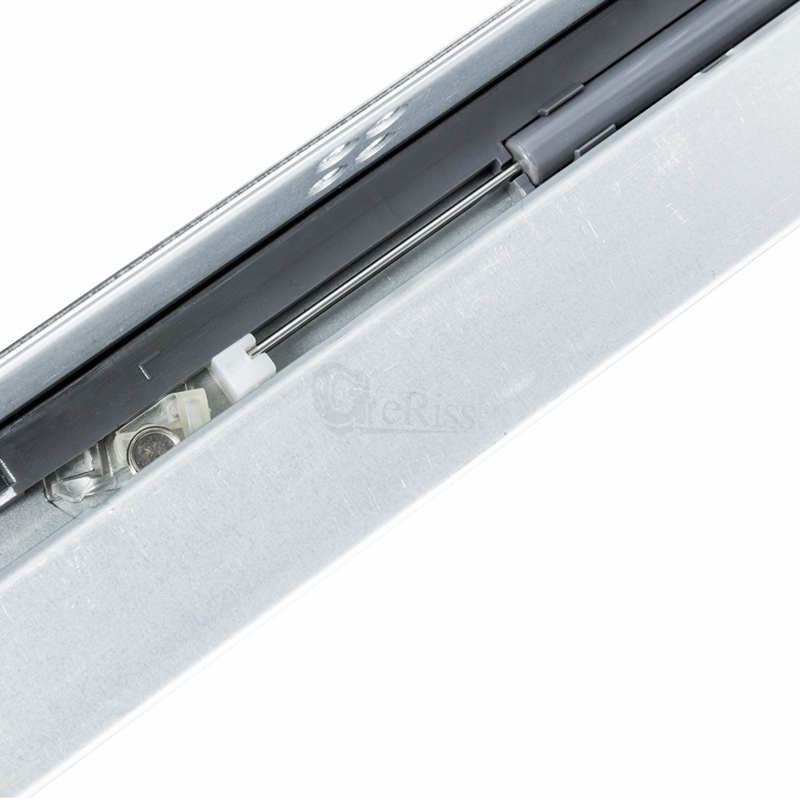

  Drawer pull out and close without noise, soft close.

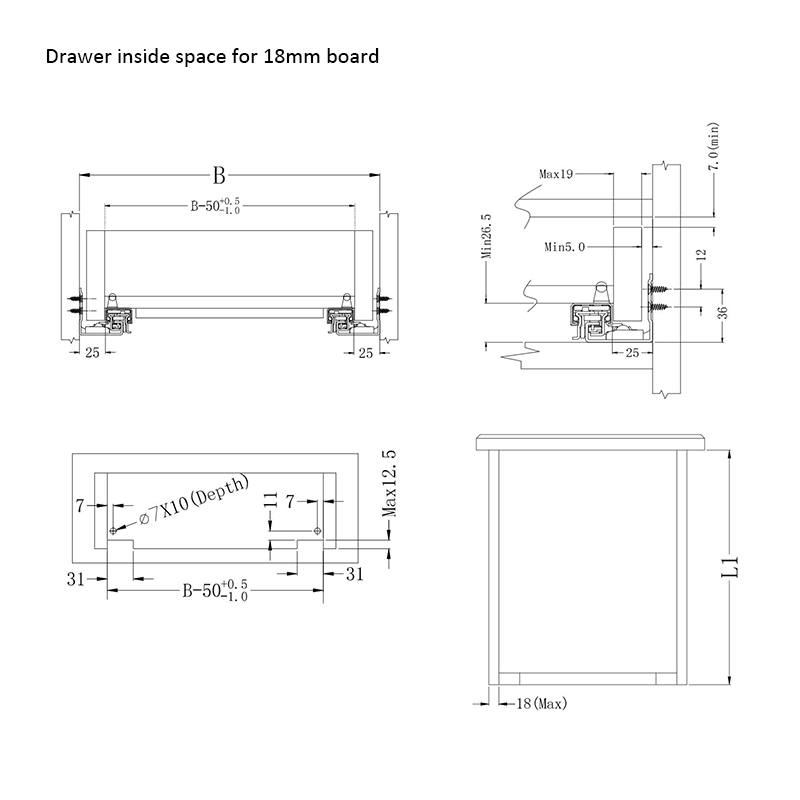

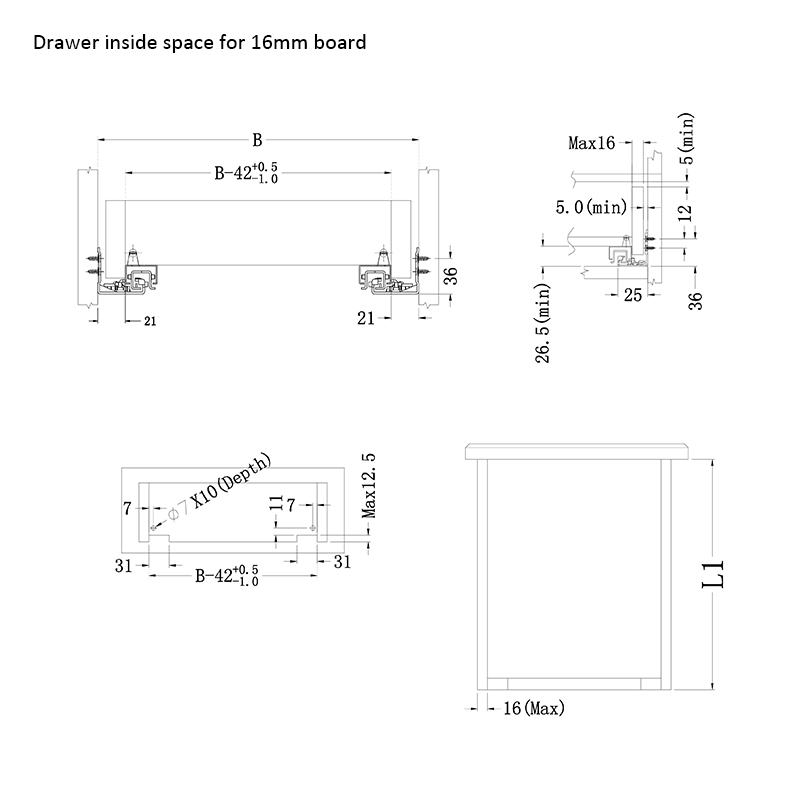

Slide Installation Size:

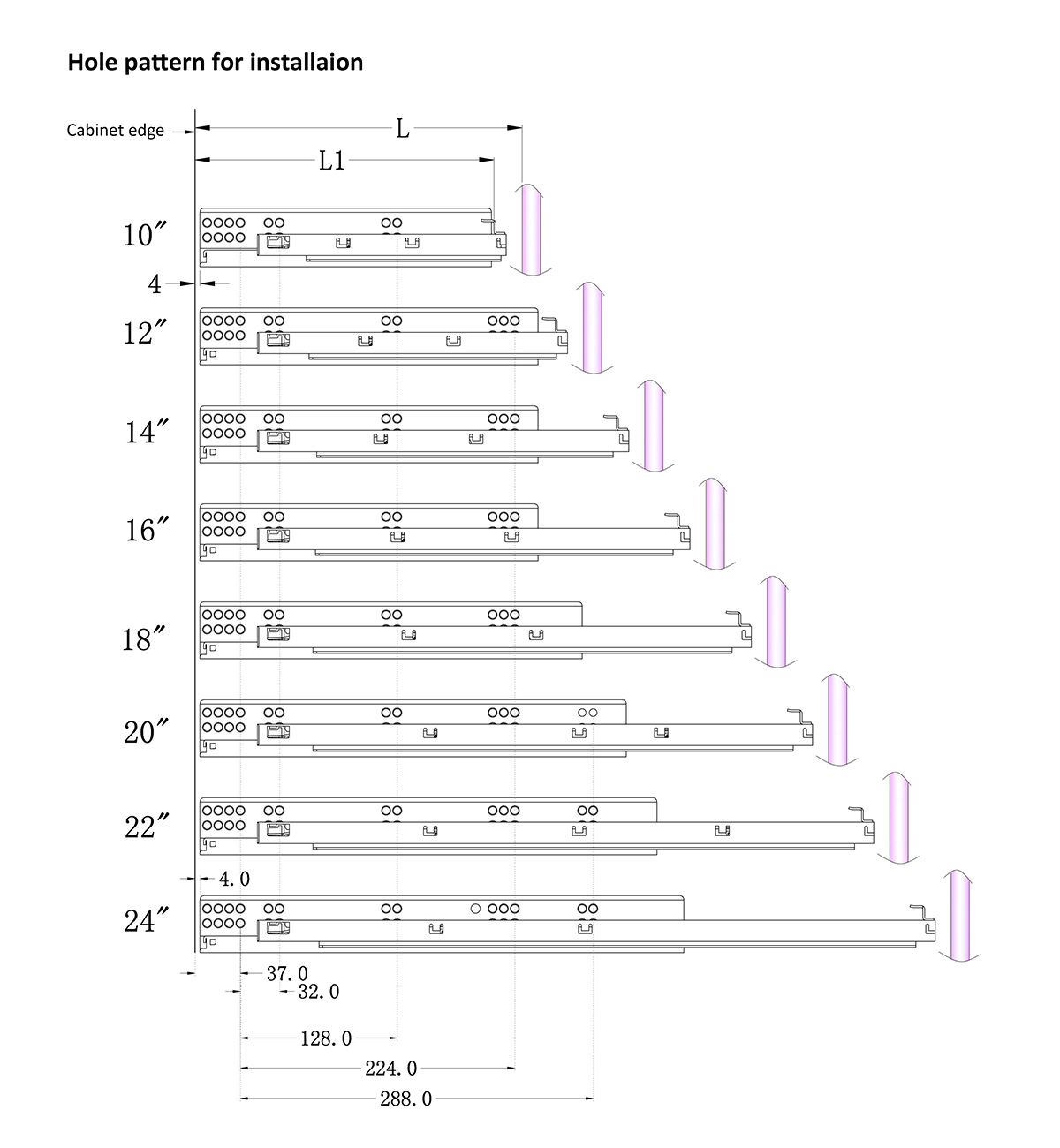

Full extension concealed slide 001
Item No. Slide Length Drawer Length (L1) Pull-out Length Min Cabinet Depth (L)
EUR33B-240 250 240 227 267
EUR33B-290 300 290 281 317
EUR33B-340 350 340 323 367
EUR33B-390 400 390 373 417
EUR33B-440 450 440 423 467
EUR33B-490 500 490 473 517
EUR33B-540 550 540 523 567
EUR33B-590 600 590 573 617

Installation:

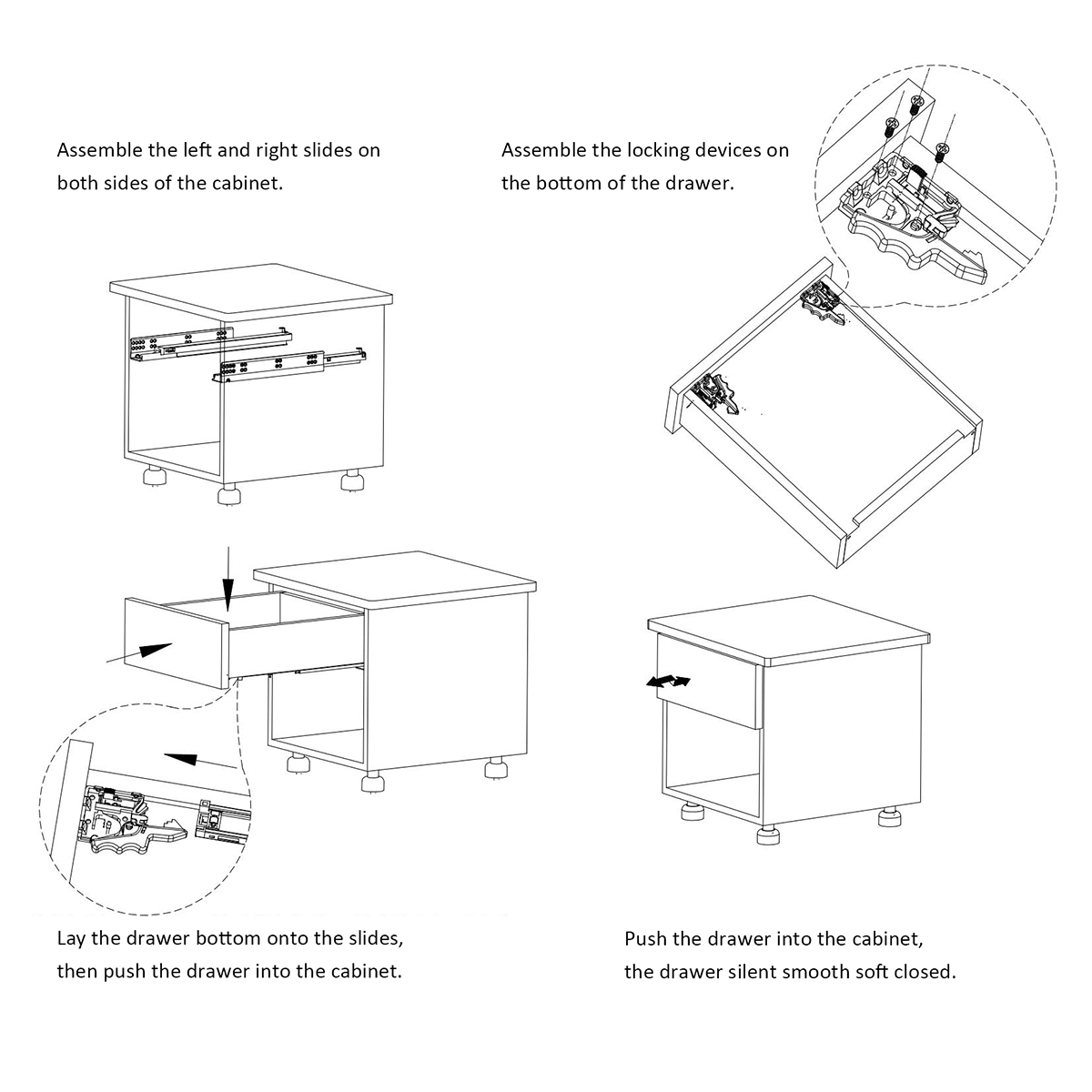

Drawer Installation

Certification:

Packing Details:

ITEM NO SIZE SET/CTN N.W(KGS)/CTN G.W(KGS)/CTN MEA(CM)/CTN
EUR33B-240 250mm 10 9.70 9.90 26.5x28.5x12
EUR33B-290 300mm 10 11.50 11.70 31.5x28.5x12
EUR33B-340 350mm 10 16.10 16.40 36.5x28.5x12
EUR33B-390 400mm 10 18.40 18.70 41.5x28.5x12
EUR33B-440 450mm 10 20.70 21.00 46.5x28.5x12
EUR33B-490 500mm 10 23.00 23.30 60.5x28.5x12
EUR33B-540 550mm 10 25.00 25.30 56.5x28.5x12
Package

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
