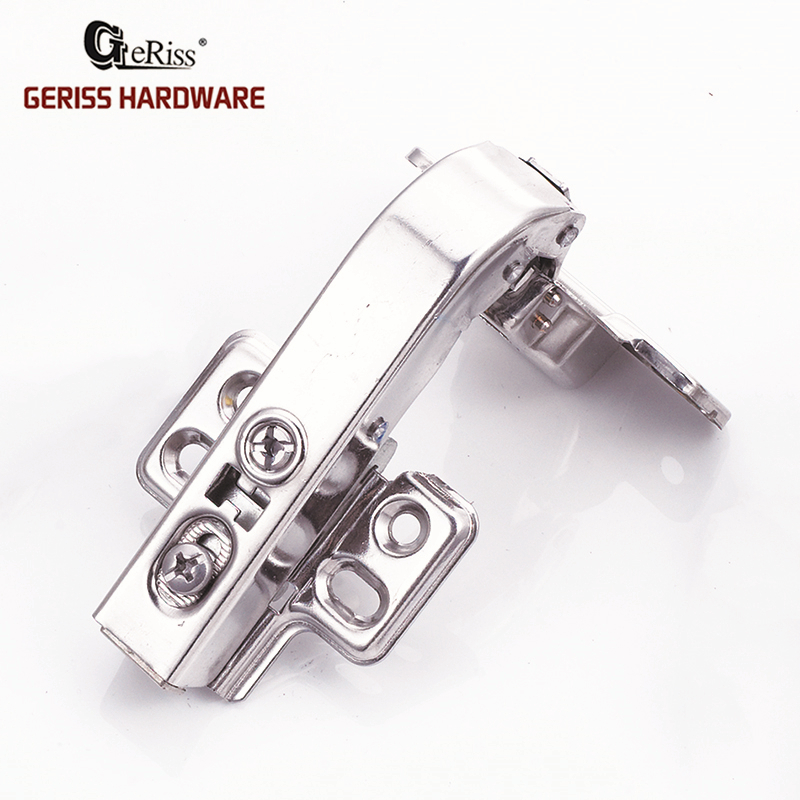

Removable soft close cabinet door hinge 90°

Short Description:

Item No.: T90CS4

Removable soft close cabinet door hinge 90°. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.


Product Detail

Product Tags

Description:

Product Name:  Removable soft close cabinet door hinge 90°
Material:  Cold rolled steel
Surface:  Nickel plated as standard, customize is available.
Opening angle:  110 Degree
Hinge angle:  90 Degree
Hinge cup diameter:  35 mm
Hinge cup screw to screw distance:  45 / 48 mm
Optional close type:  Soft close or non-hydraulic
Available accessories:  Arm cover, hinge cup cover, tapping screws
Available package:  - 200 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

H = Height of mounting plate

D = Required overlay on the cabinet side panel

K = Distance between door edge and drilling holes on hinge cup

A = Gap between mounting plate and side panel

ADVANTAGES AND BENEFITS:

- Removable soft close cabinet door hinge 90°

- Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Hinge Type Mounting Plates Item No.
Cabinet door hinge 90°  3D adjustable T90CS-3D
4 Holes T90CS4
2 Holes T90CS2

AVAILABLE HINGE CUPS & MOUNTING BASES:

Soft close hinge T45CS-3D 003

PACKAGE DETAILS:

Removable soft close cabinet door hinge 90° standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
