MR Series Micro Gear Pumps

Short Description:

Performance Parameters:

Flow range: 0.001 – 48.5 L/min

Inlet pressure: -0.9 – 10 bar

Pressure difference: 0 – 25.5 bar

Maximum temperature: -20 – 180 ℃

Viscosity range: 0.4 -3000 cps

Density range: 1.8

Motor selection: AC motor, Brush less DC, Servo, Inverter motor, Explosion-proof motor

Import and export thread: NPT 1/8, 1/4, 3/8, 1/2, 3/4

Non-standard custom: OEM machinery and equipment matching, servo control custom.


Product Detail

Product Tags

JONSN PUMP

Introduction of MR Series Micro Gear Pumps

The main advantages of JONSN precision micro gear pumps and conventional pumps are as follows:

1. No pulse accurate delivery

Positive displacement pump,through the gear to provide continuous accurate fluid delivery,with servo or stepper motor,delivery accuracy of +/- 0.5%.

2. Strong vacuum suction,high conveying pressure and smooth

High pressure delivery in low viscosity liquids

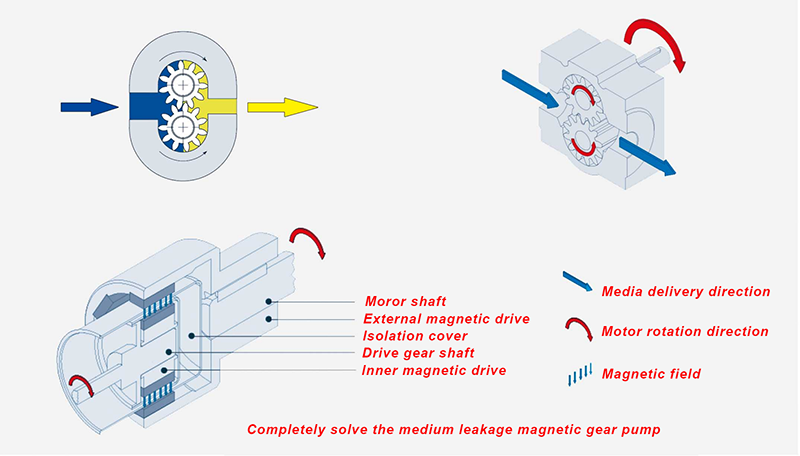

3. No leakage

Magnetic drive and static O-ring seals ensure that the pump medium is isolated from the outside world.

4. Excellent workmanship,modular design

The design optimizes the gear shaft and pump body runner design,and has a longer service life.It adopts lean production concept,advanced processing technology and exquisite workmanship. It is an external gear pump designed and manufactured for high-end operation.

5. Selection specialization

Tens of thousands of micro gear pumps have accumulated experience,accumulated a large number of experimental data,and specialized selection and evaluation to develop solutions for you and reduce risks.

MR Series Micro Gear Pumps

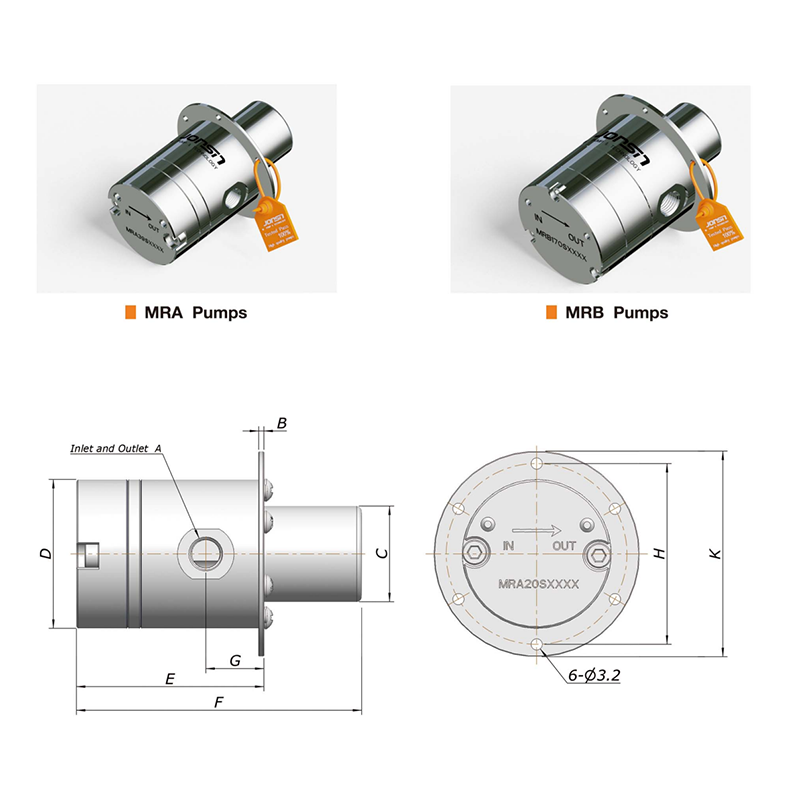

Dimensional Drawing:

MR Series Micro Gear Pumps Drawing

Item No.

A

B

C

D

E

F

G

H

K

MRA 5/13

2-NPT 1/8

1.5

27

42.1

53

81

22

51

58

MRA 7/13

2-NPT 1/8

1.5

27

42.1

53

81

18.5

51

58

MRA 10/13

2-NPT 1/8

1.5

27

42.1

53

81

15

51

58

MRA 12/13

2-NPT 1/8

1.5

27

42.1

53

81

13.5

51

58

MRA 10/16

2-NPT 1/4

2

27

52.1

53

80

15

62

69

MRA 12/16

2-NPT 1/4

2

27

52.1

55

82

15

62

69

MRA 17/16

2-NPT 1/4

2

27

52.1

60

87

15

62

69

MRA 19/16

2-NPT 1/4

2

27

52.1

60

87

15

62

69
