Description:

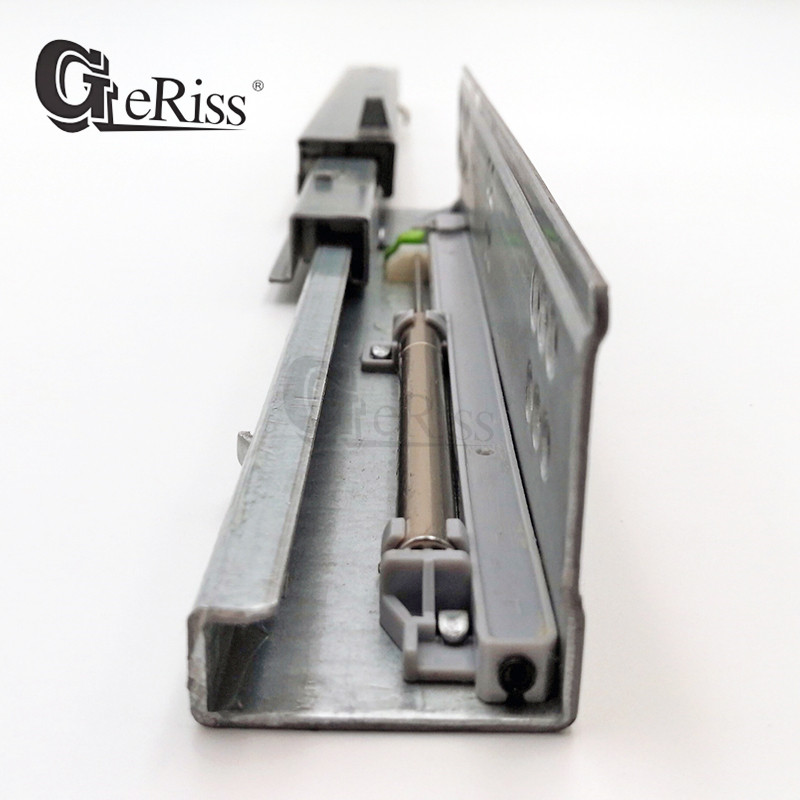

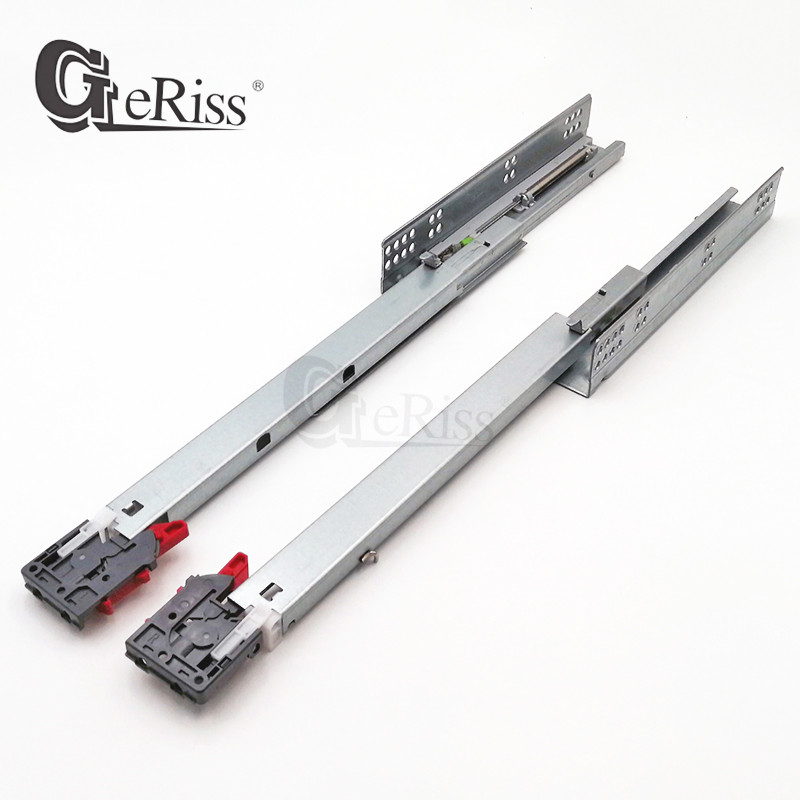

Product Name: Silent soft close undermount hidden drawer slide full extension with front clips
Product Material: Galvanized Sheet
Material Thickness: 1.8×1.5×1.0mm

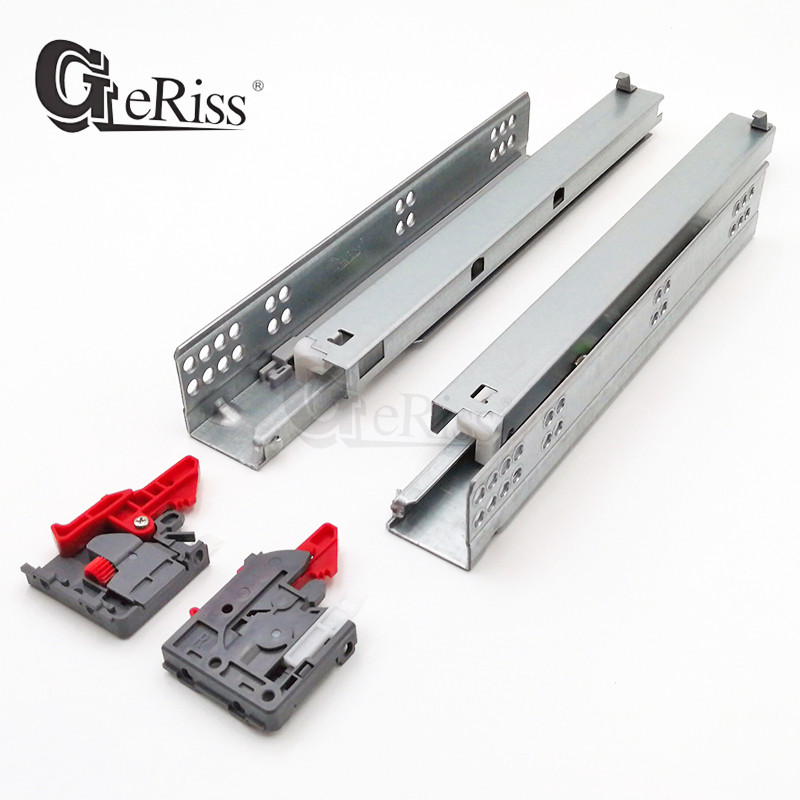

Selectable Accessories: Front clip
Load Rating: 35 KGS ( 450mm as standard )
Cycling: Over 50,000 times , PASS THE TEST BY SGS
Size Range: 12″/300mm – 22″/550mm, customized is available
Special Function: Silent smooth soft close
Installation: Connect with front clips
Application: Frameless Cabinet Drawer

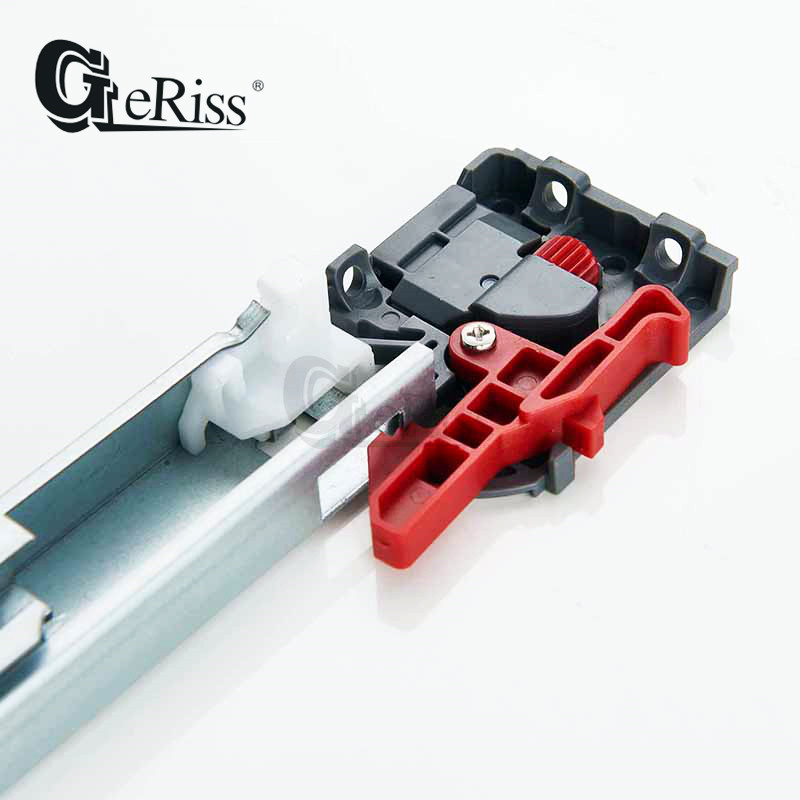

The Front Clips Adjusting Range: 2.5mm (Up and Down)

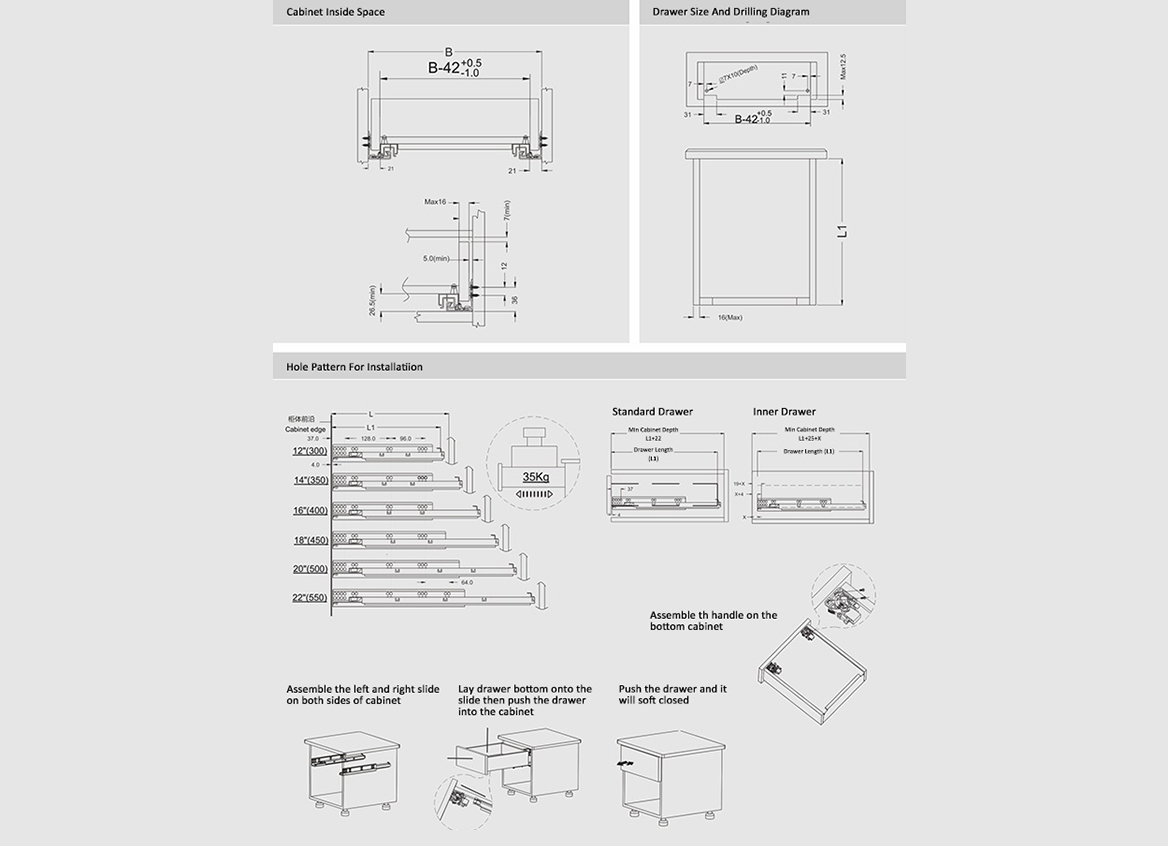

Product Details:
Order Information:
Item No. |
Slide Length |
Drawer Length (L1) |
Min Cabinet Depth(L) |
Pull-out Length |
EUR33B16.00 |
308mm |
300mm |
322mm |
295mm |
EUR33B16.350 |
358mm |
350mm |
372mm |
335mm |
EUR33B16.400 |
408mm |
400mm |
422mm |
385mm |
EUR33B16.450 |
458mm |
450mm |
472mm |
435mm |
EUR33B16.500 |
508mm |
500mm |
522mm |
485mm |
Packing Information:
ITEM NO |
SIZE |
SET/CTN |
N.W(KGS)/CTN |
G.W(KGS)/CTN |
MEA(CM)/CTN |
20’GP Load |
EUR33B16.250 |
250mm |
10 |
9.70 |
9.90 |
31x28x12.5 |
19000 |
EUR33B16.300 |
300mm |
10 |
11.50 |
11.70 |
36x28x12.5 |
16500 |
EUR33B16.350 |
350mm |
10 |
16.10 |
16.40 |
41x28x12.5 |
11500 |
EUR33B16.400 |
400mm |
10 |
18.40 |
18.70 |
46x28x12.5 |
10000 |
EUR33B16.450 |
450mm |
10 |
20.70 |
21.00 |
51x28x12.5 |
9300 |
EUR33B16.500 |
500mm |
10 |
23.00 |
23.30 |
56x28x12.5 |
8400 |
EUR33B16.550 |
550mm |
10 |
25.00 |
25.30 |
61x28x12.5 |
7600 |
