Description:

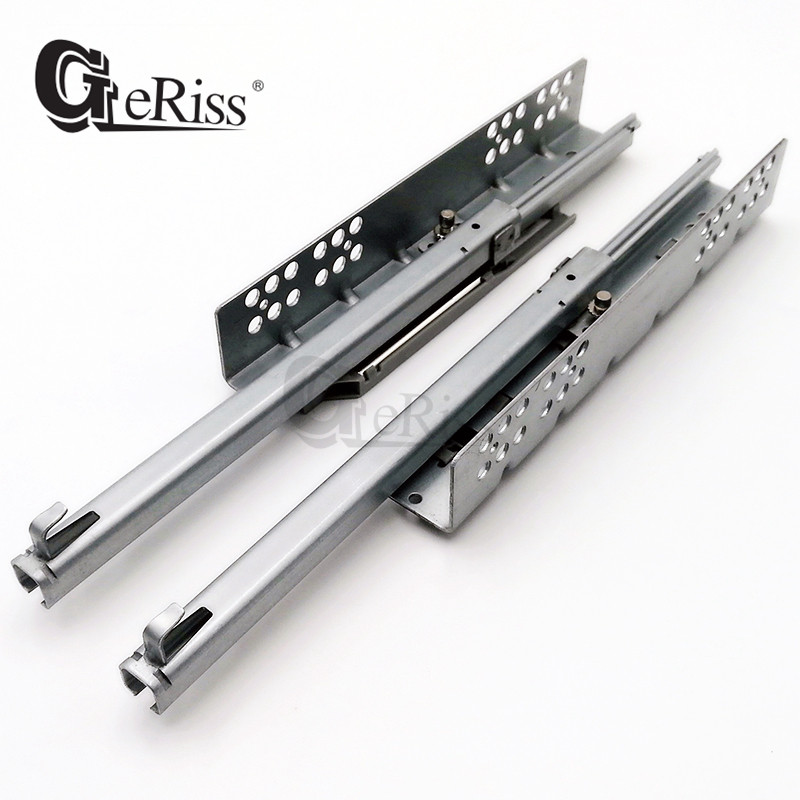

Product Name: V2 Single extension hydraulic drawer slides concealed
Product Material: Cold-rolled sheet
Material Thickness: 1.5×1.5mm
Selectable Accessories: Adjustable Screws
Load Rating: 20 KGS ( 450mm as standard )
Cycling: Over 50,000 times , PASS THE TEST BY SGS
Size Range: 10″/250mm – 18″/450mm, customized is available
Special Function: Silent smooth soft close
Installation: Connect with screws
Application: Frameless Cabinet Drawer

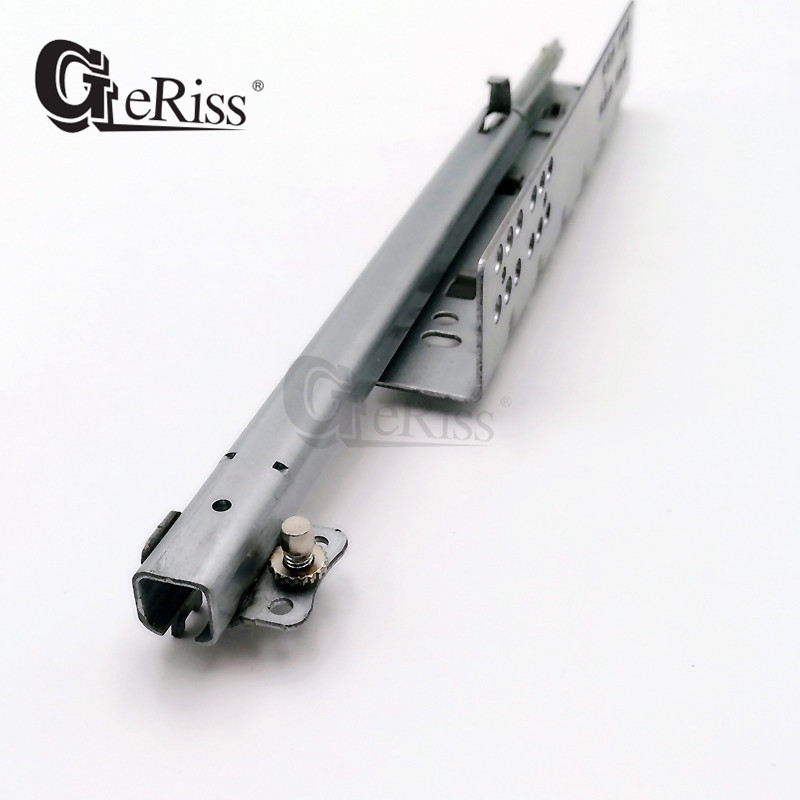

The Adjustable Screws Adjusting Range: 4.5mm (Up and Down )

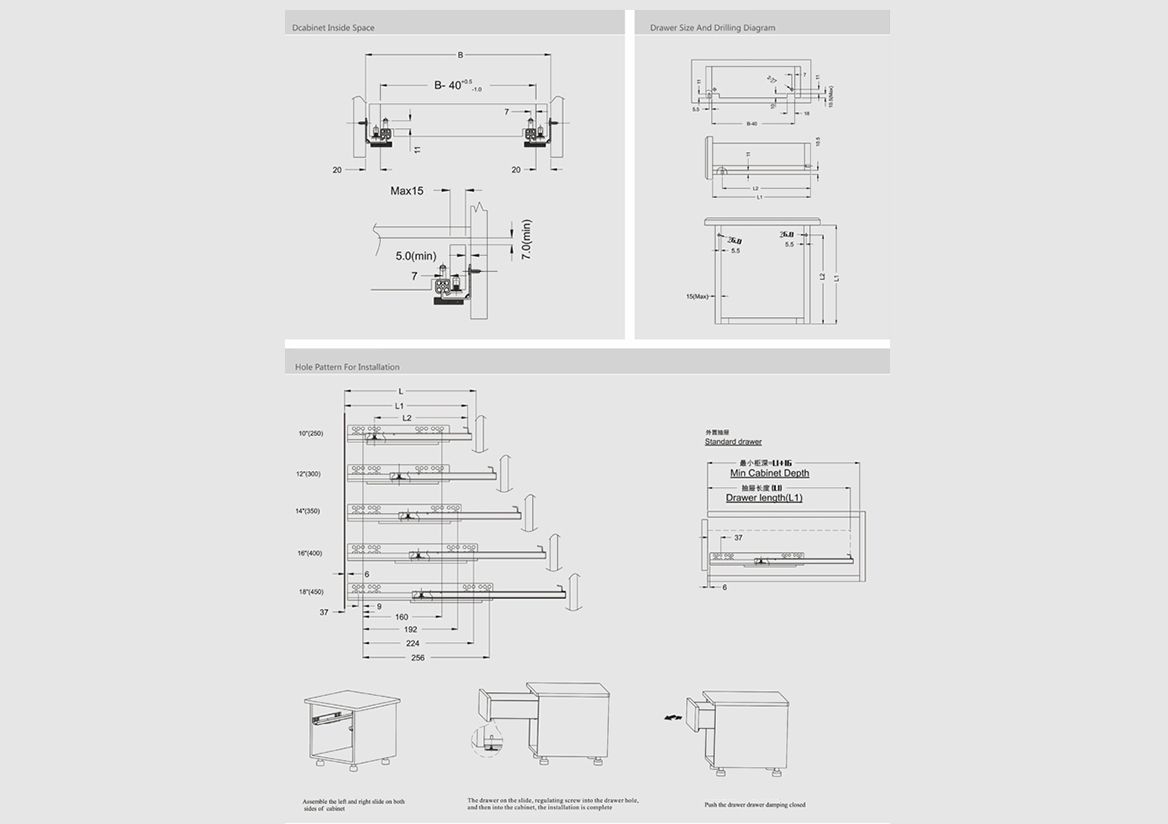

Product Details:
Order Information:
Item No. |
Slide Length |
Drawer Length(L1) |
Min Cabinet Depth(L) |
EURV2-250 |
251mm |
250mm |
266mm |
EURV2-300 |
301mm |
300mm |
316mm |
EURV2-350 |
351mm |
350mm |
366mm |
EURV2-400 |
401mm |
400mm |
416mm |
EURV2-450 |
451mm |
450mm |
466mm |
Packing Information:
Item No |
Size |
Material Thickness |
Packing |
N.W(KG) |
G.W(KG) |
EURV2 |
10″/250mm |
1.5*1.5mm |
10 |
5.60 |
5.80 |
12″/300mm |
1.5*1.5mm |
10 |
6.00 |
6.20 |
|
14″/350mm |
1.5*1.5mm |
10 |
6.50 |
6.70 |
|
16″/400mm |
1.5*1.5mm |
10 |
7.50 |
7.70 |
|
18″/450mm |
1.5*1.5mm |
10 |
8.50 |
8.70 |
|
20″/500mm |
1.5*1.5mm |
10 |
9.50 |
9.70 |
