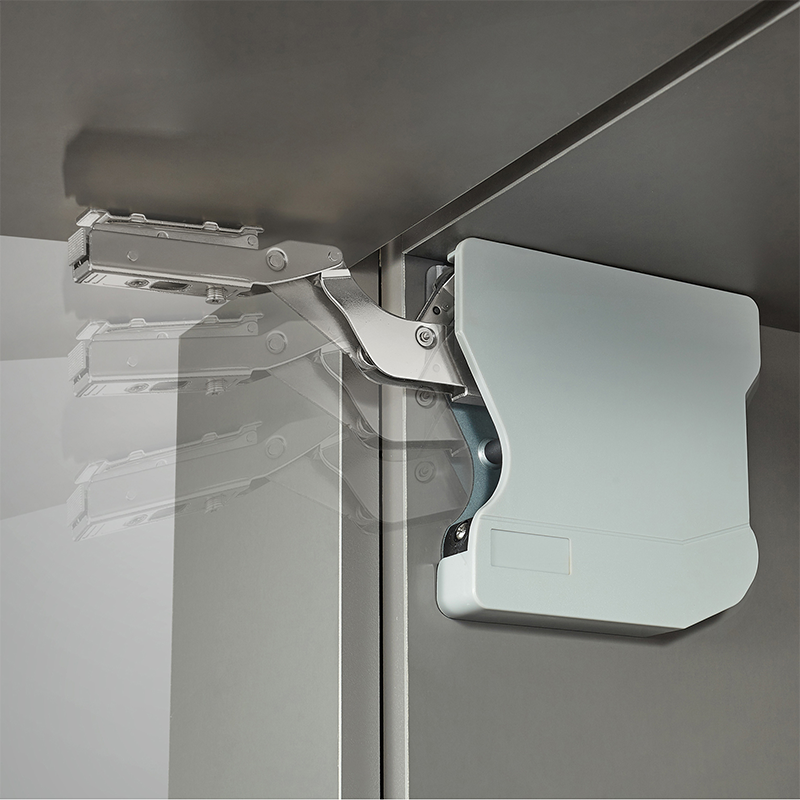

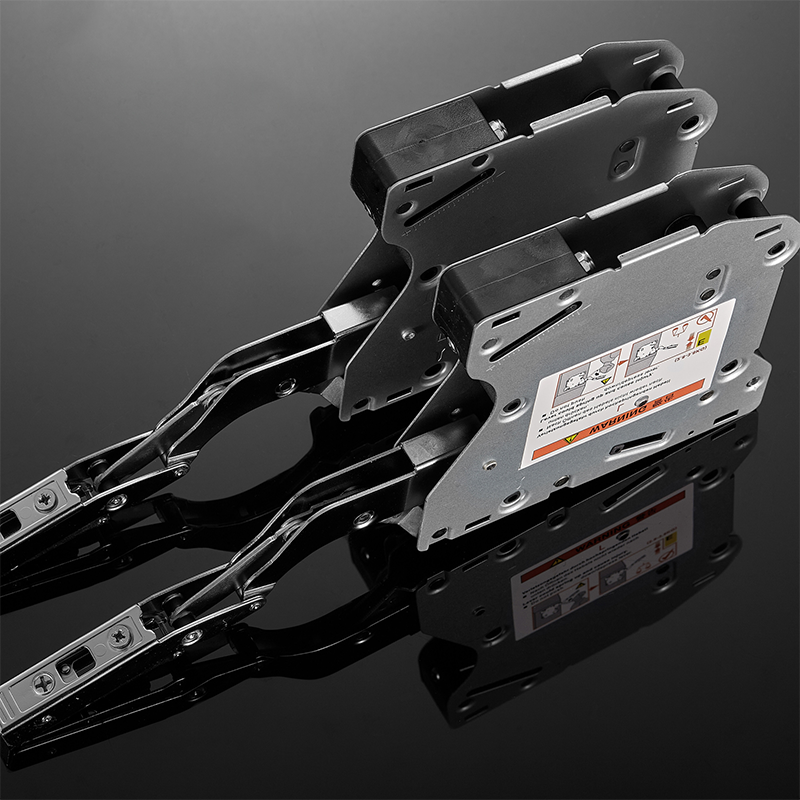

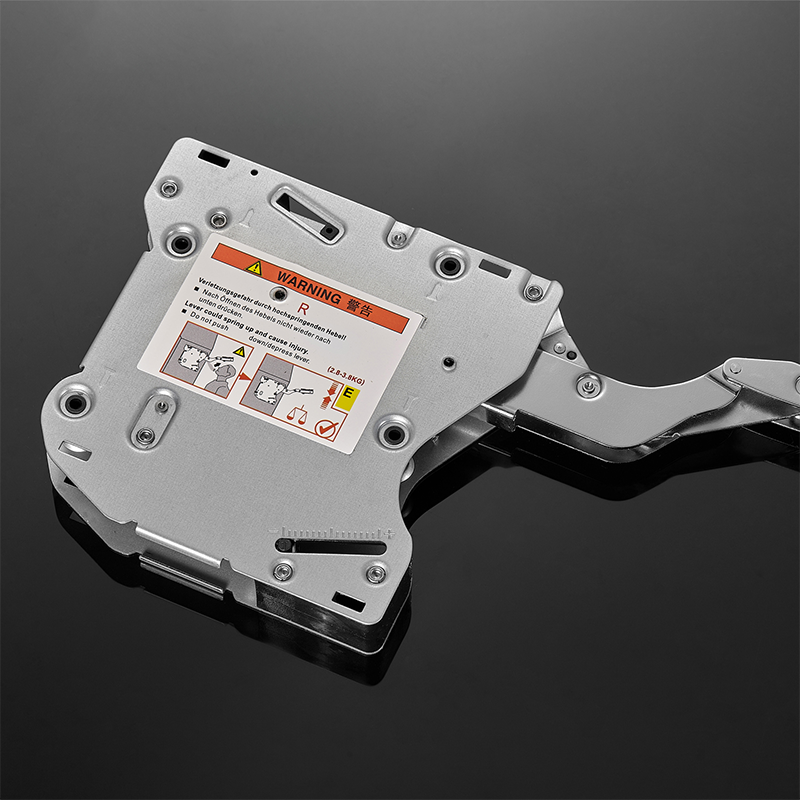

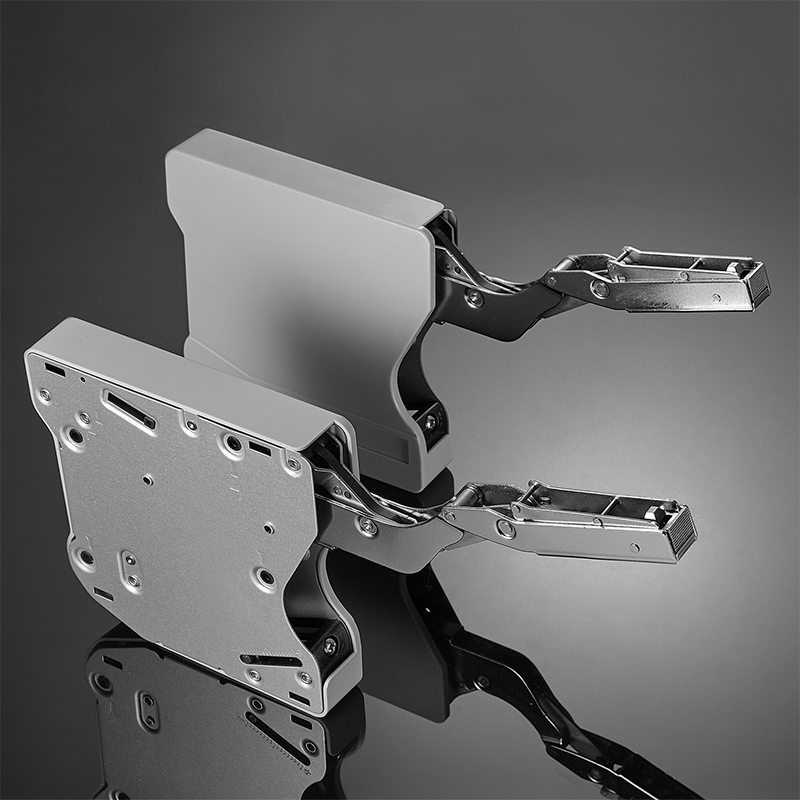

Hanging cabinet lid stay adjustable hydraulic lift up system

Short Description:

Item No.: HC-04

Hanging cabinet lid stay adjustable hydraulic lift up system. The top stay lift-up system from GERISS is a brilliant piece of modern engineering which optimizes cabinet storage and facilitates ease of access through pneumatic arms-operated doors. More information welcome to inquiry us.


Product Detail

Product Tags

Description:

Product Name:  Hanging cabinet lid stay adjustable hydraulic lift up system
Material:  Iron + Plastic
Finish:  Nickel plated
Capacity:  Light duty 2.7-3.7 kg, medium duty 3.9-4.8 kg, heavy duty 4.9-6.0 kg
Force:  50 - 150 N
Cabinet height:  300-500 mm
Cabinet width:  600-1200 mm
Panel thickness:  16-28 mm

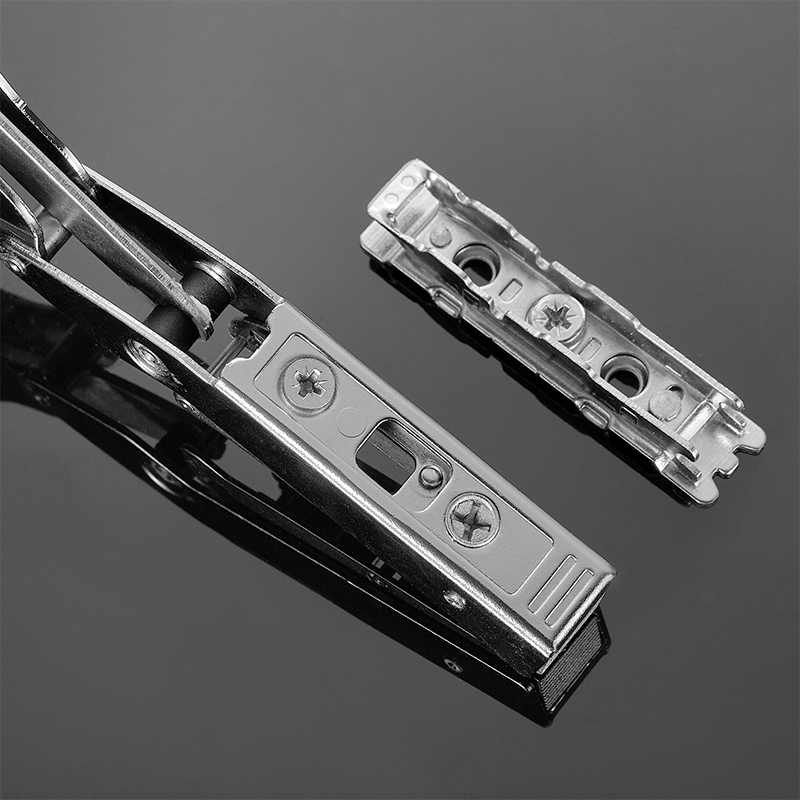

3D Adjustable for panel:  +/- 2mm for up and down, front and back, left and right.
Suitable:  Up turning wooden door and aluminum frame door.

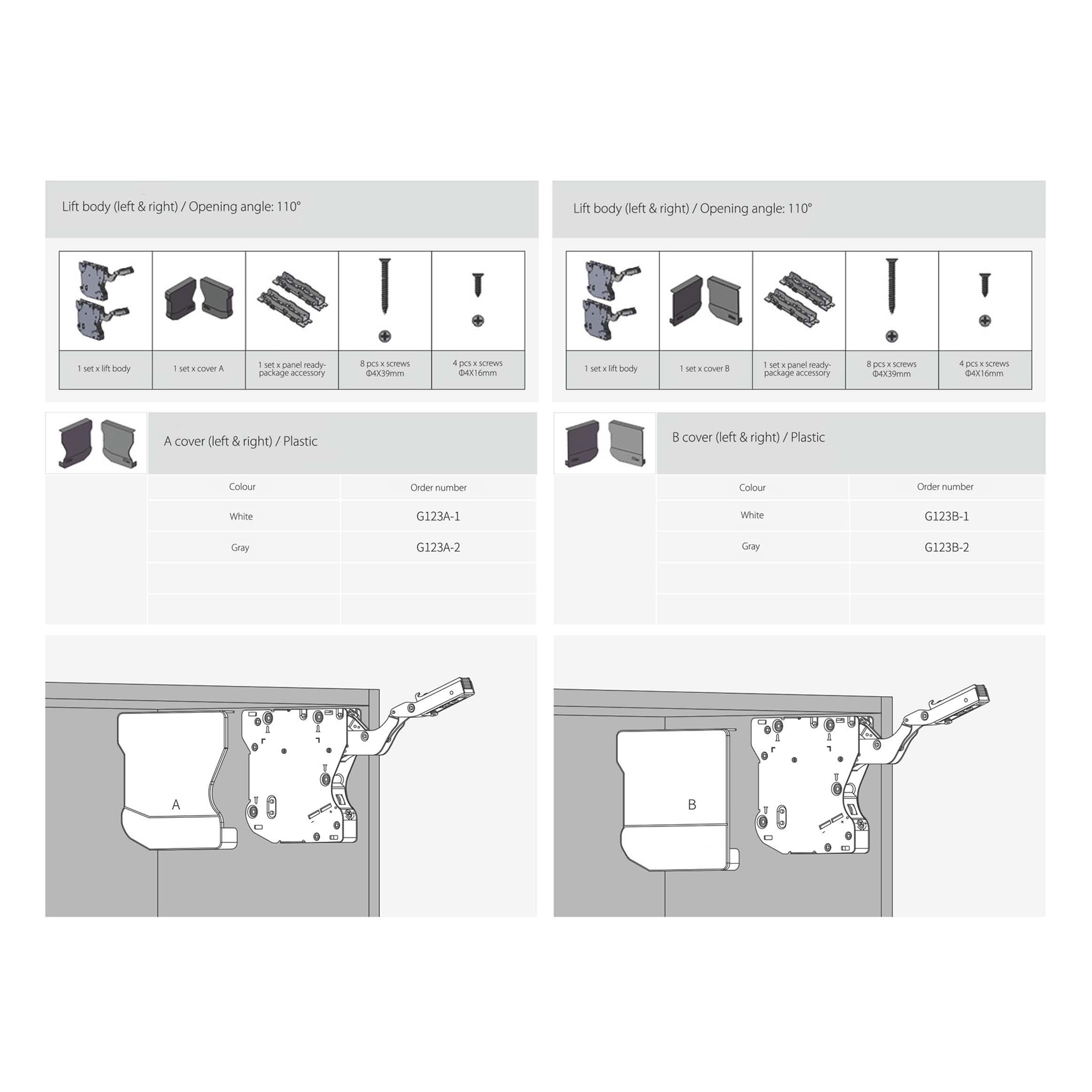

Cover color:  Gray / White / Black or customize is available.
Application:  Hanging cabinet

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Hanging cabinet lid stay adjustable hydraulic lift up system. It can be said that air support is the most important hardware in the kitchen. In terms of the opening and closing mode of the hinge used on the door panel, there are generally two-point clamping and three-point clamping hinges, as well as multi-point positioning hinges. The so-called multi-point positioning means that the door panel can stay at any angle when it is opened, which will not be laborious or suddenly closed, so as to ensure the safety of use. It is very suitable for use on the top lift cabinet door.

Cooking will inevitably accumulate oil stains. Open storage may not be suitable for long-term residence. Compared with cleaning items regularly, cleaning the hanging cabinet is much simpler. From the perspective of aesthetics, it is also a suitable choice to build a hanging cabinet and hide the exhaust pipe of the range hood.

Among the upturned door supports, the most economical and widely used is the light random stop door support. The door panel can stop stably at any position of 45 ° - 105 °, which is convenient to take objects. It is suitable for the door panel with a height of 250-500 mm and a width of no more than 1200 mm. According to the size of the door panel, unilateral or bilateral installation can be selected, which is economical.

AVAILABLE LOAD CAPACITY:

TYPE HEIGHT(MM) WEIGHT(MM) LOAD CAPACITY
LIGHT DUTY 330-450 600-800 2.7-3.8 KG
MEDIUM DUTY 360-500 600-1000 3.9-4.8 KG
HEAVY DUTY 400-500 900-1200 4.9-6.0 KG

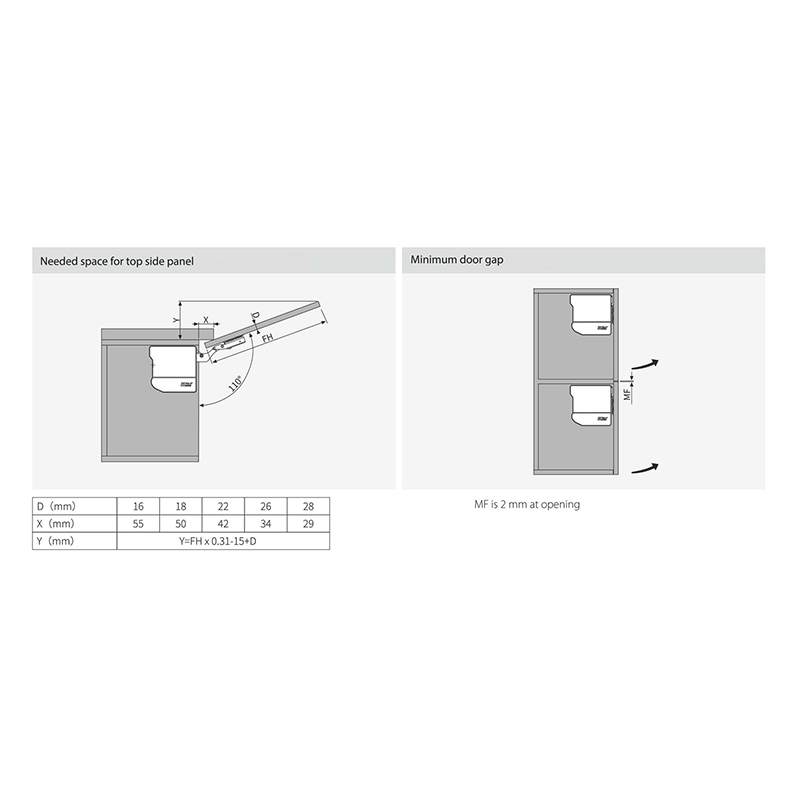

INSTALLATION:
