Product Name: |
Slim Double Wall Drawer System |
Item No.: |
M02-184 |
Material: |
Cold Rolled Steel |
Load Capacity: |
35 KG (450mm as standard) |
Drawer Height: |
184 mm |
Drawer Length: |
270mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm and customize is available |
Extension: |
Fully extension |
Function: |
Silent smooth soft close |
Cycling Test: |
Over 50,000 times |
Available Accessories: |
Extra height rods |
Application: |
Kitchen & Bathroom Cabinets, Office Furniture, etc... |
Length |

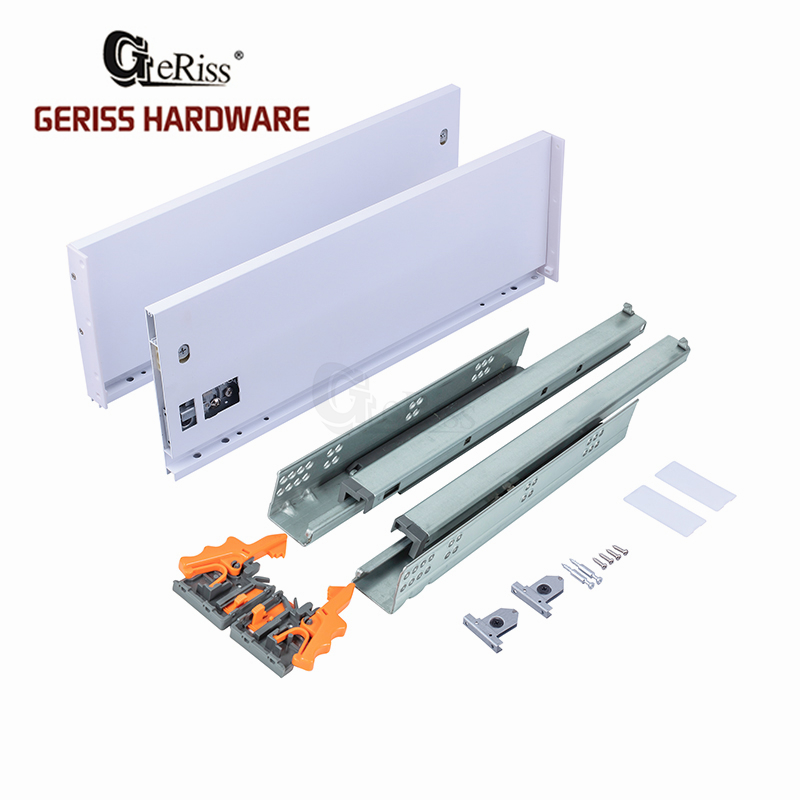

White |

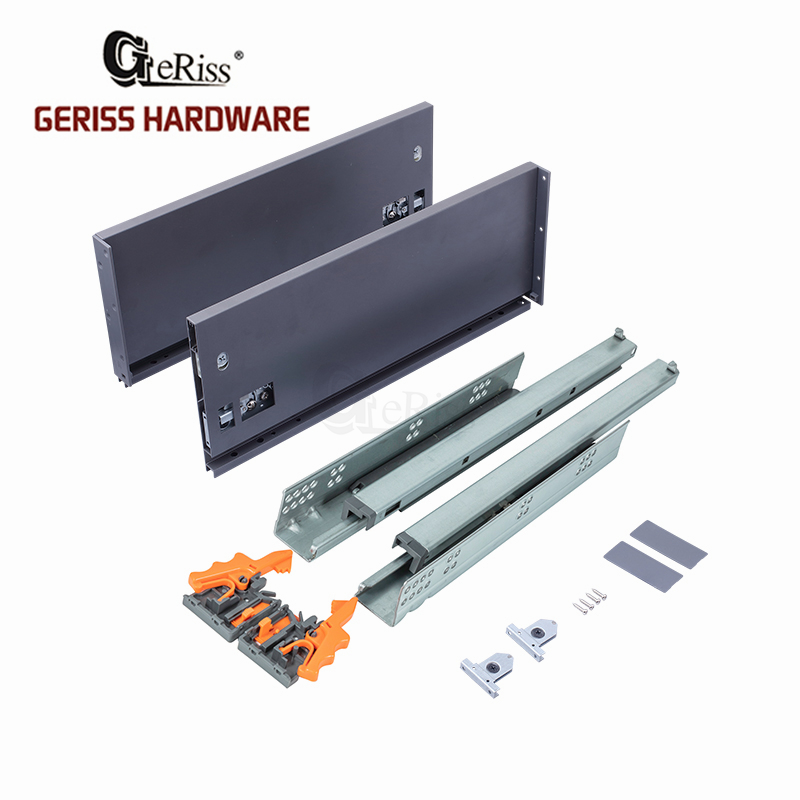

Graphite |
Drawer Length |
Min Cabinet Depth |
12”/300mm |
M02-184-300W |
M02-184-300G |
290mm |
322mm |
14”/350mm |
M02-184-350W |
M02-184-350G |
340mm |
372mm |
16”/400mm |
M02-184-400W |
M02-184-400G |
390mm |
422mm |
18”/450mm |
M02-184-450W |
M02-184-450G |
440mm |
472mm |
20”/500mm |
M02-184-500W |
M02-184-500G |
490mm |
522mm |
22”/550mm |
M02-184-550W |
M02-184-550G |
540mm |
572mm |
ITEM NO. |
Length |
Metal Slim Panel Package |
Concealed Slide with Clips |
||||
Package/Set |
N.W(KG) |
G.W(KG) |
Package/Set |
N.W(KG) |
G.W(KG) |
||
M02-184 |
300mm |
10 |
17.03 |
17.52 |
10 |
11.50 |
11.70 |
M02-184 |
350mm |
10 |
19.86 |
20.47 |
10 |
16.10 |
16.40 |
M02-184 |
400mm |
10 |
22.69 |
23.42 |
10 |
18.40 |
18.70 |
M02-184 |
450mm |
10 |
24.87 |
25.73 |
10 |
20.70 |
21.00 |
M02-184 |
500mm |
10 |
27.05 |
28.03 |
10 |
23.00 |
23.30 |
M02-184 |
550mm |
10 |
29.68 |
30.78 |
10 |
25.00 |
25.30 |
