H120mm Slim Metal Drawer Box Drawer Slides

Short Description:

Model No.: M02-120

Slim metal drawer box drawer slides usually use for kitchen & bathroom cabinets. This type of slim metal drawer box drawer slides use silent soft close undermount drawer slide with locking devices. You also can change to use push to open concealed drawer slide with front clips. This product’s feature is the undermount drawer slide can both use for metal drawer and wooden drawer. Can save the cost of inventory for you. If you are interested in our slim box drawer system, please feel free to contact us.


Product Detail

Product Tags

Slim Drawer SYSTEM

Description:

Product Name:

Double wall slim box drawer system

Item No.:

M02-120

Material:

Cold Rolled Steel

Load Capacity:

35 KG (450mm as standard)

Drawer Height:

120 mm

Panels Color:

White,Grey, Sliver or customize is available

Drawer Length:

270mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm and customize is available

Extension:

Fully extension

Function:

Silent smooth soft close

Cycling Test:

Over 50,000 times

Available Accessories:

Extra height rods

Application:

Kitchen & Bathroom Cabinets, Office Furniture, etc...

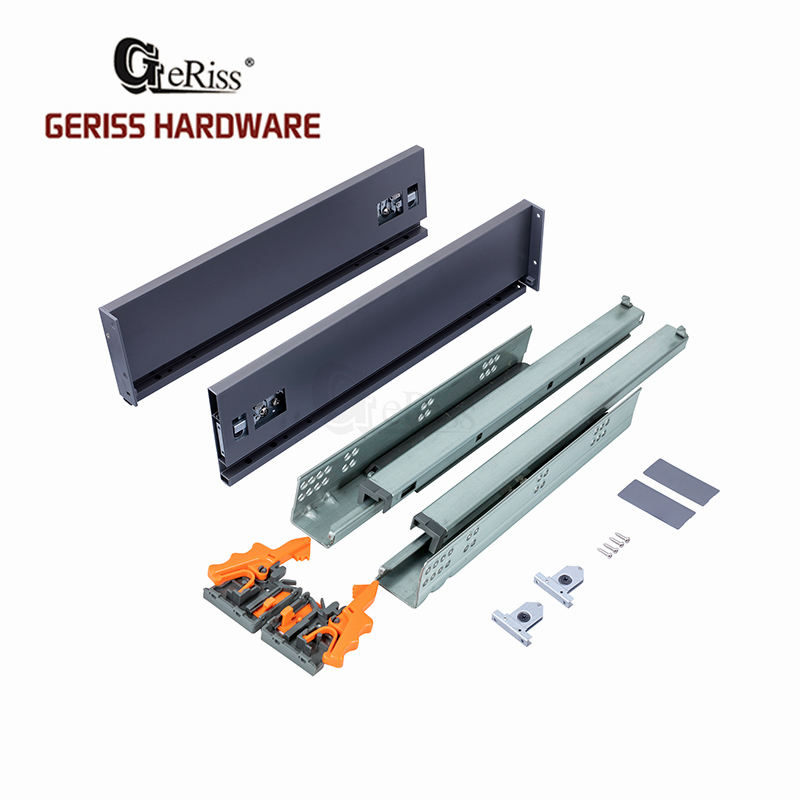

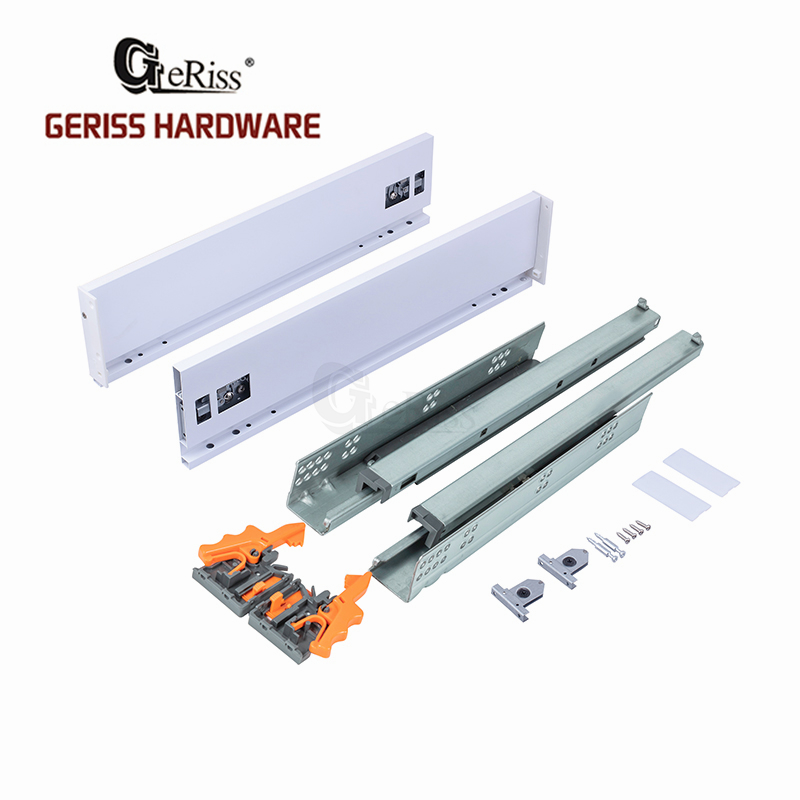

Details Photos:

Installation:

Order Information:

Length

White

Graphite

Drawer Length

Min Cabinet Depth

12”/300mm

M02-120-300W

M02120-300G

290mm

322mm

14”/350mm

M02-120-350W

M02120-350G

340mm

372mm

16”/400mm

M02-120-400W

M02120-400G

390mm

422mm

18”/450mm

M02-120-450W

M02120-450G

440mm

472mm

20”/500mm

M02-120-500W

M02120-500G

490mm

522mm

22”/550mm

M02-120-550W

M02120-550G

540mm

572mm

Packing Information:

ITEM NO. LENGTH METAL SLIM PANELS PACKAGE CONCEALED SLIDE WITH CLIPS
SET/CTN N.W(KG)/CTN G.W(KG)/CTN SET/CTN N.W(KG)/CTN G.W(KG)/CTN
M02-120 12"/300mm 10 12.45 12.93 10 11.50 11.70
14"/350mm 10 14.11 14.62 10 16.10 16.40
16"/400mm 10 15.89 16.43 10 18.40 18.70
18"/450mm 10 17.19 17.76 10 20.70 21.00
20"/500mm 10 18.69 19.29 10 23.00 23.30
22"/550mm 10 19.99 20.62 10 25.00 25.30
