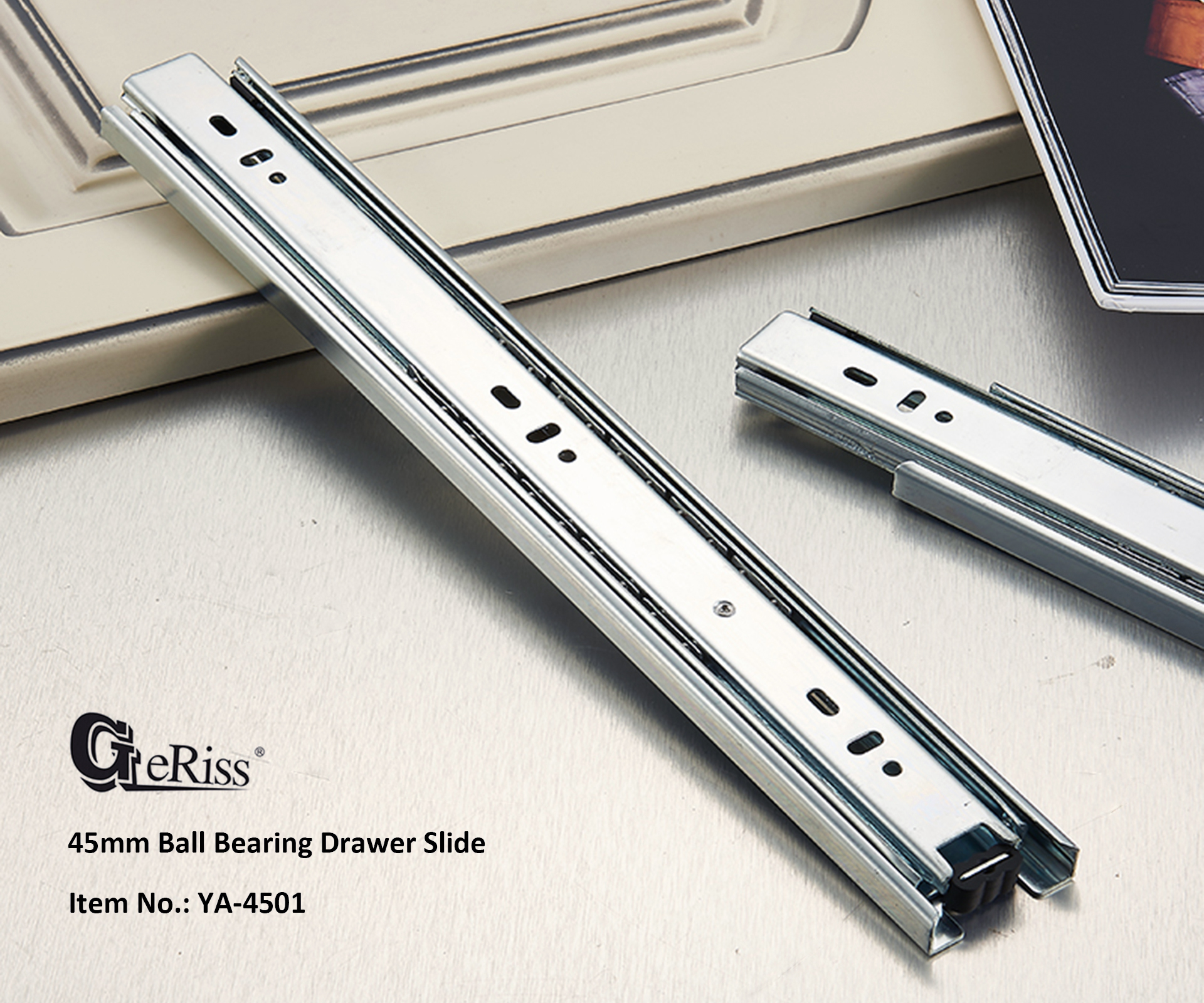

Full extension telescopic channel 45mm ball bearing drawer slide manufacturer

Short Description:

Model No.: YA-4501

Full extension telescopic channel 45mm ball bearing drawer slide manufacturer produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

45mm Ball Bearing Slide

Different color can choose

Telescopic Channel

Description:

Product Name:

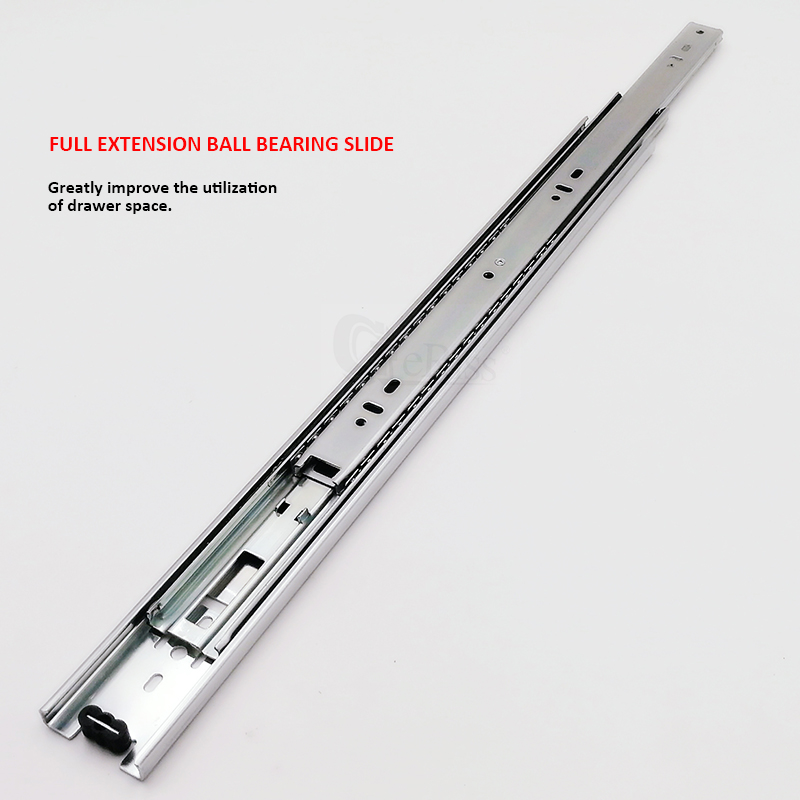

45mm Full extension telescopic ball bearing drawer slides

Material:

Cold Rolled Steel

Material Thickness:

1.0*1.0*1.2mm, 1.2*1.2*1.5mm

Surface:

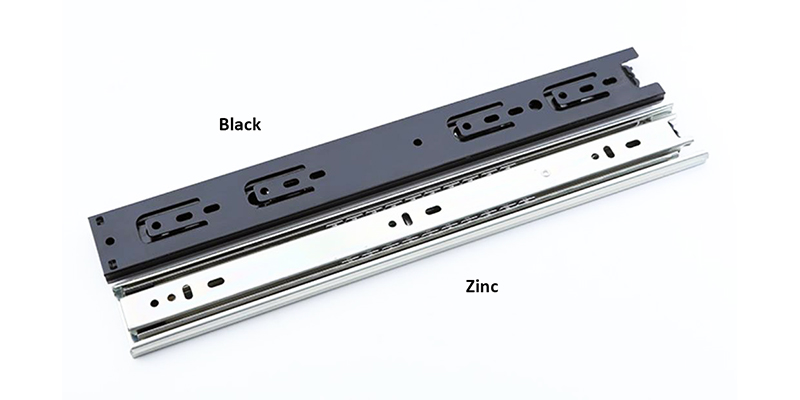

Zinc Plated, Electrophoresis Black

Load Capacity:

30-45 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

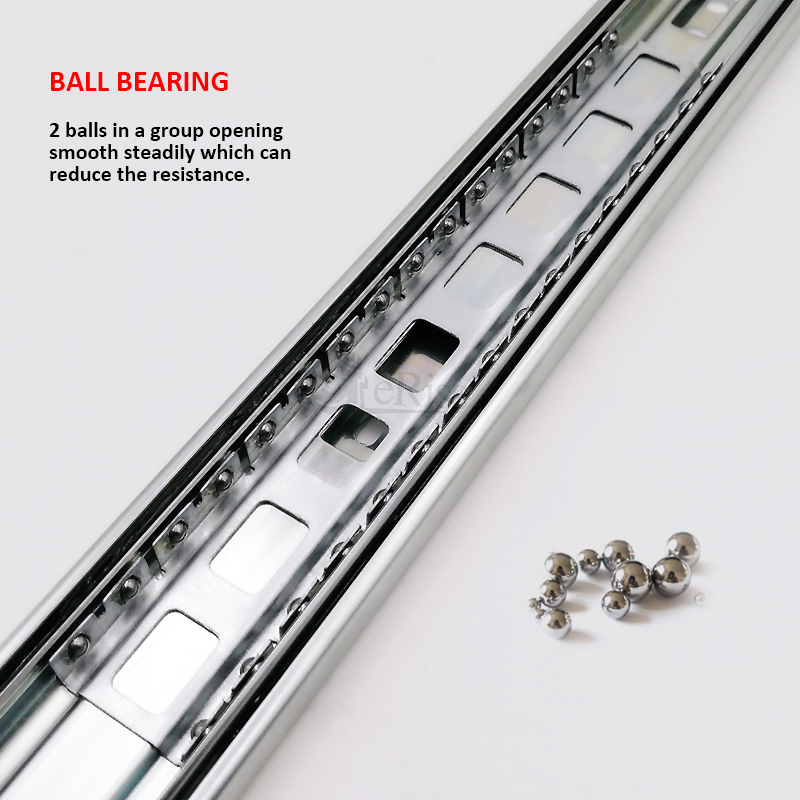

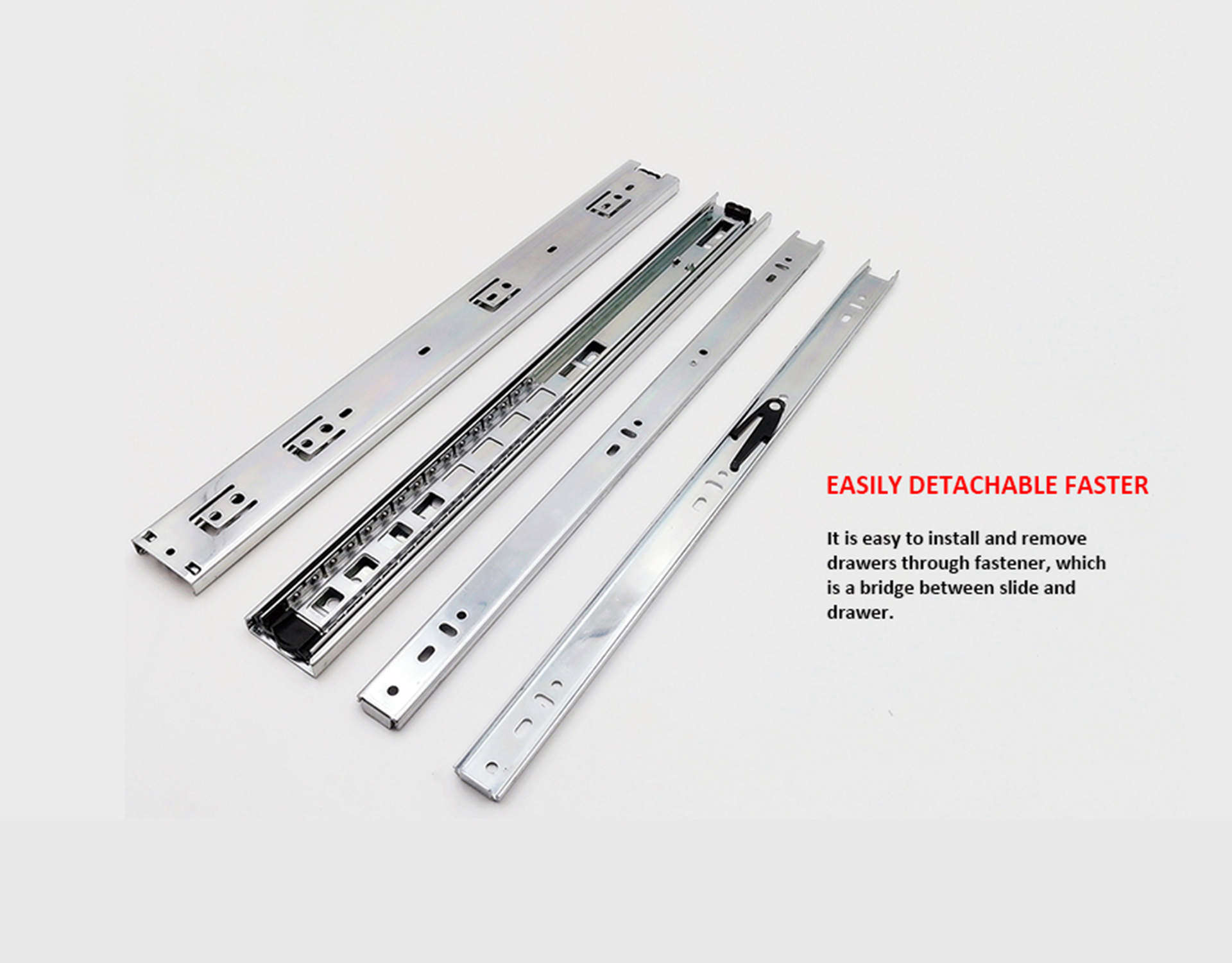

EASILY DETACHABLE FASTER

Specification:

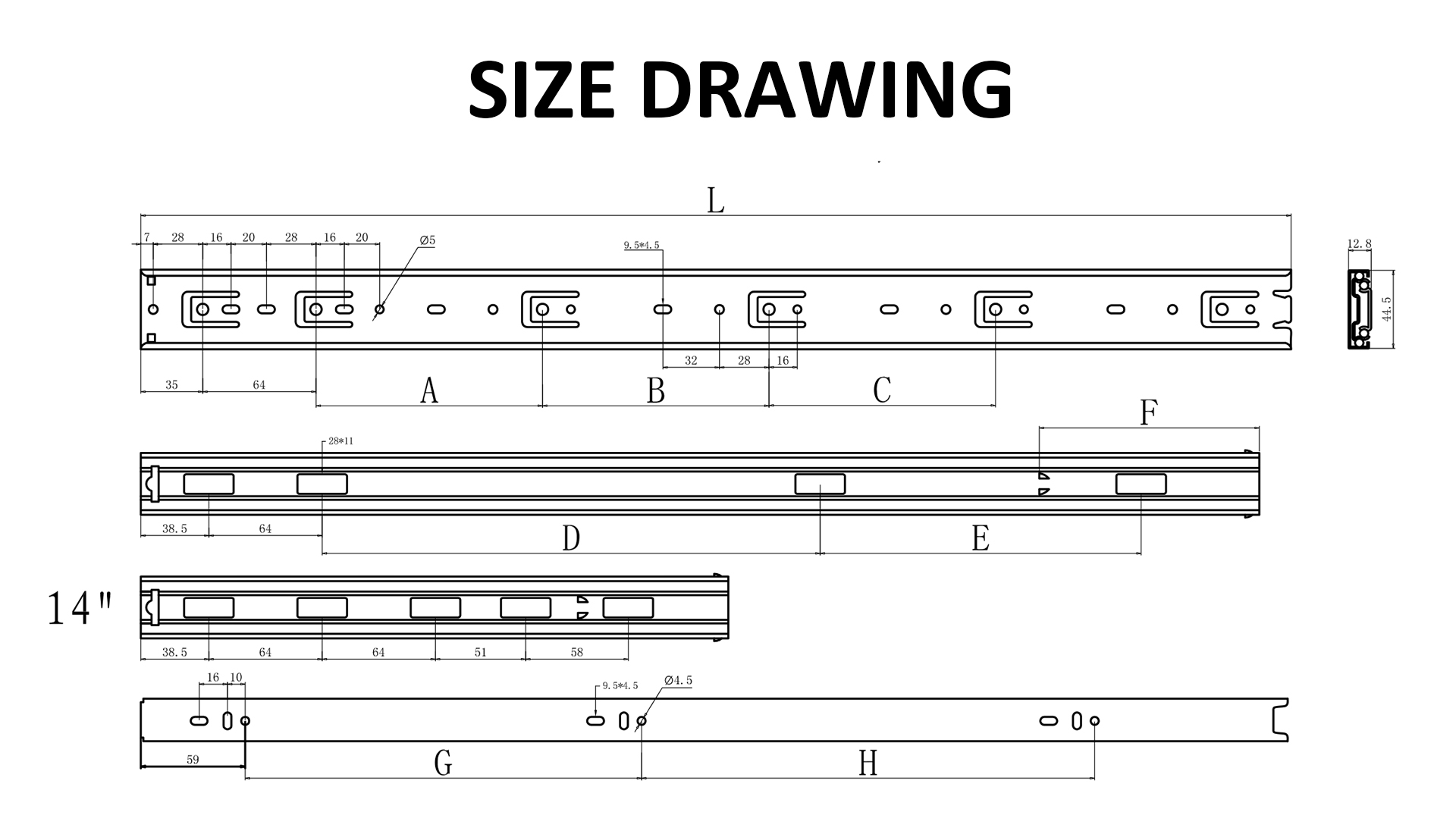

Size-Drawing

L

A

B

C

D

E

F

G

H

Inner Cage

Cage Holder

Extension

250

96

-

-

105

-

50

160

-

110

4

250

300

160

-

-

50

110

50

96

128

150

4

300

350

160

-

-

-

-

85

128

128

175

5

350

400

160

96

-

96

128

95

128

160

200

6

400

450

160

128

-

160

128

105

160

192

225

7

450

500

160

128

-

160

128

125

192

224

250

8

500

510

160

128

-

128

192

125

192

224

250

9

510

580

160

128

96

180

235

135

224

256

275

10

580

Unit: mm

Installation Instruction:

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Size Material Thickness(mm) Sets/Crn N.W(KG) G.W(KG) MEAS(cm)
Inch mm Length Width Height
10 250 1.0x1.0x1.2 15 9.30 9.55 27 20 12
12 300 1.0x1.0x1.2 15 11.16 11.41 32 20 12
14 350 1.0x1.0x1.2 15 13.02 13.27 37 20 12
16 400 1.0x1.0x1.2 15 14.88 15.18 42 20 12
18 450 1.0x1.0x1.2 15 16.74 17.04 47 20 12
20 500 1.0x1.0x1.2 15 18.60 18.90 52 20 12
22 550 1.0x1.0x1.2 15 20.46 20.76 57 20 12
24 600 1.0x1.0x1.2 15 22.32 22.67 62 20 12
10 250 1.2x1.2x1.5 15 11.25 11.50 27 20 12
12 300 1.2x1.2x1.5 15 13.50 13.75 32 20 12
14 350 1.2x1.2x1.5 15 15.75 16.00 37 20 12
16 400 1.2x1.2x1.5 15 18.00 18.30 42 20 12
18 450 1.2x1.2x1.5 15 20.25 20.55 47 20 12
20 500 1.2x1.2x1.5 15 22.50 22.80 52 20 12
22 550 1.2x1.2x1.5 15 24.75 25.05 57 20 12
24 600 1.2x1.2x1.5 15 27.00 27.35 62 20 12
Packing Details
