Full Extension Synchronous Moving Soft Closing Concealed Drawer Runner With 3D Front Brackets

Short Description:

Model No.: EUR33BS

Full extension synchronous moving soft closing concealed drawer runner with 3D front brackets usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use front brackets fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

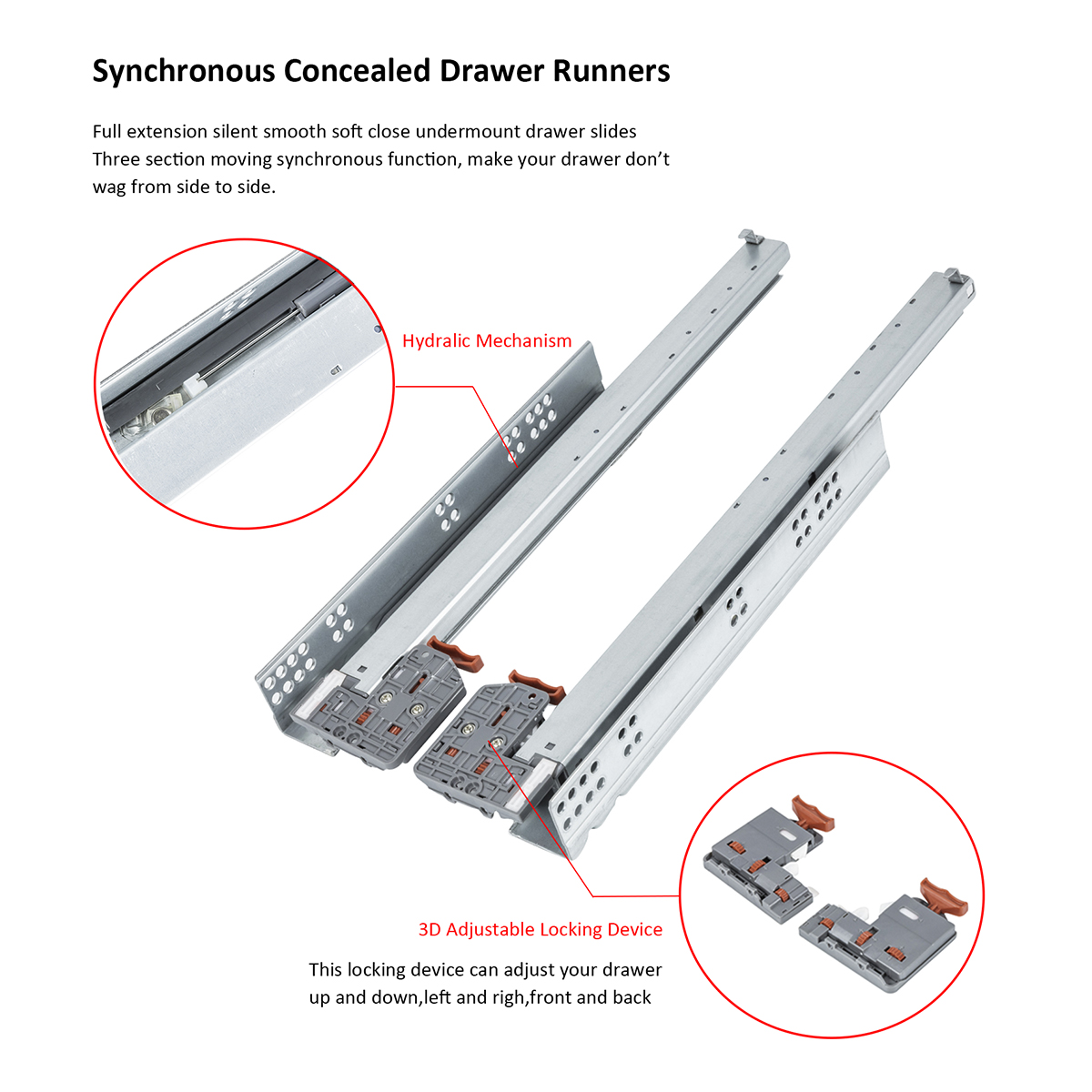

Concealed Seynchronous Full-Extension Slide 001
Product Name: Concealed drawer slides with synchronized extension
Product Material: Galvanized sheet
Material Thickness: 1.8x1.5x1.0 mm
Accessories: 3D front locking devices
Load Capacity: 35.0 KG (450 mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600 mm), customized is available
Installation: Connect with 3D front locking devices
Application: Frame-less cabinet drawers
Future: Slides three section synchronous extension, front bracket adjusting range 2.5mm with left and right, up and down, front and back.

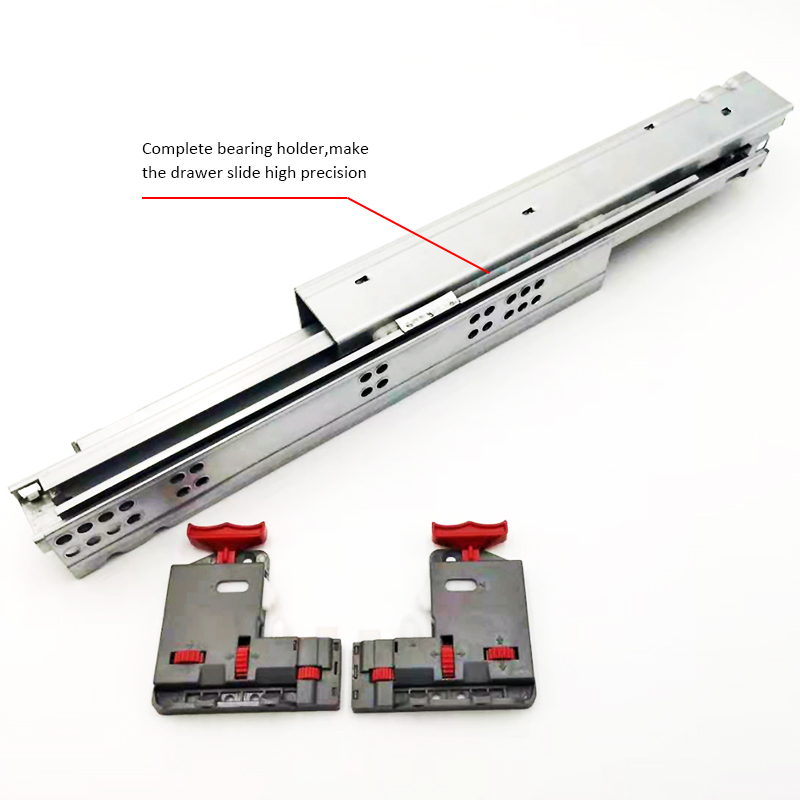

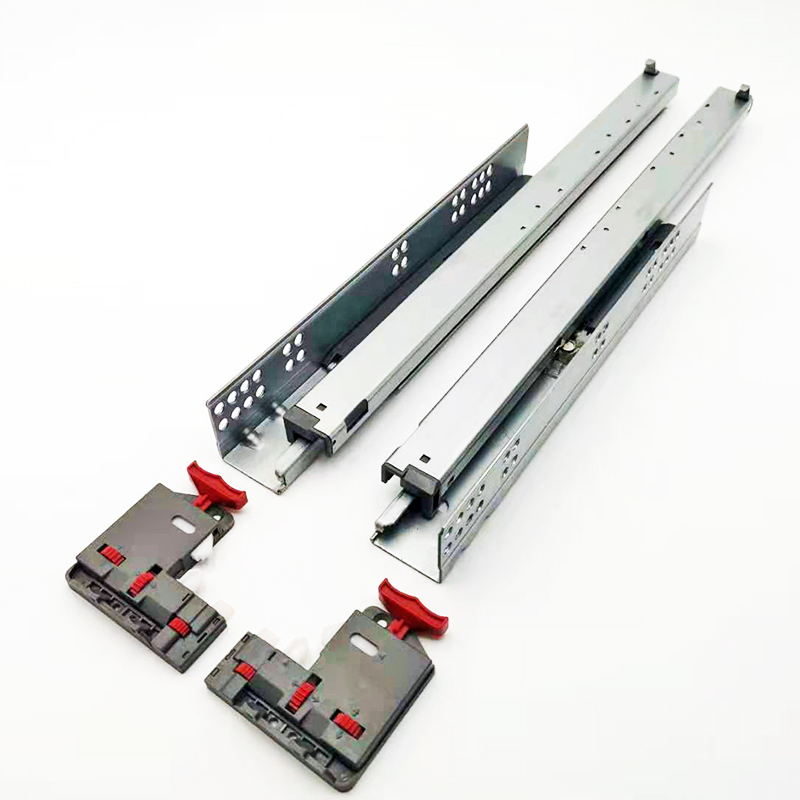

Product Details:

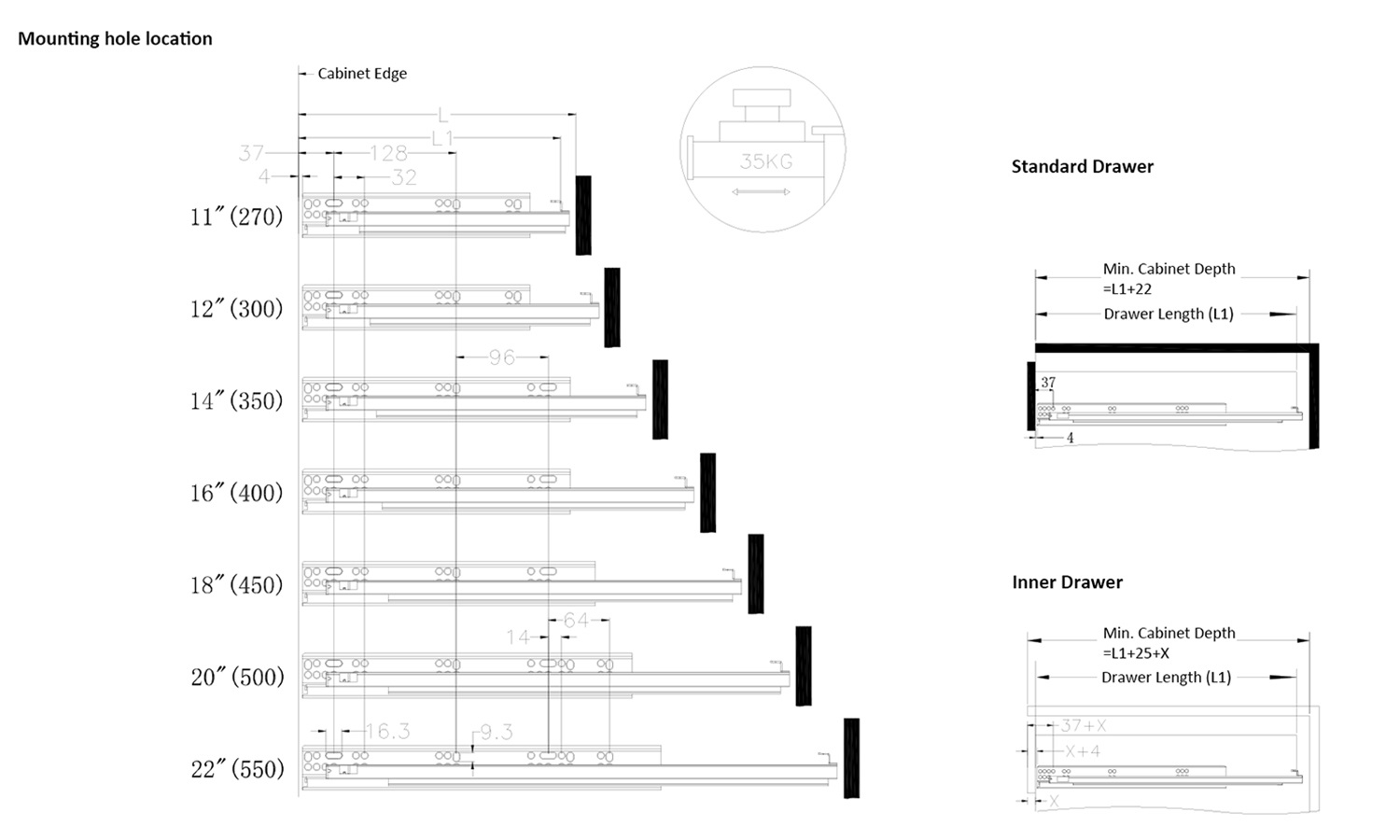

Specification:

Concealed Drawer Slide 003

Item No. (16mm)

Item No. (18mm)

Slide Length

Drawer Length (L1)

Pull Out Length

Standard Drawer Min.Cabinet Depth

Inner Drawer Min. Cabinet Depth

EUR33BS(16)-270

EUR33BS(18)-270

280mm

270mm

252mm

292mm

308mm

EUR33BS(16)-300

EUR33BS(18)-300

310mm

300mm

282mm

322mm

338mm

EUR33BS(16)-350

EUR33BS(18)-350

360mm

350mm

332mm

372mm

388mm

EUR33BS(16)-400

EUR33BS(18)-400

410mm

400mm

382mm

422mm

438mm

EUR33BS(16)-450

EUR33BS(18)-450

460mm

450mm

432mm

472mm

488mm

EUR33BS(16)-500

EUR33BS(18)-500

510mm

500mm

482mm

522mm

538mm

EUR33BS(16)-550

EUR33BS(18)-550

560mm

550mm

532mm

572mm

588mm

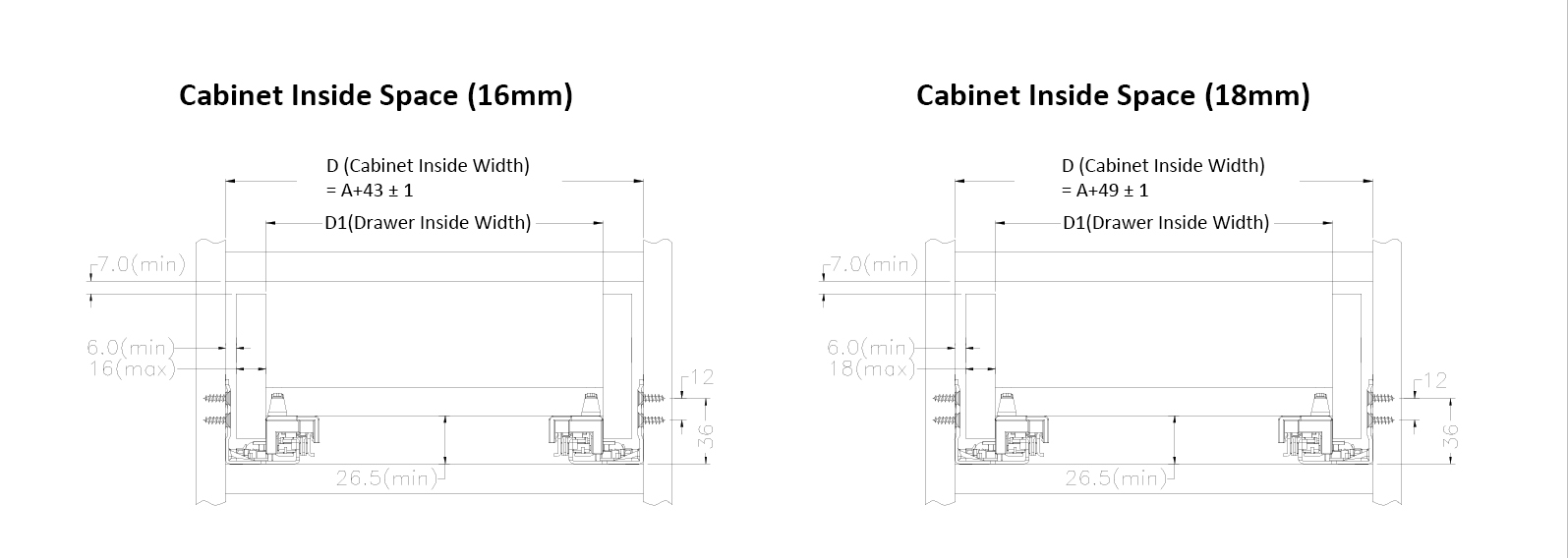

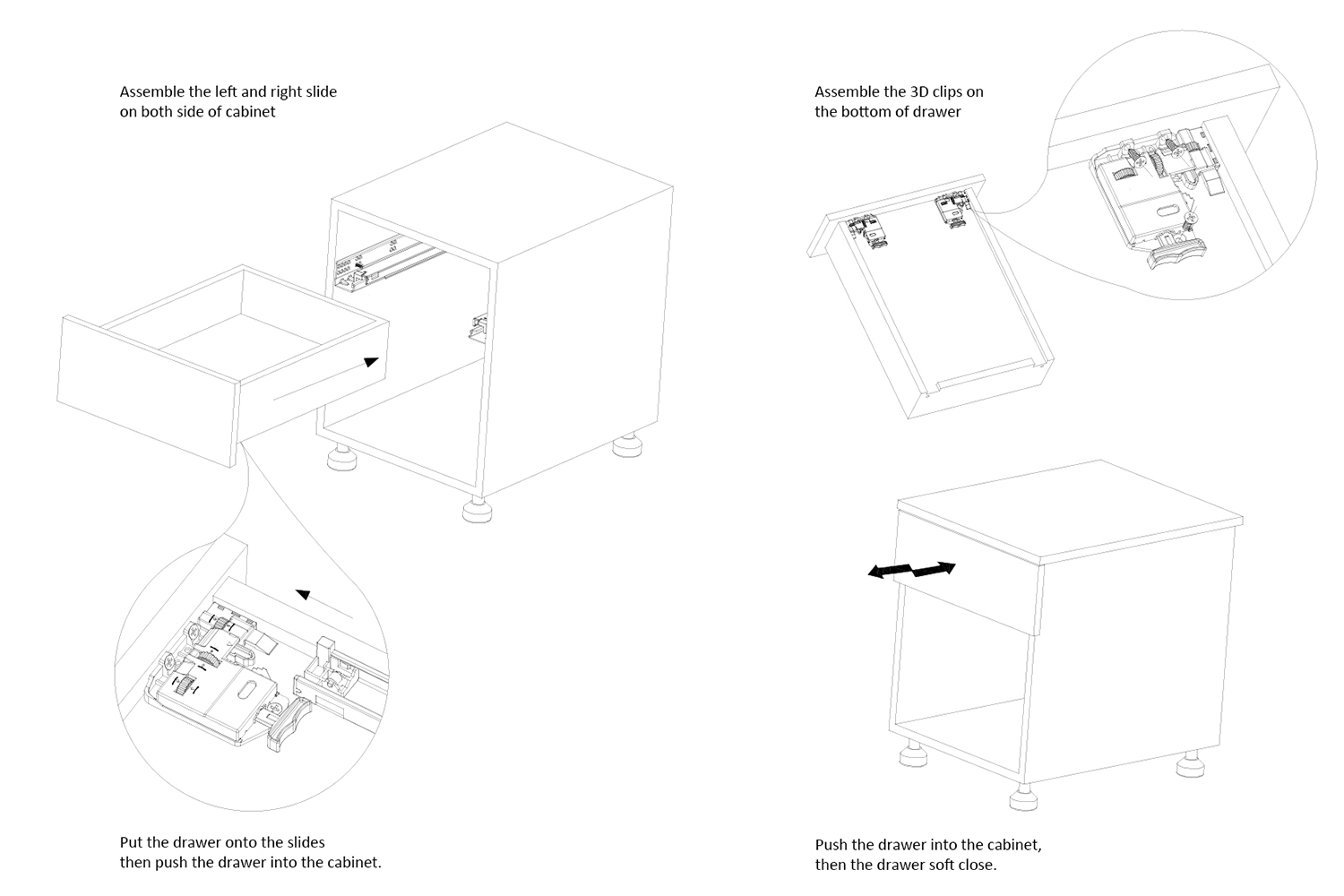

Installation:

Concealed Drawer Slide 001
Concealed Drawer Slide 002
Concealed Drawer Slide 004

Certification:

Packing Details:

ITEM NO. SIZE CARTON SIZE N.W(KGS)/CTN G.W(KGS)/CTN SET/CTN
EUR33BS 250MM 27.5x28.5x12cm 11.95 12.15 10
300MM 32.5x28.5x12cm 14.34 14.54 10
350MM 37.5x28.5x12cm 15.36 15.56 10
400MM 42.5x28.5x12cm 16.55 16.75 10
450MM 47.5x28.5x12cm 18.85 19.05 10
500MM 52.5x28.5x12cm 21.05 21.25 10
550MM 57.5x28.5x12cm 23.40 23.60 10
Package

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
