Full Extension Soft-Close Undermount Drawer Slide for Frameless Cabinets

Short Description:

Model No.: EUR33A

Full extension soft-close undermount drawer slide for frameless cabinets – 16mm drawer board usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws and plastic plugs fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

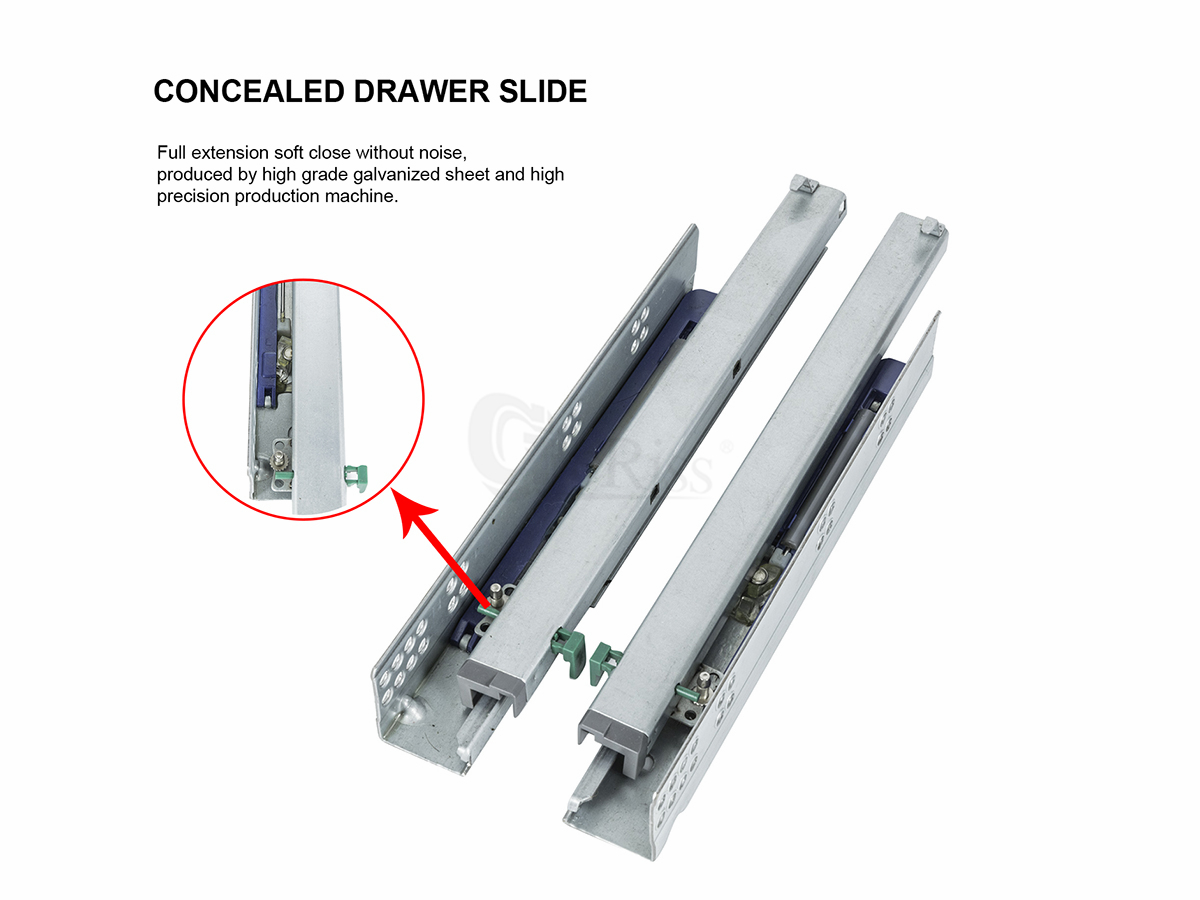

Concealed Drawer Runners

Full Extension Silent Smooth Soft Closing Concealed

Drawer Runners with Adjustable Screws and Plastic Plugs

Product Name

  Concealed Drawer Slides

Item No.

  EUR33B

Brand

  GERISS

Materials

  Galvanized Sheet

Material Thickness

  1.8 x 1.5 x 1.0 mm

Surface

  Zinc Plated

Size Range

  10 Inch -22 Inch250mm-550mm

Load Capacity

  35.0kg

Opening

  Full Extension

Installation

  Bottom Mount of Drawer

Separate Way

  Adjustable screws and plastic plugs

Application

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test

  Over 50,000 times

Features

  Drawer pull out and close without noise, soft close.

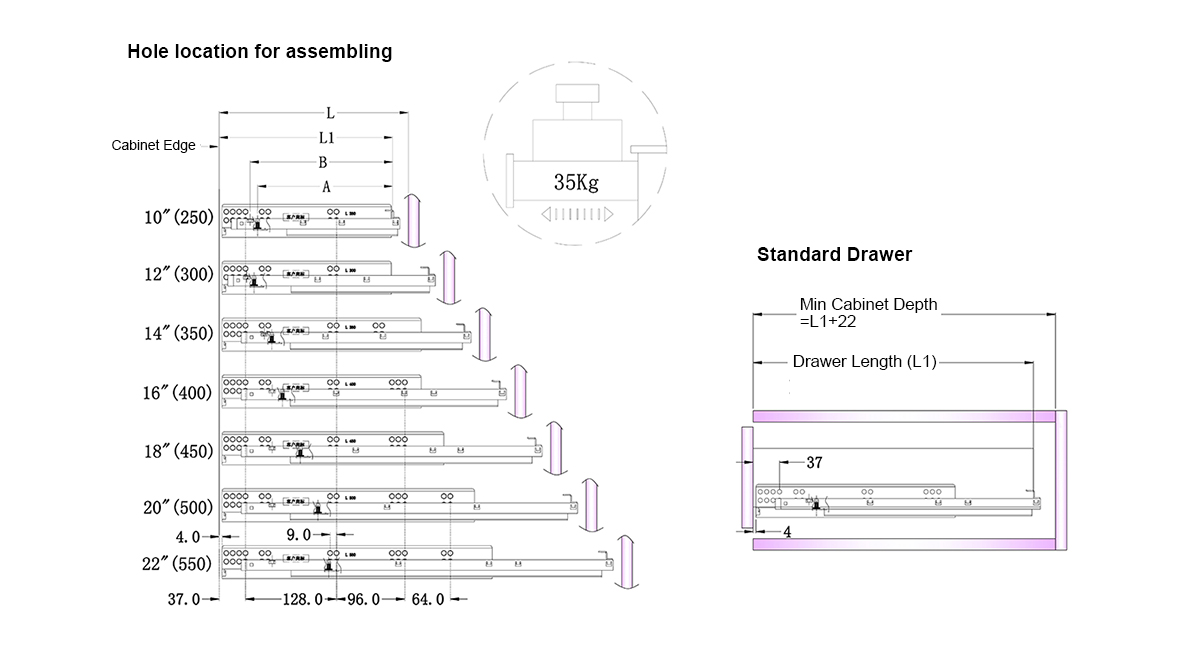

Specification:

Concealed Drawer Channel Size
Item No. Slide Length Drawer Length ( L1 ) Pull-out Length Min Cabinet Depth (L) Assembling Hole( A ) Assembling Hole( B )
EUR33A.240 250 240 223 266 190 200.5
EUR33A.290 300 290 273 316 245 255.5
EUR33A.340 350 340 323 366 270 280.5
EUR33A.390 400 390 373 416 305 319.5
EUR33A.440 450 440 422 466 330 369.5
EUR33A.490 500 490 472 516 355 419.5
EUR33A.540 550 540 522 566 390 469.5

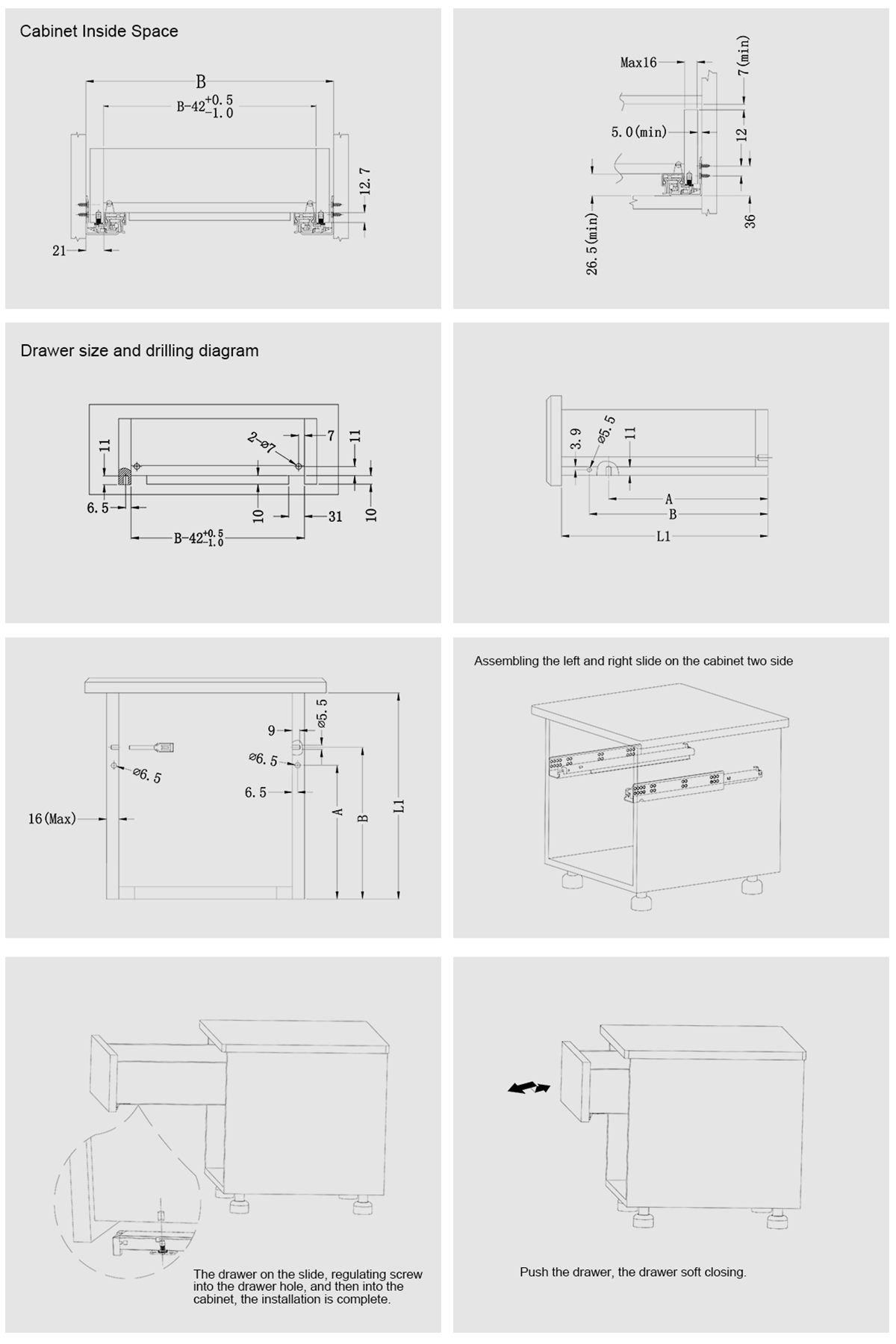

Installation:

Concealed Drawer Channel Installation

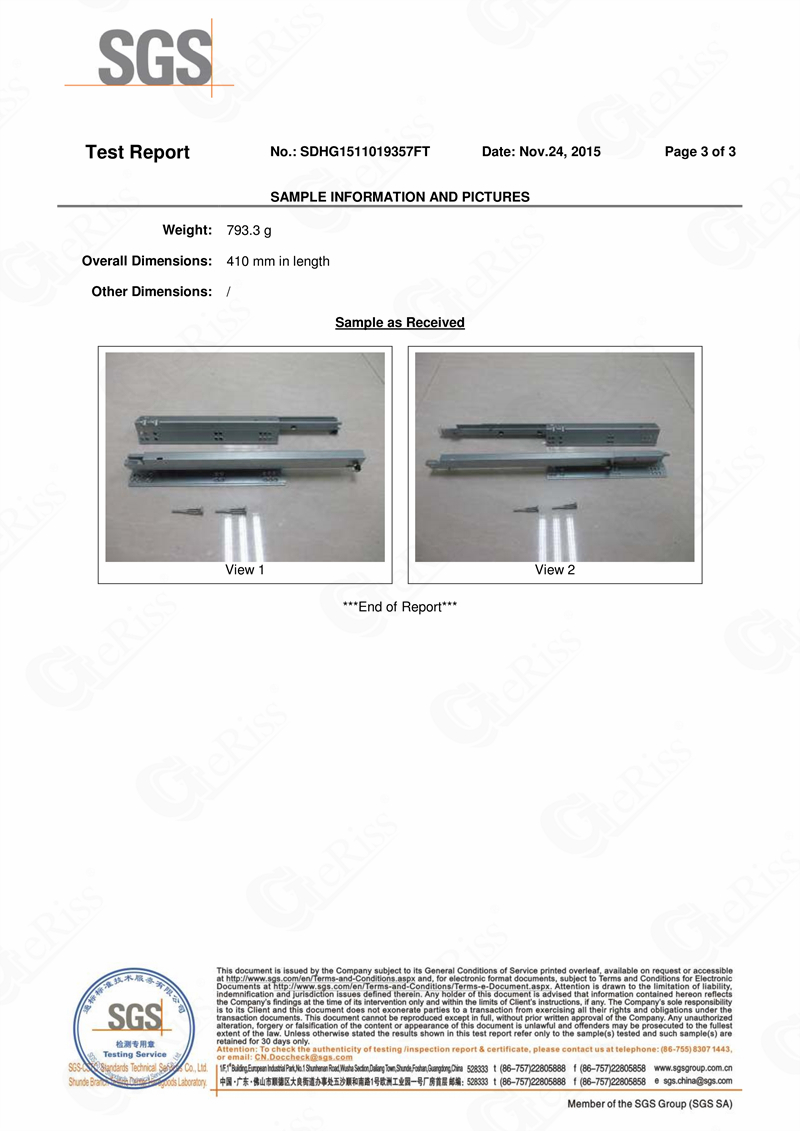

Certification:

Packing Details:

ITEM NO SIZE SET/CTN N.W(KGS)/CTN G.W(KGS)/CTN MEA(CM)/CTN 20’GP Load
EUR33A-240 250mm 10 9.7 9.9 31x28x12.5 19000
EUR33A-290 300mm 10 11.5 11.7 36x28x12.5 16500
EUR33A-340 350mm 10 16.1 16.4 41x28x12.5 11500
EUR33A-390 400mm 10 18.4 18.7 46x28x12.5 10000
EUR33A-440 450mm 10 20.7 21 51x28x12.5 9300
EUR33A-490 500mm 10 23 23.3 56x28x12.5 8400
EUR33A-540 550mm 10 25 25.3 61x28x12.5 7600
Package

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
