Full extension push to open under mount drawer slides with adjustable pins

Short Description:

Model No.: EUR33C

Full extension push to open under mount drawer slides with adjustable pins usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws and plastic plugs fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

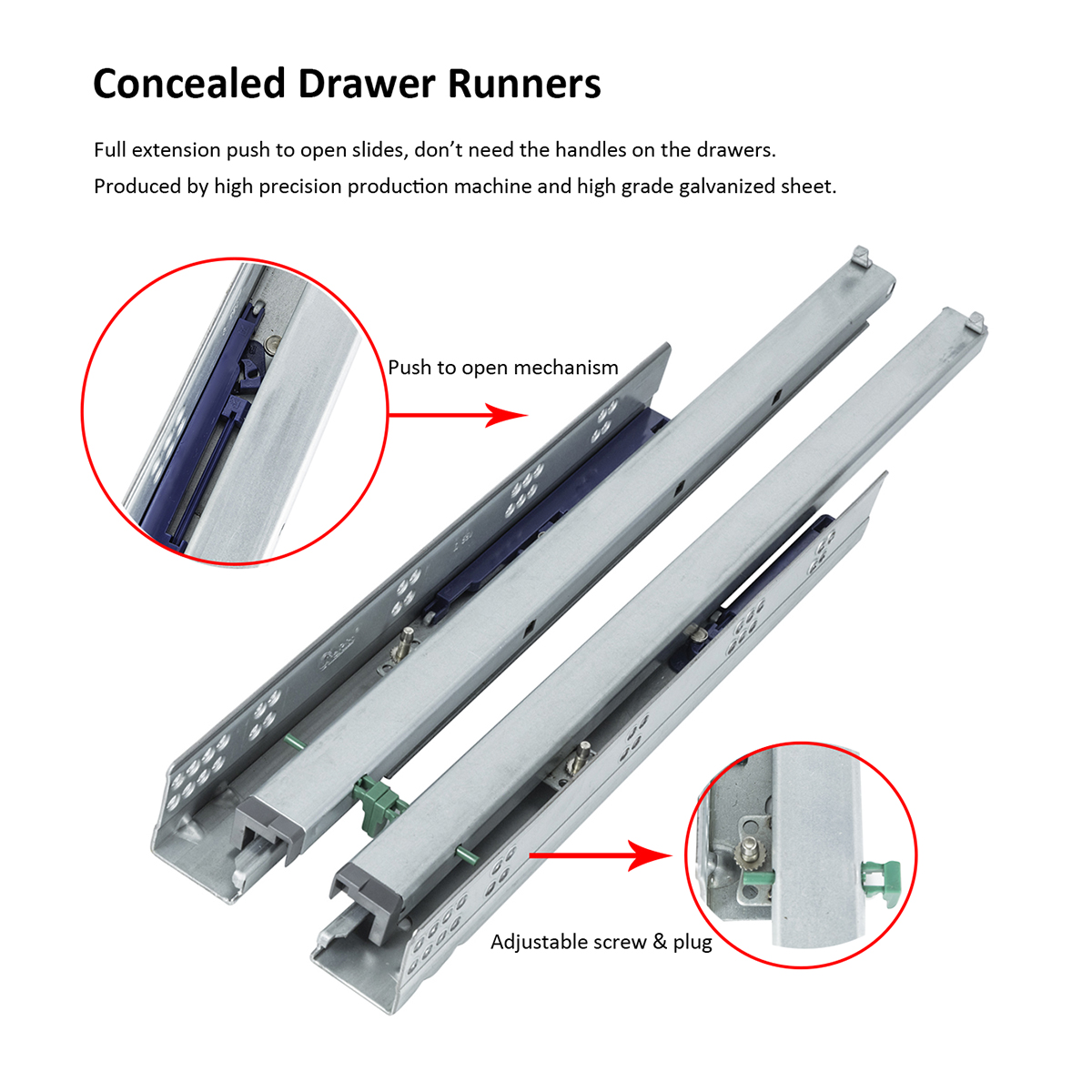

Push open concealed drawer runner

Full Extension Push To Open Concealed

Drawer Slides with Adjustable Screws and Plastic Plugs

Product Name:

  Concealed Drawer Slides

Item No.:

  EUR33C

Brand:

  GERISS

Materials:

  Galvanized Sheet

Material Thickness:

  1.8 x 1.5 x 1.0 mm

Surface:

  Zinc Plated

Size Range:

  10 Inch -22 Inch(250mm-550mm)

Load Capacity:

  35.0kg

Opening:

  Full Extension

Installation:

  Bottom Mount of Drawer

Separate Way:

  Adjustable screws and plastic plugs

Application:

  Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

  Over 50,000 times

Features:

  Drawer pull out and close without noise, soft close.

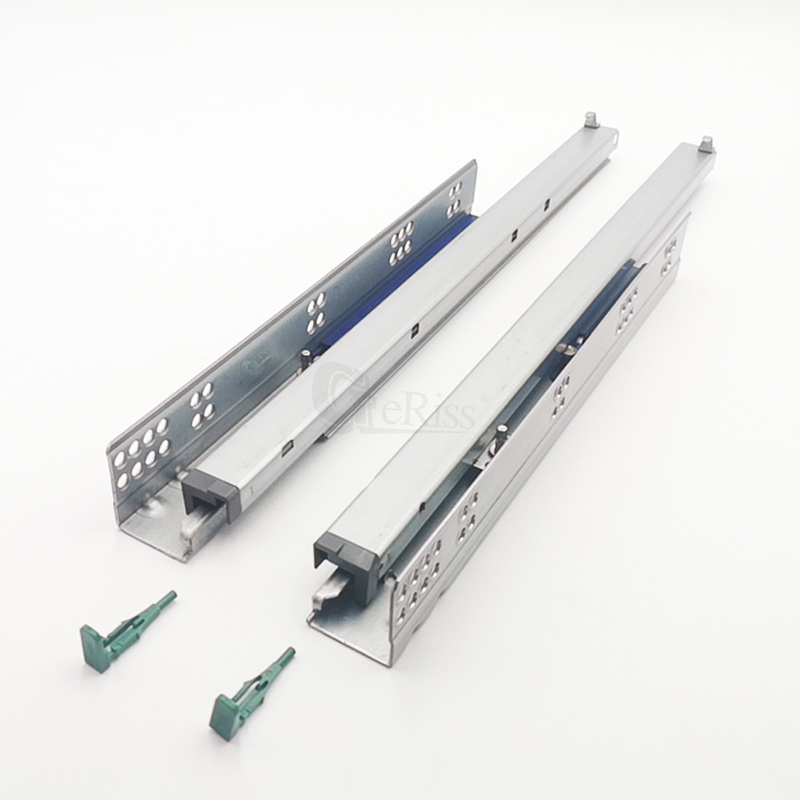

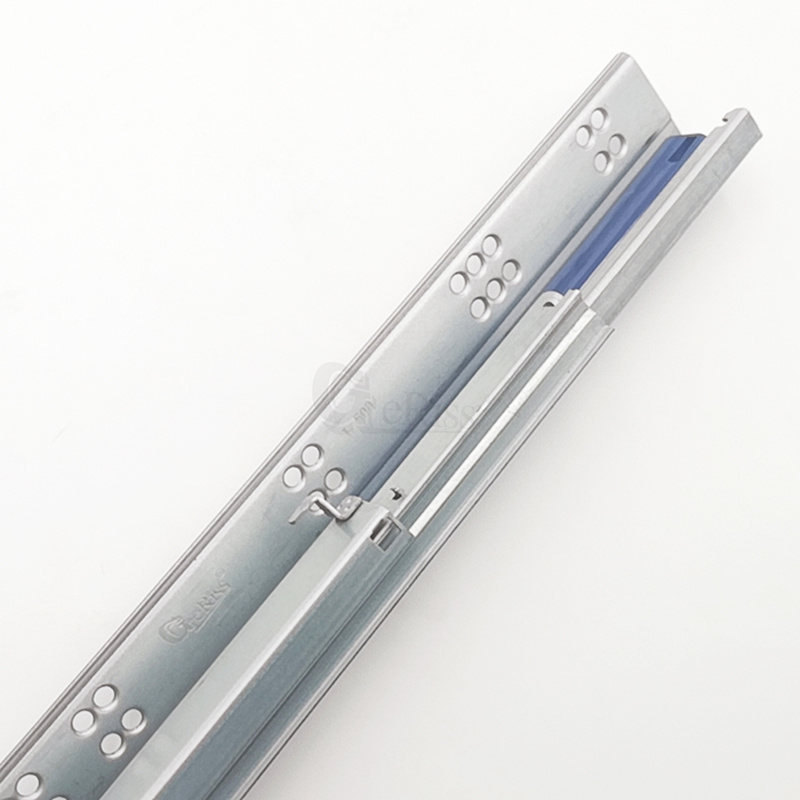

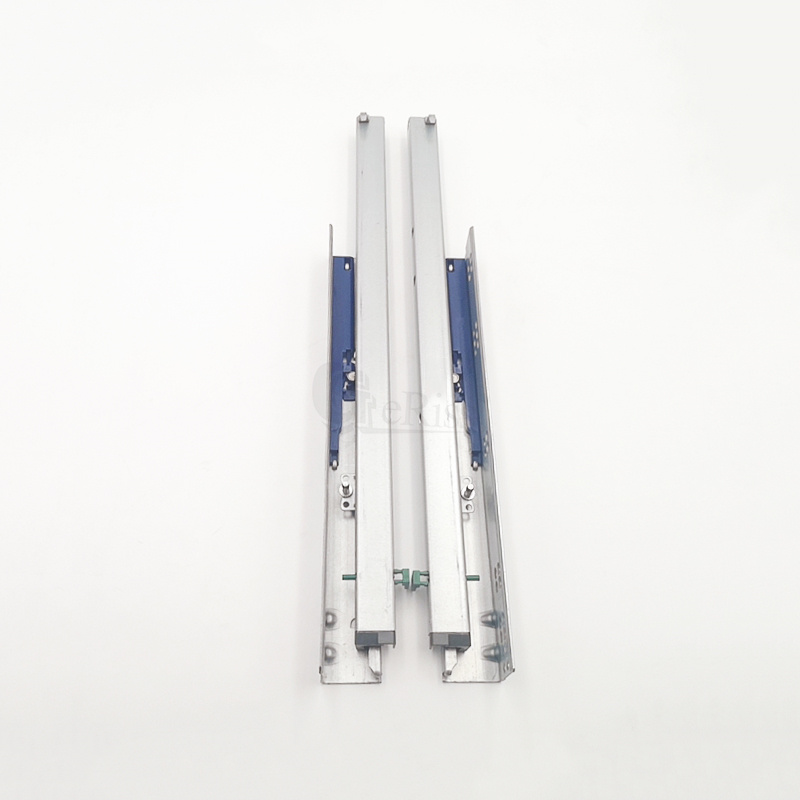

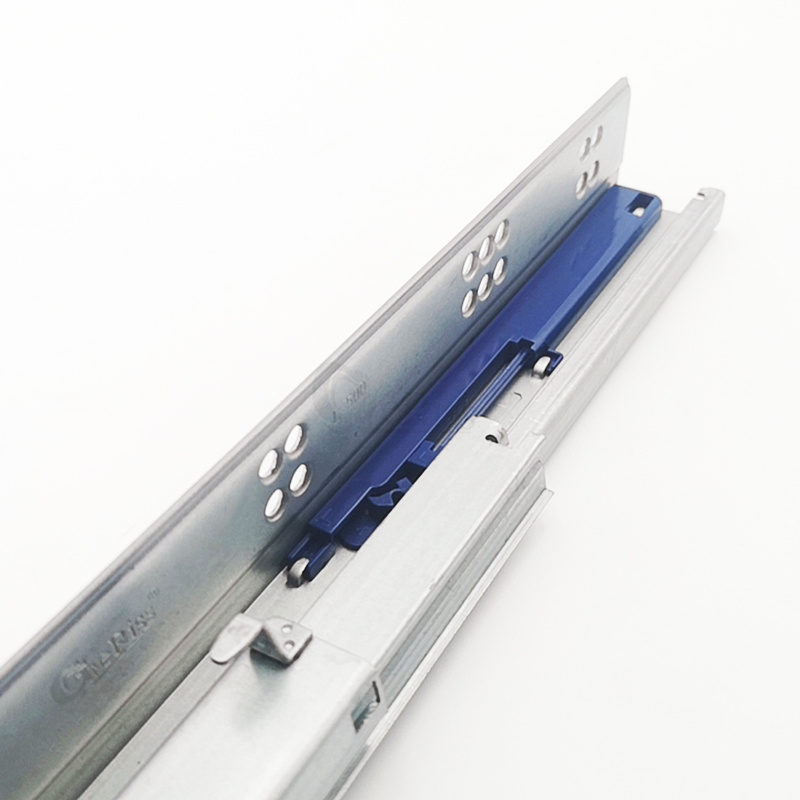

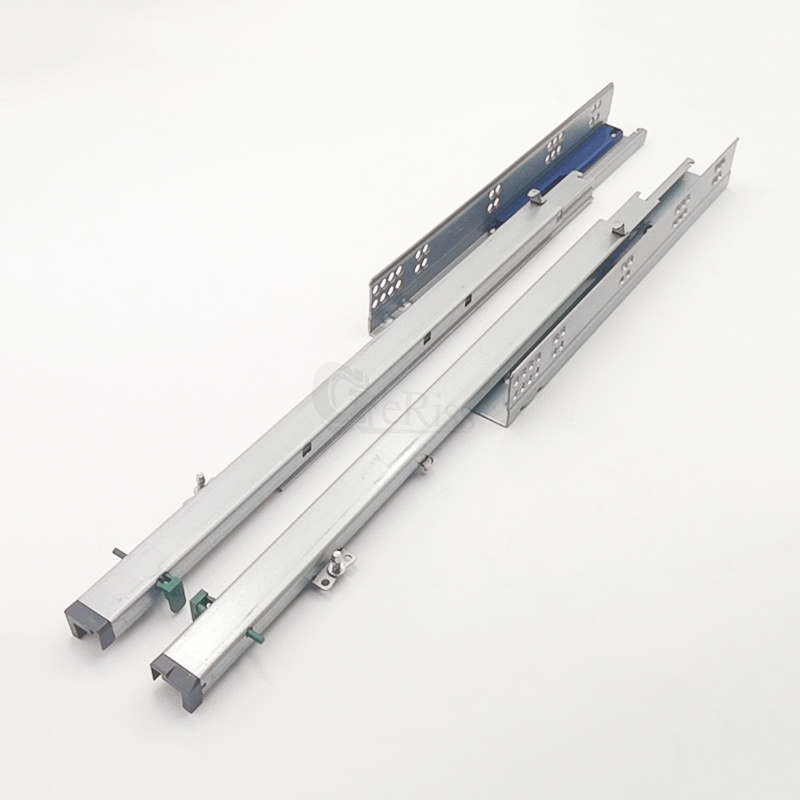

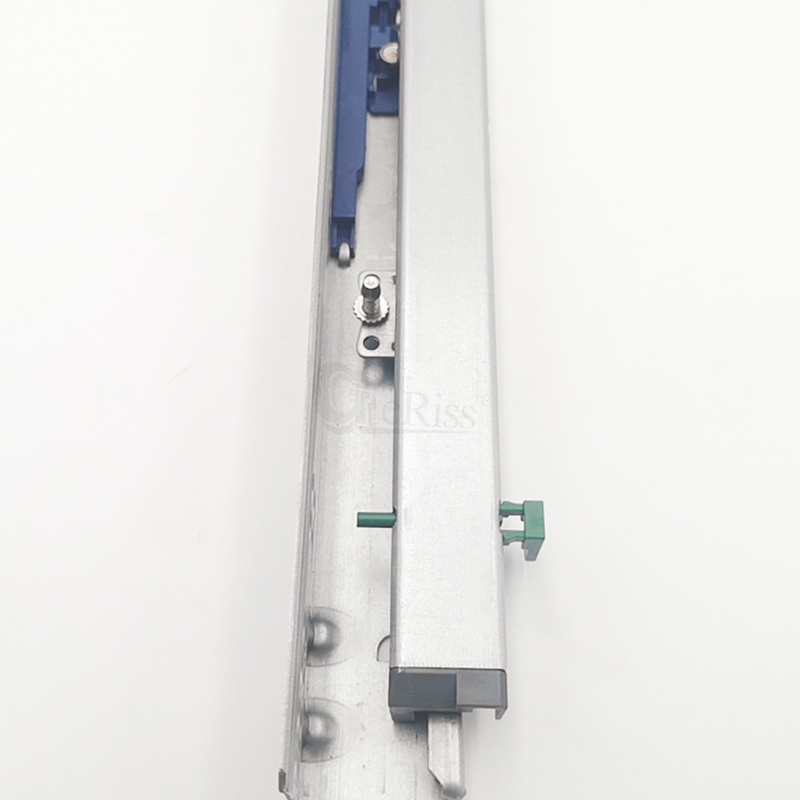

Details Photos:

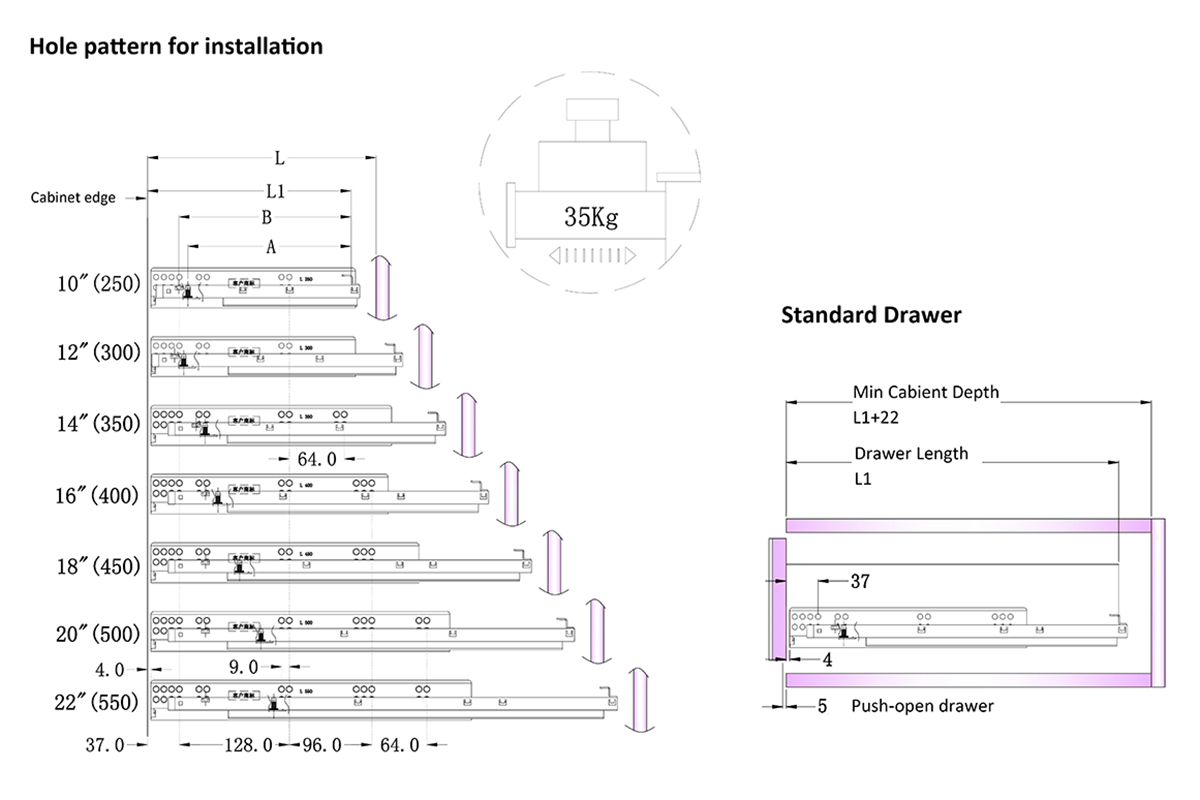

Hole pattern for installation
Item No. Slide Length Drawer Length (L1) Pull-out Length Min Cabinet Depth (L) Assembling Hole (A) Assembling Hole (B)
EUR33C-240 250 240 216 316 190 200.5
EUR33C-290 300 290 266 316 245 255.5
EUR33C-340 350 340 316 366 270 280.5
EUR33C-390 400 390 366 416 305 319.5
EUR33C-440 450 440 416 466 330 369.5
EUR33C-490 500 490 466 516 355 419.5
EUR33C-540 550 540 516 566 390 469.5

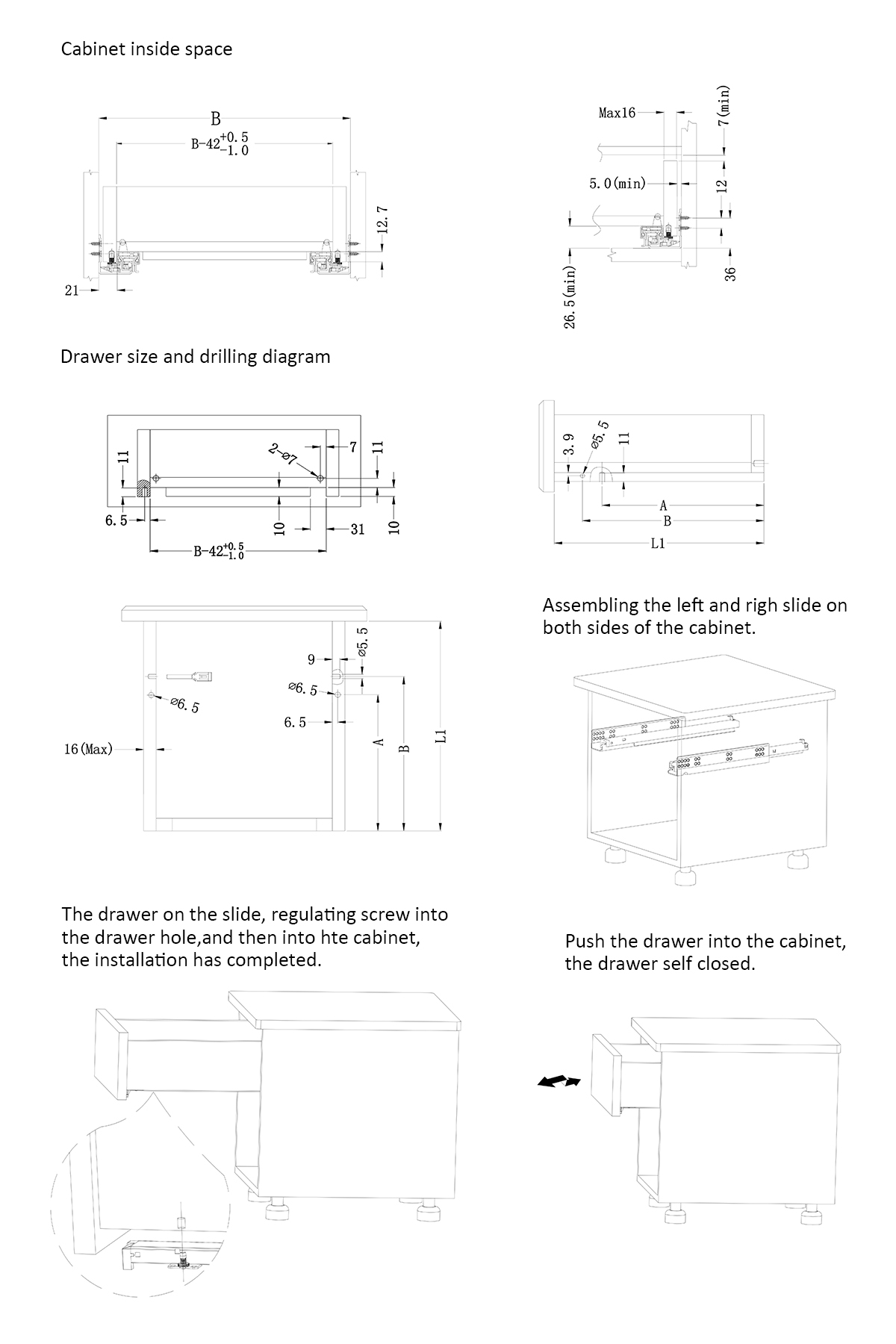

Installation:

Concealed drawer slide installation

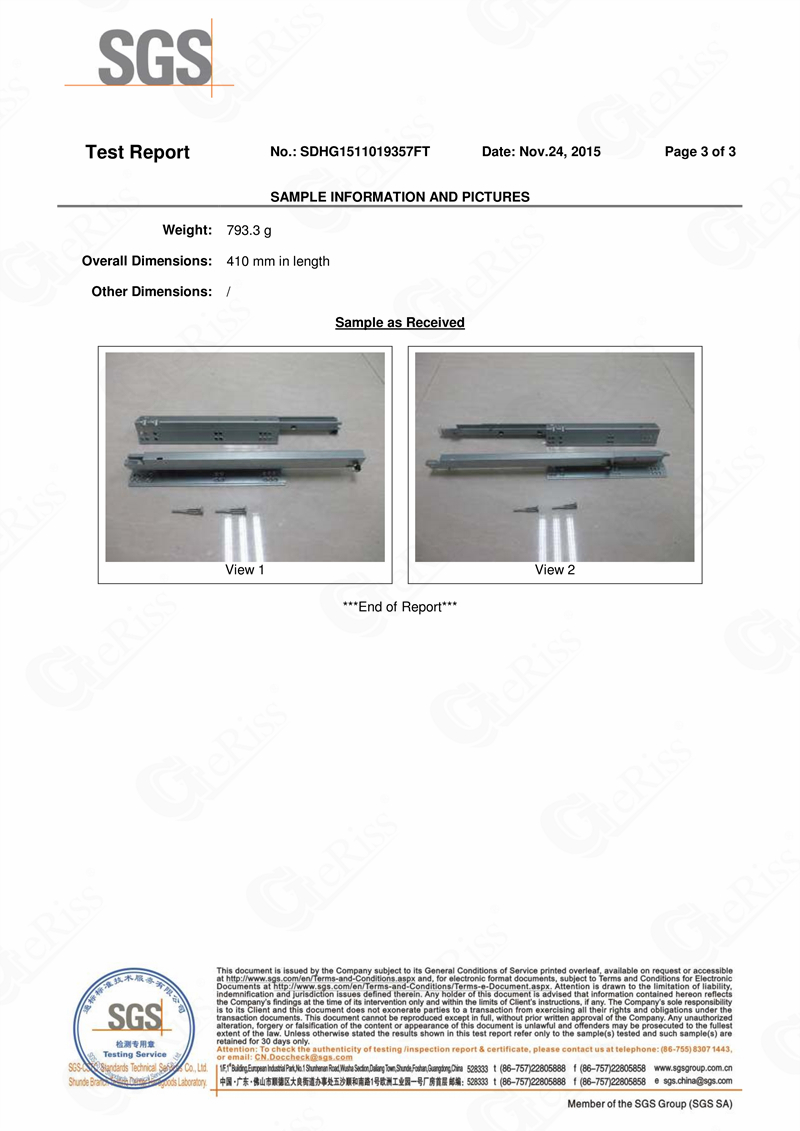

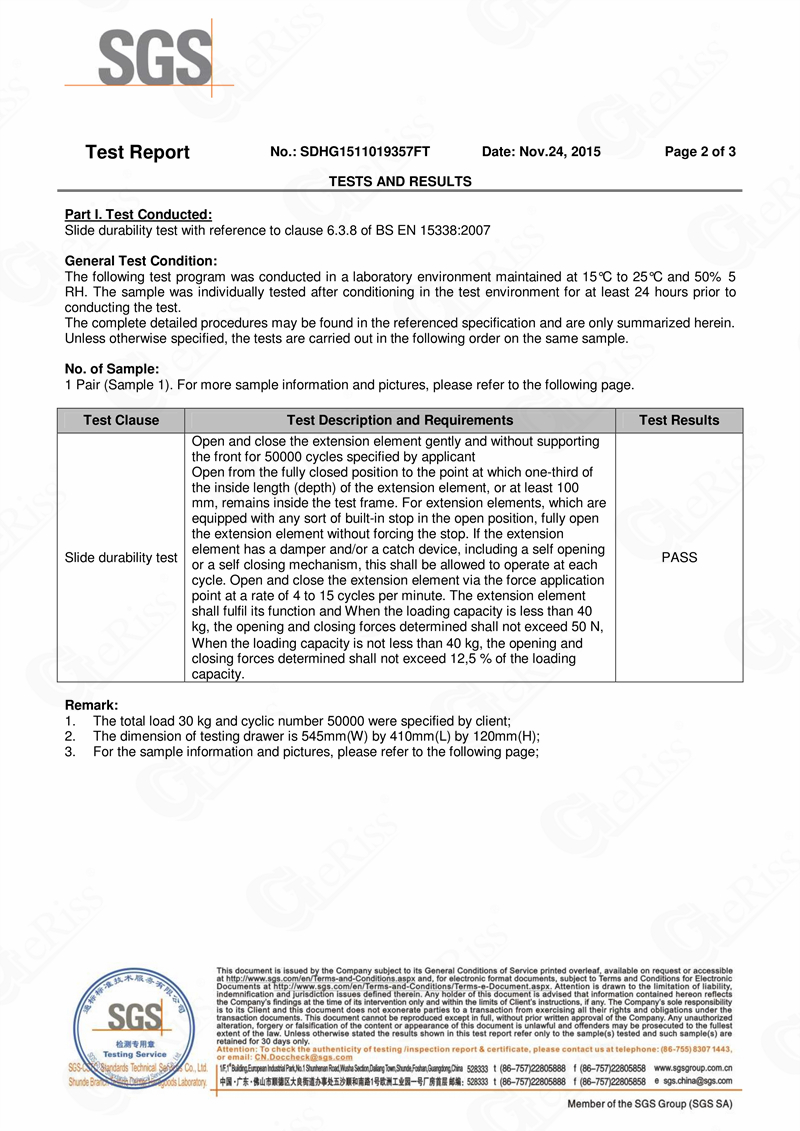

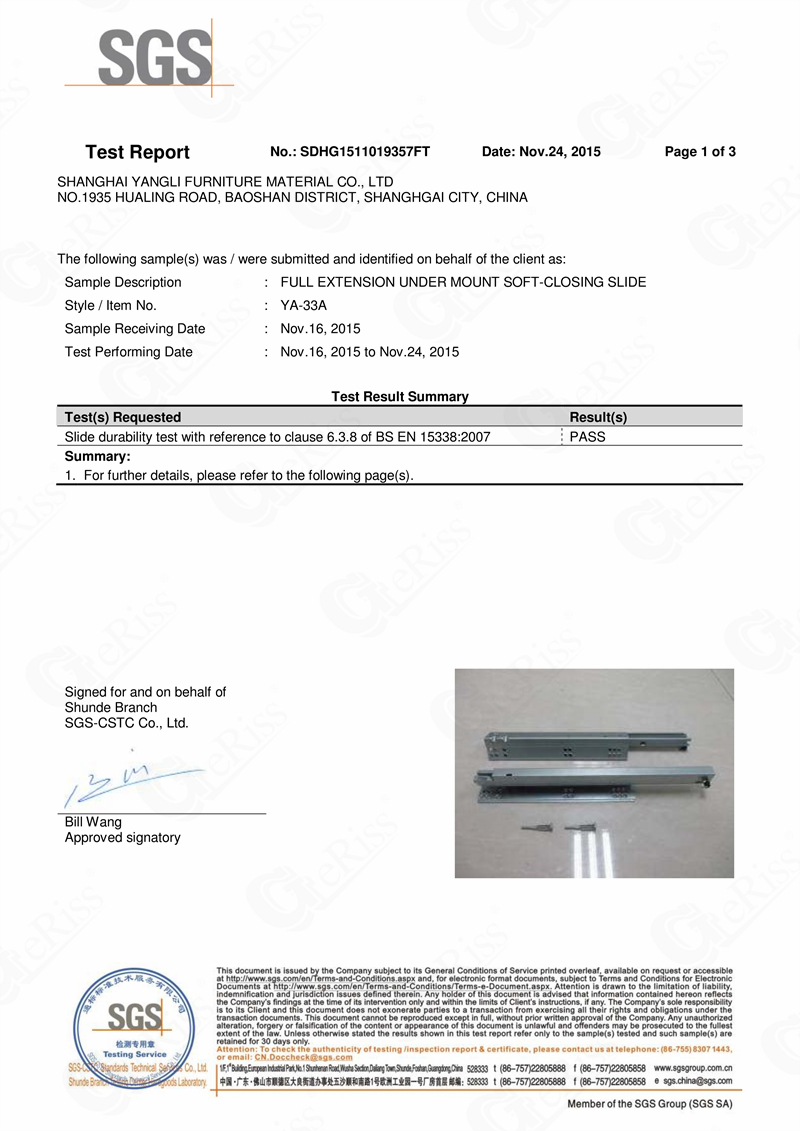

Certification:

Packing Details:

ITEM NO.

SIZE

SET/CTN

N.W(KGS)/CTN

G.W(KGS)/CTN

EUR33C.290

300mm

10

14.34

14.54

EUR33C.340

350mm

10

15.36

15.56

EUR33C.390

400mm

10

16.55

16.75

EUR33C.440

450mm

10

18.85

19.05

EUR33C.490

500mm

10

21.05

21.25

EUR33C.540

550mm

10

23.40

23.60

Package

Workshop:

WORKSHOP
