Full extension bottom mount PUSH TO OPEN drawer slides with locking device

Short Description:

Model No.: EUR33D

Full extension bottom mount PUSH TO OPEN drawer slides with locking device usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use locking device clip to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

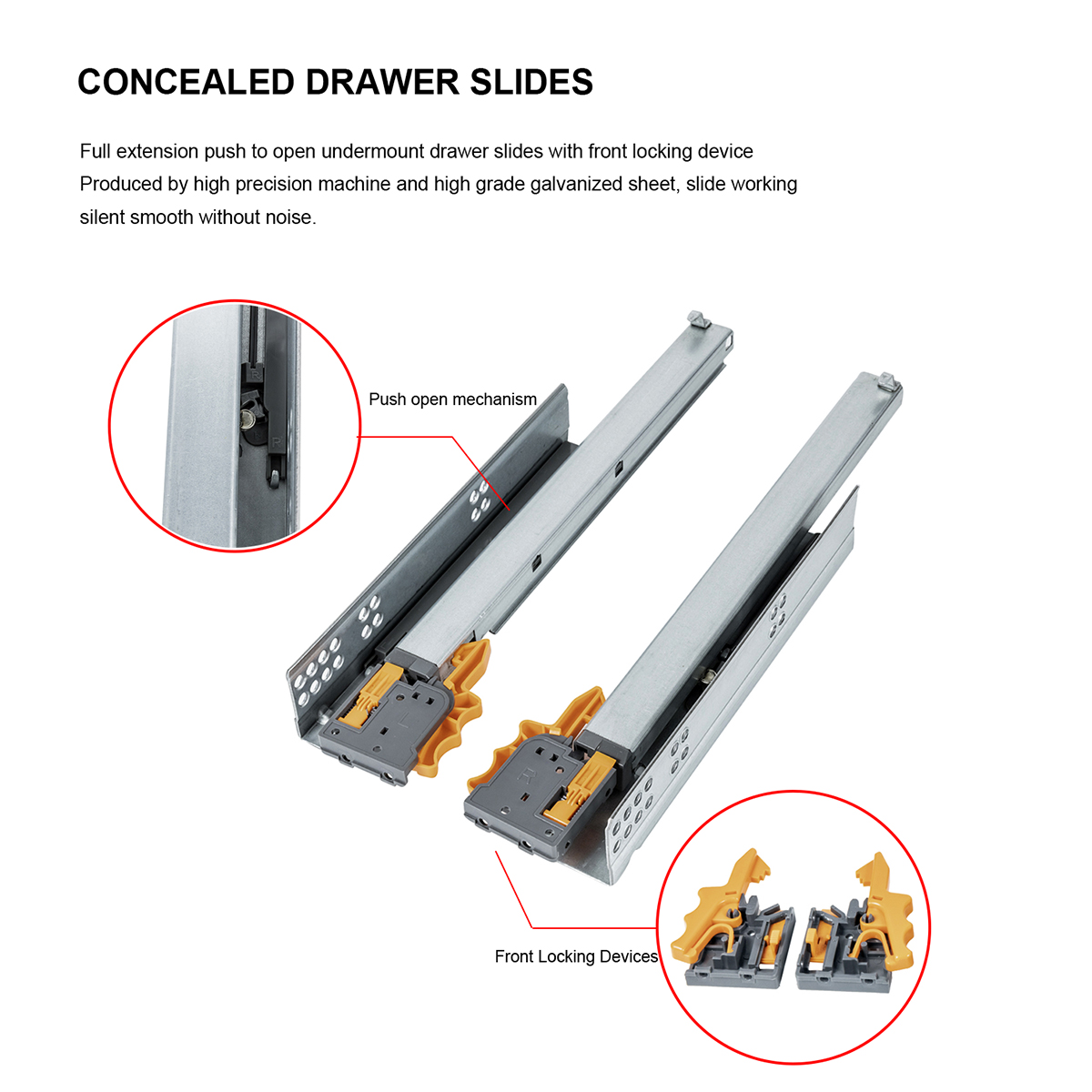

undermount drawer glide

Concealed Drawer Runners,Full extension push to open

undermount drawer slide with front brackets

Product Name:

Concealed Drawer Slides

Item No.:

EUR33D

Brand:

GERISS

Materials:

Galvanized Sheet

Material Thickness:

1.8 x 1.5 x 1.0 mm

Surface:

Zinc Plated

Size Range:

10 Inch -22 Inch(250mm-550mm)

Load Capacity:

35.0kg

Opening:

Full Extension

Installation:

Bottom Mount of Drawer

Separate Way:

Front locking devices

Application:

Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test:

Over 50,000 times

Features:

Drawer pull out and close without noise, soft close.

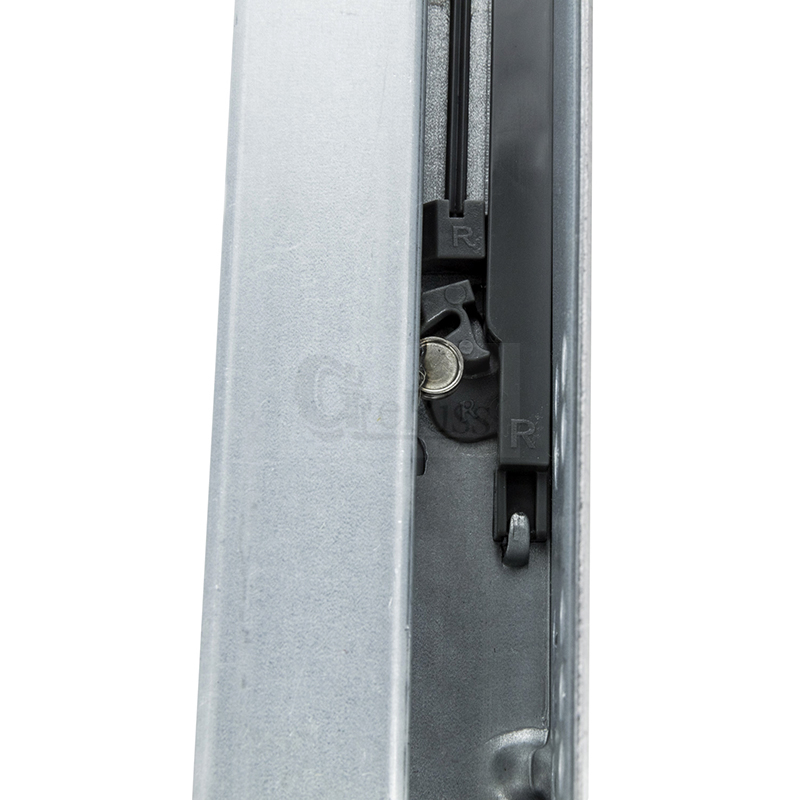

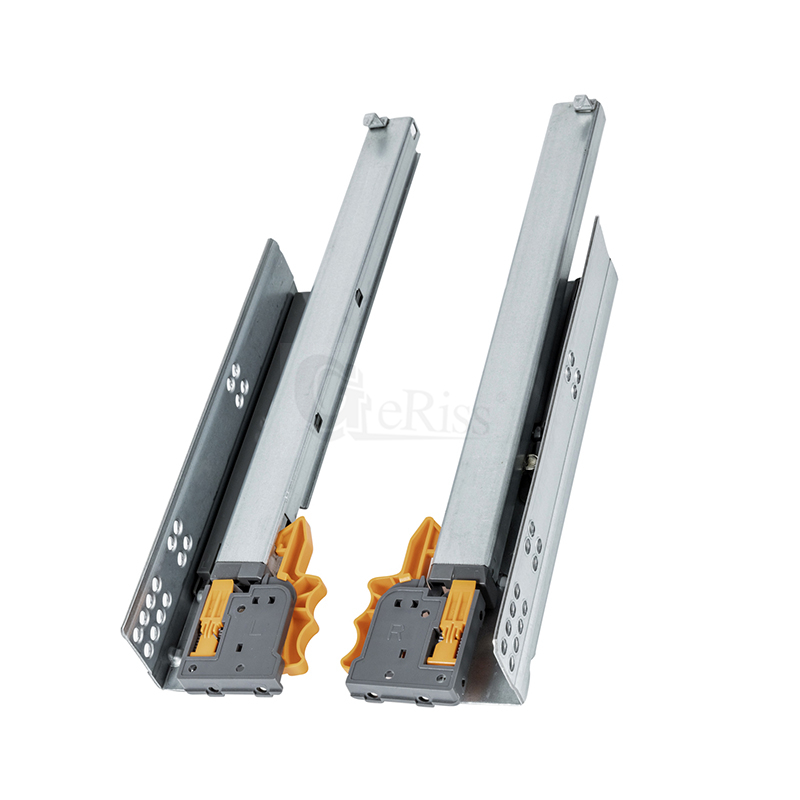

Details Photos:

Specification:

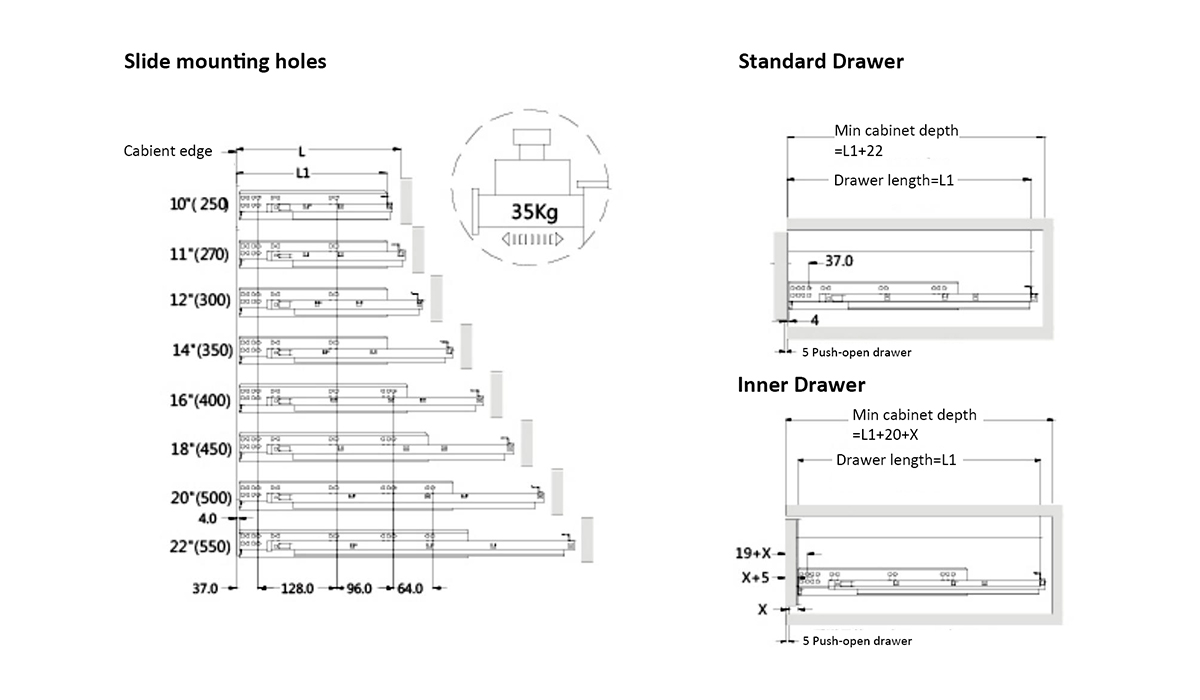

Undermount drawer slide size
ITEM NO.(16MM) ITEM NO.(18MM) SLIDE LENGTH DRAEWR LENGTH (L1) PULL-OUT LENGTH MIN CABINET DEPTH
EUR33D-250-16 EUR33D-250-18 255 MM 250 MM 228 MM 272 MM
EUR33D-300-16 EUR33D-300-18 305 MM 300 MM 278 MM 322 MM
EUR33D-350-16 EUR33D-350-18 355 MM 350 MM 327 MM 372 MM
EUR33D-400-16 EUR33D-400-18 405 MM 400 MM 377 MM 422 MM
EUR33D-450-16 EUR33D-450-18 455 MM 450 MM 427 MM 472 MM
EUR33D-500-16 EUR33D-500-18 505 MM 500 MM 477 MM 522 MM
EUR33D-550-16 EUR33D-550-18 555 MM 550 MM 527 MM 572 MM

Installation:

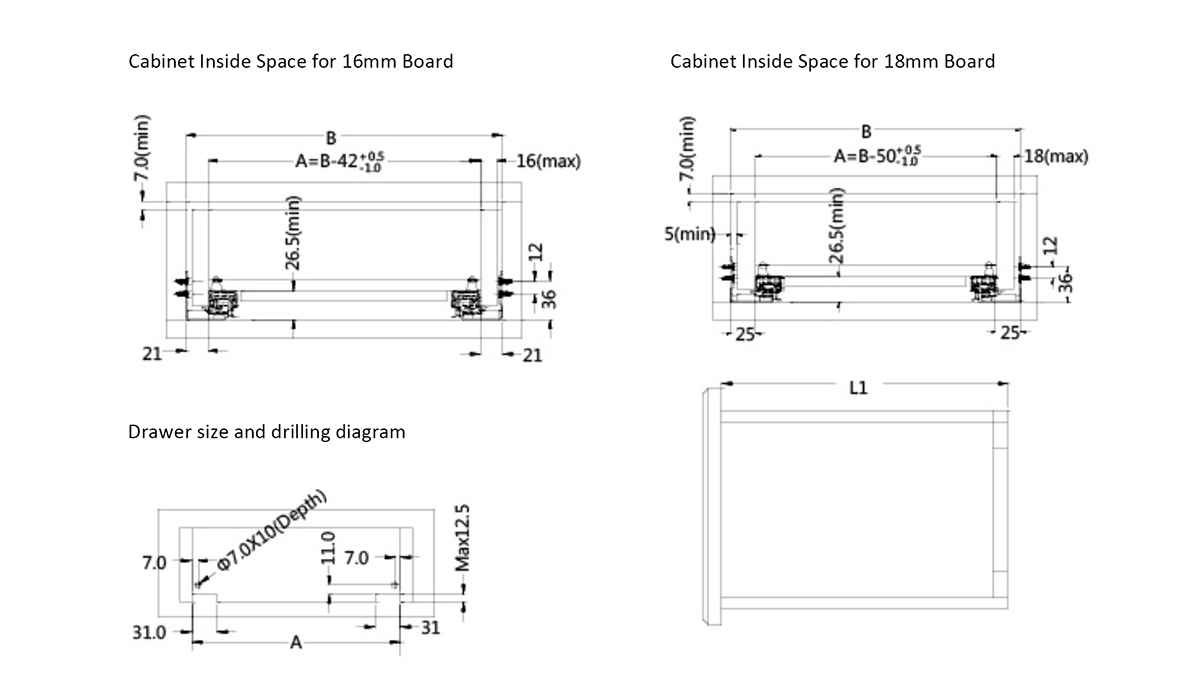

Drawer Slide Mounting Size
Push open drawer slide installation

Certification:

Packing Details:

ITEM NO SIZE SET/CTN N.W(KGS)/CTN G.W(KGS)/CTN MEA(CM)/CTN
EUR33D-250 250mm 10 9.70 9.90 26.5x28.5x12
EUR33D-300 300mm 10 11.50 11.70 31.5x28.5x12
EUR33D-350 350mm 10 16.10 16.40 36.5x28.5x12
EUR33D-400 400mm 10 18.40 18.70 41.5x28.5x12
EUR33D-450 450mm 10 20.70 21.00 46.5x28.5x12
EUR33D-500 500mm 10 23.00 23.30 60.5x28.5x12
EUR33D-550 550mm 10 25.00 25.30 56.5x28.5x12
Package

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
