Frameless concealed hinge without hydraulic, Slide-on

Short Description:

Item No.: 0241 (Full overlay) / 0242 (Half overlay) / 0243 (Inset)

Slide-on 110 degree two-way self close cabinet door hinge. This type of furniture hinge use for standard cabinet doors. The hinge apply to 14-22 mm cabinet doors. When you close the cabinet door, it can close your cabinet door fast. The 35mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us.


Product Detail

Product Tags

Description:

Product Name Slide-on two-way self close hinge
Material Iron
Surface Nickel plated
Opening Angle 105 Degree
Thickness of hinge cup 11.5 mm
Diameter of hinge cup 35mm
Hole distance of hinge cup 45 or 48mm
Door panel (K) size 3-7 mm
Available door thickness 14-22 mm

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Slide-on cabinet door hinge's base mouting plate, you can install the mounting plate on the cabinet side board first, then slide-on the furniture hinge into the mouting plates. The concealed hinges finished installation. This type of self close hinge feature is cheap, usually apply to simple economical furniture. When you close the cabinet doors, you will feel the door close fast. There are three different types: full overlay, half overlay, inset.

ORDER INFORMATION:

ITEM NO. OVERLAY

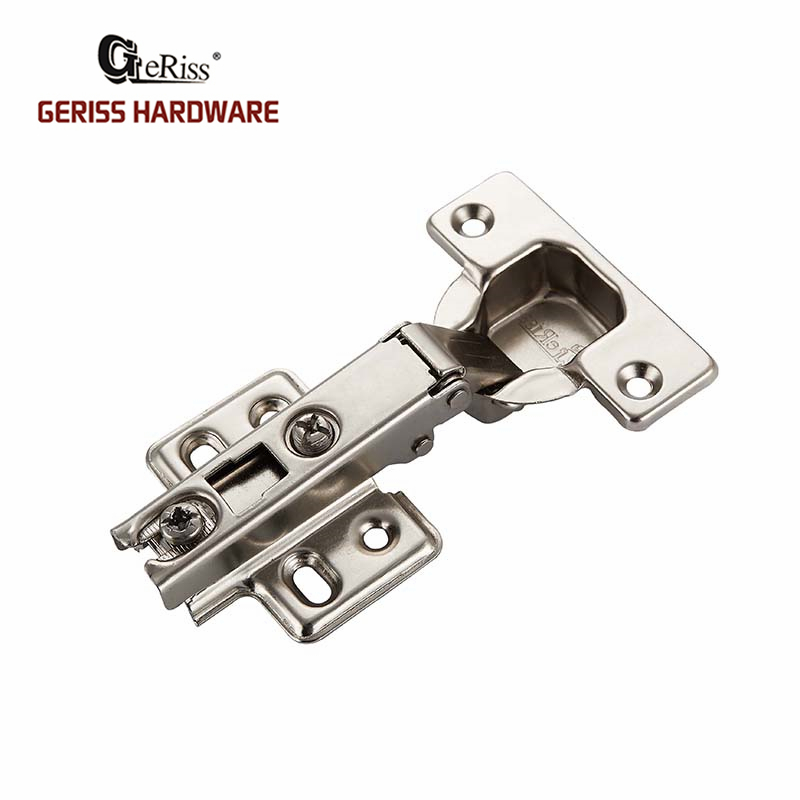

0241 FULL-OVERLAY

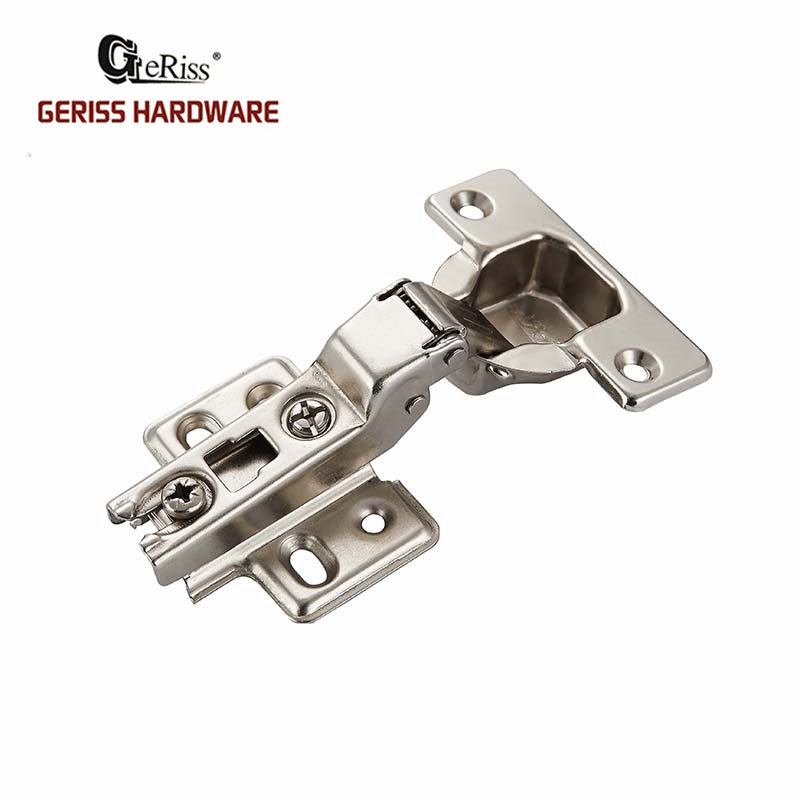

0242 HALF-OVERLAY

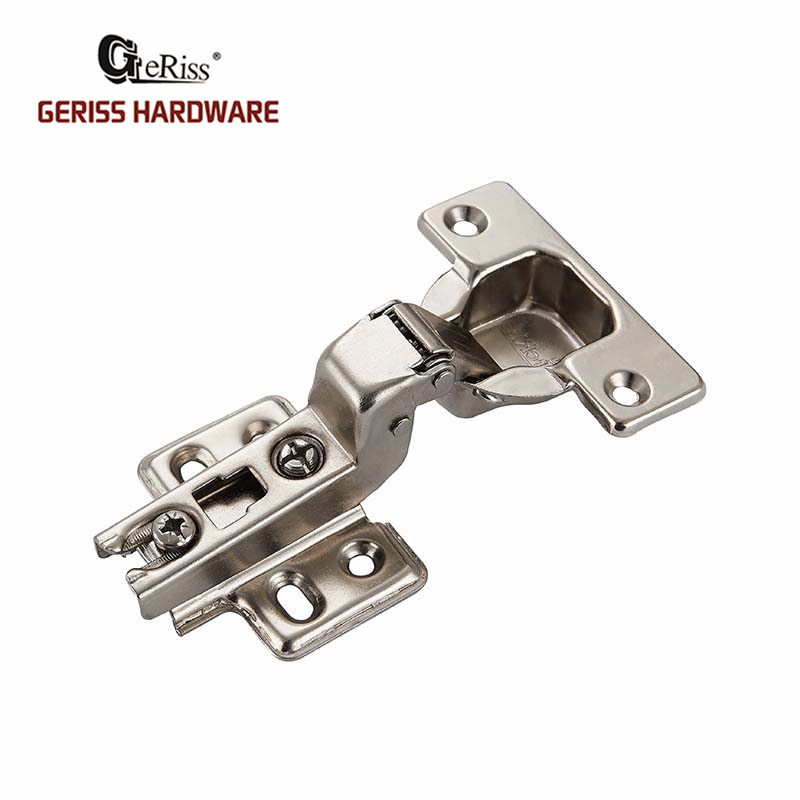

0243 INSET

>>> Click to View Installation Technical Specification

PACKAGE DETAILS:

The slide-on 110 degree two way cabinet door hinge standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
