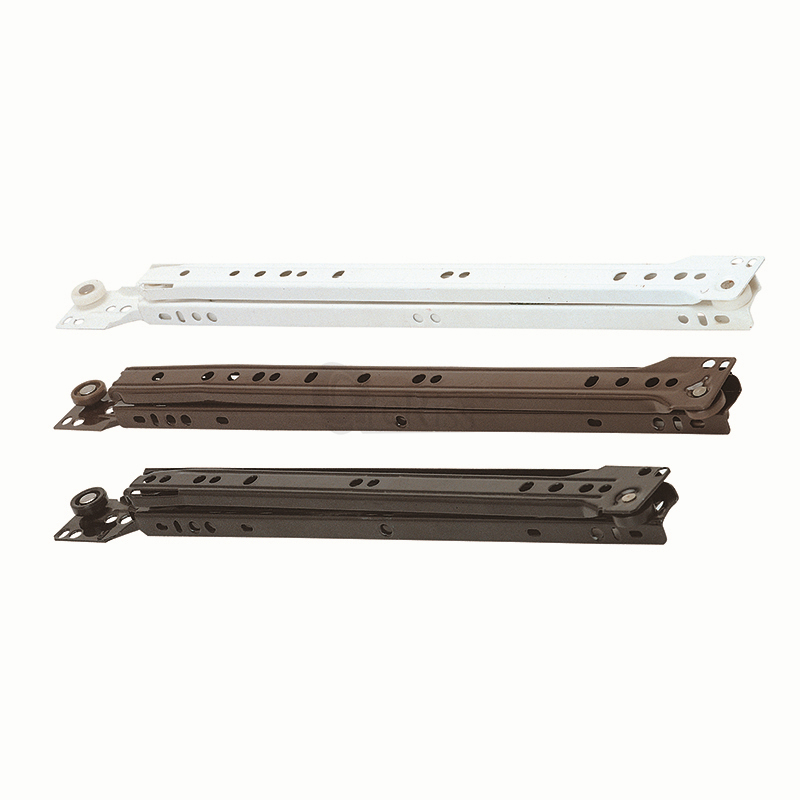

FGV Series bottom mount self closing powder coating South America drawer slides

Short Description:

Model No.: YA-02

FGV Series bottom mount self closing powder coating South America drawer slides is the easiest type of drawer slide. It made by stamping machine. Can use for all type of furniture drawers.The load capacity around 25 KGS and the cycling over 50,000 times. The feature is the roller slide with balance pads, the smooth sliding with low noise, self-related function, pairs of stop bits to prevent the slide-out structure. The surface use advanced spray technology, non-toxic environmentally friendly, effective anti-corrosion, anti-rust.


Product Detail

Product Tags

bottom mounted drawer slide

Description:

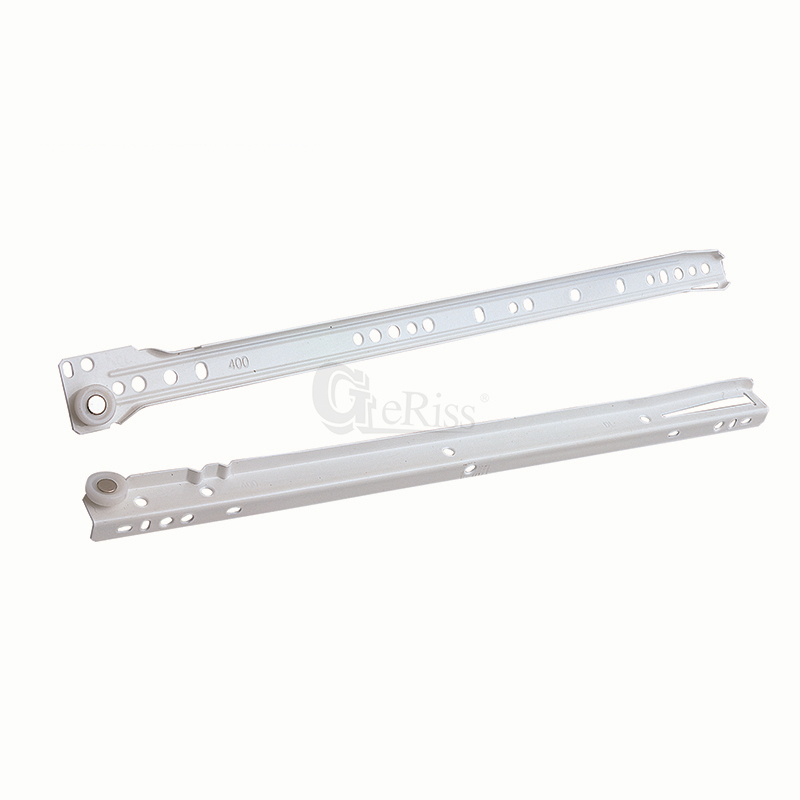

Product: Powder Coated Drawer Slide
Item No.: YA-02
Material Thickness: 0.7 mm up to 1.2 mm
Load Capacity: 25 KG (450mm as standard)
Color: White, Black, Brown, Sliver, Gray, customize is available.
POM-Wheel(Roller) Available with white, black, brown wheel, white wheel with green noise-reducer, or as required.
Package: Standard 25 Sets/Ctn, or as required.
Length: 10" - 24" (250mm - 600mm)

Product Details:

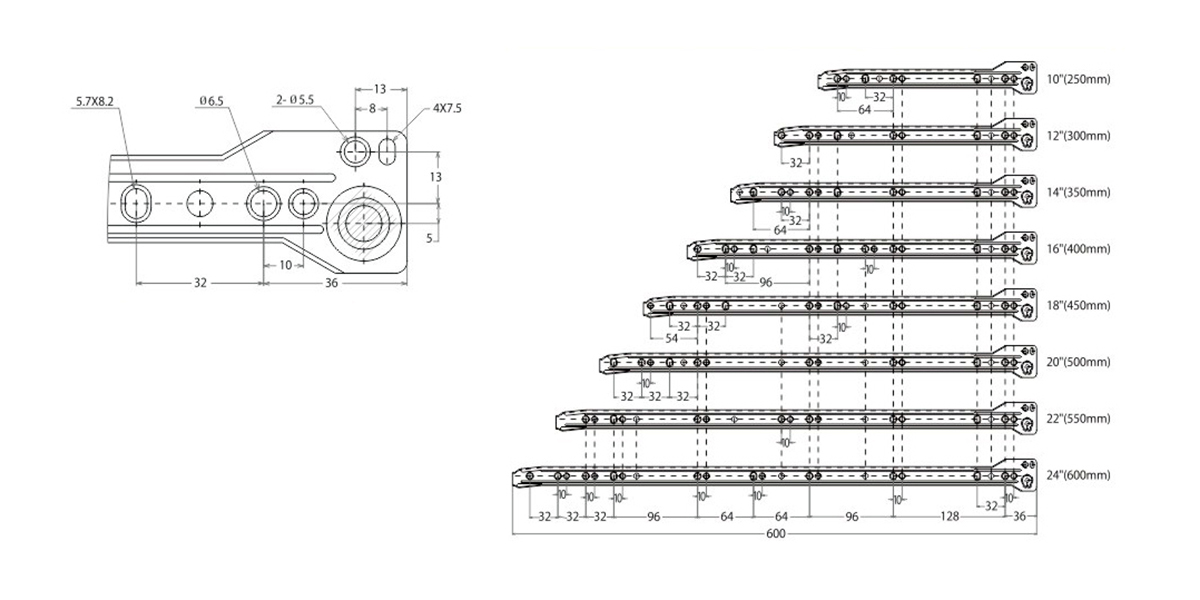

Drawer Slide Size:

Bottom Mount Roller Slide

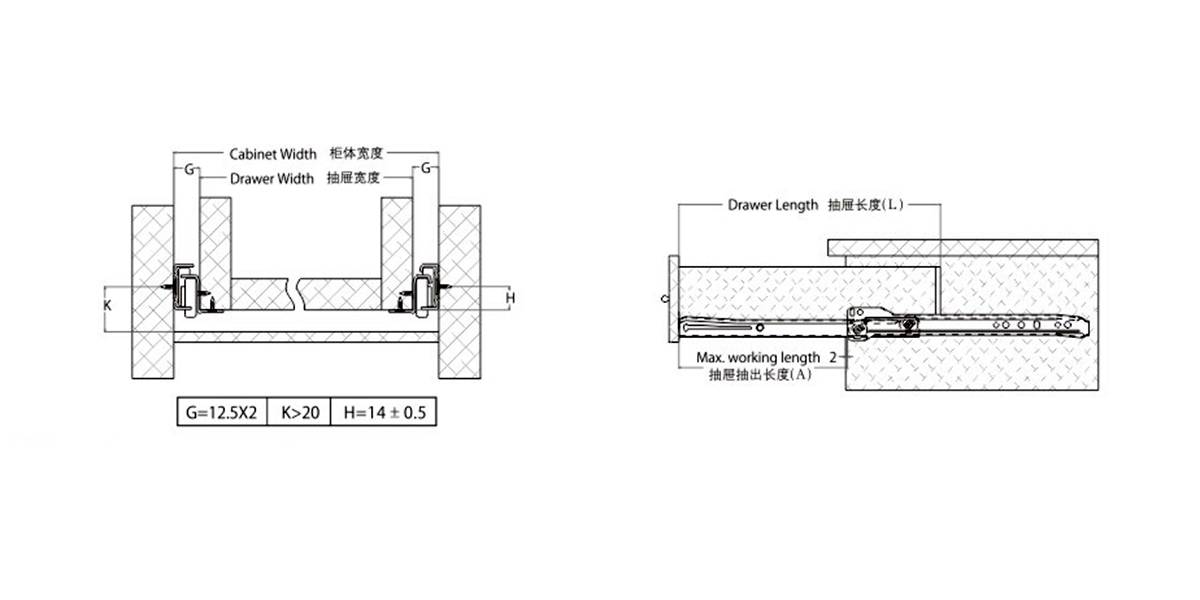

Cabinet Inside Space:

roller slide in cabint inside space

Package Information:

Package

Workshop:
