Face frame cabinet powder spraying bottom mount self closing drawer slide

Short Description:

Model No.: US02A

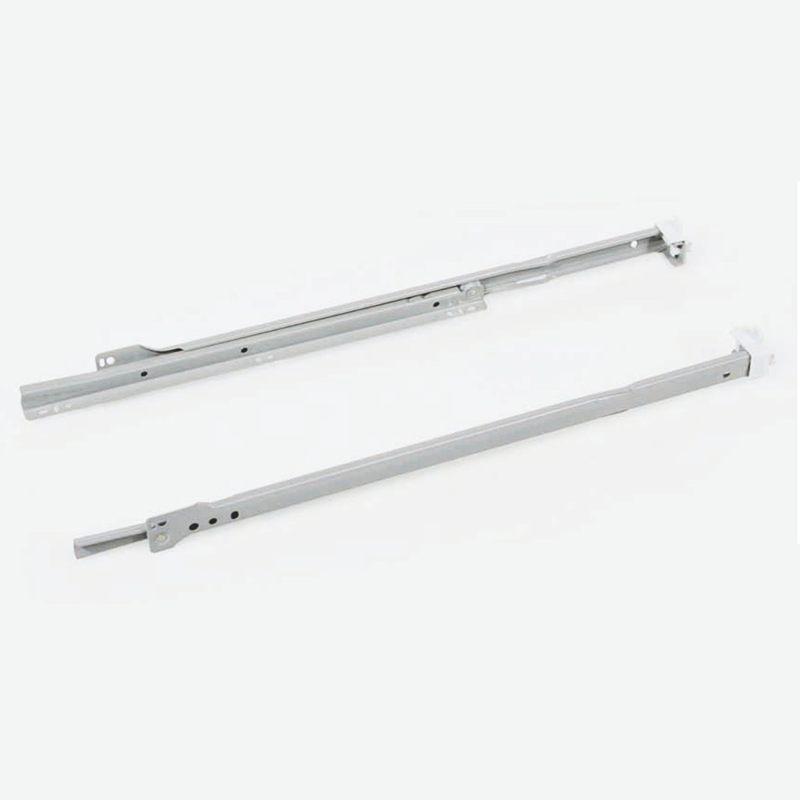

Face frame cabinet powder spraying bottom mount self closing drawer slide. It made by stamping machine. Can use for American type face frame cabinets.The load capacity around 25 KGS and the cycling over 50,000 times. The feature is the roller slide with balance pads, the smooth sliding with low noise, self-related function, pairs of stop bits to prevent the slide-out structure. The surface use advanced spray technology, non-toxic environmentally friendly, effective anti-corrosion, anti-rust.


Product Detail

Product Tags

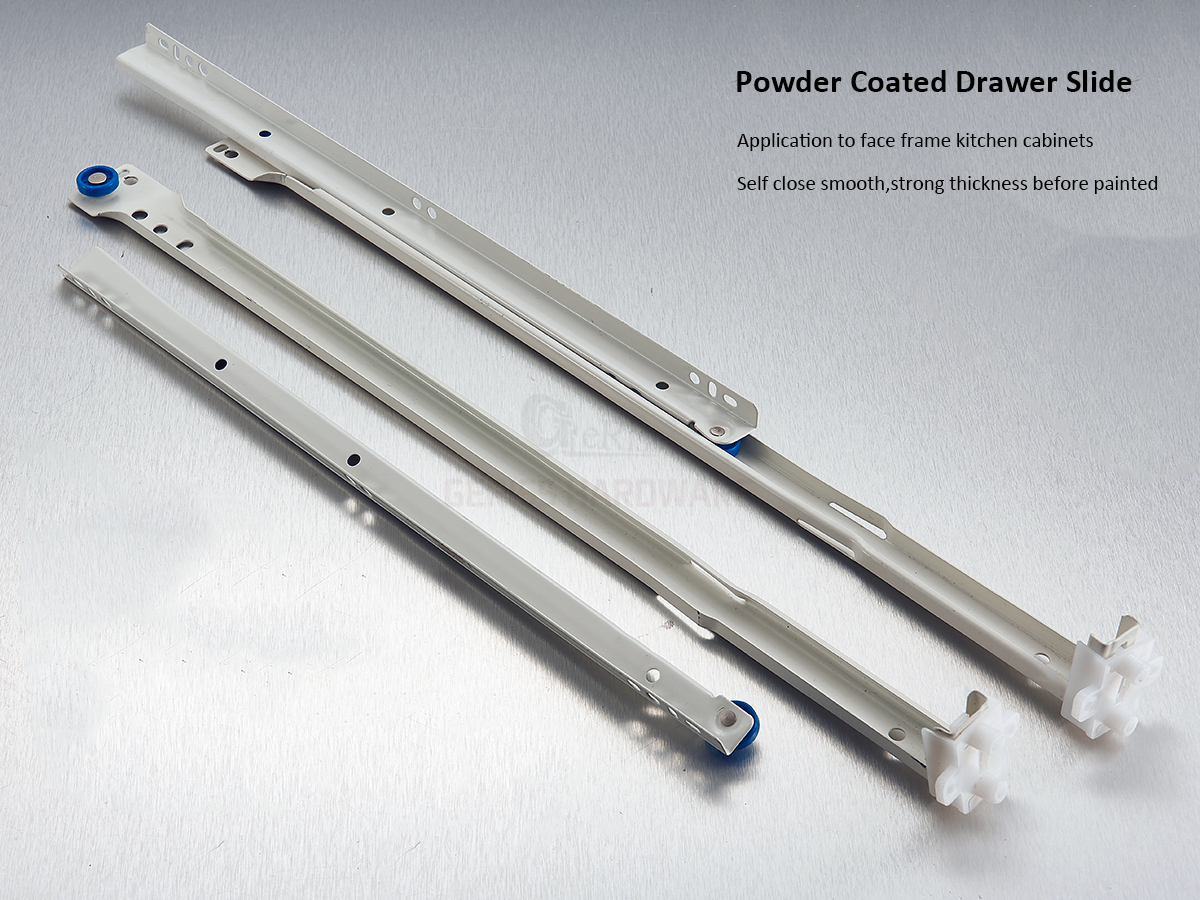

roller slide

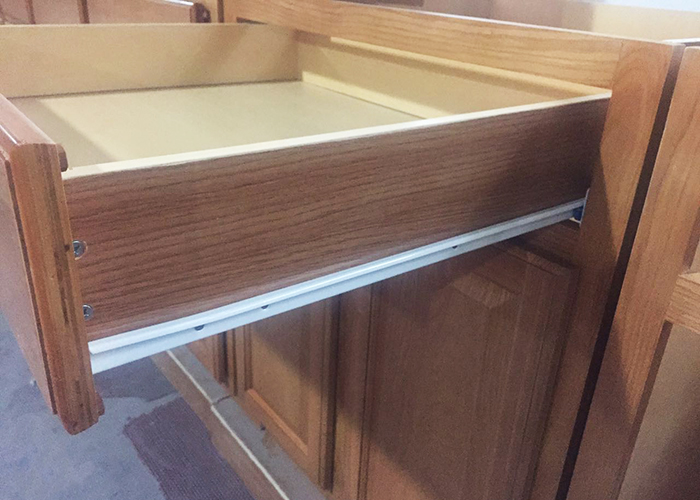

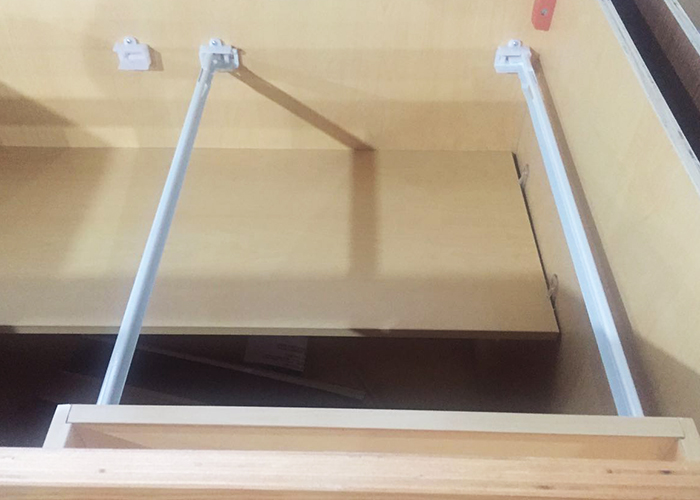

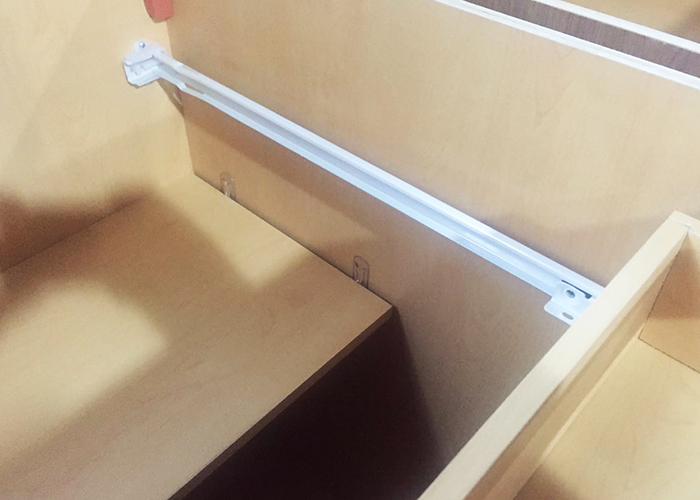

Application:

Description:

Product Name Powder Coated Drawer Slide for Face Frame Cabinet
tem No US02A
Sizes 436x400mm ; 512x400mm ; 512x450mm ; 588x550mm
Thickness 1.2mm
Color White,Black,Brown,Sliver,Grey or as required.
POM-Wheel ( Roller) Available with black ring noise reducer
Packing 20 sets/ctn

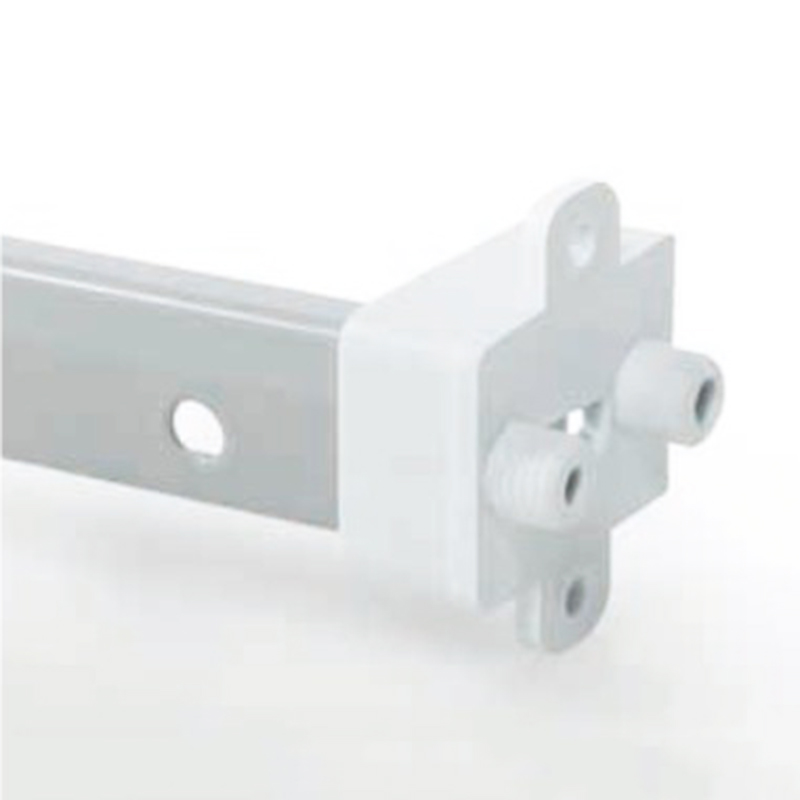

Feature Fast assemble with plastic bracket

1.This product is applicable to a wide range of face frame cabinets, and the suitable model can be selected according to the required cabinets (refer to the installation dimension of the product);

2.Draw lines on the side board and side board of the drawer according to the product orifice diagram (two lines can coincide).

3. Activity of pre-selected fixed slide rail, slide rail elliptical hole mount screws to adjust positioning, then correction whether drawer, slippery course whether smooth, closed around slippery course is closed at the same time;

4.Tighten the screw into the circular hole of the slide rail, and finally aim at the entry point of the fixed slide track.

5. The diameter 6mm of the tail diameter of the left and right fixed sliding rail can be selected according to the needs of customers;

6. Fixed rail with adhesive sleeve for use.

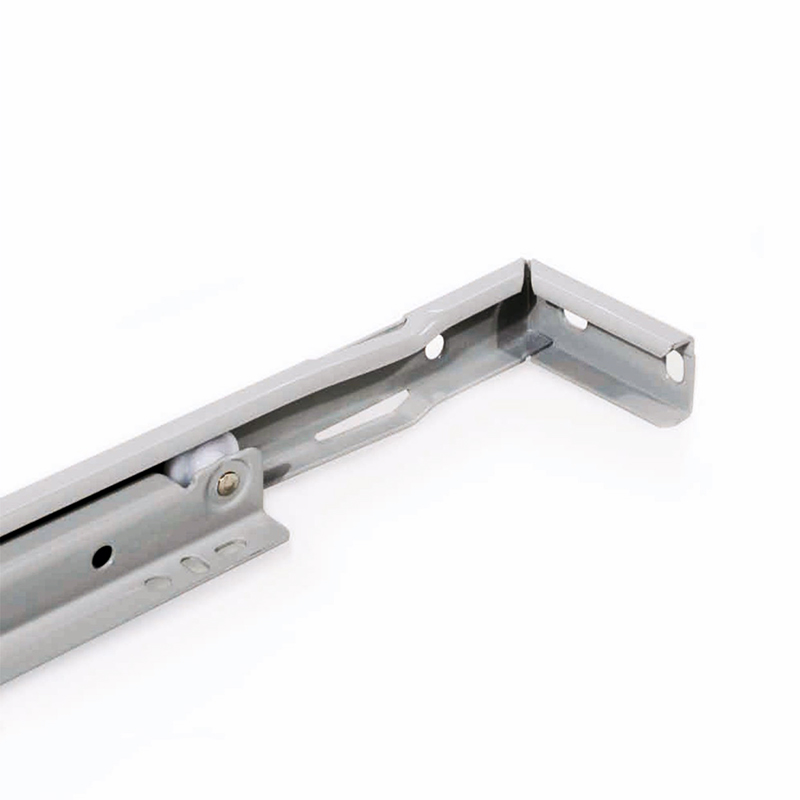

Details Photos:

Mounting Holes Location:

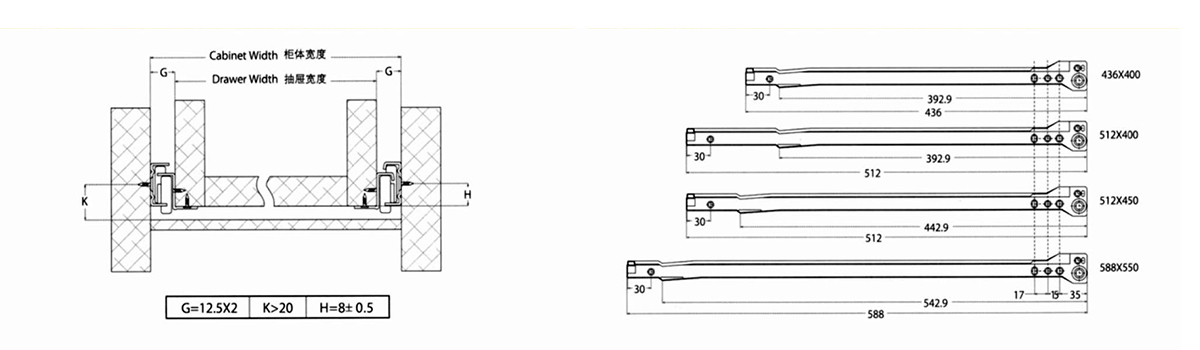

powder coated slide size

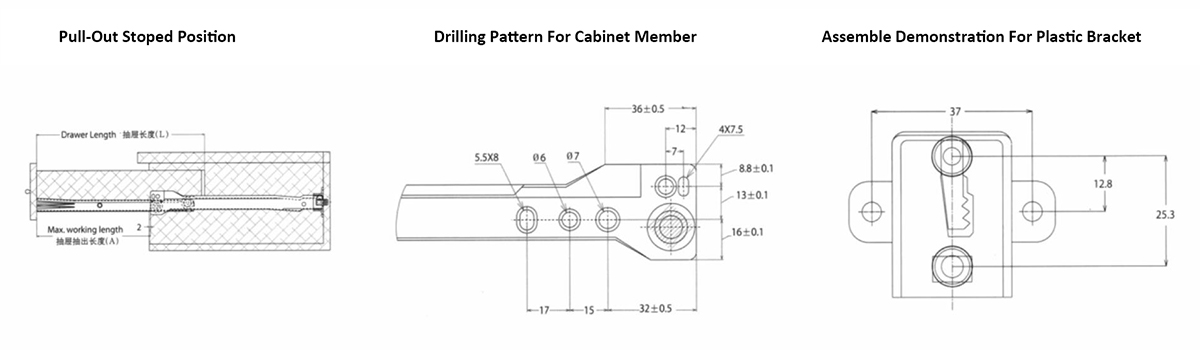

Installation Size
Drawer Length Pull-out Length Packing Unit ( set/ctn )
436x400mm 330mm 20
512x400mm 330mm 20
512x450mm 370mm 20
588x550mm 455mm 20

Packing Details:

Package

Workshop:

WORKSHOP
