Double Wall Slim Box Drawer System

Short Description:

Double wall slim box drawer system ussually use for kitchen & bathroom cabinets. This type of slim box drawer system use silent soft close undermount drawer slide with locking devices. You also can change to use push to open concealed drawer slide with front clips. This product’s feature is the undermount drawer slide can both use for metal drawer and wooden drawer. Can save the cost of inventory for you. If you are interested in our slim box drawer system, please feel free to contact us.

Model No.: M02-88


Product Detail

Product Tags

Slim Drawer SYSTEM

Description:

Product Name:

Double wall slim box drawer system

Item No.:

M02-88

Material:

Cold Rolled Steel

Load Capacity:

35 KG (450mm as standard)

Drawer Height:

88 mm

Panels Color:

White,Grey, Sliver or customize is available

Drawer Length:

270mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm and customize is available

Extension:

Fully extension

Function:

Silent smooth soft close

Cycling Test:

Over 50,000 times

Available Accessories:

Extra height rods

Application:

Kitchen & Bathroom Cabinets, Office Furniture, etc...

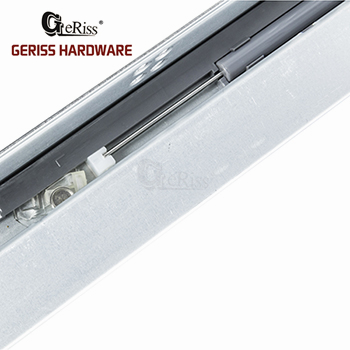

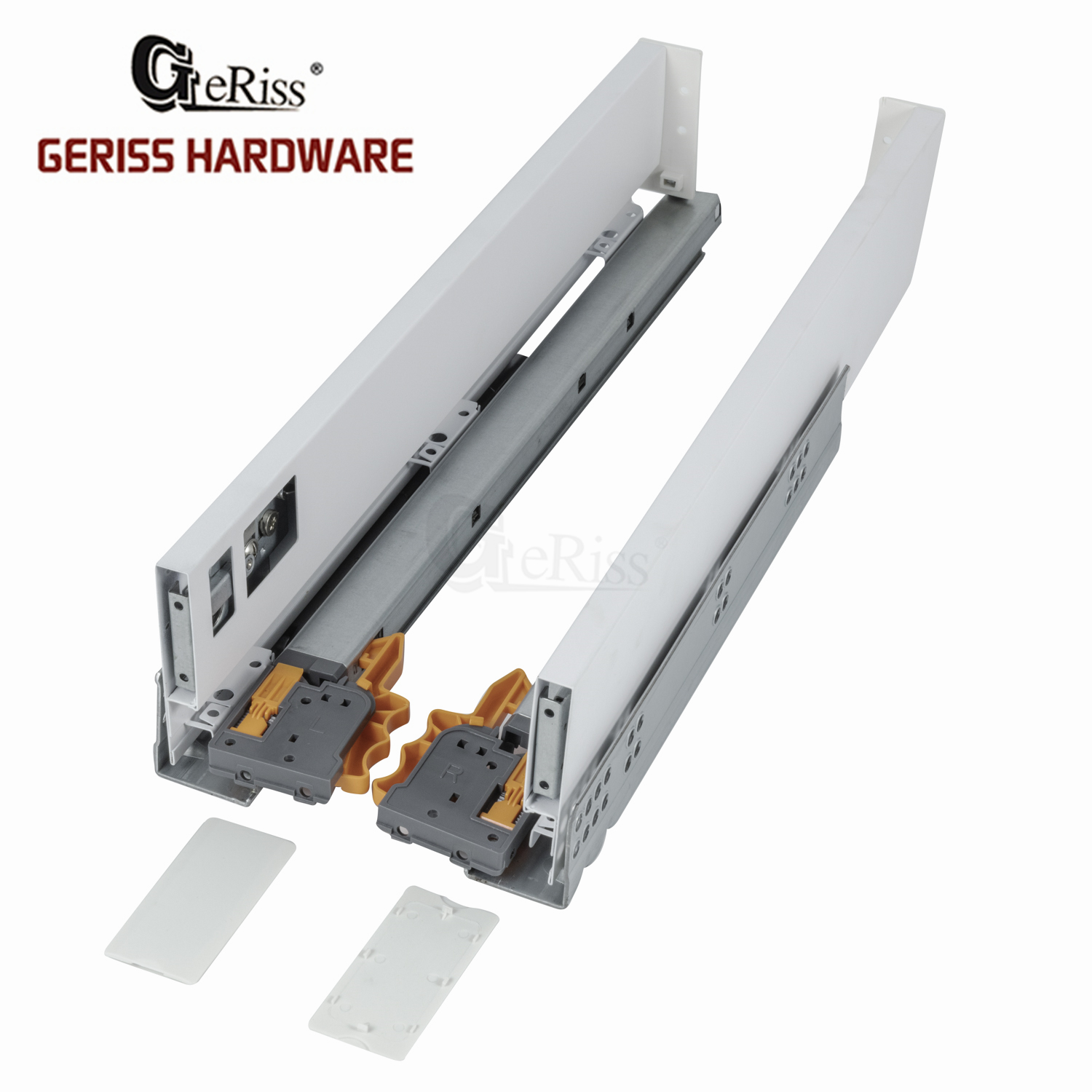

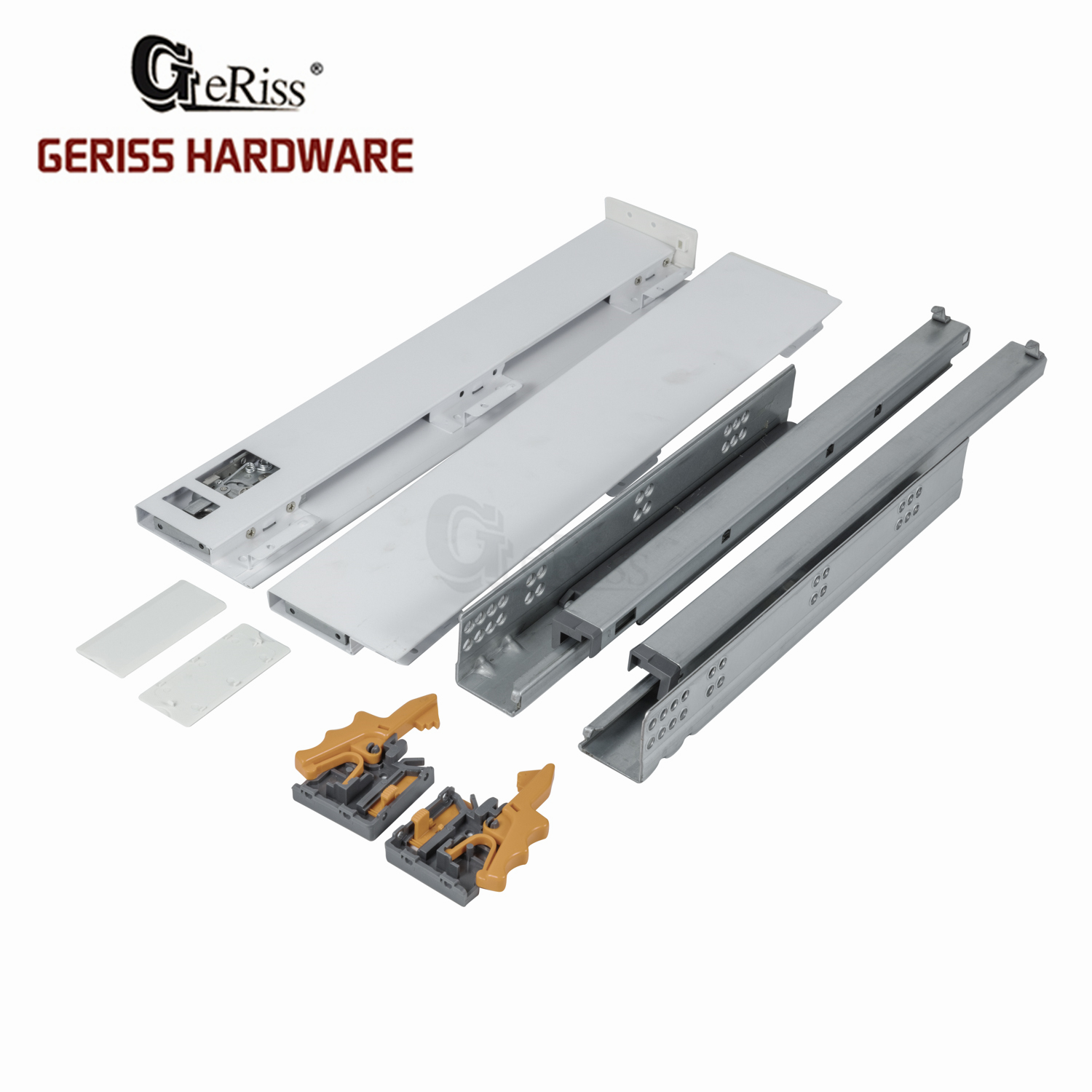

Details Photos:

How to installation?

Order Information:

Length White Graphite Drawer Length Min Cabinet Depth
12”/300mm M02-88-300W M02-88-300G 290mm 322mm
14”/350mm M02-88-350W M02-88-350G 340mm 372mm
16”/400mm M02-88-400W M02-88-400G 390mm 422mm
18”/450mm M02-88-450W M02-88-450G 440mm 472mm
20”/500mm M02-88-500W M02-88-500G 490mm 522mm
22”/550mm M02-88-550W M02-88-550G 540mm 572mm

Packing Information:

ITEM NO.

Length

Metal Slim Panel Package

Concealed Slide with Clips

Package/Set

N.W(KG)

G.W(KG)

Package/Set

N.W(KG)

G.W(KG)

M02-88

12”/300mm

10

9.73

10.23

10

11.50

11.70

M02-88

14”/350mm

10

10.87

11.39

10

16.10

16.40

M02-88

16”/400mm

10

12.01

12.54

10

18.40

18.70

M02-88

18”/450mm

10

13.15

13.70

10

20.70

21.00

M02-88

20”/500mm

10

14.30

14.86

10

23.00

23.30

M02-88

22”/550mm

10

15.45

16.02

10

25.00

25.30
