Concealed Undermount Drawer Slides,Full Extension Soft-Close,Kits-Includes Front Locking Devices & Metal Rear Brackets

Short Description:

Model No.: US33BM

Concealed Undermount Drawer Slides,Full Extension Soft-Close,Kits-Includes Front Locking Devices & Metal Rear Brackets usually use for face frame kitchen & bathroom cabinets. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

concealed drawer slide

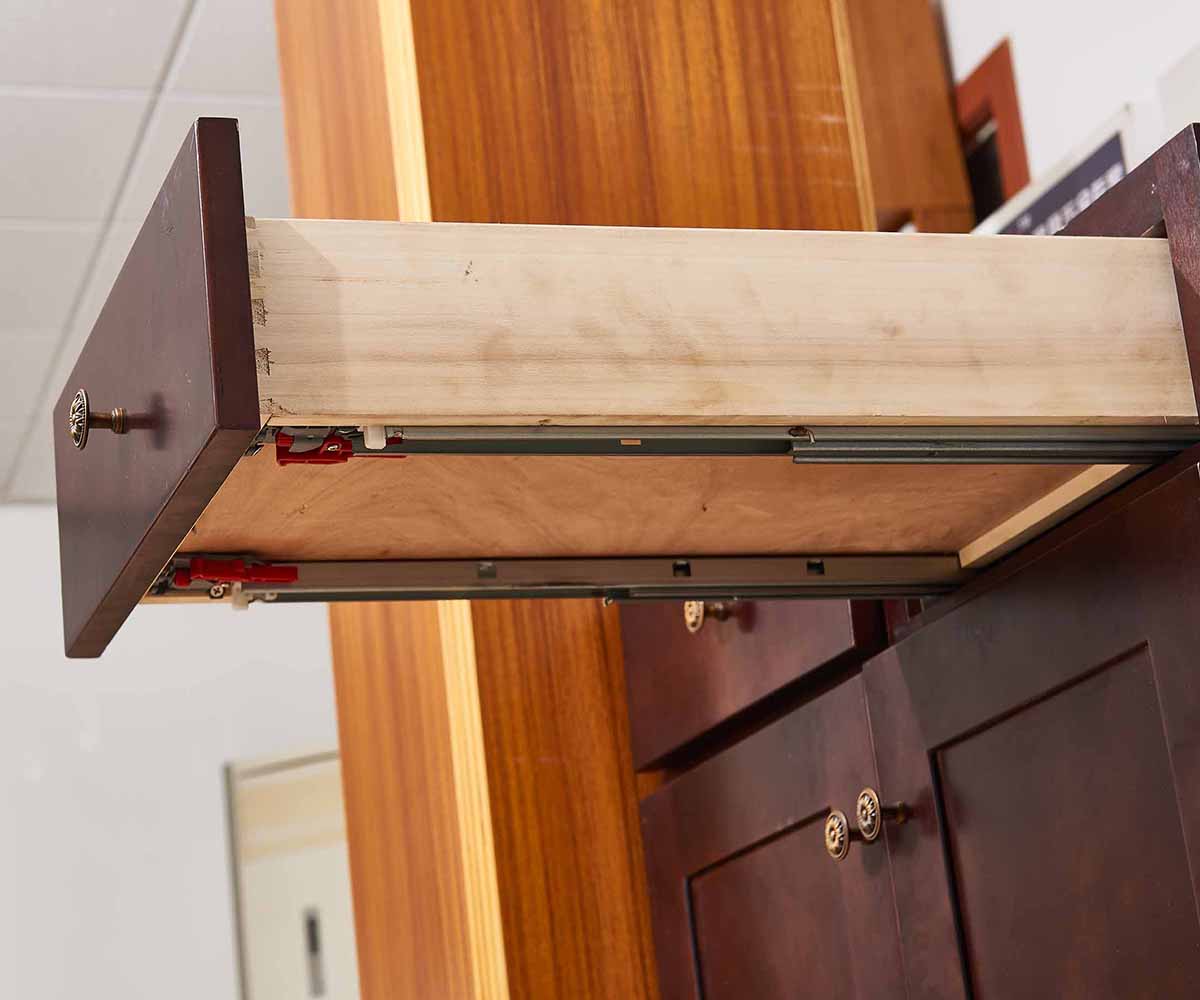

Application:

Face frame cabinet drawer slide

Description:

Product Name Concealed Undermount Drawer Slides
Material Galvanized Sheet
Material Thickness 1.8*1.5*1.0mm
Load Rating 35 KGS
Cycling Over 50,000 time , pass the fatigue test by SGS
Length 12"(305mm) - 21"(533mm) , customized is available
Feature Silent smooth soft close
Installation Connect with front clips and back connectors
Clips adjustment range 2.5mm ( up and down )
Service ODM & OEM
Application American type face frame kitchen & bathroom cabinets

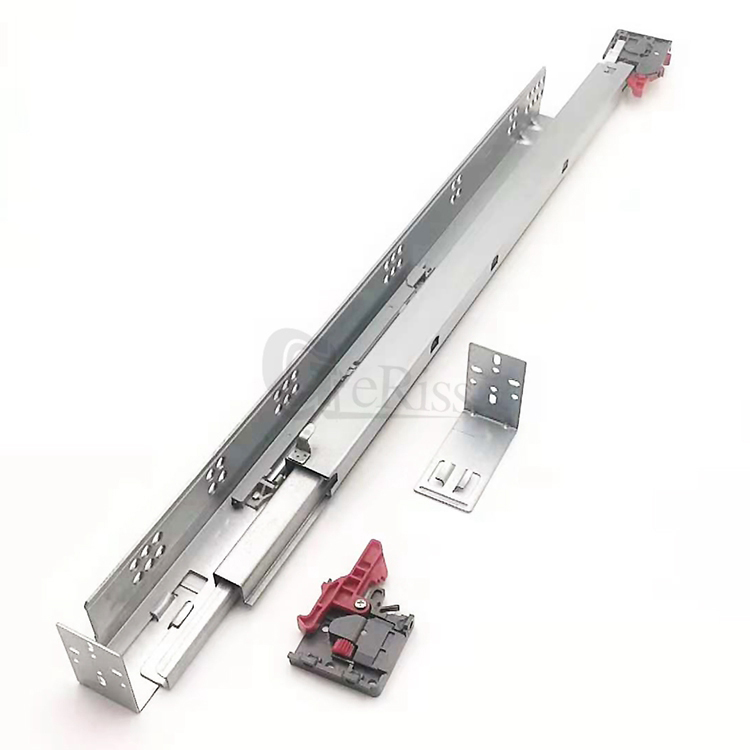

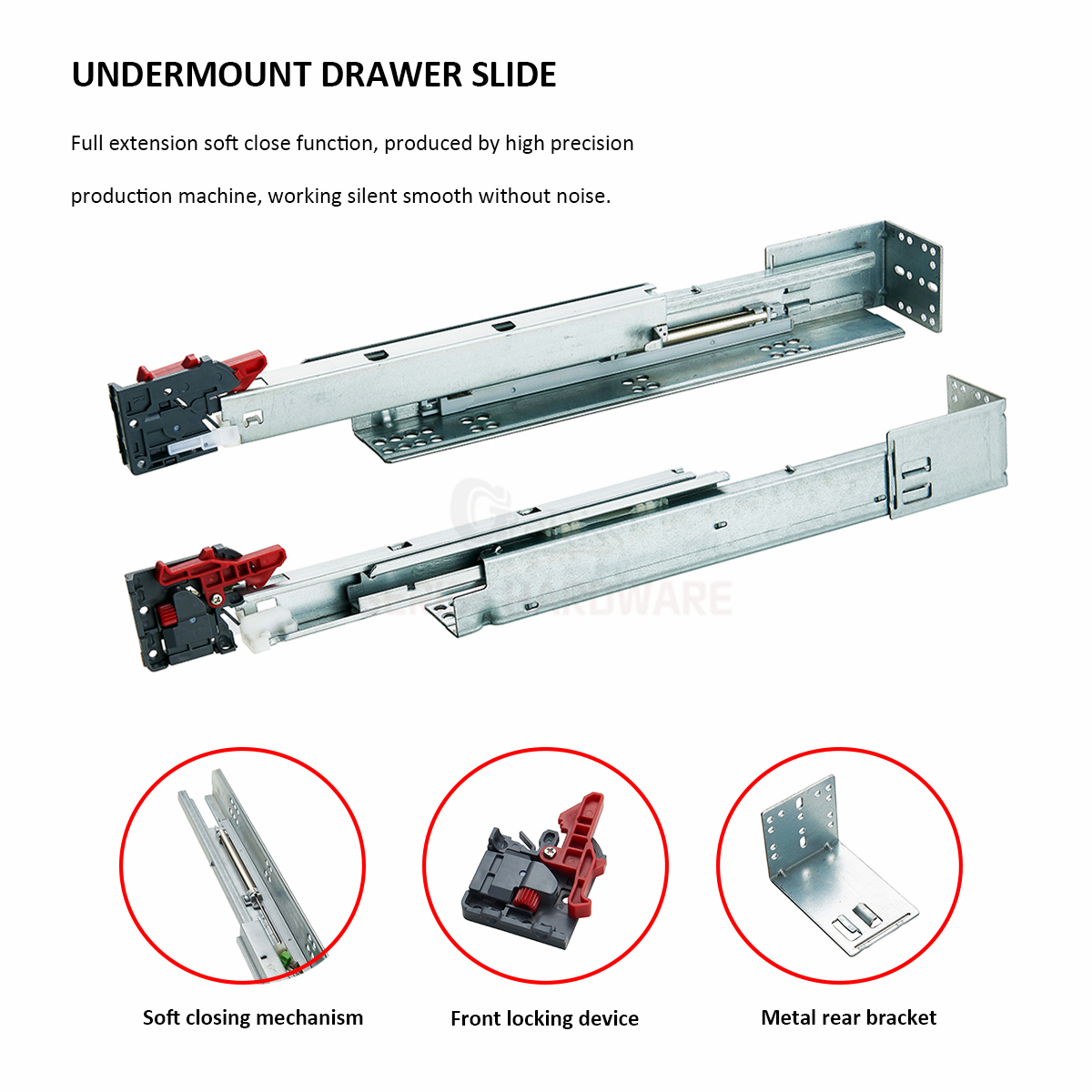

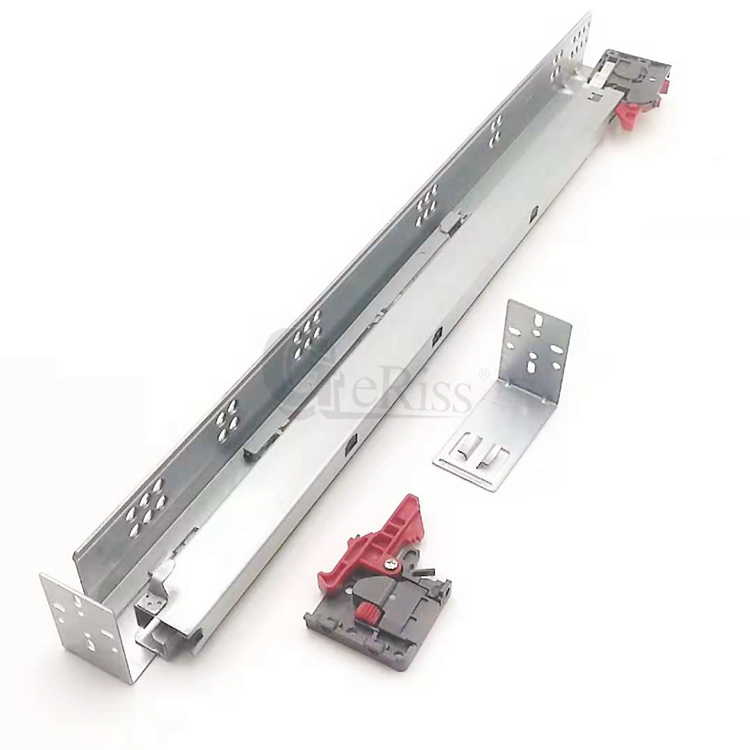

Details Photos:

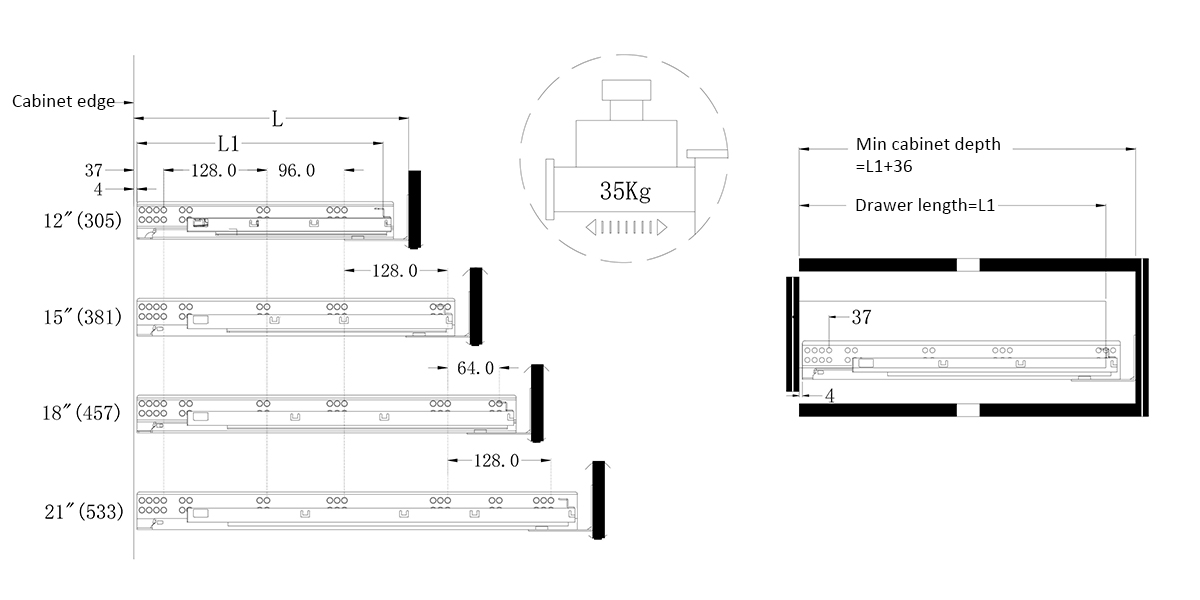

Mounting Holes Location:

undermount drawer slide size

Item No.

Slide Length

Drawer Length (L1)

Pull-out Length

Min Cabinet Depth (L)

US33BM-12

318mm

305mm

286mm

341mm ±8

US33BM-15

394mm

381mm

360mm

417mm ±8

US33BM-18

470mm

457mm

405mm

493mm ±8

US33BM-21

546mm

533mm

510mm

569mm ±8

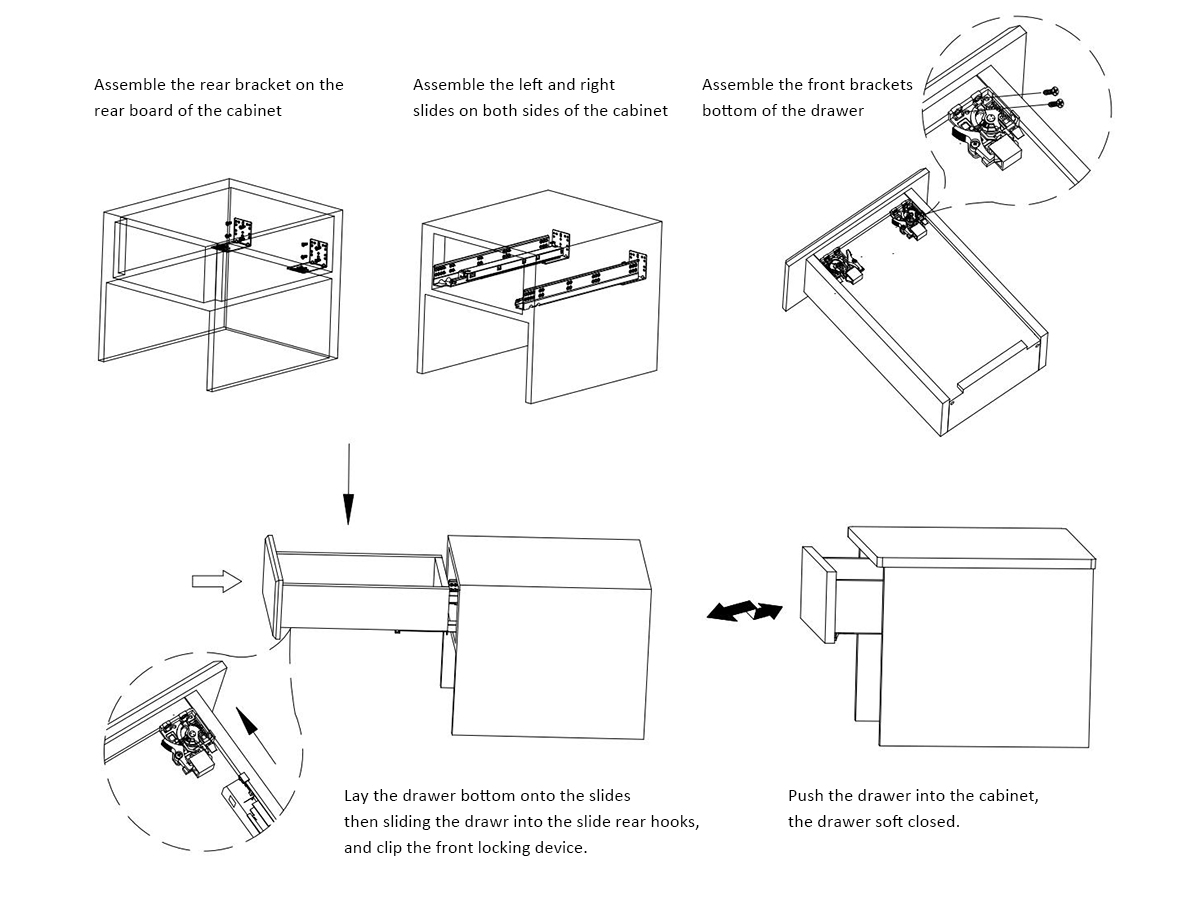

Installation:

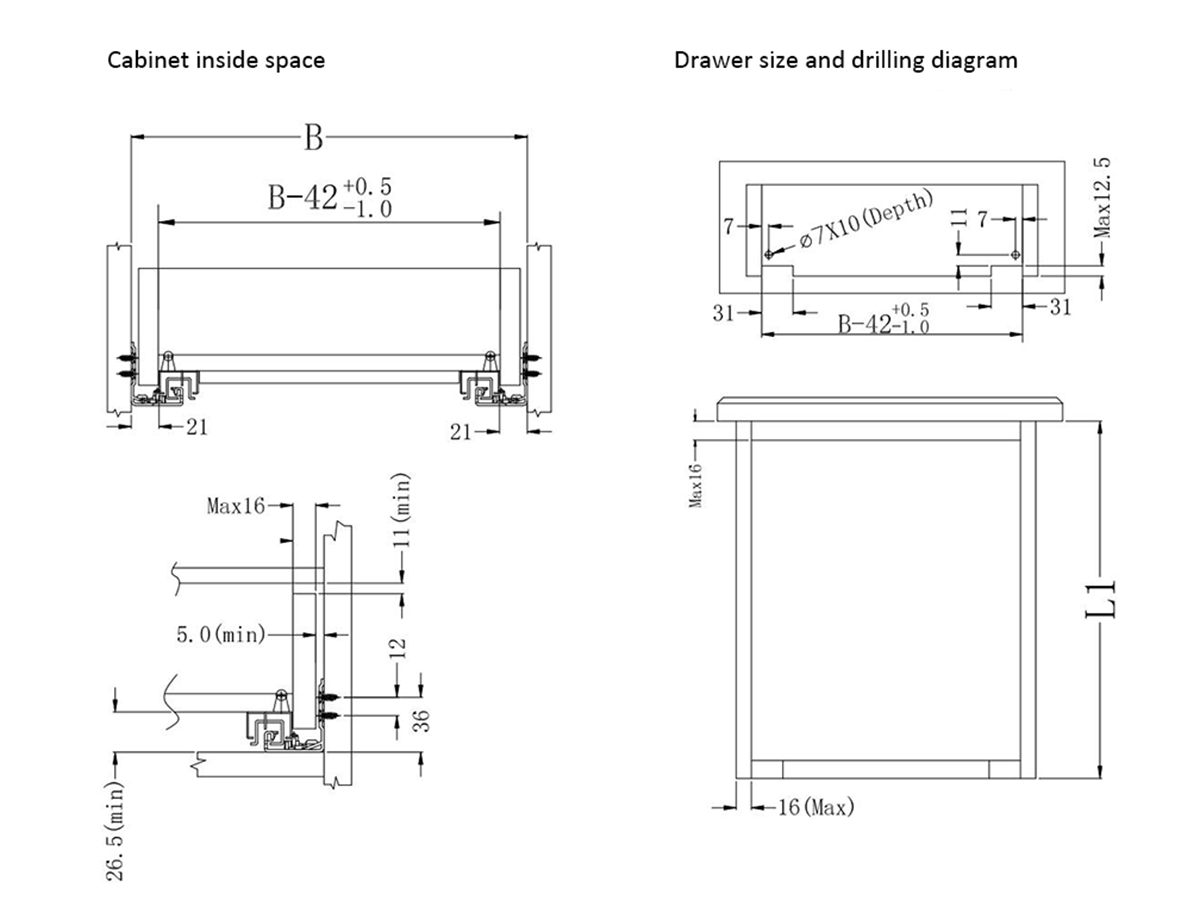

cabinet inside space
installation

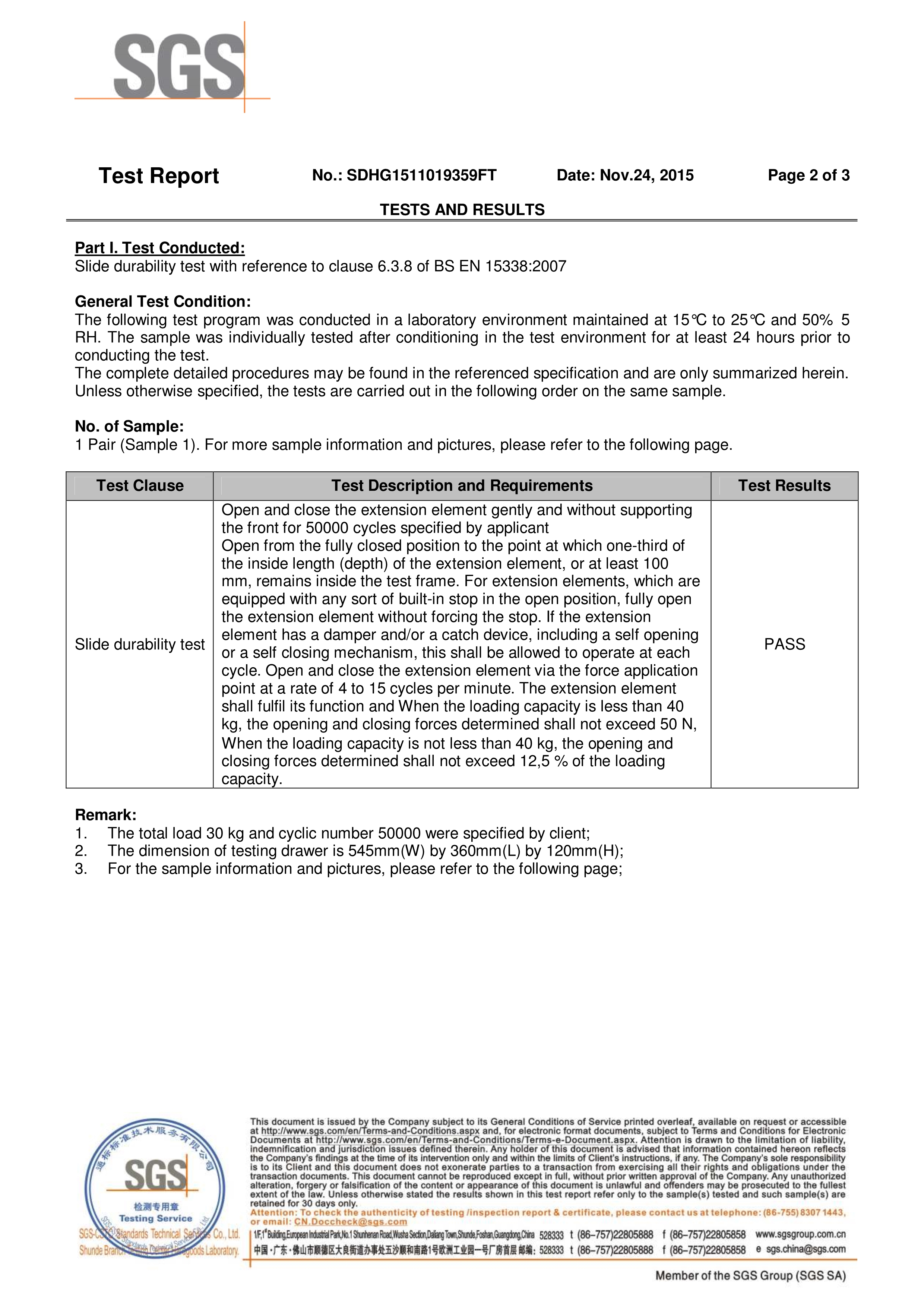

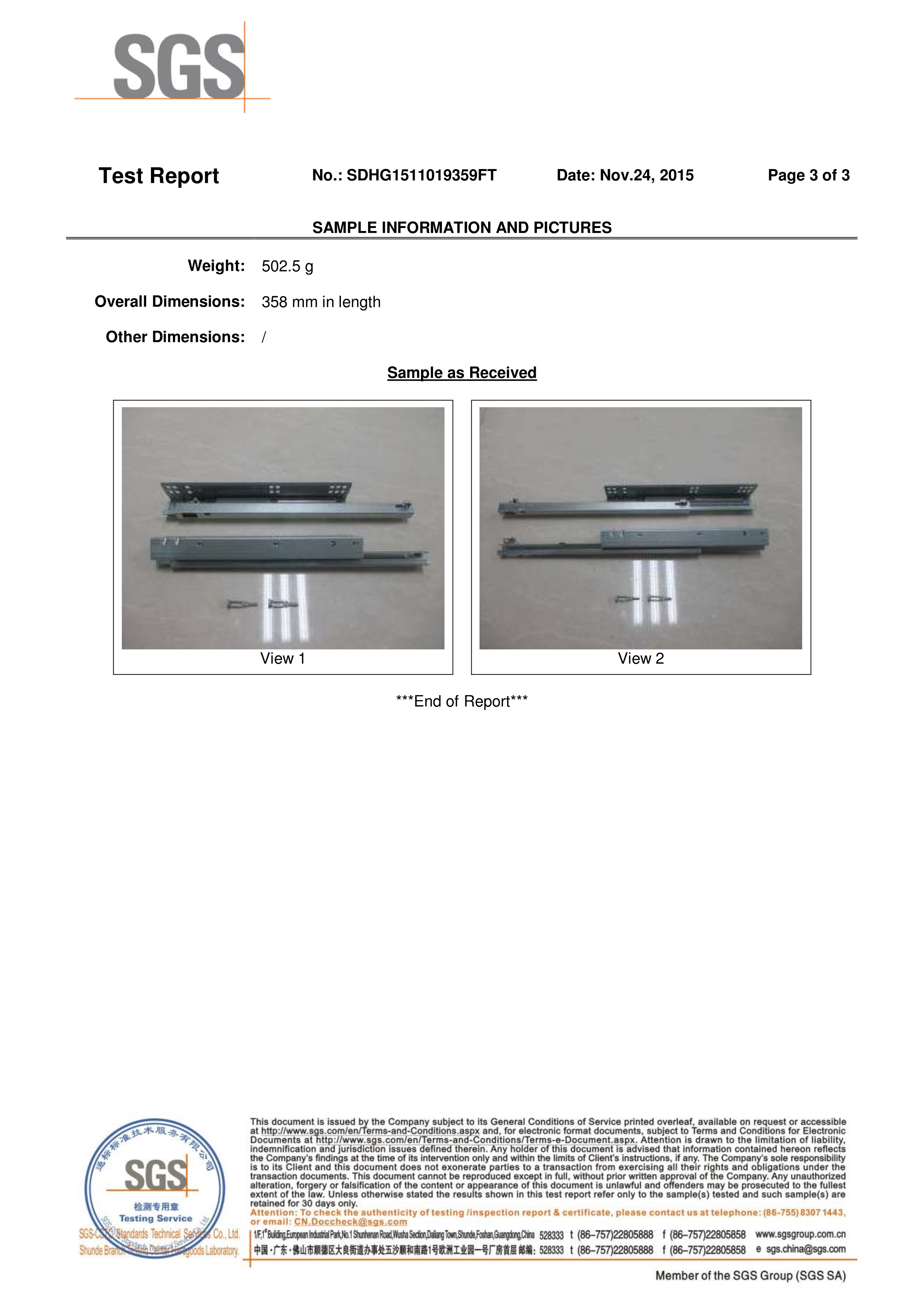

Certification:

Packing Details:

ITEM NO

SIZE

Packing

(sets/carton)

N.W(KG)

G.W(KG)

MEAS(CM)

US33BM-12

305mm

10

15.0

15.5

42*29*13

US33BM-15

381mm

10

15.5

16.0

50*29*13

US33BM-18

457mm

10

23.4

23.9

57*29*13

US33BM-21

533mm

10

27.3

27.5

65*29*13

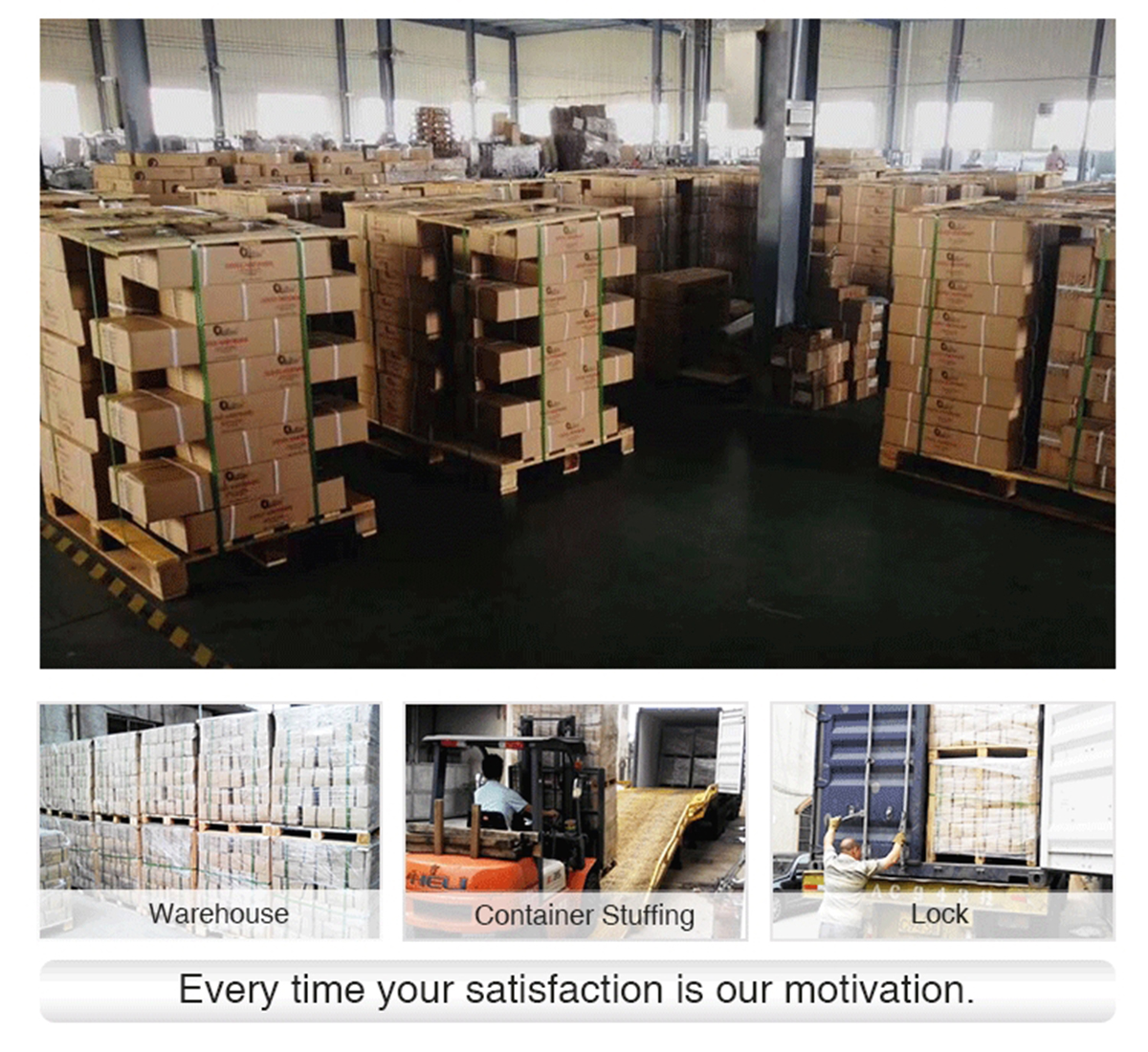

Package

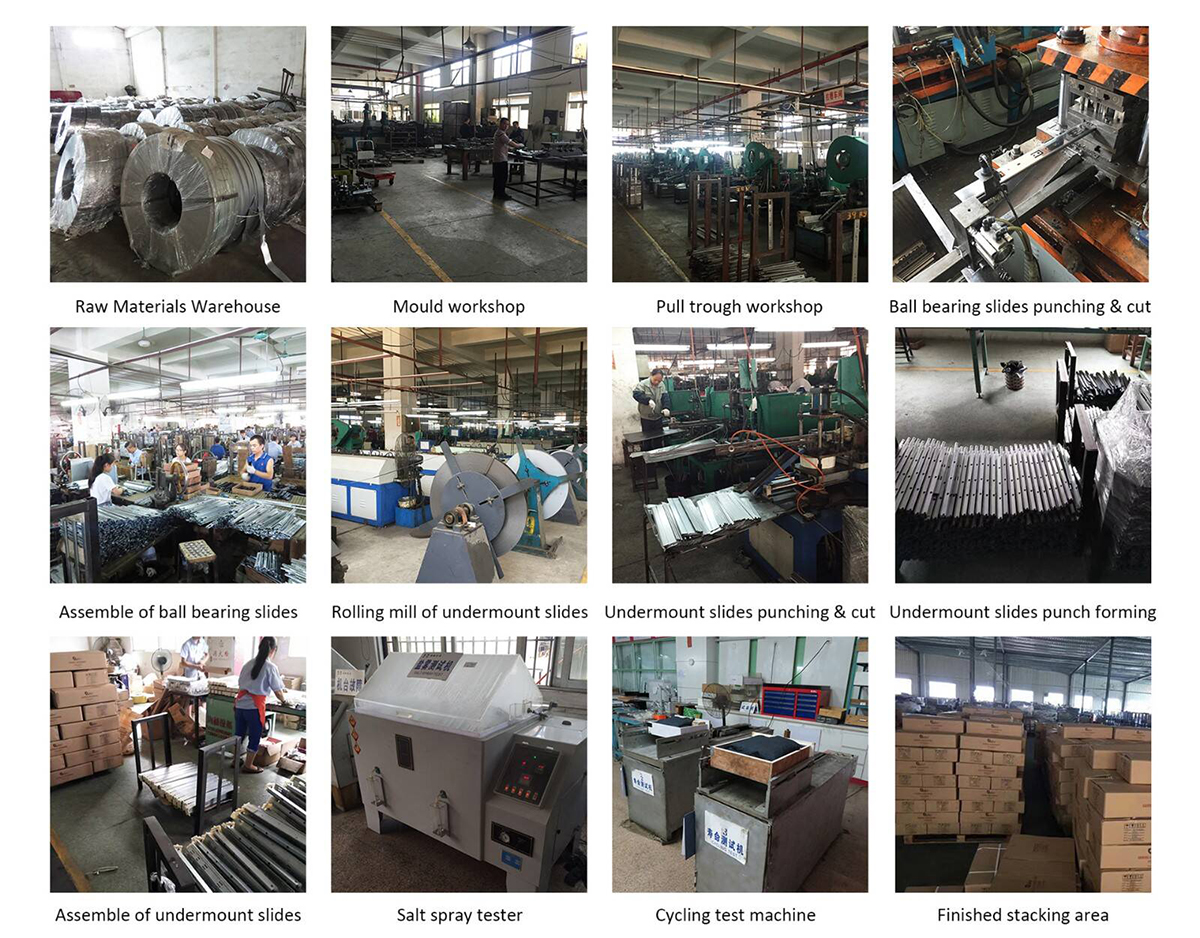

Workshop:

WORKSHOP

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you trading company or manufacturer ?

We are a professional furniture hardware & oven accessories manufacturer since 1999.

How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

What is the whole process for doing business with us ?

1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Can the logo or company name to be printed on the products or package?

Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

What advantages we have?

1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
