Cold Rolled Steel 27mm Two Fold Double Way Extension Ball Bearing Drawer Slide Runner

Short Description:

Model No.: YA-2702

Cold rolled steel 27mm two fold double way extension ball bearing drawer slide runner by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us !


Product Detail

Product Tags

two fold drawer slide

Description:

Product: 27mm two way extension 2-fold ball bearing drawer slide
Function: Smooth moving without noise
Height: 27mm
Length: 250-550mm, customize is available
Installation Thickness: 10mm
Surface: Zinc Plated, Spray Paint Black
Load Capacity: 10 KG
Cycling: 50,000 times
Material: Cold Rolled Steel
Material Thickness: 1.2x1.2 mm
Installation: Side mount with screws
Application: Kitchen cabinet, bathroom cabinet,wardrobe,civil furniture, etc...

Product Details:

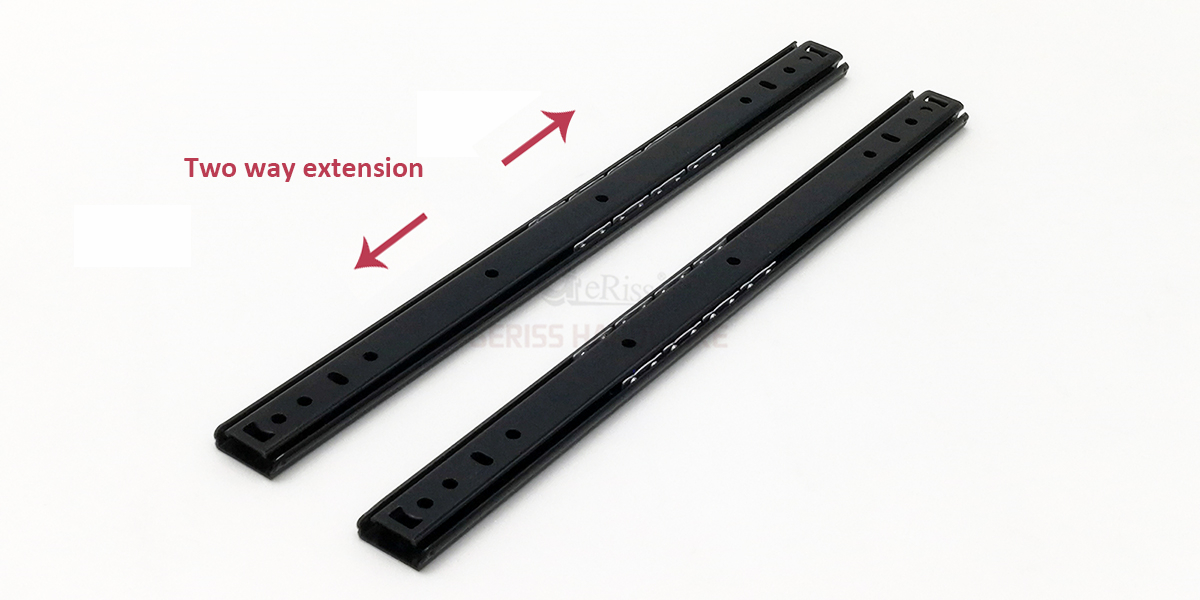

Ball Bearing Drawer Runner 001

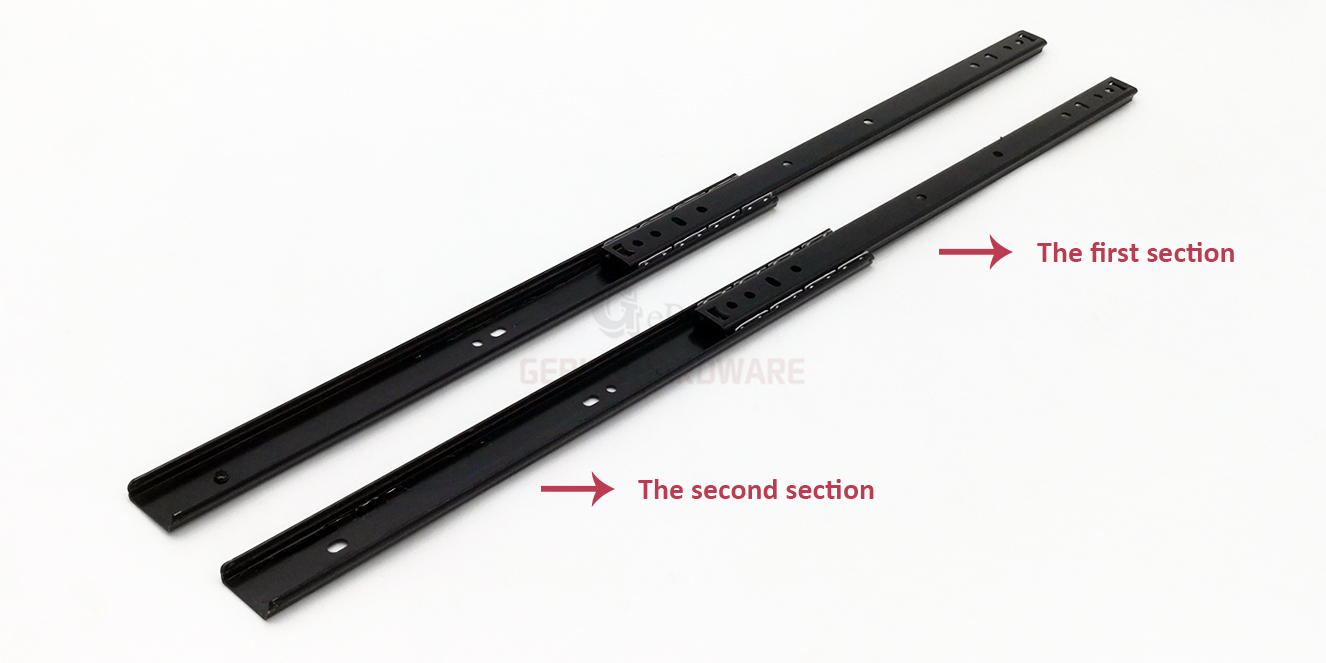

Ball Bearing Drawer Runner 002
Ball Bearing Drawer Runner 003

Specification:

2702 SIZE DATA
ITEM NO. SLIDE LENGTH (A) SLIDE LENGTH (B) PULL-OUT LENGTH HOLE LOCATION(MM)
C
YA-2702-182 182 182 134 -
YA-2702-214 214 214 142 -
YA-2702-246 246 246 174 -
YA-2702-278 278 278 206 -
YA-2702-300 300 300 228 -
YA-2702-310 310 310 238 -
YA-2702-342 342 342 246 144
YA-2702-374 374 374 278 160
YA-2702-406 406 406 286 176
YA-2702-438 438 438 294 192

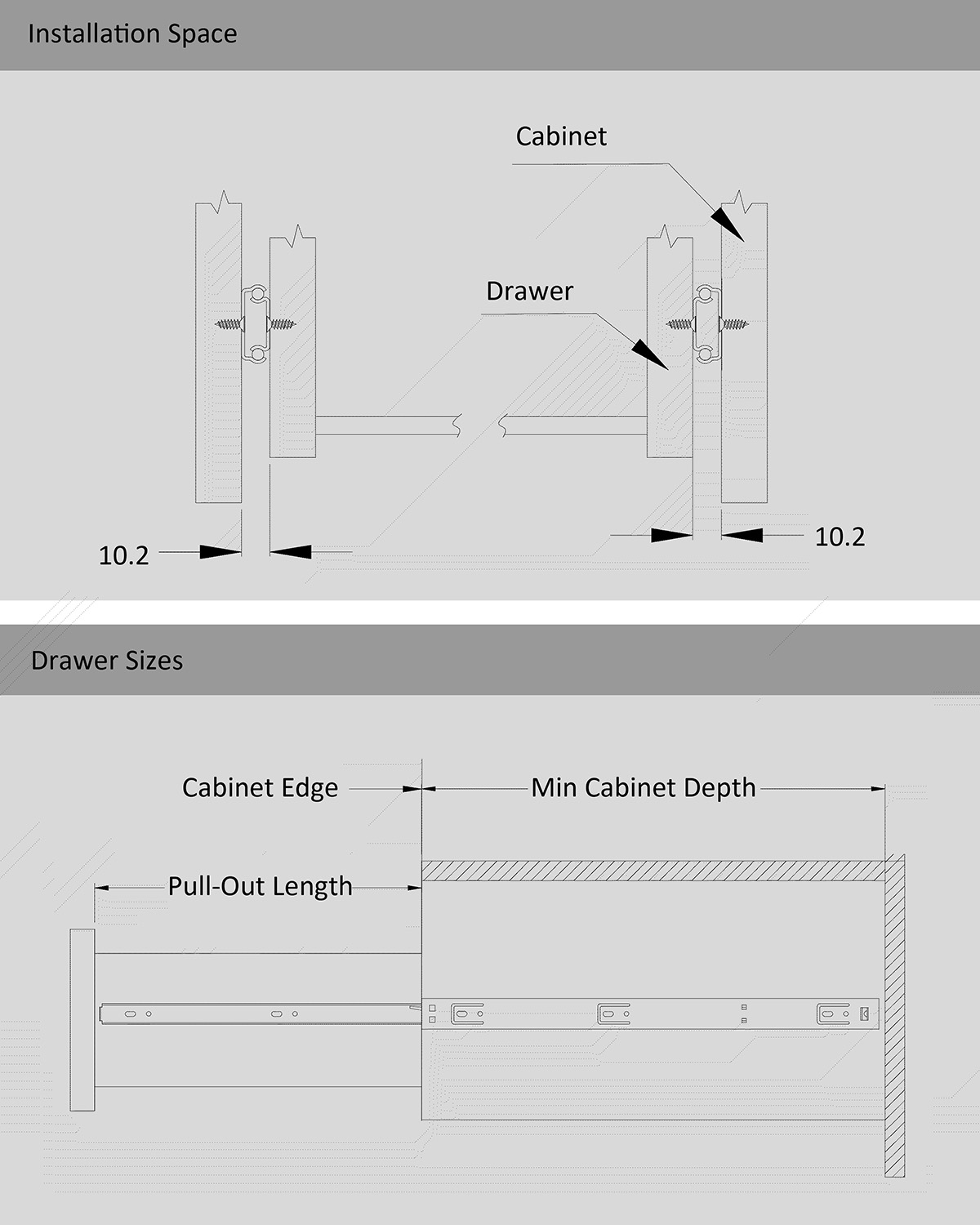

Installation Instruction:

Installation

Package Information:

Package

Workshop:
