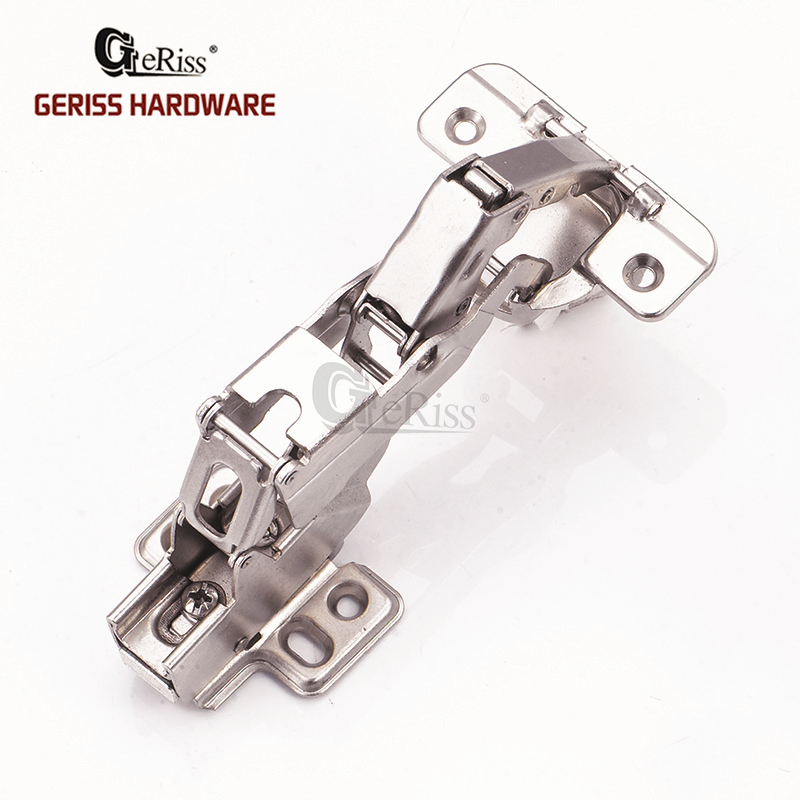

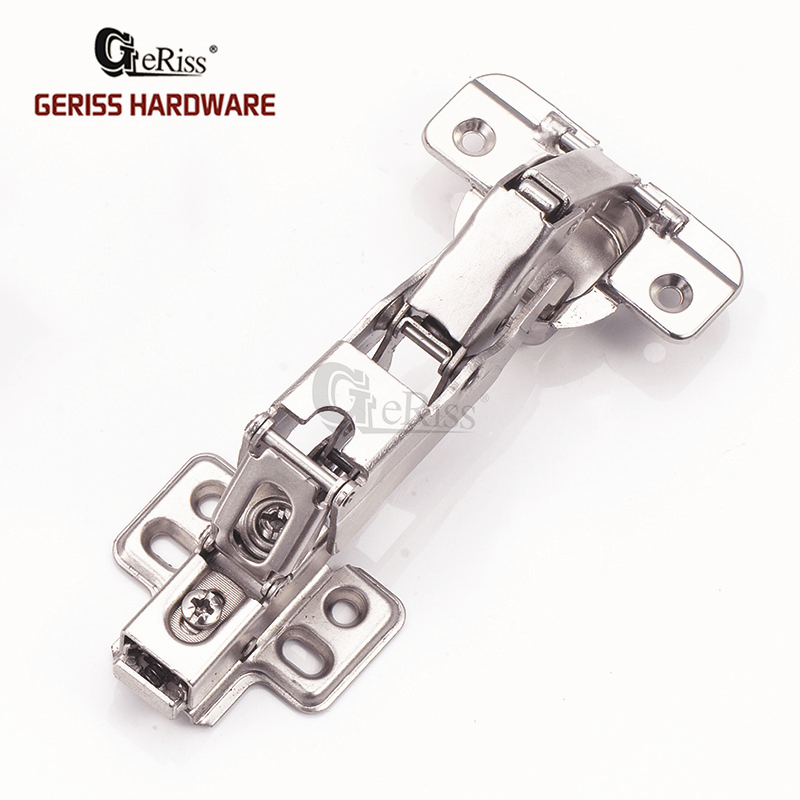

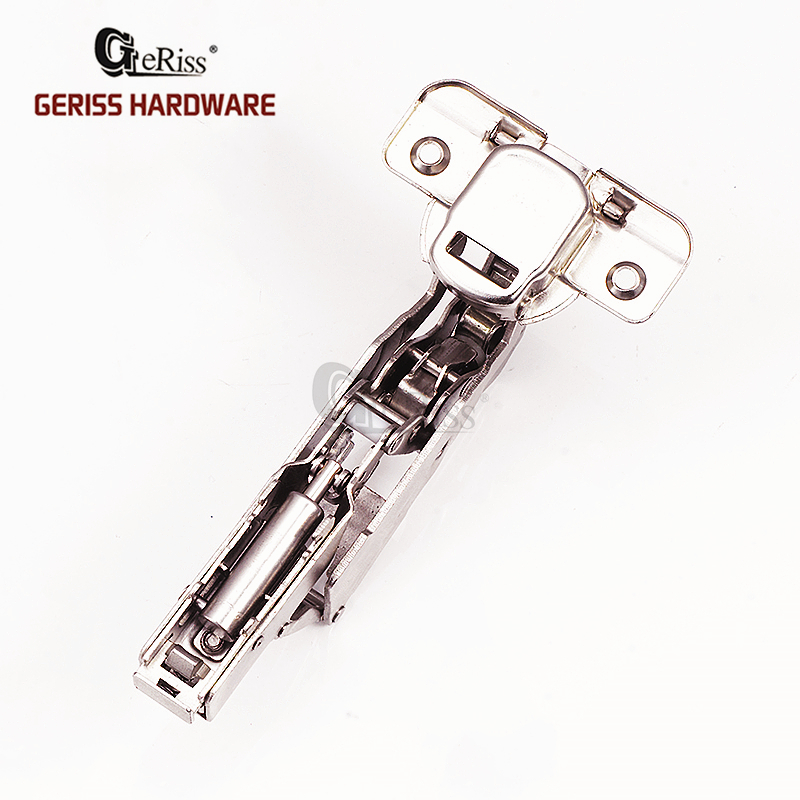

Clip-on soft closing corner cabinet 165 degree hydraulic concealed hinge

Short Description:

Item No.: T165CS

Clip-on soft closing corner cabinet 165 degree hydraulic concealed hinge. Furniture hinges 165 degrees made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable 165-degree furniture hinges are perfect for every role. If you are interesting for the soft close cabinet door hinge, please feel free to inquiry us.


Product Detail

Product Tags

Description:

Product Name:  Clip-on soft closing corner cabinet 165 degree hydraulic concealed hinge
Hinge cup diameter:  35 mm
Hinge cup pattern  45 / 48 / 52 mm
Depth of hinge cup:  11.3 mm
Opening angle:  165°
Drilling distances on door (K):  3-7 mm
Door thickness:  12-26 mm
Surface:  Nickel plated
Function:  Soft closing
Available accessories:  2 or 4 holes or 3D mouting plate, Euro screws, tapping screws
Available package:  - 100 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Clip-on soft closing corner cabinet 165 degree hydraulic concealed hinge

- Clip-on, Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Overlay of 165 degree hinge
Item No. Overlay Mouting plate
T165CS.41 Full overlay 4 Holes
T154CS.42 Half overlay 4 Holes
T165CS.43 Inset 4 Holes
T165CS.21 Full overlay 2 Holes
T165CS.22 Half overlay 2 Holes
T165CS.23 Inset 2 Holes

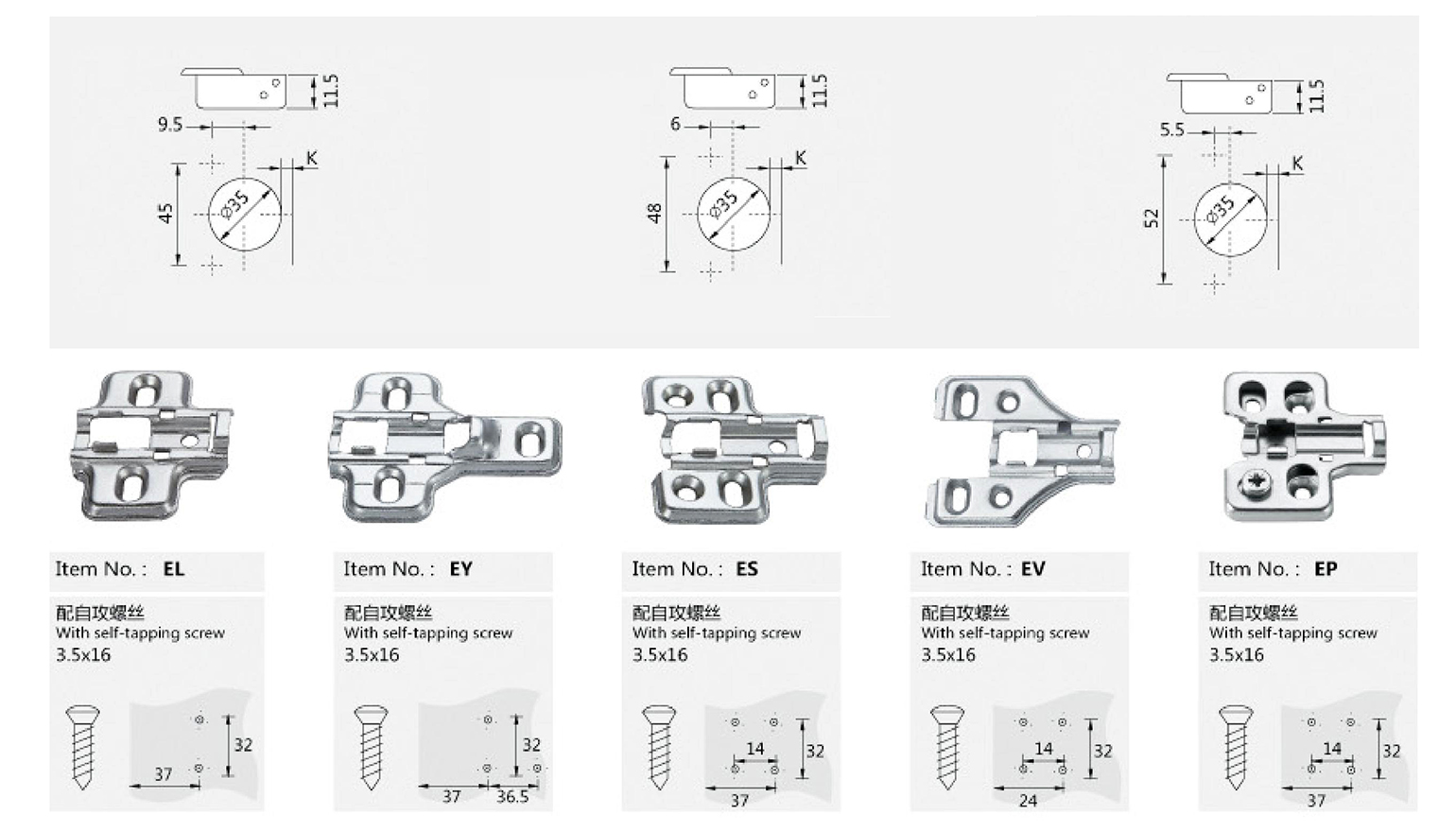

AVAILABLE HINGE CUPS & MOUNTING BASES

Available mounting plates and hinge cups

PACKAGE DETAILS:

Clip-on soft closing corner cabinet 165 degree hydraulic concealed hinges standard pacakges are 100 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
