Product Name | Clip-on slow closing cabinet door hydraulic hinge |
Material | Iron |
Surface | Nickel plated |
Opening Angle | 105 Degree |
Thickness of hinge cup | 11.5 mm |
Diameter of hinge cup | 35mm |
Hole distance of hinge cup | 45 or 48mm |
Door panel (K) size | 3-7 mm |
Available door thickness | 14-22 mm |
Available accessories | Dowels, Euro screws, Self-tapping screws |

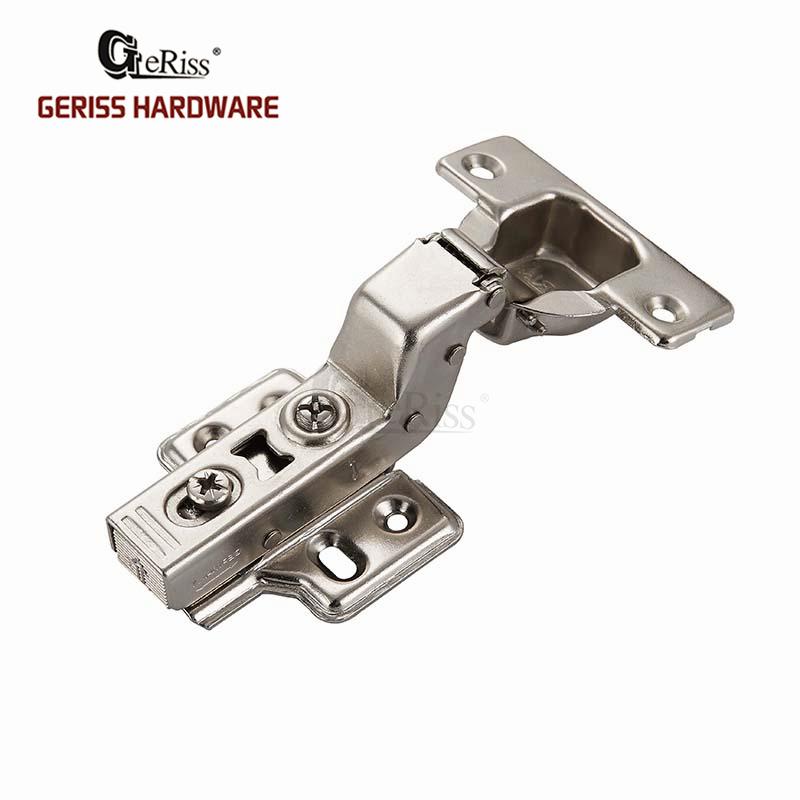

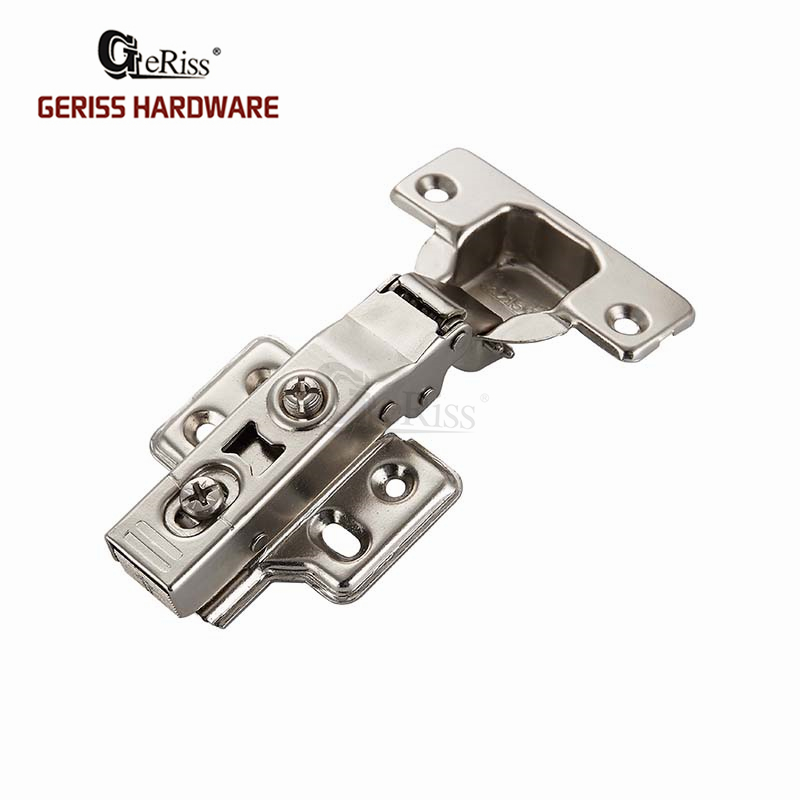

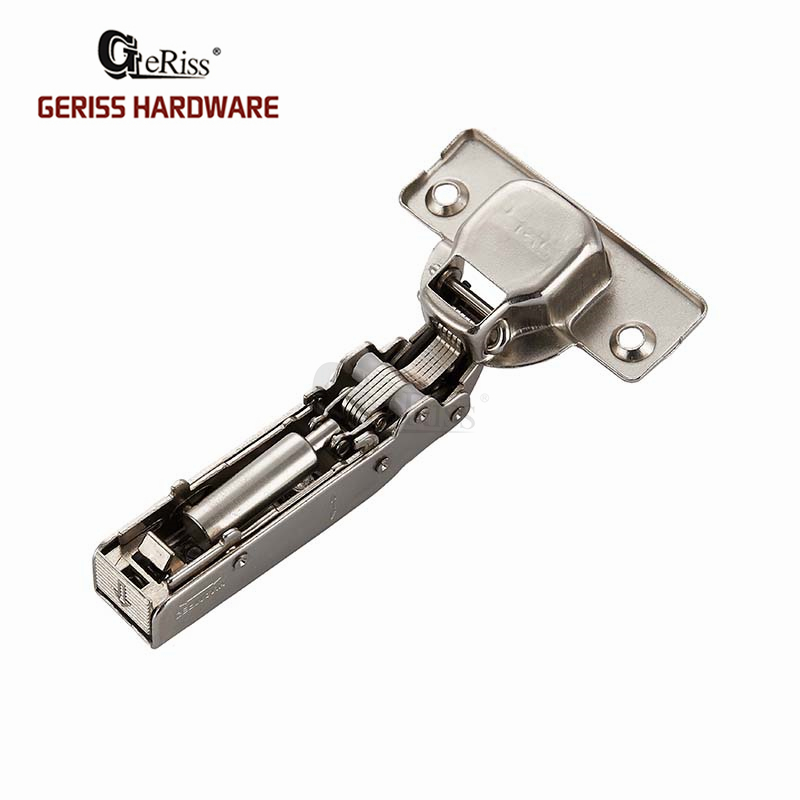

- Clip-on slow closing cabinet door hydraulic hinge.
- The high technology with integrate silent system for even more convenience when soft close the door
- Fast assembly design with just click, the plate can be separated, bery easy for installation.
- Soft closing mechanism,perfect soft close function make more smooth closing.
- Three types overlay can choose, there are full overlay, half overlay, inset.
- Available cabinet door hinge's accessories: assembly dowels, hinge arm covers, tapping screws, Euro screws
ITEM NO. | OVERLAY |
1341 | FULL-OVERLAY |
1342 | HALF-OVERLAY |
1343 | INSET |
Clip-on slow closing cabinet door hydraulic hinge standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
