Description:
Type: 35mm Double extension synchronization dinning table slide with lock
Function: smooth moving & large load rating.
Width: 35mm
Length: 500mm – 1500mm, customized is available.
Installation thickness: 16 mm (±0.3)
Surface: Zinc plated, black, customized is available.
Load Capacity: 55-120 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.5mm or 1.8mm is available
Installation: side mount with screws
Application: Tables

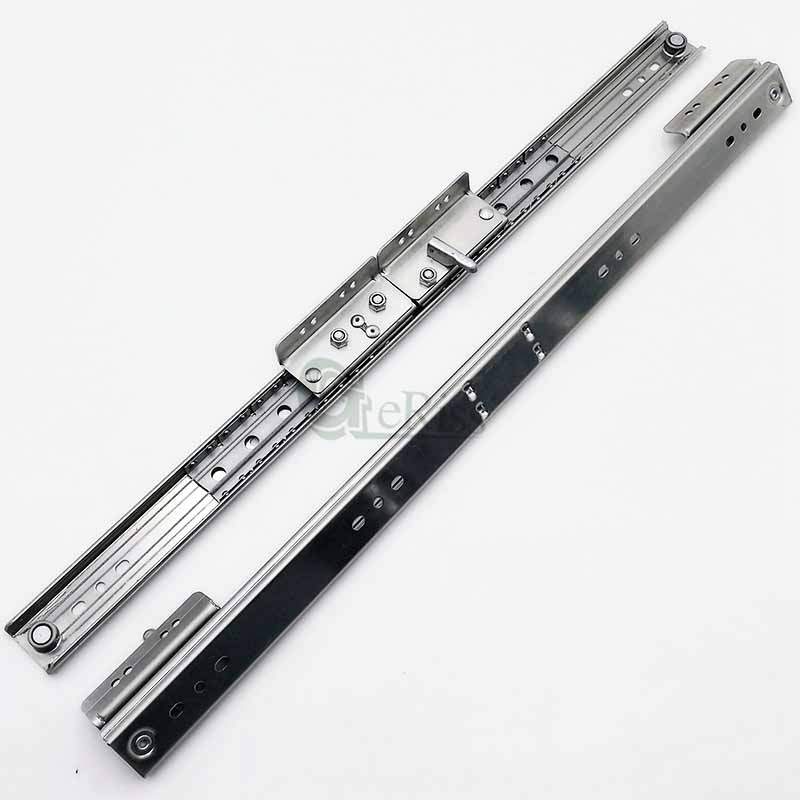

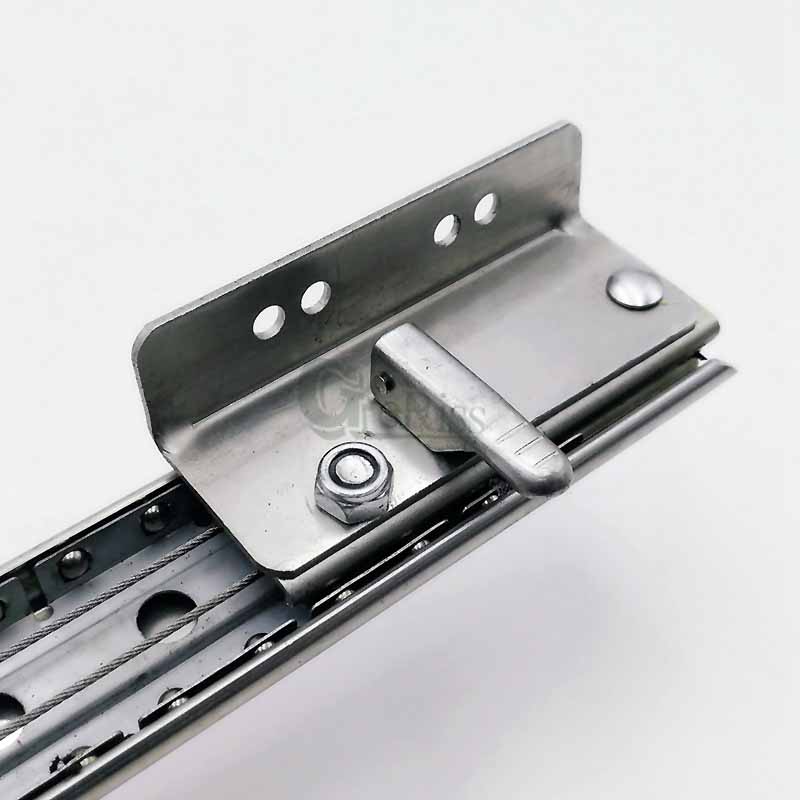

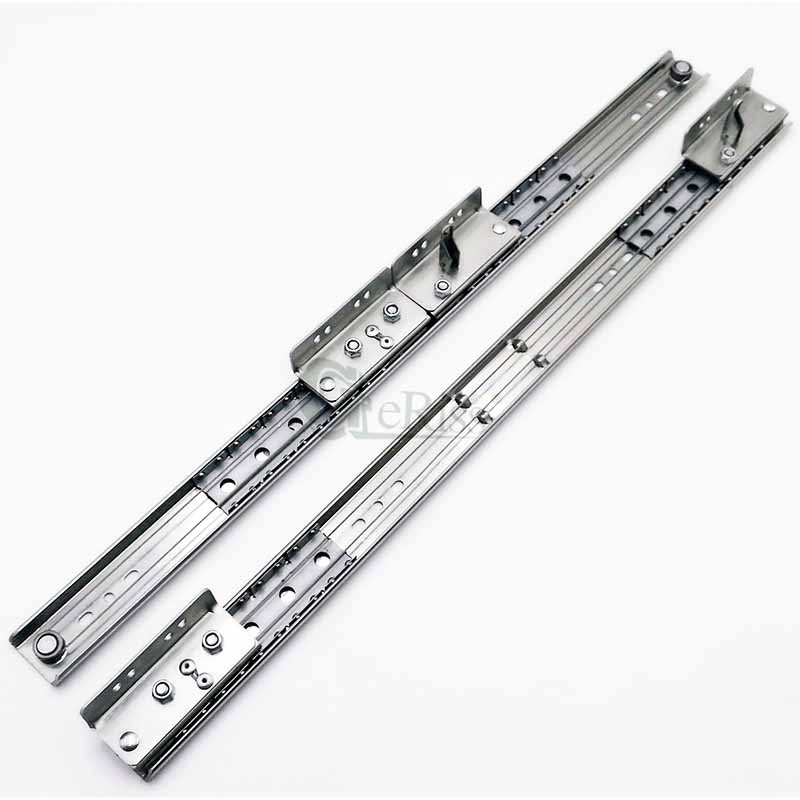

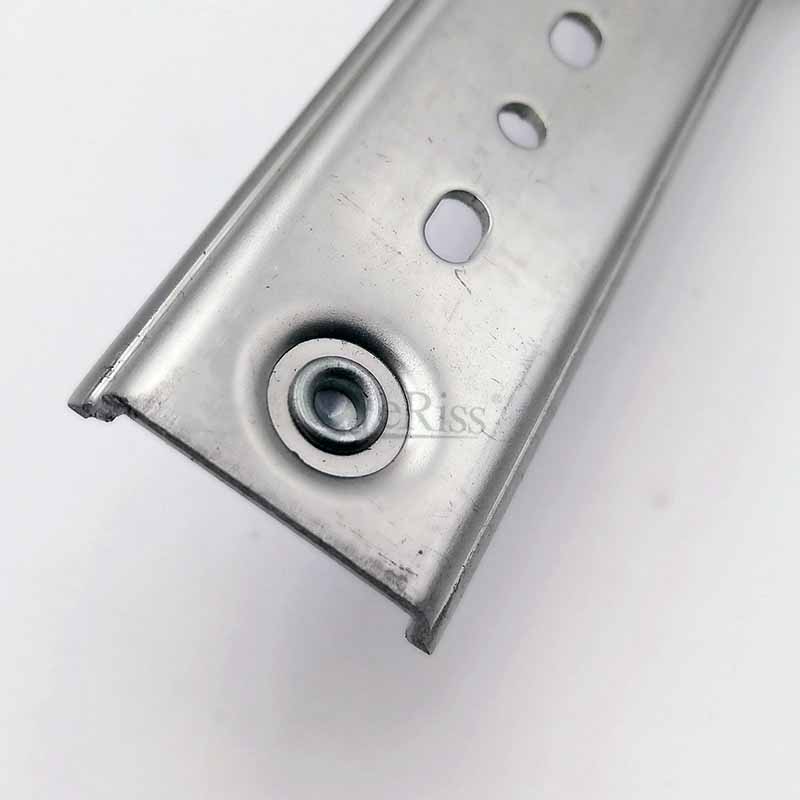

Product Details:

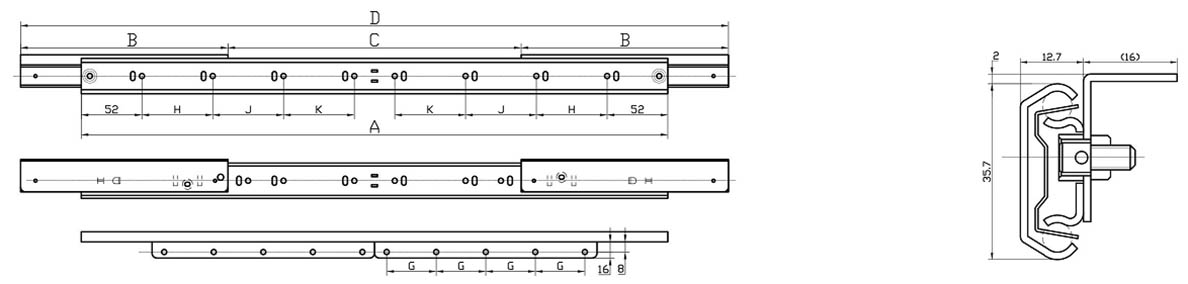

Order Information:
Item No. |
A |
B |
C |
D |
H |
J |
K |
G |
YA35CT-20 |
500 |
180 |
250 |
610 |
96 |
/ |
/ |
32 |
YA35CT-22 |
550 |
200 |
300 |
700 |
96 |
/ |
/ |
32 |
YA35CT-24 |
600 |
200 |
350 |
750 |
96 |
/ |
/ |
32 |
YA35CT-26 |
650 |
250 |
400 |
900 |
128 |
/ |
/ |
48 |
YA35CT-28 |
700 |
300 |
350 |
950 |
128 |
128 |
/ |
64 |
YA35CT-30 |
750 |
300 |
400 |
1000 |
128 |
128 |
/ |
64 |
YA35CT-32 |
800 |
300 |
450 |
1050 |
128 |
128 |
/ |
64 |
YA35CT-34 |
850 |
300 |
500 |
1100 |
128 |
128 |
/ |
64 |
YA35CT-36 |
900 |
300 |
550 |
1150 |
128 |
128 |
90 |
64 |
YA35CT-38 |
950 |
300 |
600 |
1200 |
128 |
128 |
100 |
64 |
YA35CT-40 |
1000 |
300 |
650 |
1250 |
128 |
128 |
100 |
64 |
