Our enterprise since its inception, often regards solution excellent as enterprise life, continually strengthen output technology, enhance product high quality and continually strengthen organization total high-quality administration, in strict accordance using the national standard ISO 9001:2000 for Ball Bearing Keyboard Drawer Slide, Bearing Slides With Damper, 3folds Ball Bearing Telescopic Drawer Slide, We also ensure that your selection will be crafted with the highest quality and reliability. Please feel free to contact us for further information.
Cheap PriceList for Liberty Self Closing Drawer Slides - Double Wall Slim Box Drawer System – Yangli Detail:

Description:
Type: Double Wall Slim Box Drawer System.
Function: Soft Close, Push to Open.
Side Panel Height: 89mm.
Side Panel Length: 240mm – 590mm, customized is available.
Side Panel Thickness: 13mm.
Undermount Slide Length: 250mm – 600mm,customized is available.
Standard Color: White, Grey, Graphite, customized is available.
Load Capacity: 35 KGS, 450mm as standard.
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Application: Kitchen Cabient, Bathroom Cabient, Wardrobe, Civil Furniture, etc…

Product Details:

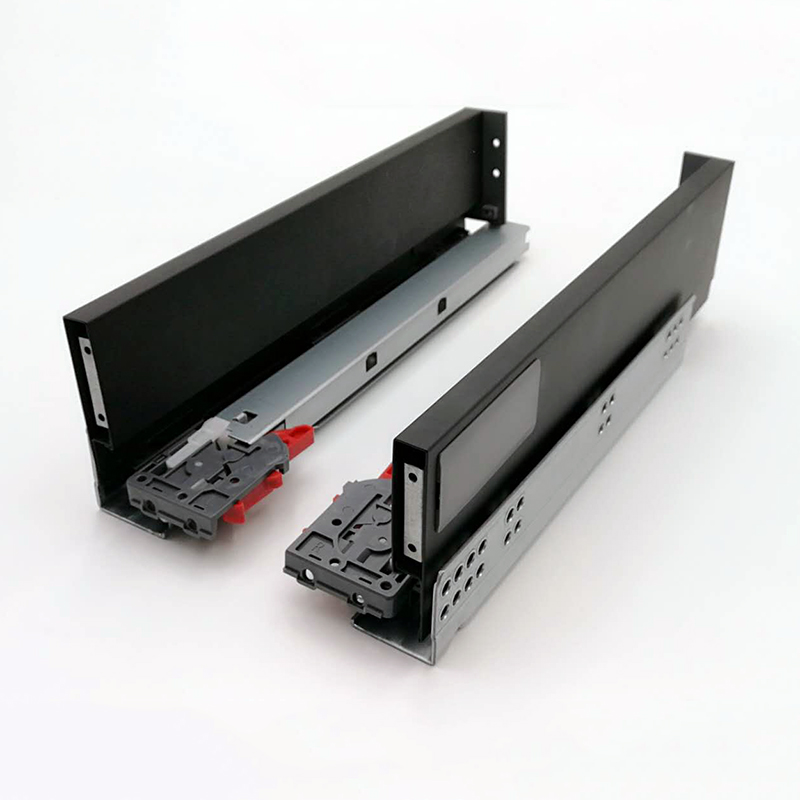

furniture hardware tendem box soft close drawer system

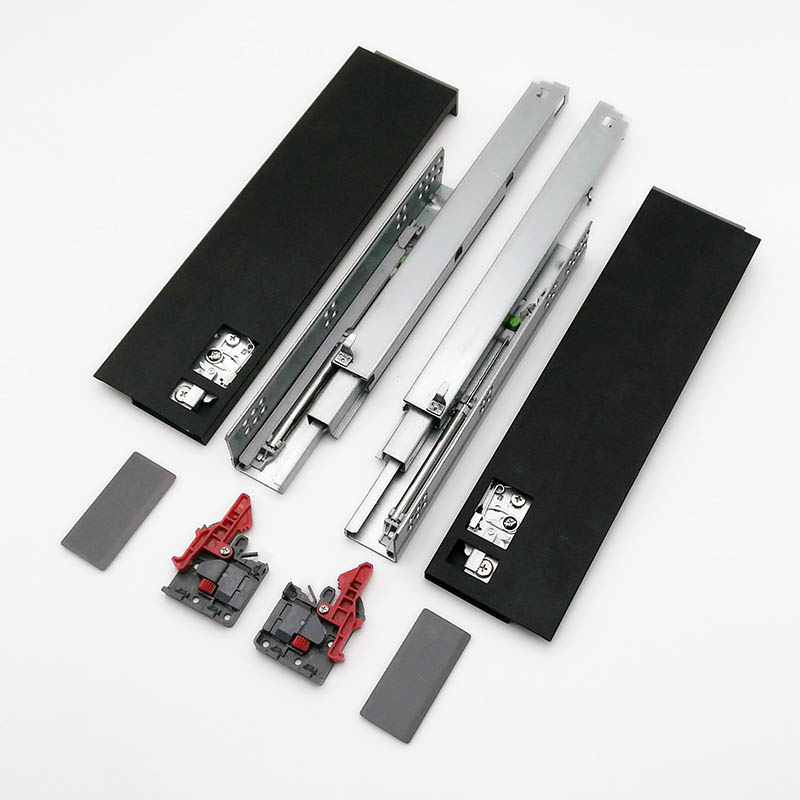

slim drawer for bathroom
slim drawer system

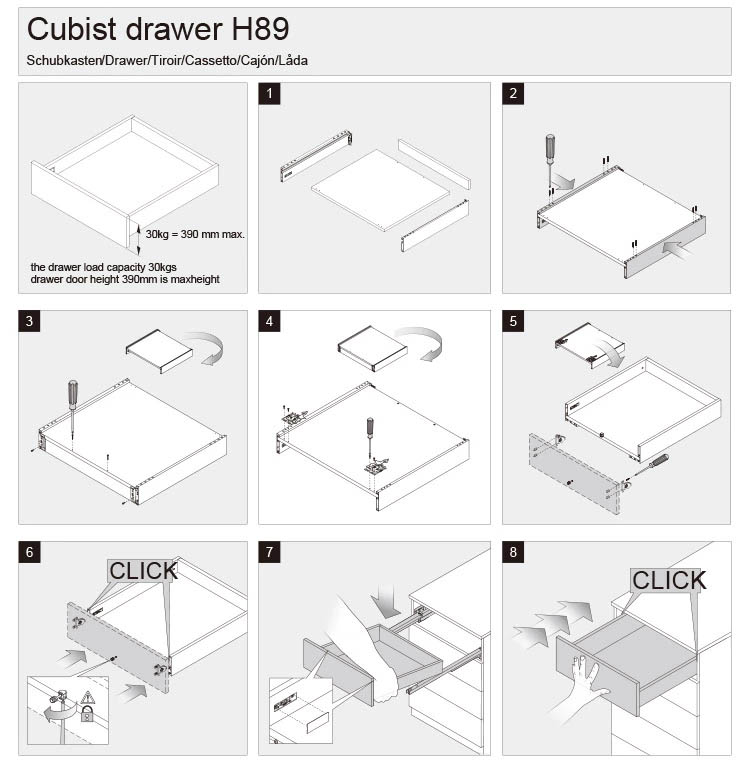

ultra slim drawer runners

Order Information:

Length

White

Graphite

Drawer Length

Min Cabinet Depth

300mm

M02.89.300W

M02.89.300G

290mm

322mm

350mm

M02.89.350W

M02.89.350G

340mm

372mm

400mm

M02.89.400W

M02.89.400G

390mm

422mm

450mm

M02.89.450W

M02.89.450G

440mm

472mm

500mm

M02.89.500W

M02.89.500G

490mm

522mm

550mm

M02.89.550W

M02.89.550G

540mm

572mm

 Packing Information:

ITEM NO.

Length

Double Wall Slim Box Drawer System
Side Panel Package

Double Wall Slim Box Drawer System
Undermount Drawer Slide Package

Package/Set

N.W(KG)

G.W(KG)

Package/Set

N.W(KG)

G.W(KG)

M02.89.300

300mm

10

9.73

10.23

10

11.50

11.70

M02.89.350

350mm

10

10.87

11.39

10

16.10

16.40

M02.89.400

400mm

10

12.01

12.54

10

18.40

18.70

M02.89.450

450mm

10

13.15

13.70

10

20.70

21.00

M02.89.500

500mm

10

14.30

14.86

10

23.00

23.30

M02.89.550

550mm

10

15.45

16.02

10

25.00

25.30

Double Wall Drawer System-03
Double Wall Drawer System-04

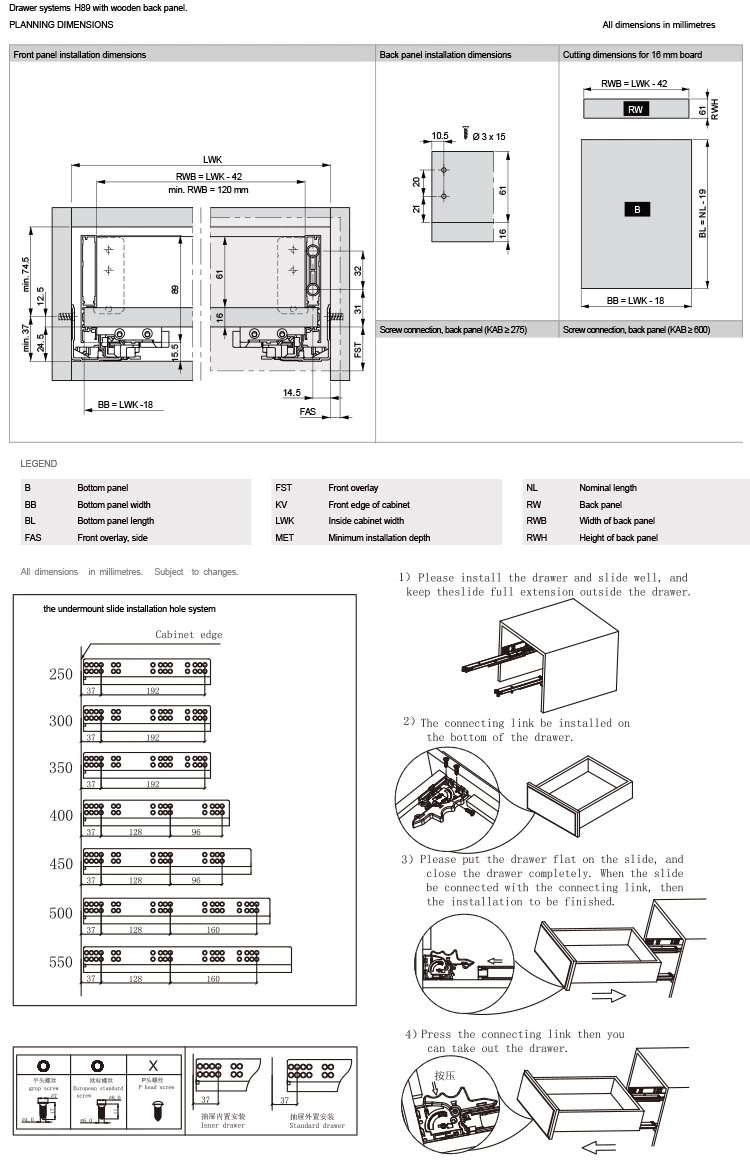

Product detail pictures:

Cheap PriceList for Liberty Self Closing Drawer Slides - Double Wall Slim Box Drawer System – Yangli detail pictures

Cheap PriceList for Liberty Self Closing Drawer Slides - Double Wall Slim Box Drawer System – Yangli detail pictures

Cheap PriceList for Liberty Self Closing Drawer Slides - Double Wall Slim Box Drawer System – Yangli detail pictures

Cheap PriceList for Liberty Self Closing Drawer Slides - Double Wall Slim Box Drawer System – Yangli detail pictures
