Bottom price Telescopic Slide Track - 35mm Full extension ball bearing slide – Yangli

Short Description:


Download as PDF

Product Detail

Product Tags

Related Video

Feedback (2)

We've got a really efficient group to deal with inquiries from prospects. Our purpose is "100% customer fulfillment by our product excellent, price & our group service" and enjoy a superb track record amid clientele. With many factories, we can easily deliver a wide selection of Soft Close Ball Bearing Drawer Slide, Heavy Duty, Ball Bearing Table Slide, We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Bottom price Telescopic Slide Track - 35mm Full extension ball bearing slide – Yangli Detail:

Description:
Type: 35mm Full extension ball bearing slide
Function: Smooth moving without noise
Width: 35mm
Length:150mm – 650mm, customized is available.
Installation thickness: 13mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 30 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.0×1.0×1.2mm
Installation: side mounting with screws
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc…

Product Details:

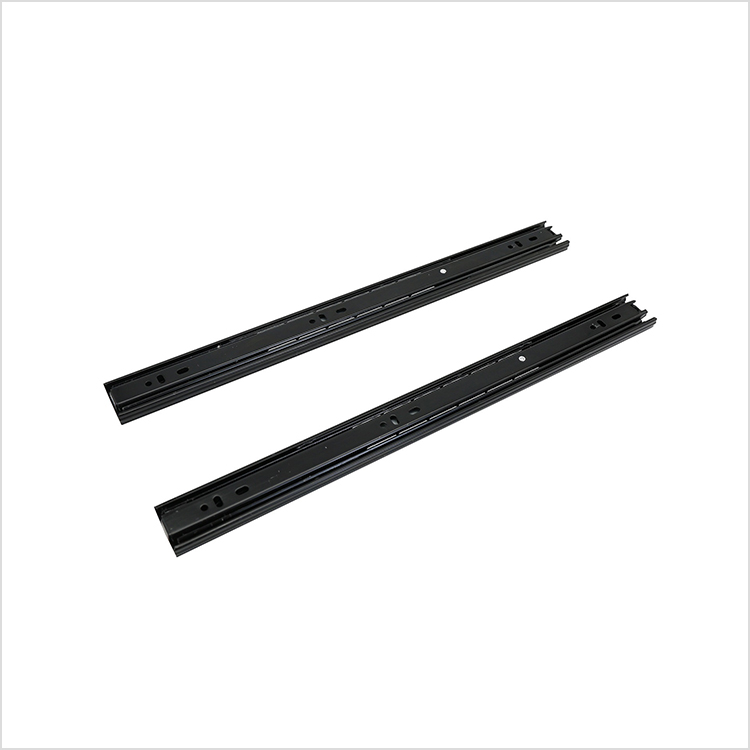

35mm-installing-ball-bearing-drawer-slide1

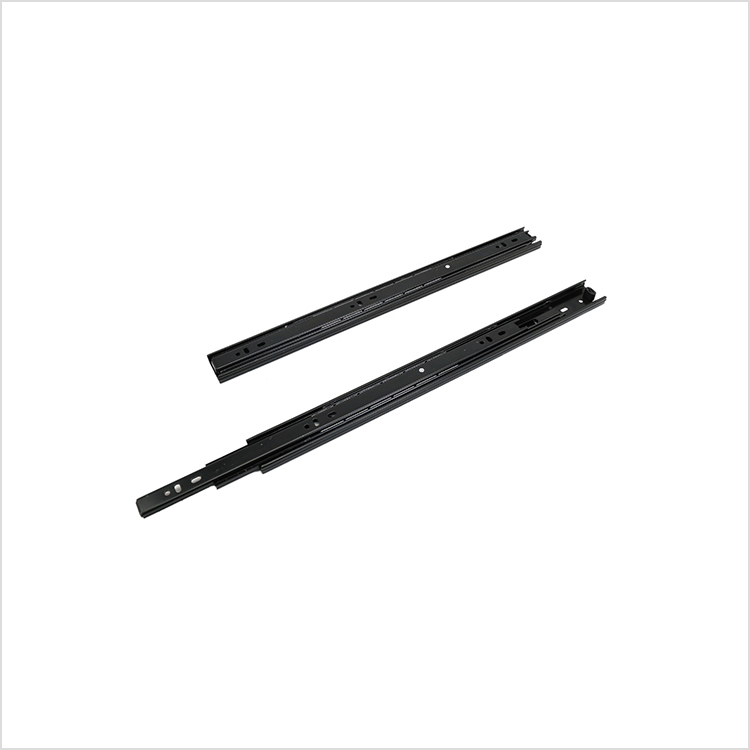

35mm-roller-drawer-slides1

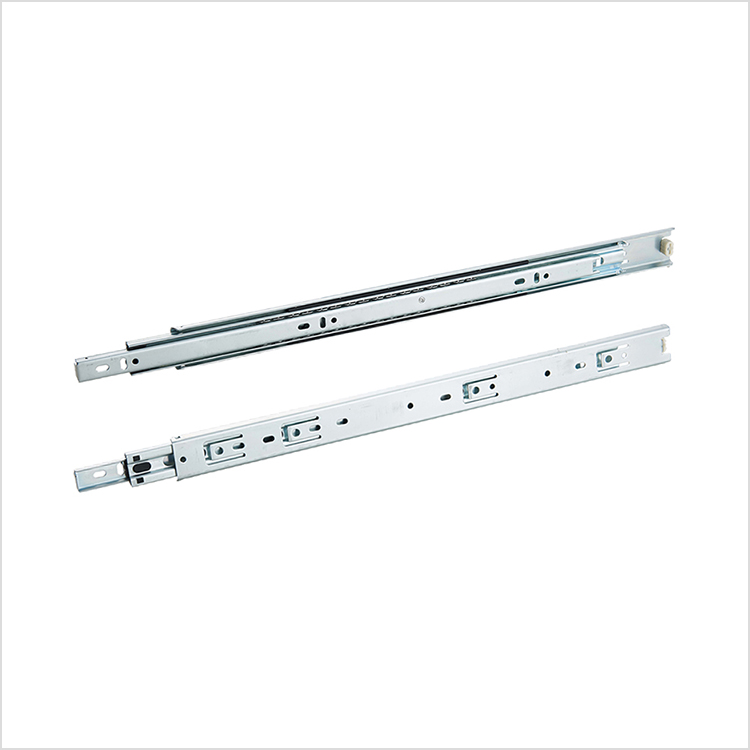

w35-side-mounted-ball-bearing-drawer-slide1

Order Information:

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit ( set/box )

YA3501-6

6”/150mm

150mm

154mm

20

YA3501-8

8”/200mm

200mm

204mm

20

YA3501-10

10”/250mm

250mm

254mm

20

YA3501-12

12”/300mm

300mm

304mm

20

YA3501-14

14”/350mm

350mm

354mm

20

YA3501-16

16”/400mm

400mm

404mm

20

YA3501-18

18”/450mm

450mm

454mm

20

YA3501-20

20”/500mm

500mm

504mm

20

YA3501-22

22”/550mm

550mm

554mm

20

YA3501-24

24”/600mm

600mm

604mm

20

YA3501-26

26”/650mm

650mm

654mm

20

Packing Information:

Size Material Thickness
(mm)		 Sets/Ctn Size/Inch 1set/N.W(KG) N.W(KGS)
/CTN		 G.W(KGS)
/CTN		 MEAS(cm)
Length Width Height
35-8″ 1.0×1.0×1.2 20 8 0.42 8.32 8.57 22 20 12
35-10″ 1.0×1.0×1.2 10 0.52 10.40 10.65 27 20 12
35-12″ 1.0×1.0×1.2 12 0.62 12.48 12.73 32 20 12
35-14″ 1.0×1.0×1.2 14 0.73 14.56 14.81 37 20 12
35-16″ 1.0×1.0×1.2 16 0.83 16.64 16.94 42 20 12
35-18″ 1.0×1.0×1.2 18 0.94 18.72 19.02 47 20 12
35-20″ 1.0×1.0×1.2 20 1.04 20.80 21.10 52 20 12
35-22″ 1.0×1.0×1.2 22 1.14 22.88 23.18 57 20 12
35-24″ 1.0×1.0×1.2 24 1.25 24.96 25.31 62 20 12
35-26″ 1.0×1.0×1.2 26 1.35 27.04 27.39 67 20 12
35-28″ 1.0×1.0×1.2 28 1.46 29.12 29.47 72 20 12
35-30″ 1.0×1.0×1.2 30 1.56 31.20 31.55 77 20 12

Double Wall Drawer System-03
Double Wall Drawer System-04

Product detail pictures:

Bottom price Telescopic Slide Track - 35mm Full extension ball bearing slide – Yangli detail pictures

Bottom price Telescopic Slide Track - 35mm Full extension ball bearing slide – Yangli detail pictures

Bottom price Telescopic Slide Track - 35mm Full extension ball bearing slide – Yangli detail pictures
