American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors)

Short Description:

Model No.: US33A

American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors) usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws and plastic plugs fix to the wooden drawers. Owning high-precision TAIWAI machine, with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Product Detail

Product Tags

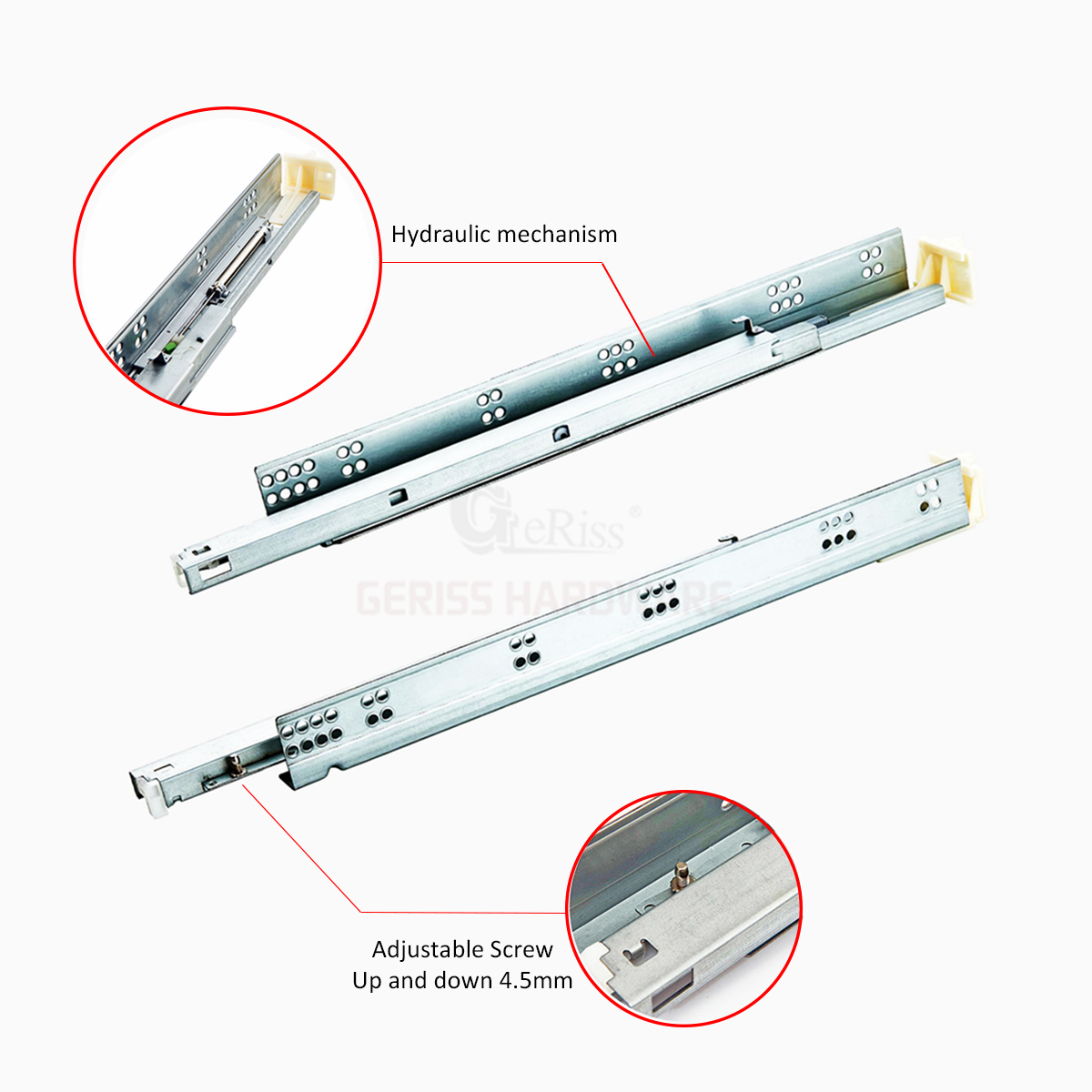

Face frame undermount drawer slide

Application:

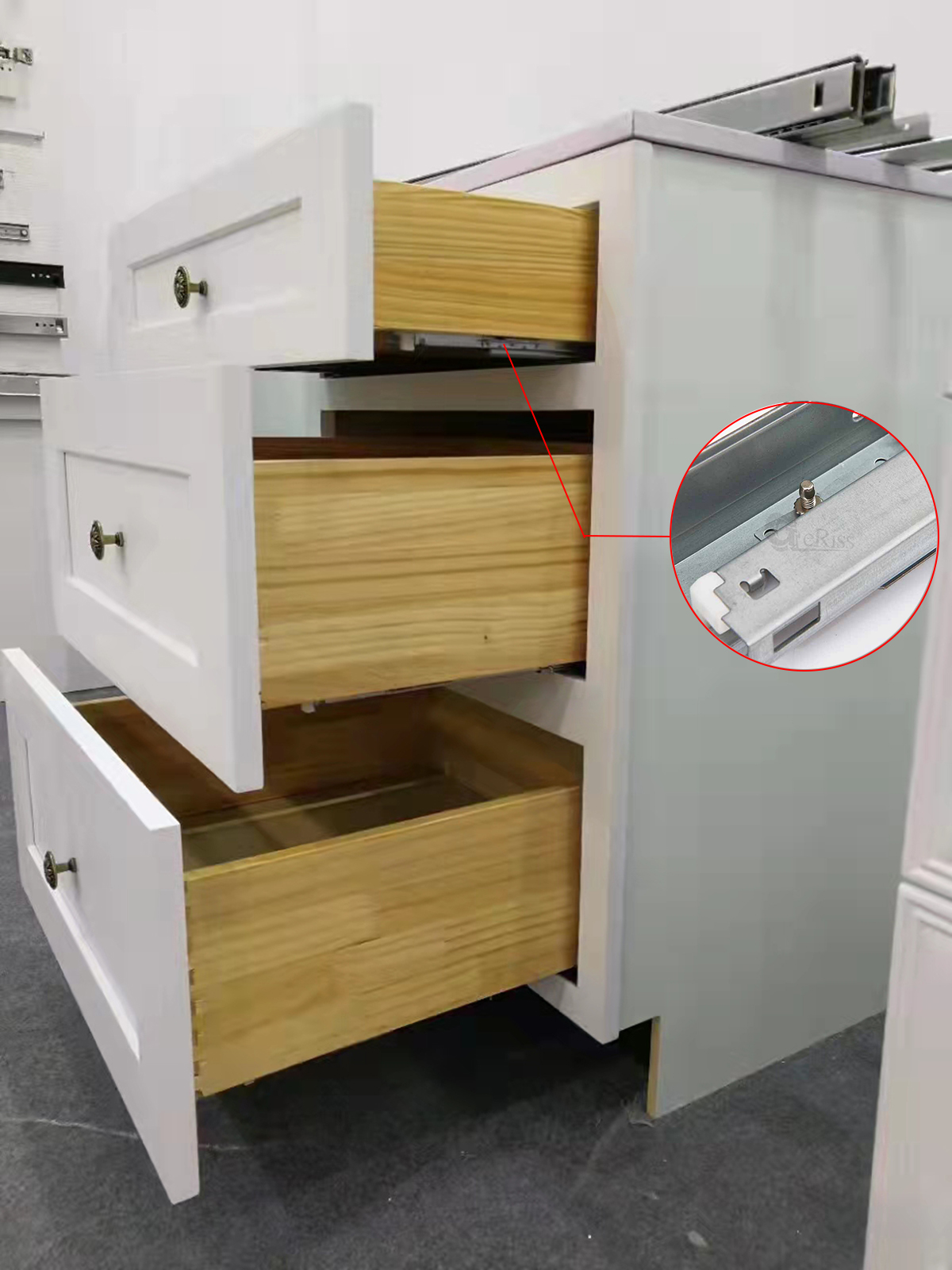

face frame cabinet drawer slide

Description:

Product Name Full extension soft close undermount drawer slide with adjustable screws use for American style face frame kitchen & bathroom cabinets.
Material Galvanized Sheet
Material Thickness 1.8*1.5*1.0mm
Load Rating 35 KGS
Cycling Over 50,000 times
Length 12”(305mm) - 21"(533mm), customized is available
Feature Silent smooth soft close
Installation Connect with front clips and back connectors
Clips adjustment range 4.5mm ( up and down )
Service ODM & OEM
Application American type face frame kitchen & bathroom cabinets

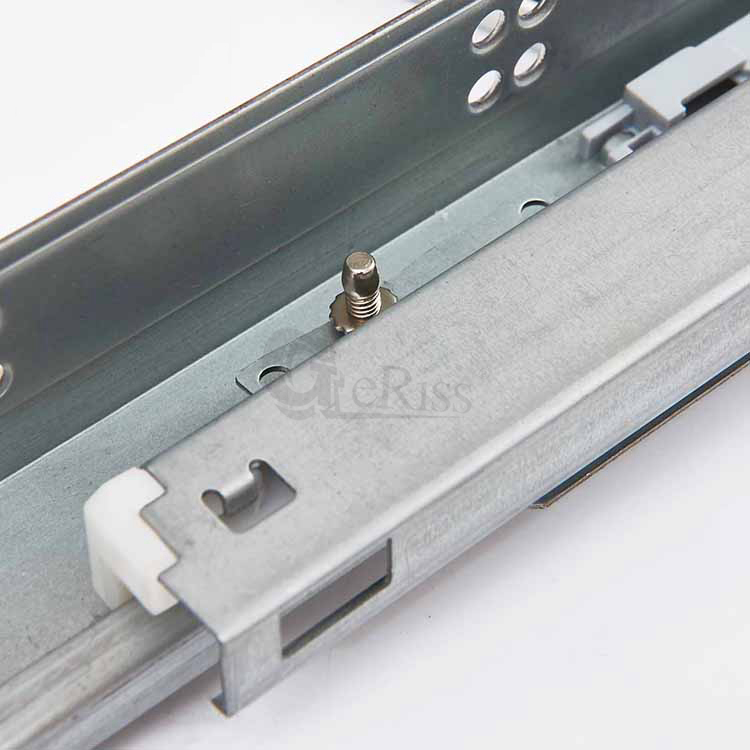

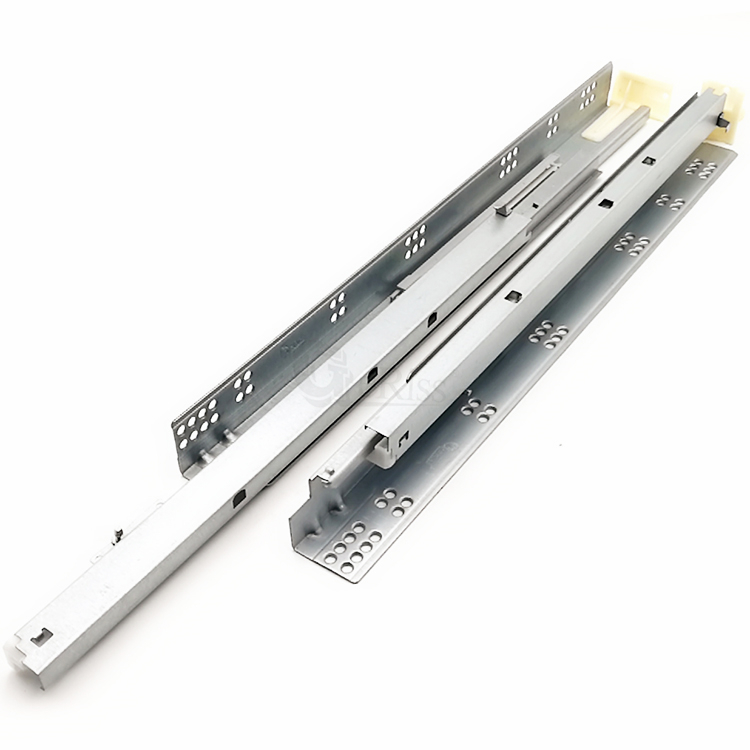

Details Photos:

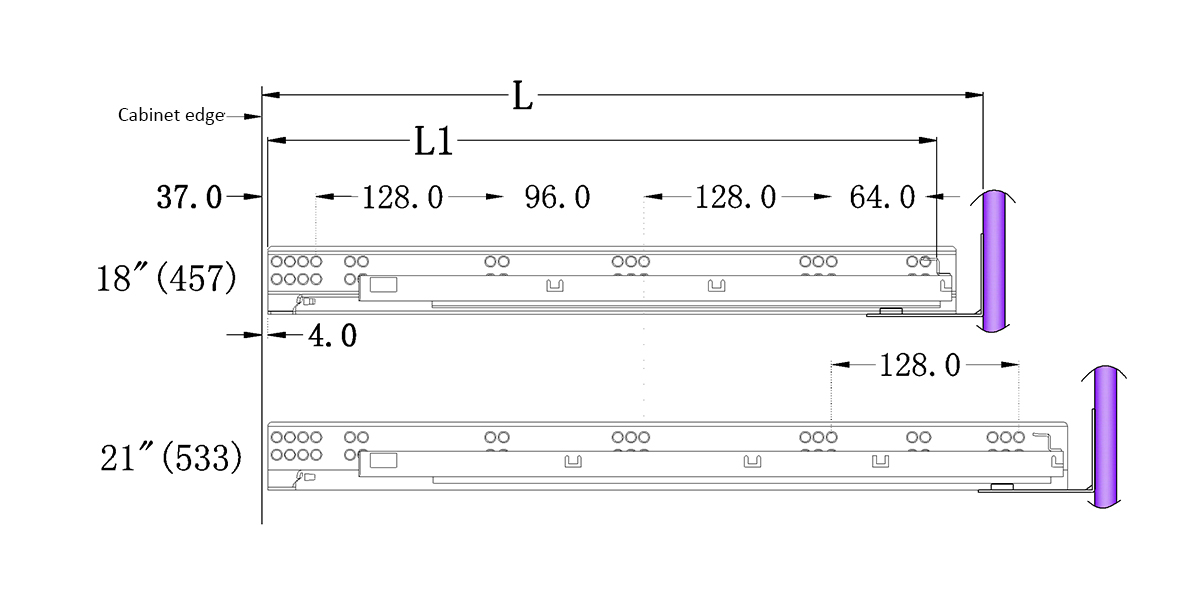

Mounting Holes Location:

undermount drawer slide size

Item No.

Slide Length

Drawer Length (L1)

Installation Hole

Min Cabinet Depth

US33A-18/457

470mm

457mm

343mm

493mm

US33A-21/533

546mm

533mm

381mm

569mm

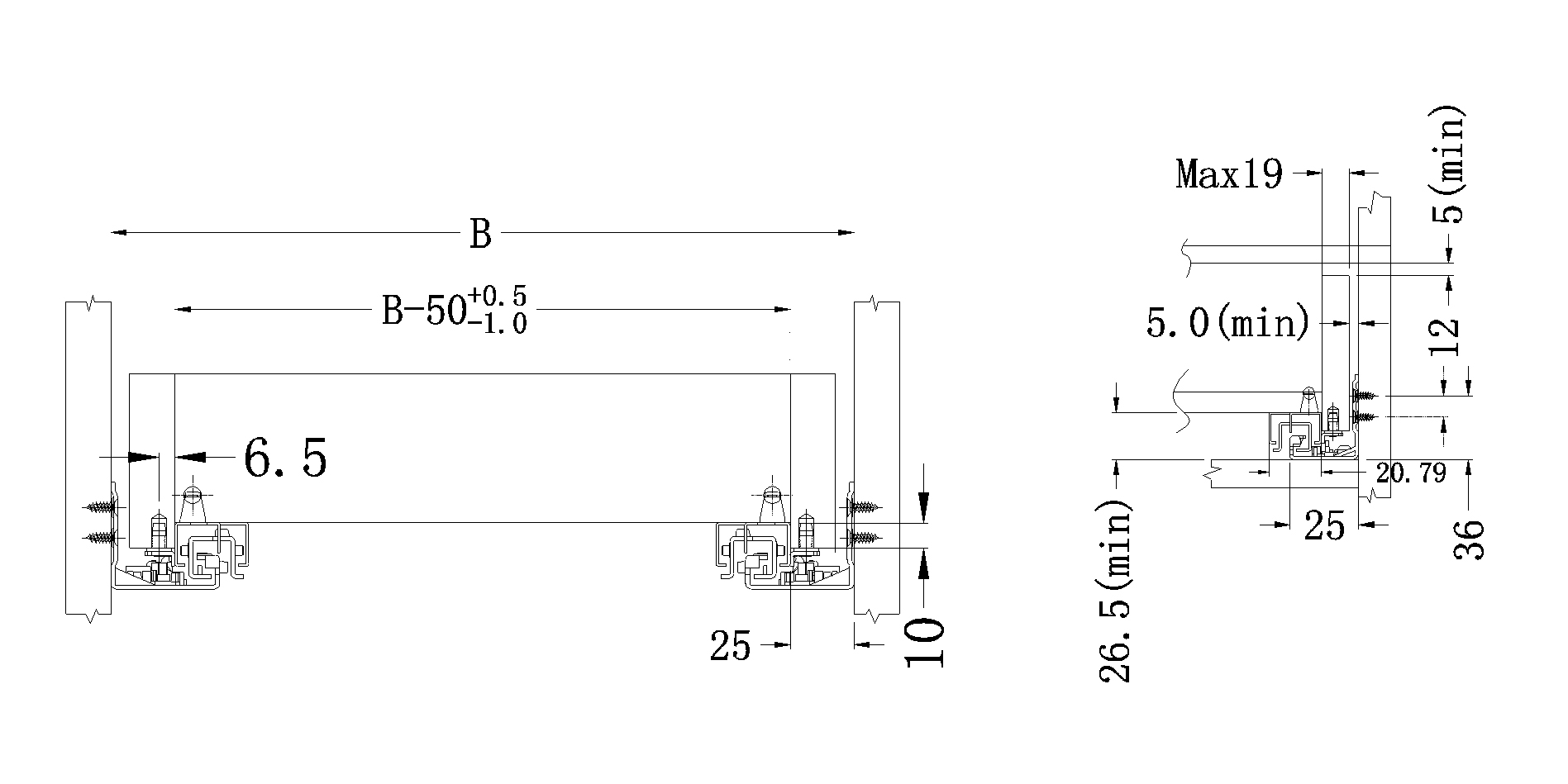

Cabinet Inside Space:

cabinet inside space

Drawer Size:

drawer size

Installation:

drawer installation

Certification:

Packing Details:

ITEM NO

SIZE

Packing(sets/carton)

N.W(KG)

G.W(KG)

MEAS(CM)

US33A-18

457mm

10

23.4

23.9

57*29*13

US33A-21

533mm

10

27.3

27.5

65*29*13

Package

Workshop:

WORKSHOP
