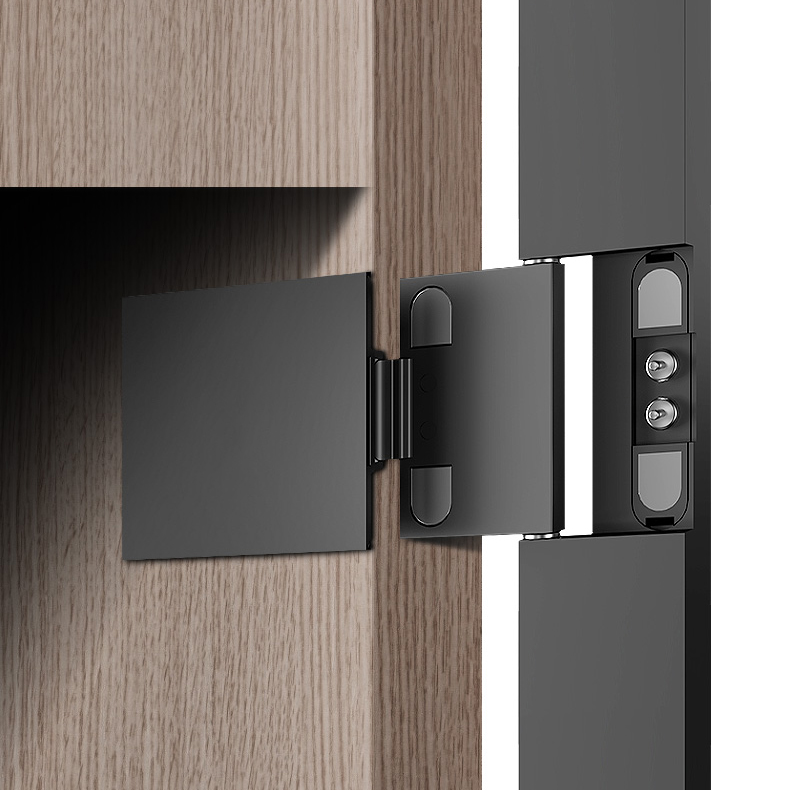

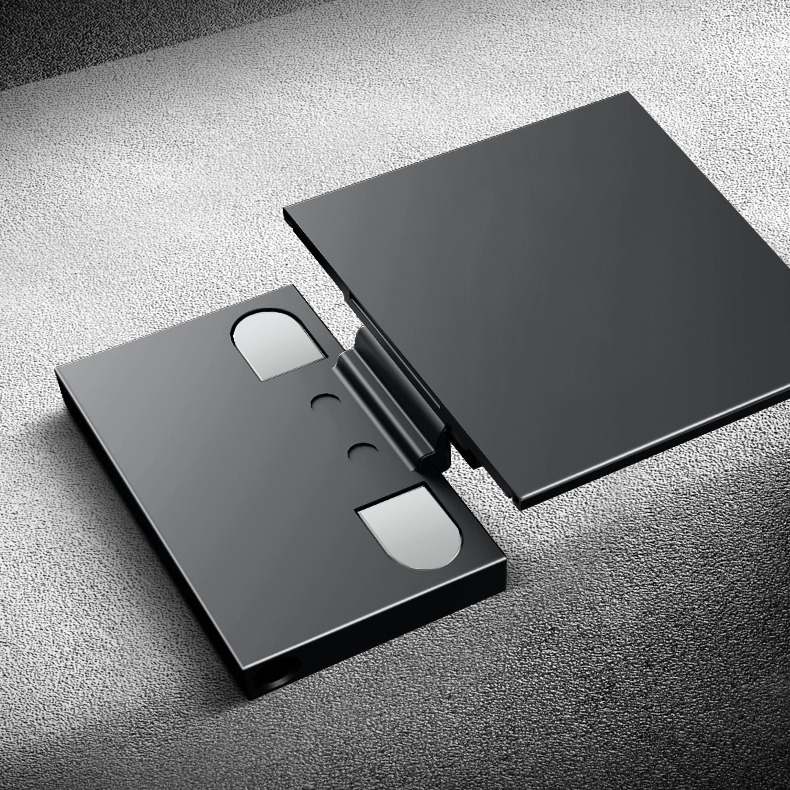

- Aluminum frame glass door cabinet invisible soft close concealed adjustable pivot hinge

- The pivot hinge professional use for 35mm thickness aluminum frame doors.

- Maximum door size: Height 2700 mm, width 500 mm.

- Opening angle: 270 Degree

- Hinge base height: 13.5 mm

- Maximum full overlay D=19 mm

- Adjustable for door gaps: +3.0/-0 mm

- Adjustable for door up and down: +2.0/-2.0 (Tolerance +/- 0.2 mm)

- Adjustable for overlay: -4.0 mm

- Material: Zinc alloy

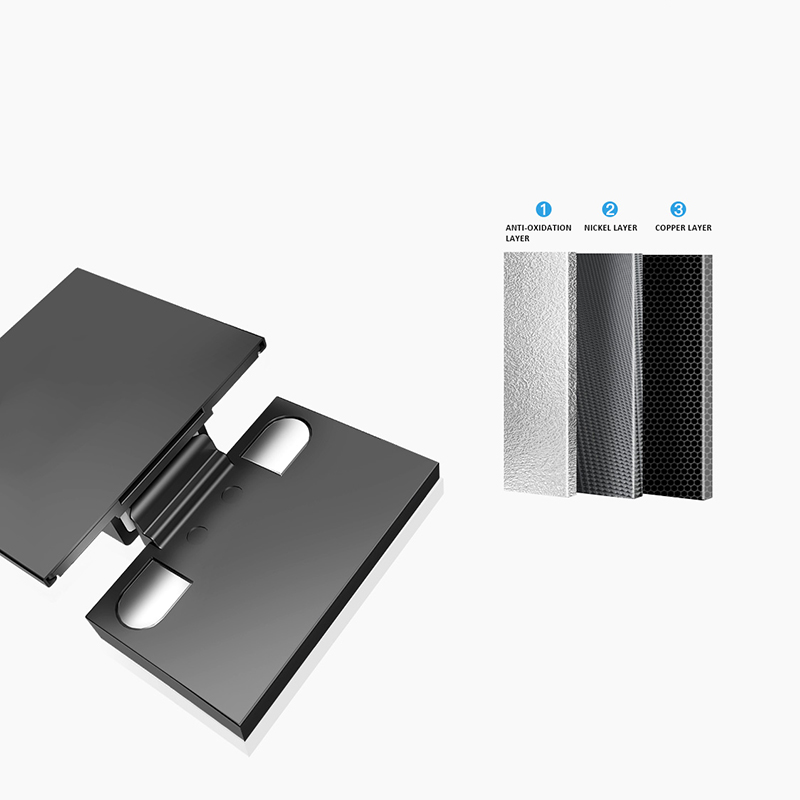

- Surface: Powder coated.

- Aluminum frame glass door cabinet invisible soft close concealed adjustable pivot hinge

- 3D adjustable, soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Powder coated surface not easy to rust.

- Available for customize requirement. (Have MOQ)
