Aluminum frame door furniture concealed hinge

Short Description:

Item No.: AF03

Aluminum frame door clip-on self close cabinet door concealed hinge. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  Aluminum frame door clip-on furniture hinge
Material:  Cold rolled steel
Surface:  Nickel plated as standard, customize is available.
Opening angle:  110 Degree
Drilling dimension on aluminum profile hinge head:  28 mm
Range of width of aluminum profile:  18-27 mm
Optional close type:  Self close
Available accessories:  Arm cover, tapping screws
Available package:  - 200 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

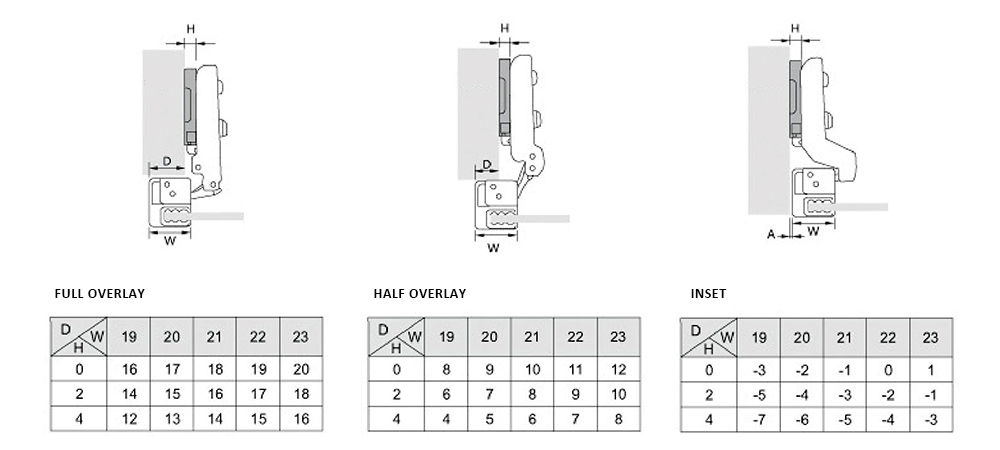

OVERLAY & APPLICATION OF HINGES:

Overlay of AF0243

H = Height of mounting plate

D = Required overlay on the cabinet side panel

W= Range of widht of aluminum profile

ADVANTAGES AND BENEFITS:

- Aluminum frame door clip-on furniture hinge

- Self close

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Hinge Type Mounting Plates Item No. Overlay
Aluminum frame door hinges 4 Holes AF0341 Full
AF0342 Half
AF0343 Inset
2 Holes AF0321 Full
AF0322 Half
AF0323 Inset

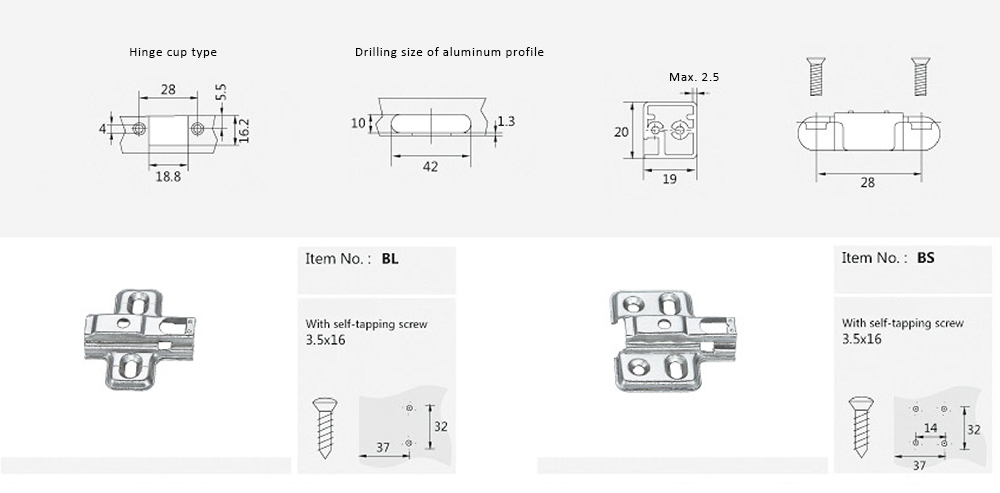

AVAILABLE HINGE CUPS & MOUNTING BASES:

Drilling size and mounting base AF03

PACKAGE DETAILS:

Aluminum frame door furniture concealed hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
