53mm Telescopic Channel Ball Bearing Drawer Slide Heavy Duty Industrial Rails

Short Description:

Model No.: YA-5301

53mm telescopic channel drawer slide heavy duty industrial rails produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

HEAVY DUTY SLIDE

Description:

Different Colors

Product Name:

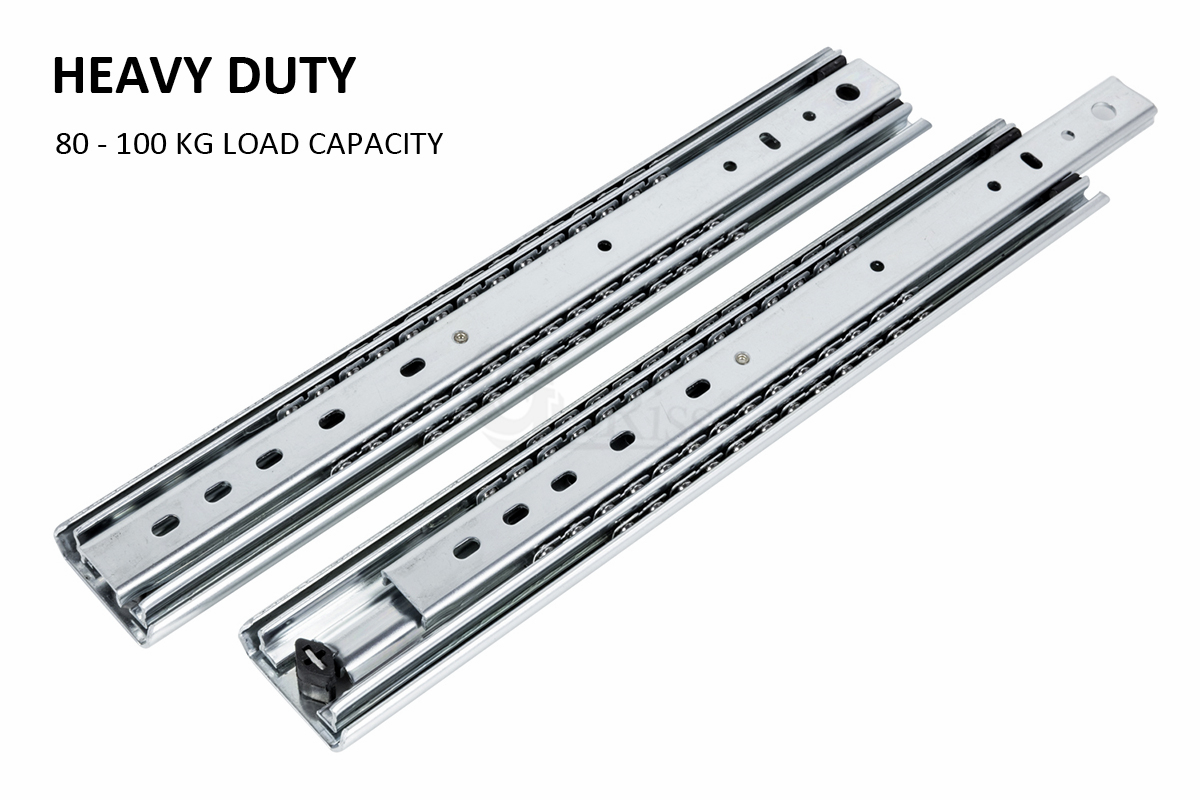

53mm Full extension heavy duty ball bearing drawer slide

Material:

Cold Rolled Steel

Material Thickness:

2.0*2.0*2.0 mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

80-100 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

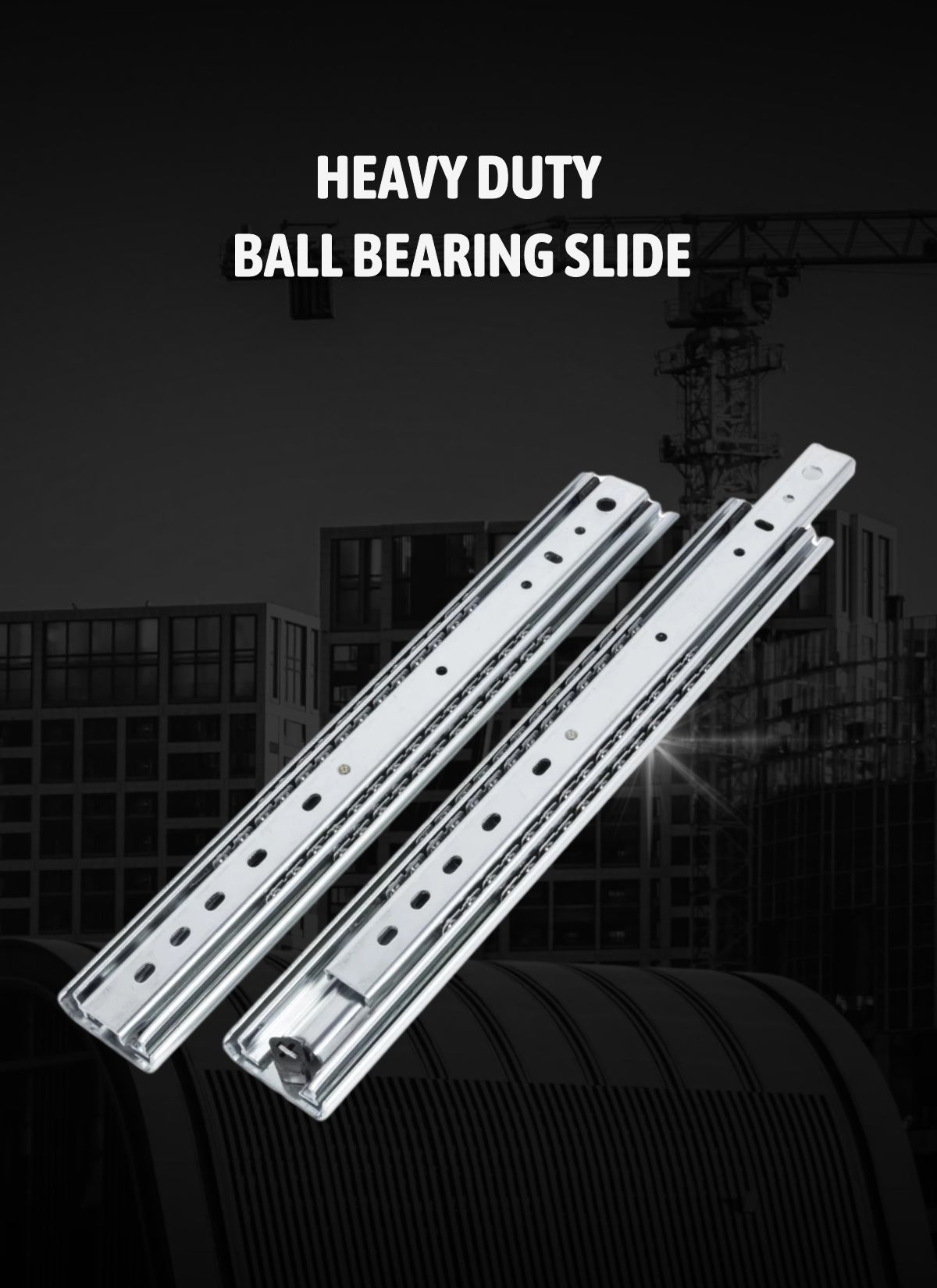

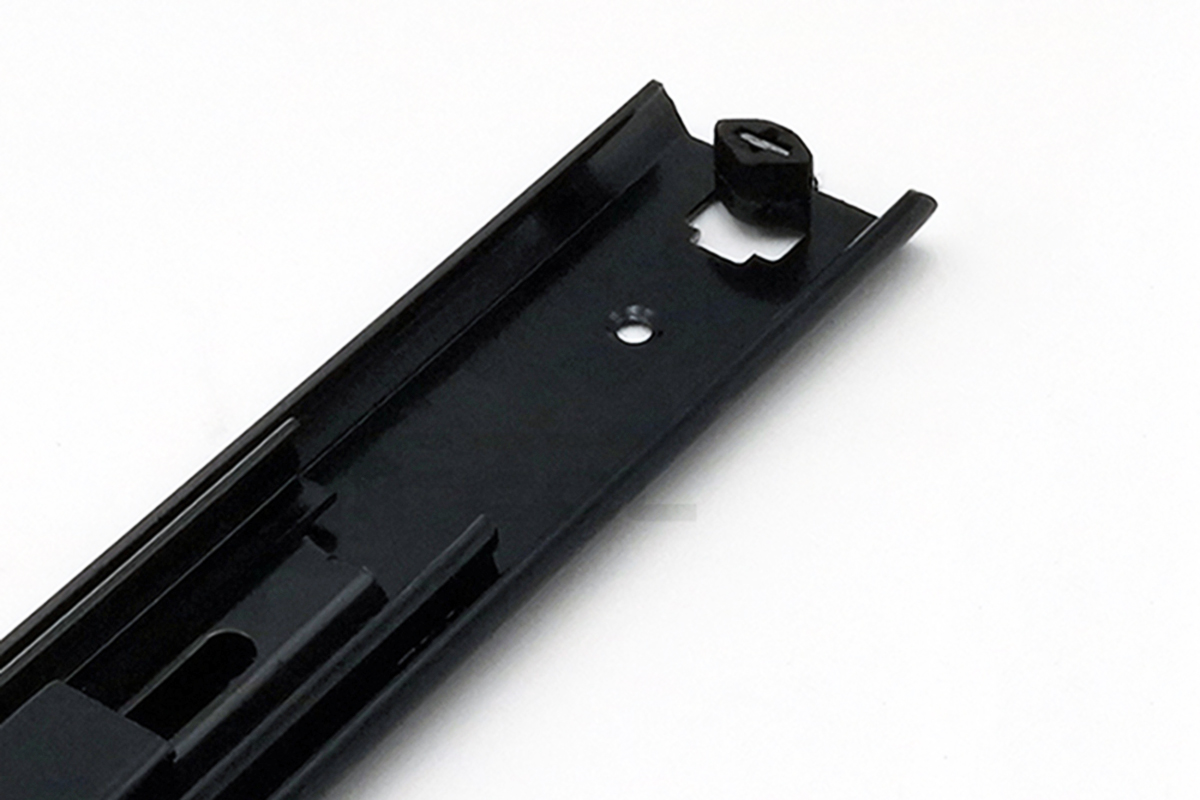

Heavy Duty Ball Bearing Slide
Heavy Duty Telescopic Channels
dav

Specification:

53mm Heavy Duty Ball Bearing Slide

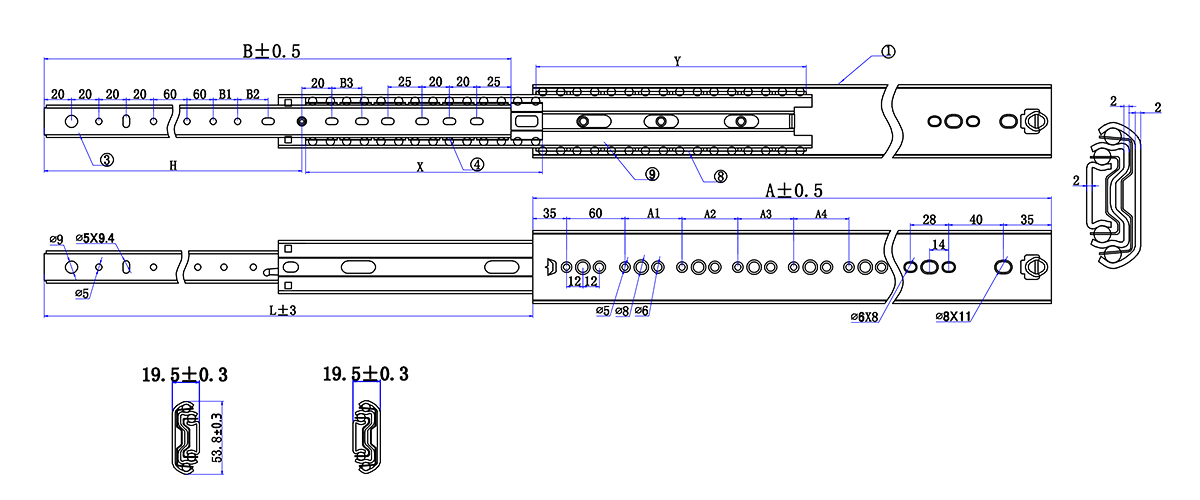

SIZE A B L B1 B2 B3 A1 A2 A3 A4 Z H
10" 250 248 250 - - - - - - - 240 152
12" 300 308 300 - - - - - - - 290 177
14" 350 358 350 - - - - - - - 340 204
16" 400 408 400 - - - - - - - 390 226
18" 450 458 450 - - - - - - - 440 251
20" 500 508 500 - - - 180 - - - 490 278
22" 550 558 550 60 - - 180 - - - 540 304
24" 600 608 600 60 - - 180 - - - 590 329
26" 650 658 650 60 - 105 180 100 - - 640 350
28" 700 708 700 60 75 105 180 100 - - 690 379
30" 750 758 750 60 75 105 180 100 - - 740 404
32" 800 808 800 60 75 105 180 100 150 - 790 428
34" 850 858 850 60 75 105 180 100 150 - 840 452
36" 900 908 900 60 75 105 180 100 150 150 890 478

Installation Instruction:

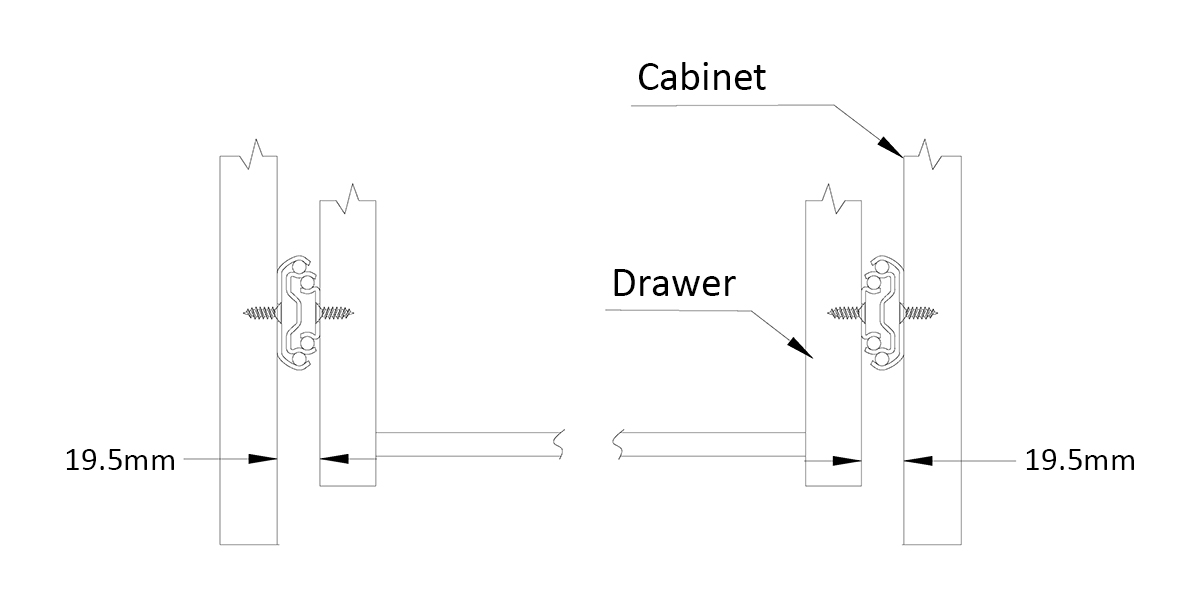

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

ITEM NO.

SIZE

SET/CTN

N.W(KGS)/CTN

G.W(KGS)/CTN

MEAS(CM)/CTN

YA.5301.250

250mm

5

7.50

7.70

27x28.5x5.5

YA.5301.300

300mm

5

9.00

9.20

32x28.5x5.5

YA.5301.350

350mm

5

10.50

10.70

37x28.5x5.5

YA.5301.400

400mm

5

12.00

12.20

42x28.5x5.5

YA.5301.450

450mm

5

13.50

13.70

47x28.5x5.5

YA.5301.500

500mm

5

15.00

15.20

52x28.5x5.5

YA.5301.550

550mm

5

16.50

16.70

57x28.5x5.5

YA.5301.600

600mm

5

18.00

18.20

62x28.5x5.5

YA.5301.650

650mm

5

21.00

21.20

67x28.5x5.5

YA.5301.700

700mm

5

22.40

22.60

72x28.5x5.5

YA.5301.750

750mm

5

24.00

24.20

77x28.5x5.5

YA.5301.800

800mm

5

25.60

27.80

82x28.5x5.5
