53mm Full Extension Soft Closing Heavy Duty Drawer Slide

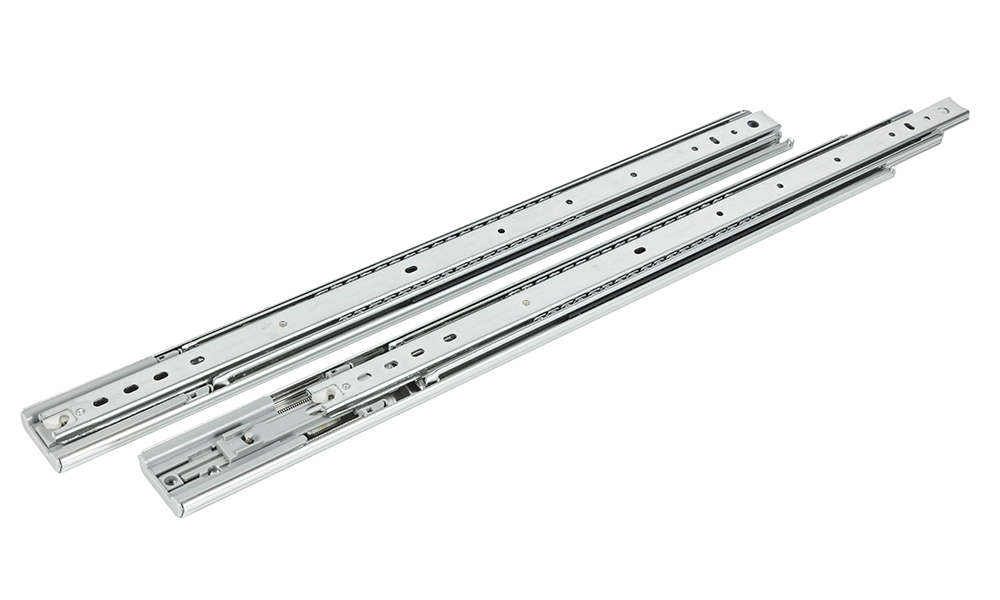

Product pictures

1

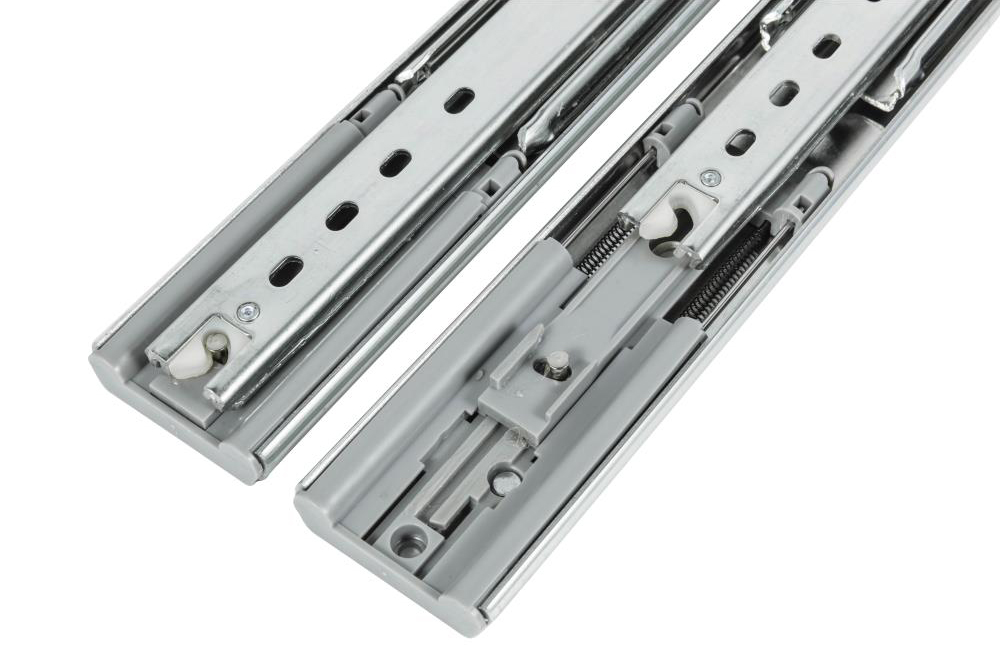

Heavy Duty Slide 002

Product parameters

Product Name:

53mm Full extension heavy duty telescopic runner

Material:

Cold rolled steel

Material Thickness:

2.0*2.0*2.0 mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

80-100 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Video

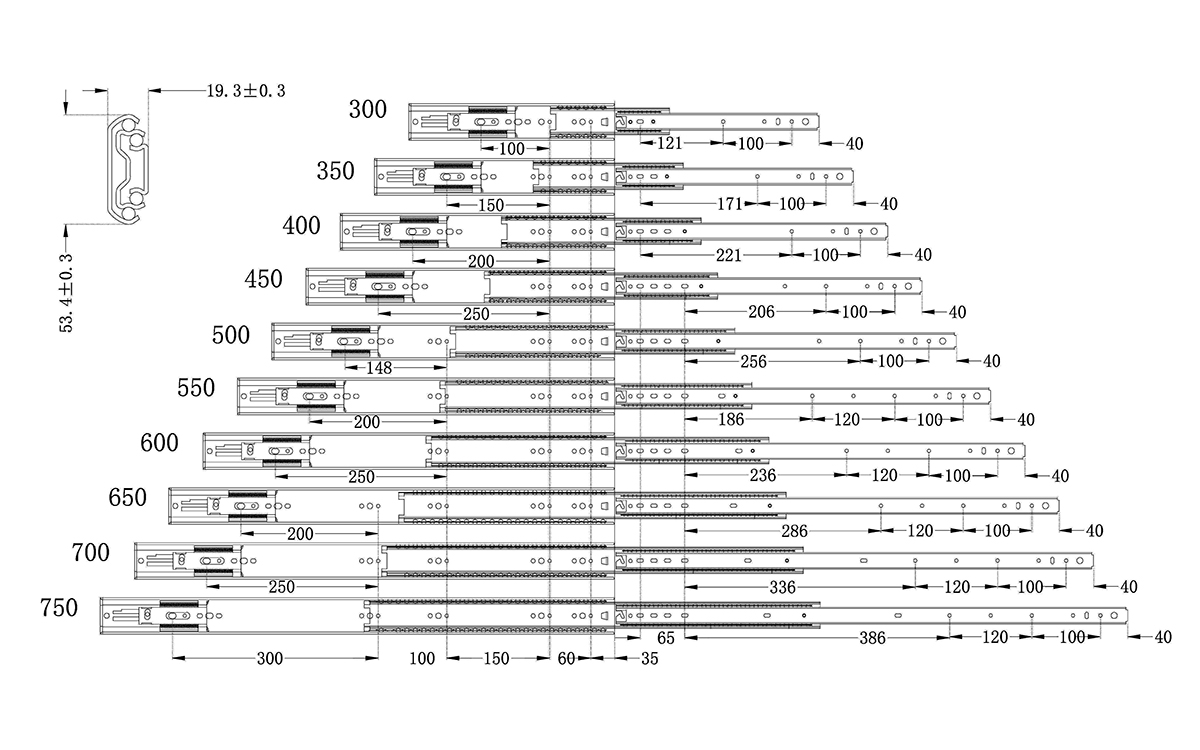

Regular size

Soft close heavy duty slide

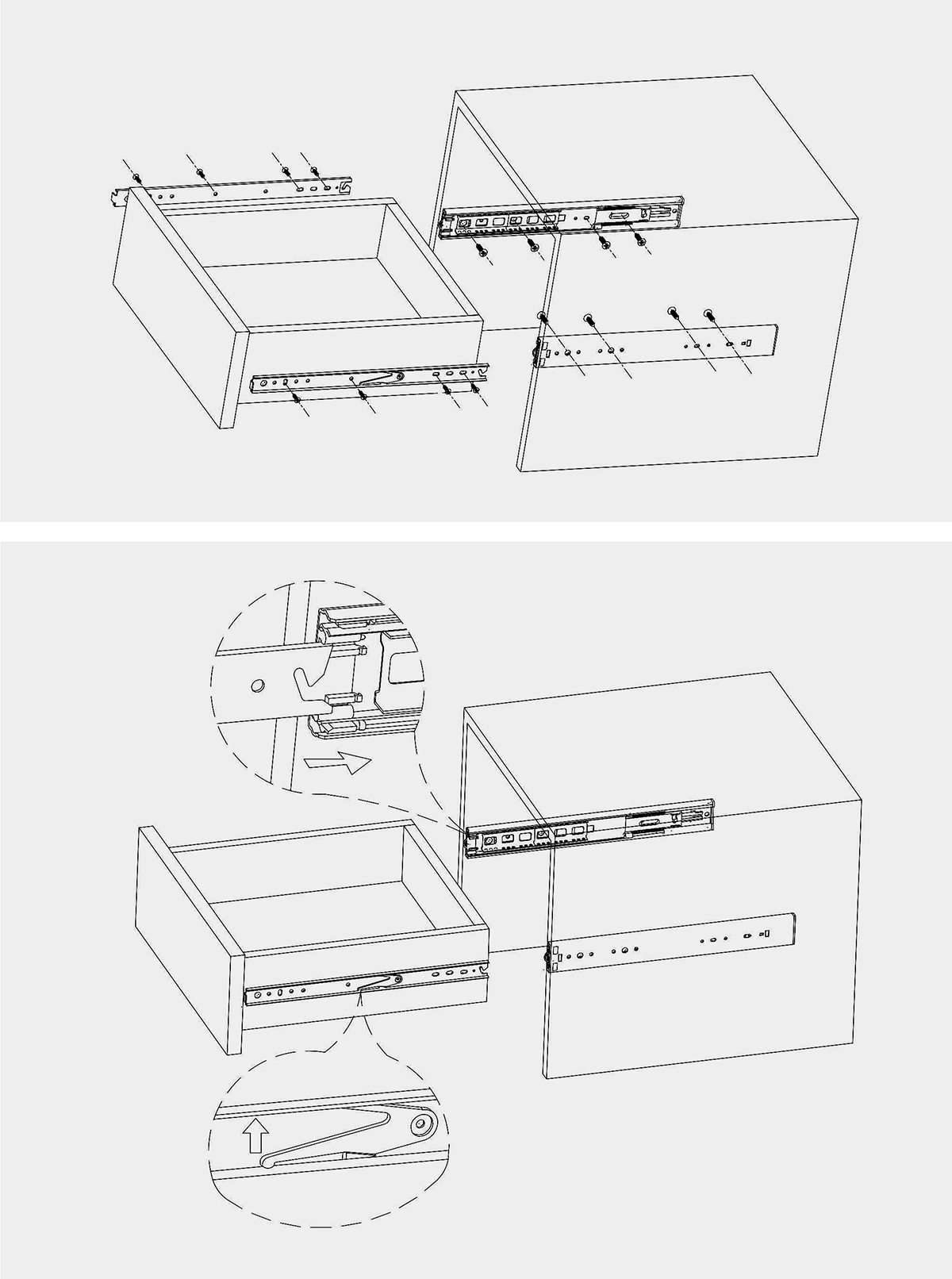

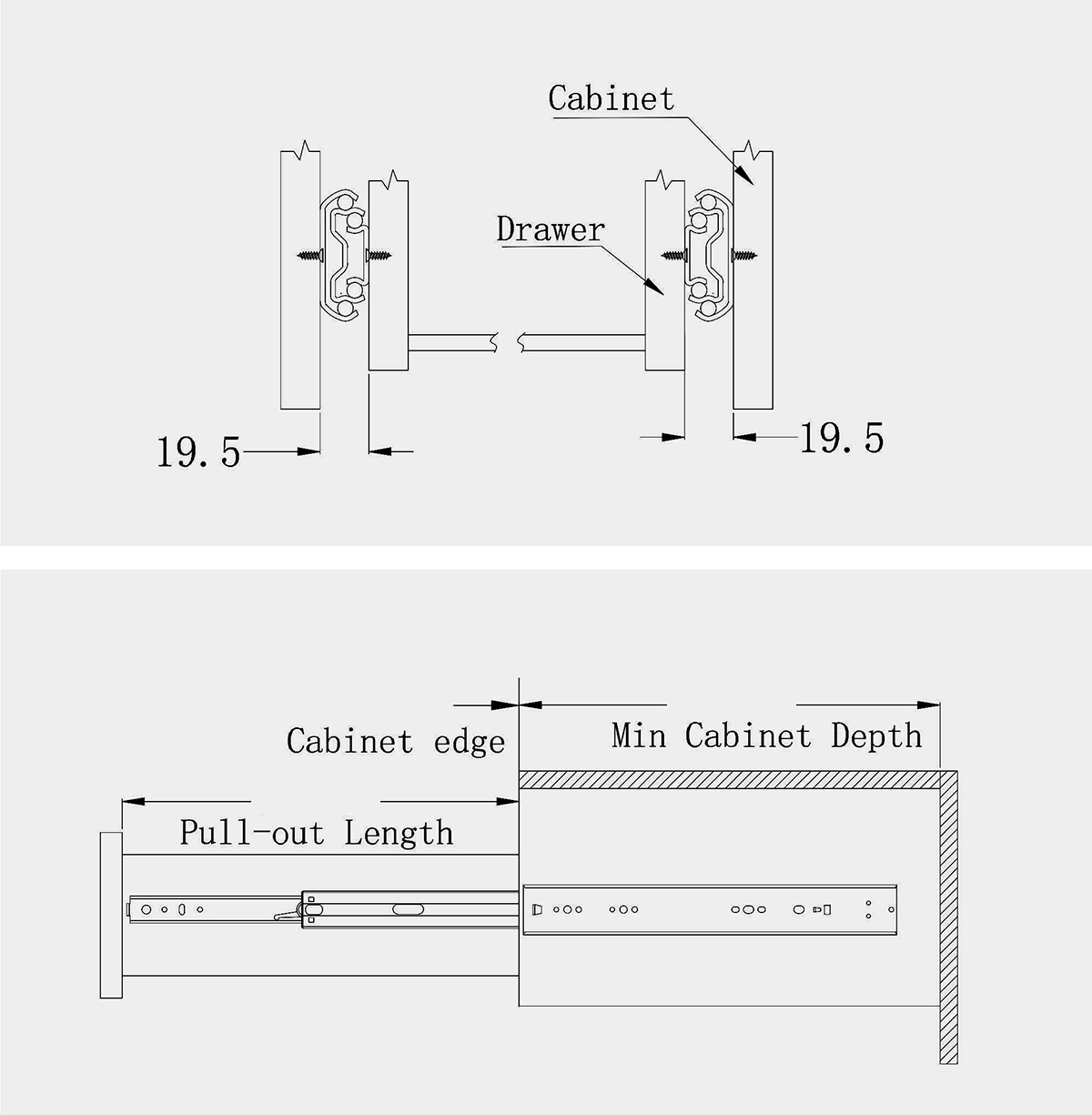

Installation diagram

11
22

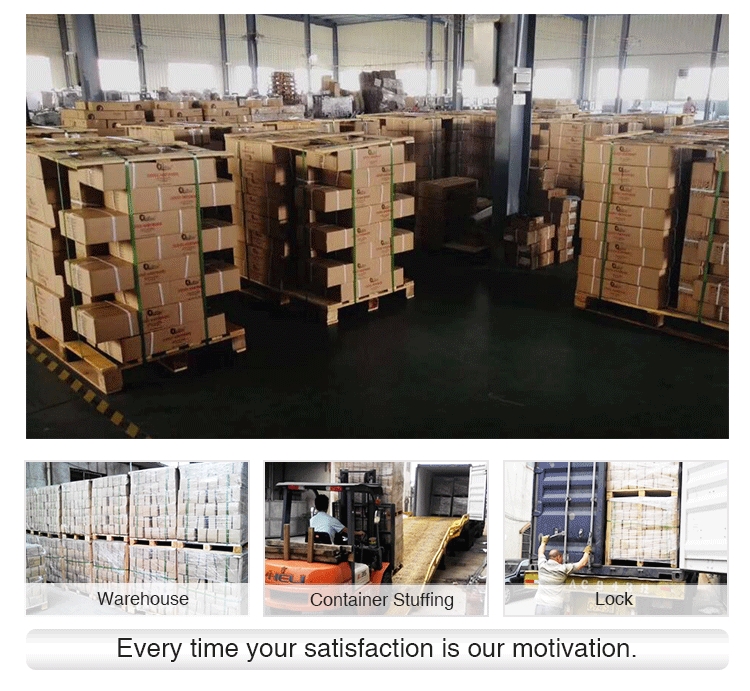

Packaging data

Package
ITEM NO. SIZE SET/CTN N.W(KGS)/CTN G.W(KGS)/CTN MEAS(CM)/CTN
YA.5302.250 250mm 5 7.5 7.7 27x28.5x5.5
YA.5302.300 300mm 5 9 9.2 32x28.5x5.5
YA.5302.350 350mm 5 10.5 10.7 37x28.5x5.5
YA.5302.400 400mm 5 12 12.2 42x28.5x5.5
YA.5302.450 450mm 5 13.5 13.7 47x28.5x5.5
YA.5302.500 500mm 5 15 15.2 52x28.5x5.5
YA.5302.550 550mm 5 16.5 16.7 57x28.5x5.5
YA.5302.600 600mm 5 18 18.2 62x28.5x5.5
YA.5302.650 650mm 5 21 21.2 67x28.5x5.5
YA.5302.700 700mm 5 22.4 22.6 72x28.5x5.5
YA.5302.750 750mm 5 24 24.2 77x28.5x5.5
YA.5302.800 800mm 5 25.6 27.8 82x28.5x5.5

How to produce

How to produce the 53mm full extension heavy duty soft closing ball bearing drawer slides?

Step 1.

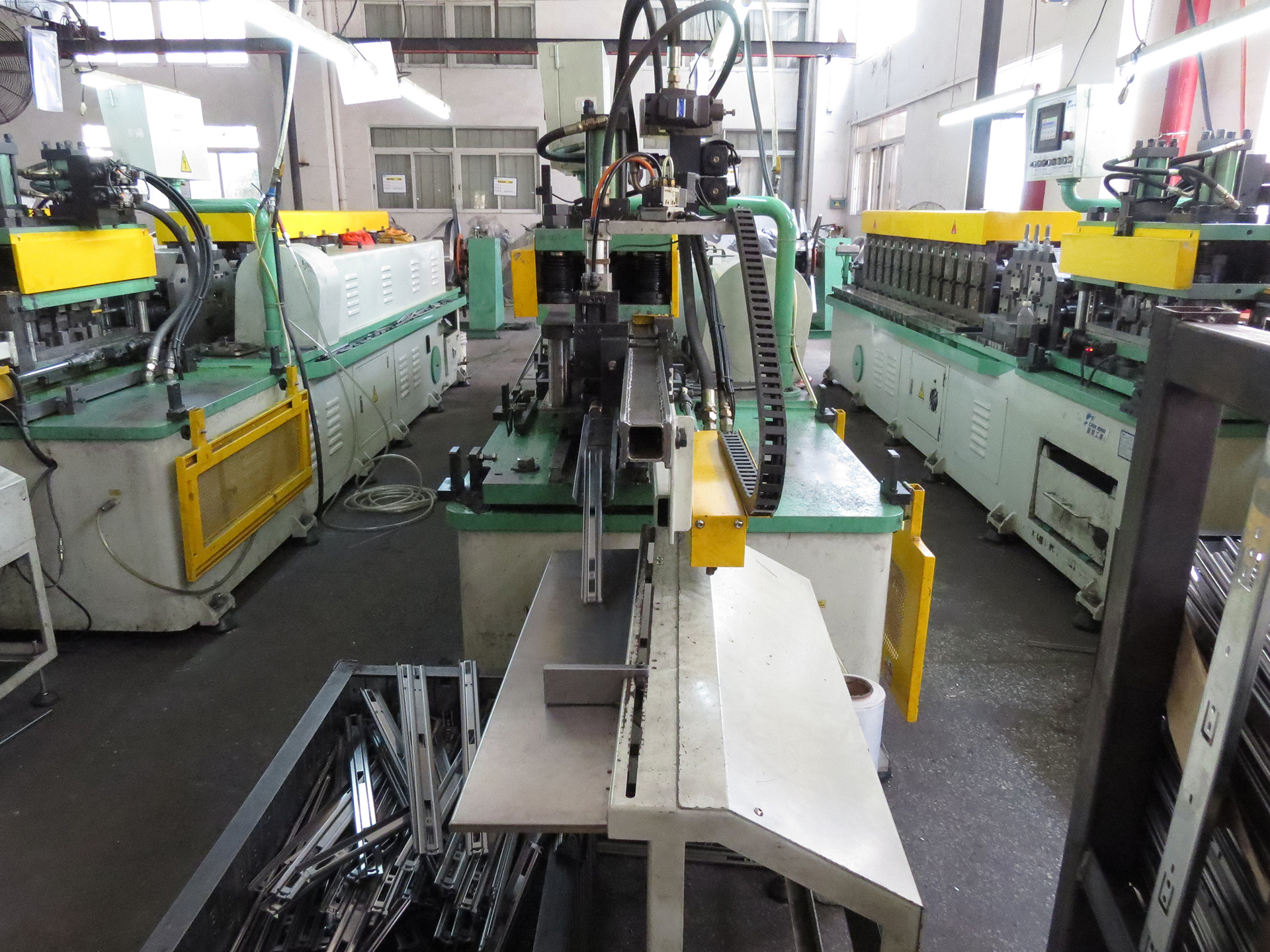

The 53mm full extension soft close heavy duty slide from GERISS HARDWARE produced by high precision rolling machines.

1

Step 2.

After rolling forming, the heavy duty slides will be processed on the punch press for further processing. Mainly according to customer requirements for special drilling and bending.

Step 3.

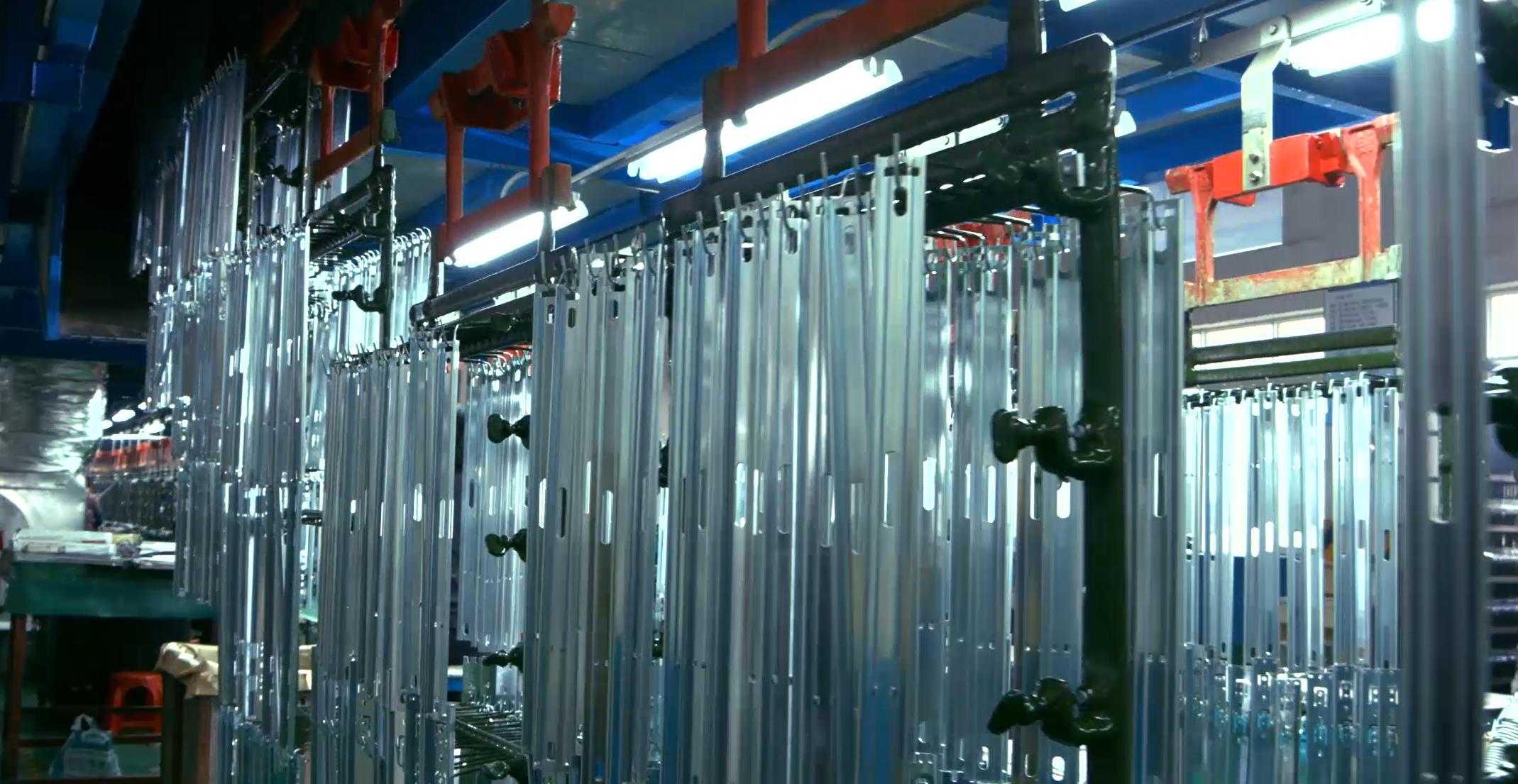

After stamping, the Heavy duty drawer will be sent to the plating factory for surface treatment.

2

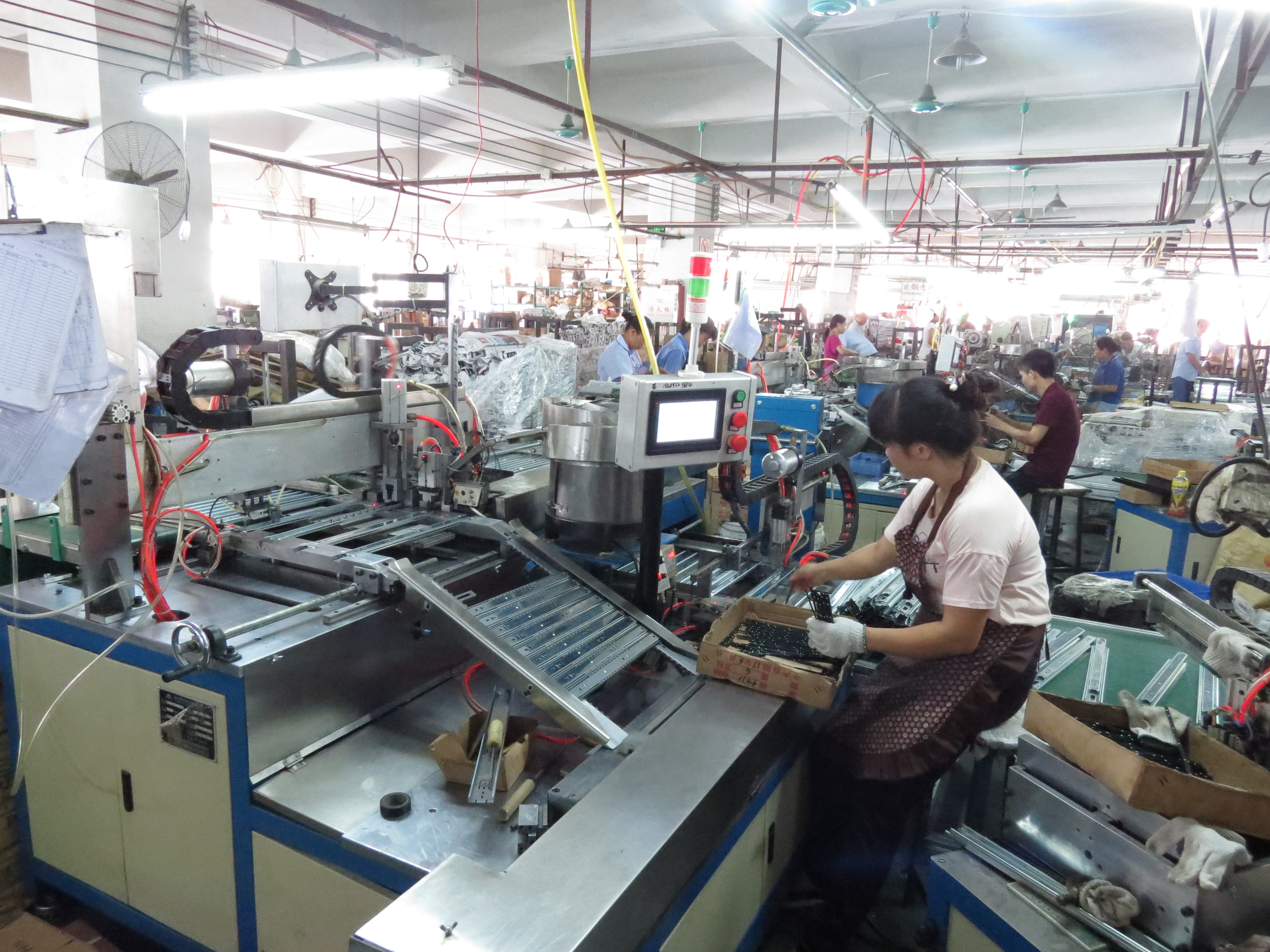

Step 4.

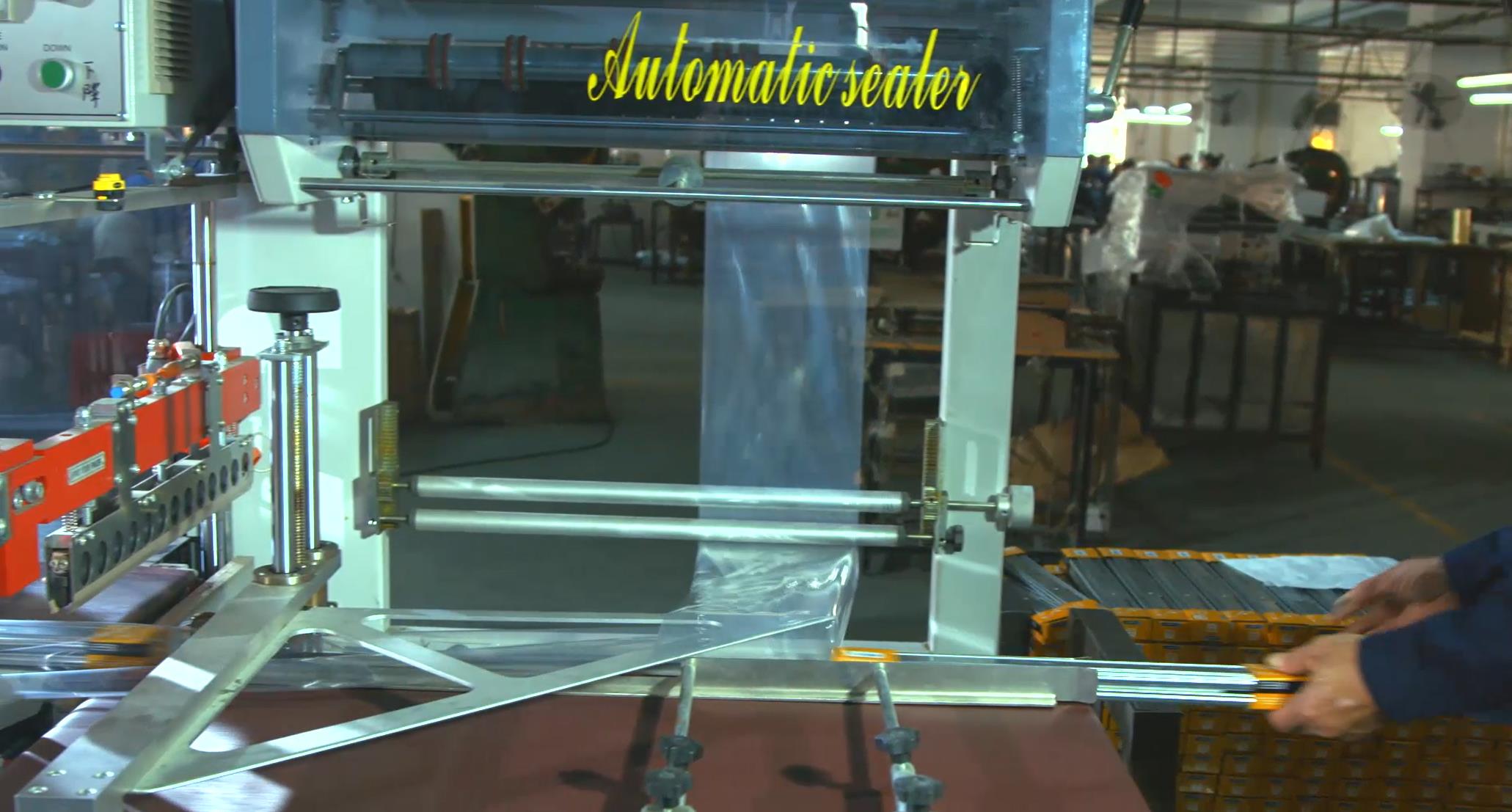

After surface treatment, the 53mm heavy duty ball bearing slides come back to the factory to assembly and package.

3
4

How to control quality

GERISS has supplied drawer slides to many world famous companies. Our excellent quality and good reputation are the basis of our cooperation with our customers. The GERISS production site is equipped with its own test room to conduct salt spray testing and product durability testing according to customer requirements.

1. durability testing machine
2. Salt Spray Test machine
