53mm Full extension industrial heavy duty slide with hooks

Short Description:

Model No.: YA-5303

53mm Full extension industrial heavy duty slide with hooks produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

Description:

Product Name:

Heavy Duty Bayonet Ball Bearing Drawer Slide

Material:

Cold Rolled Steel

Material Thickness:

2.0*2.0*2.0 mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

80-100 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

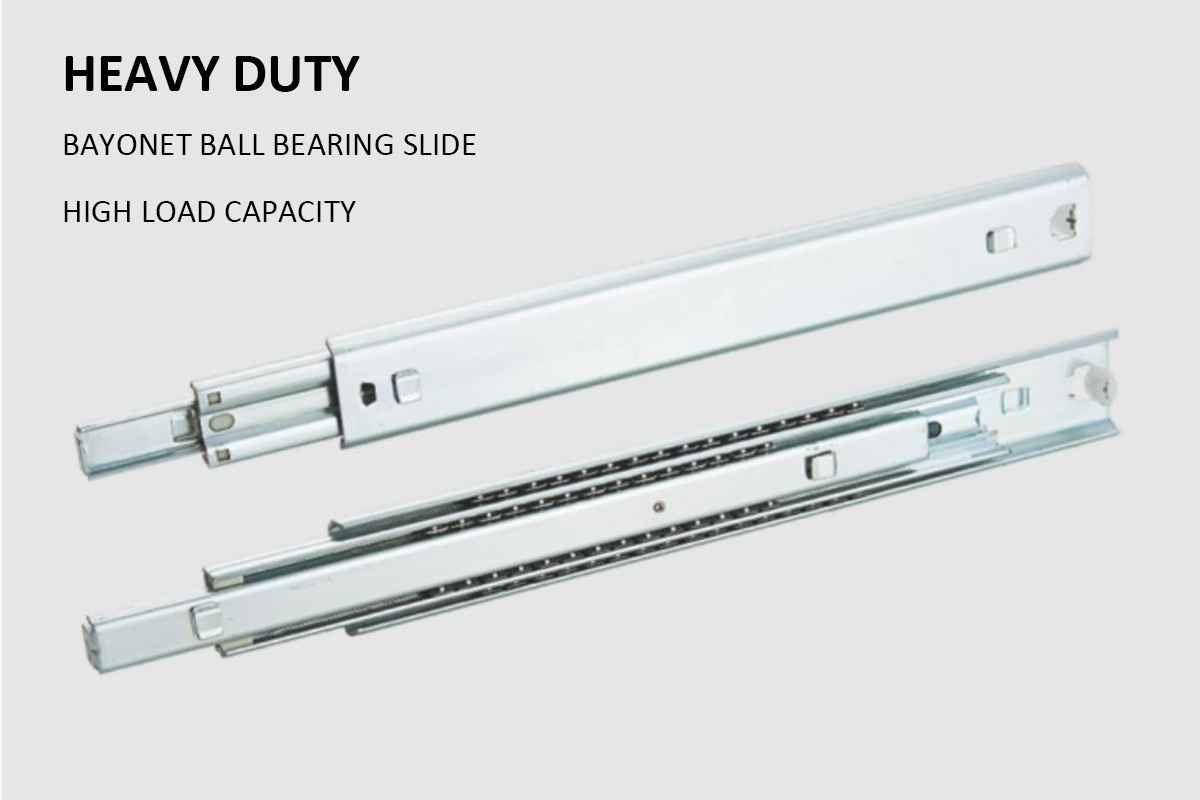

Product Details:

Heavy Duty Industral Drawer Runner

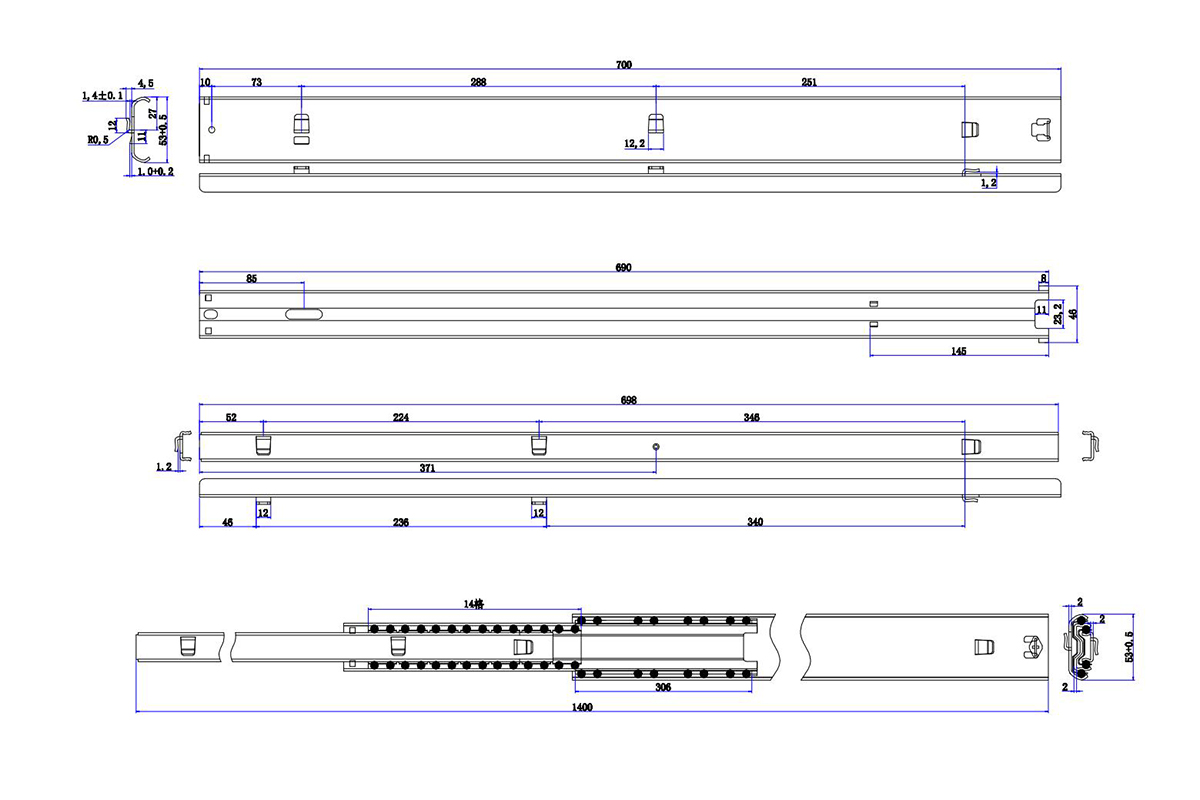

Specification:

700mm Bayonet Heavy Duty Ball Bearing Slide

Note:

This size is according to client's requirement to customize, if you also want to customize is available.

Welcome send us the drawings or samples to customize.

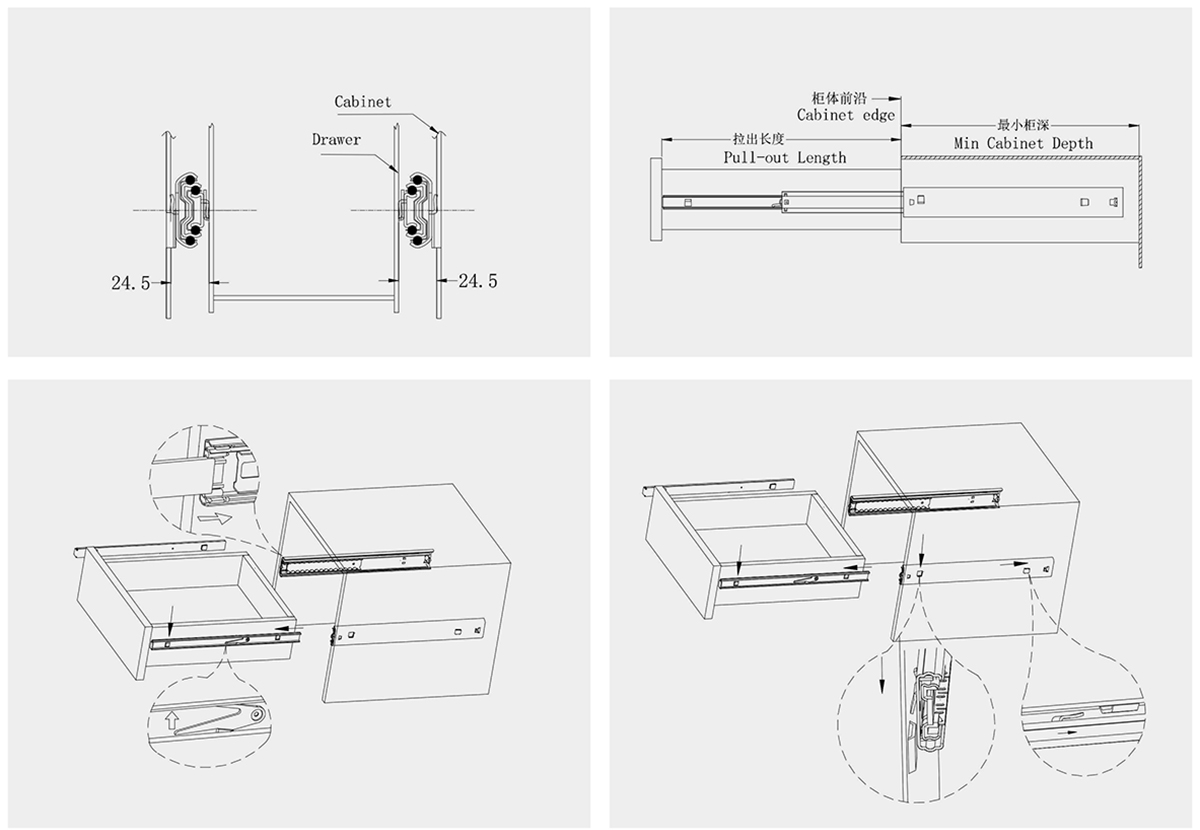

Installation Instruction:

Installation

Package Information:

ITEM NO.

SIZE

SET/CTN

N.W(KGS)/CTN

G.W(KGS)/CTN

MEAS(CM)/CTN

YA.5303.250

250mm

5

7.5

7.7

27x28.5x5.5

YA.5303.300

300mm

5

9

9.2

32x28.5x5.5

YA.5303.350

350mm

5

10.5

10.7

37x28.5x5.5

YA.5303.400

400mm

5

12

12.2

42x28.5x5.5

YA.5303.450

450mm

5

13.5

13.7

47x28.5x5.5

YA.5303.500

500mm

5

15

15.2

52x28.5x5.5

YA.5303.550

550mm

5

16.5

16.7

57x28.5x5.5

YA.5303.600

600mm

5

18

18.2

62x28.5x5.5

YA.5303.650

650mm

5

21

21.2

67x28.5x5.5

YA.5303.700

700mm

5

22.4

22.6

72x28.5x5.5

YA.5303.750

750mm

5

24

24.2

77x28.5x5.5

YA.5303.800

800mm

5

25.6

27.8

82x28.5x5.5

Package
