| Product Name: |

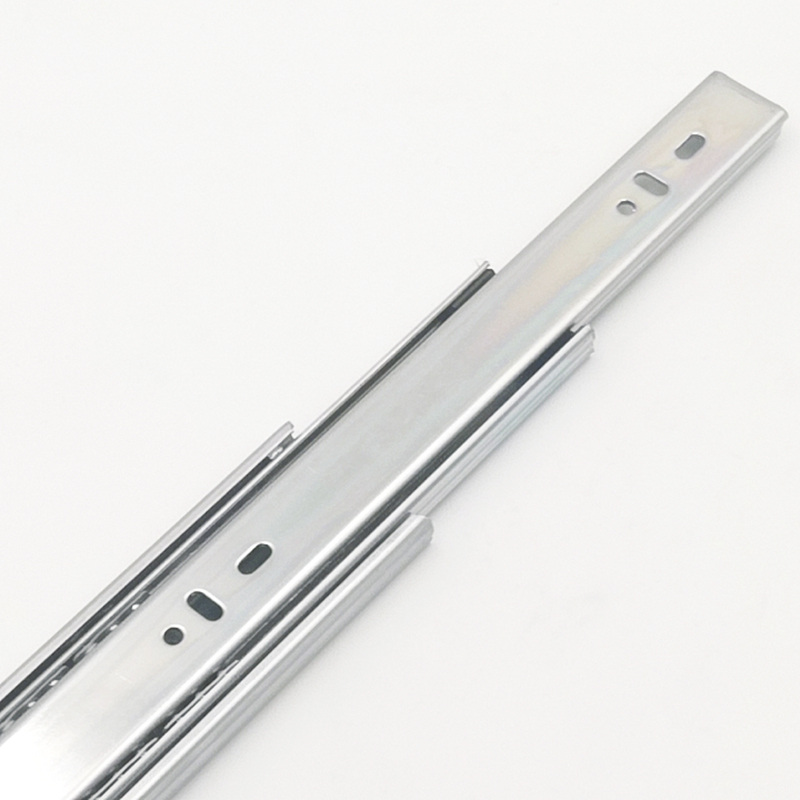

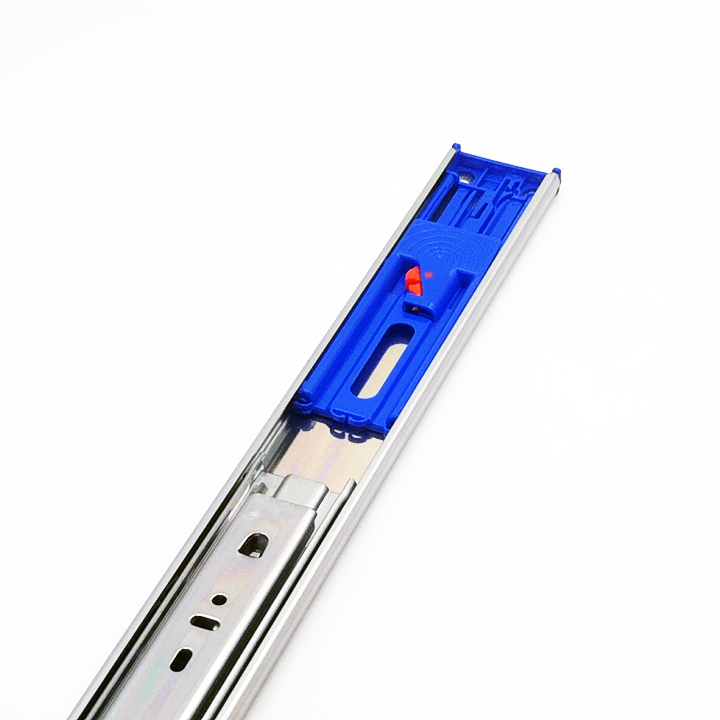

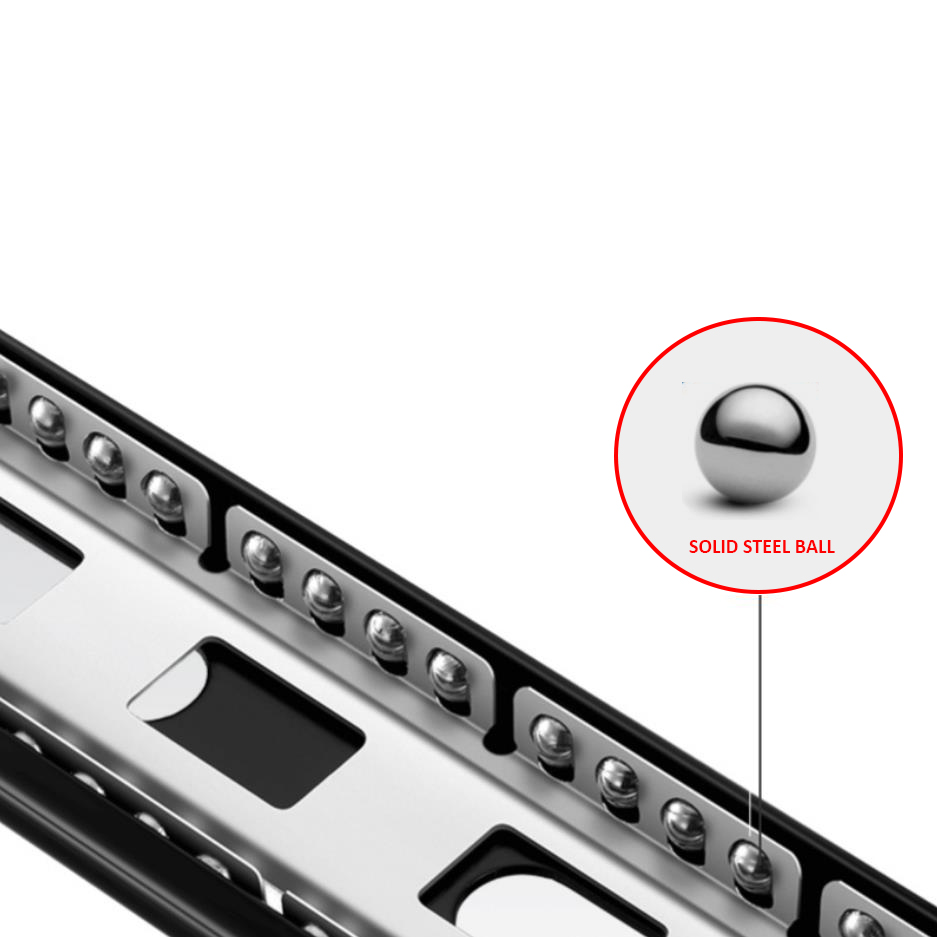

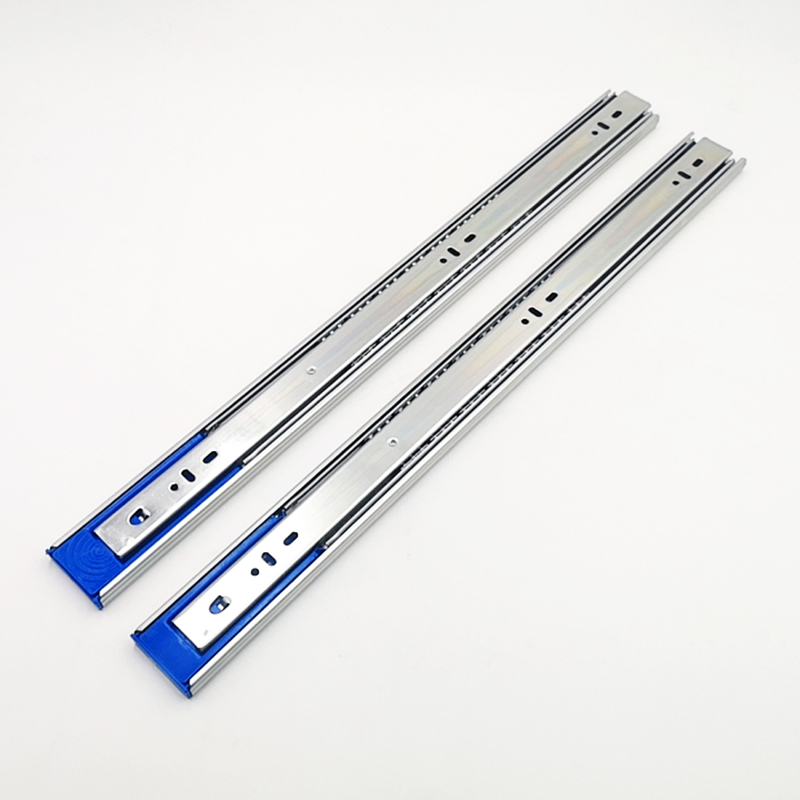

45mm full extension push to open ball bearing drawer slide side mount telescopic runner |
| Material: |
Cold Rolled Steel |
| Material Thickness: |
1.0*1.0*1.2mm, 1.2*1.2*1.5mm |
| Surface: |
Zinc Plated, Electrophoresis Black |
| Load Capacity: |
30-45 KGS (450mm as standard) |
| Cycling: |
Over 50,000 times |
| Size Range: |
10”-24” (250-600mm), customize is available |
| Installation: |
Side mount with screws |
| Feature: |
Equipped with high precision production line and testing instrument products ultra-quiet, smooth |
Installation Instruction:
| Size |
Material Thickness(mm) |
Sets/Crn |
N.W(KG) |
G.W(KG) |
MEAS(cm) |
| Inch |
mm |
Length |
Width |
Height |
| 10 |
250 |
1.0x1.0x1.2 |
15 |
9.30 |
9.55 |
27 |
20 |
12 |
| 12 |
300 |
1.0x1.0x1.2 |
15 |
11.16 |
11.41 |
32 |
20 |
12 |
| 14 |
350 |
1.0x1.0x1.2 |
15 |
13.02 |
13.27 |
37 |
20 |
12 |
| 16 |
400 |
1.0x1.0x1.2 |
15 |
14.88 |
15.18 |
42 |
20 |
12 |
| 18 |
450 |
1.0x1.0x1.2 |
15 |
16.74 |
17.04 |
47 |
20 |
12 |
| 20 |
500 |
1.0x1.0x1.2 |
15 |
18.60 |
18.90 |
52 |
20 |
12 |
| 22 |
550 |
1.0x1.0x1.2 |
15 |
20.46 |
20.76 |
57 |
20 |
12 |
| 24 |
600 |
1.0x1.0x1.2 |
15 |
22.32 |
22.67 |
62 |
20 |
12 |
| 10 |
250 |
1.2x1.2x1.5 |
15 |
11.25 |
11.50 |
27 |
20 |
12 |
| 12 |
300 |
1.2x1.2x1.5 |
15 |
13.50 |
13.75 |
32 |
20 |
12 |
| 14 |
350 |
1.2x1.2x1.5 |
15 |
15.75 |
16.00 |
37 |
20 |
12 |
| 16 |
400 |
1.2x1.2x1.5 |
15 |
18.00 |
18.30 |
42 |
20 |
12 |
| 18 |
450 |
1.2x1.2x1.5 |
15 |
20.25 |
20.55 |
47 |
20 |
12 |
| 20 |
500 |
1.2x1.2x1.5 |
15 |
22.50 |
22.80 |
52 |
20 |
12 |
| 22 |
550 |
1.2x1.2x1.5 |
15 |
24.75 |
25.05 |
57 |
20 |
12 |
| 24 |
600 |
1.2x1.2x1.5 |
15 |
27.00 |
27.35 |
62 |
20 |
12 |
