45mm Full extension bayonet mount drawer slide

Short Description:

Model No.: YA.4502

45mm Full extension bayonet mount drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

Product Photo

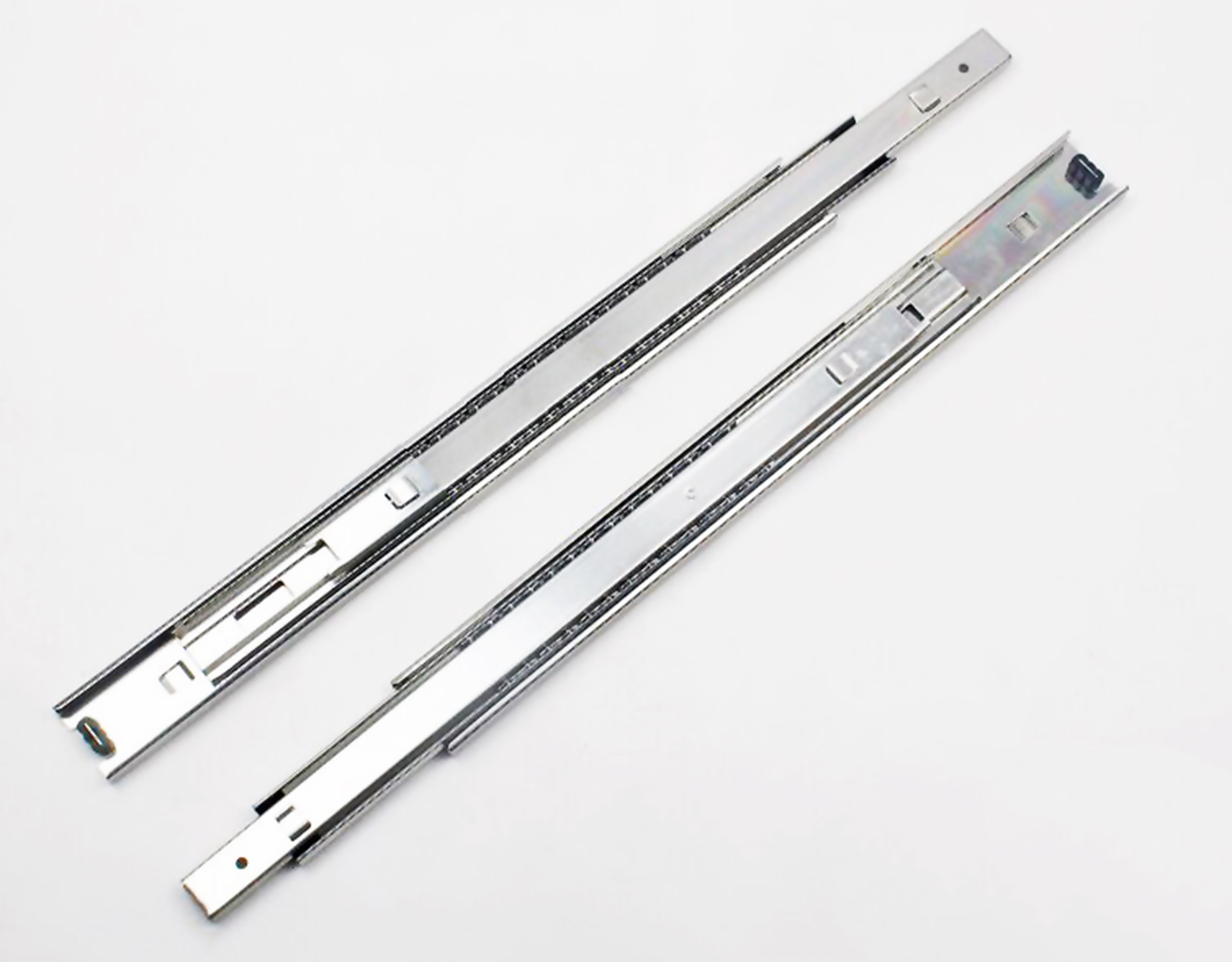

Bayonet Telescopic Slide

Description:

Product Name:

45mm Full extension bayonet ball bearing telescopic drawer slide

Material:

Cold Rolled Steel

Material Thickness:

1.0*1.0*1.2mm, 1.2*1.2*1.5mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

30-45 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with bayonet (hooks)

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

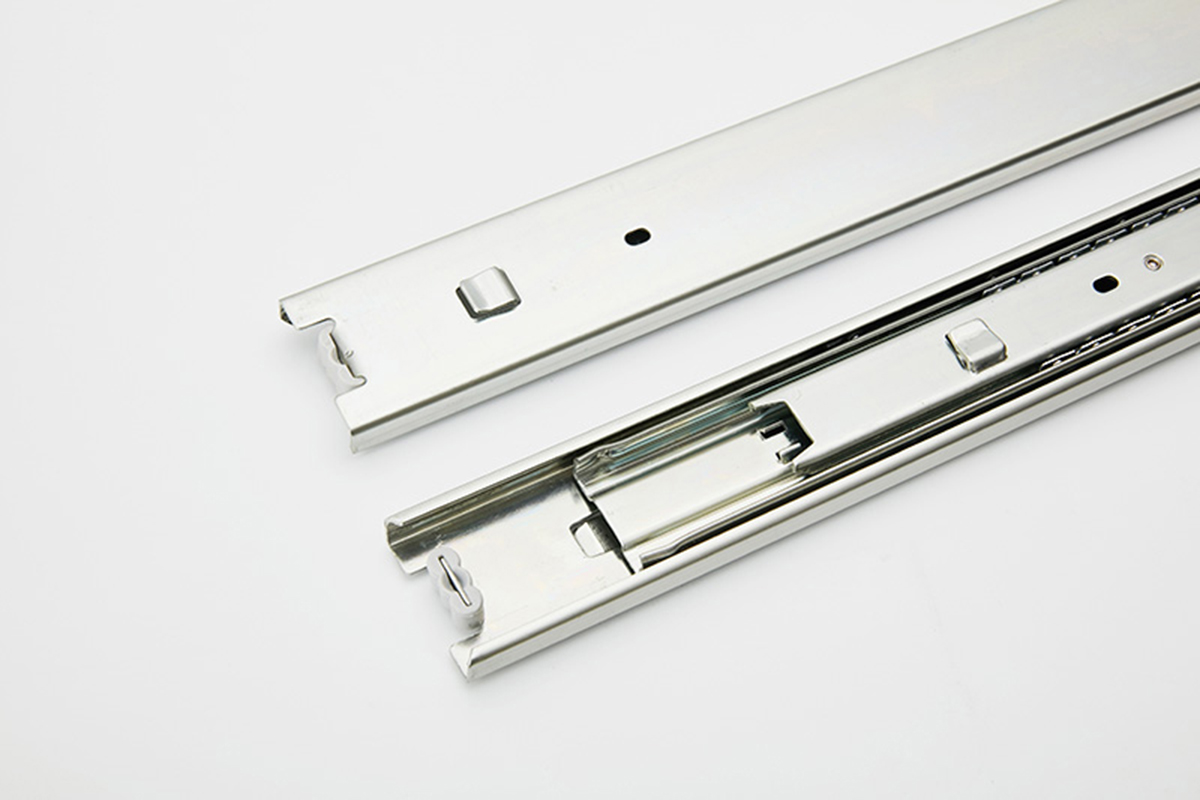

Bayonet Ball Bearing Slide 002

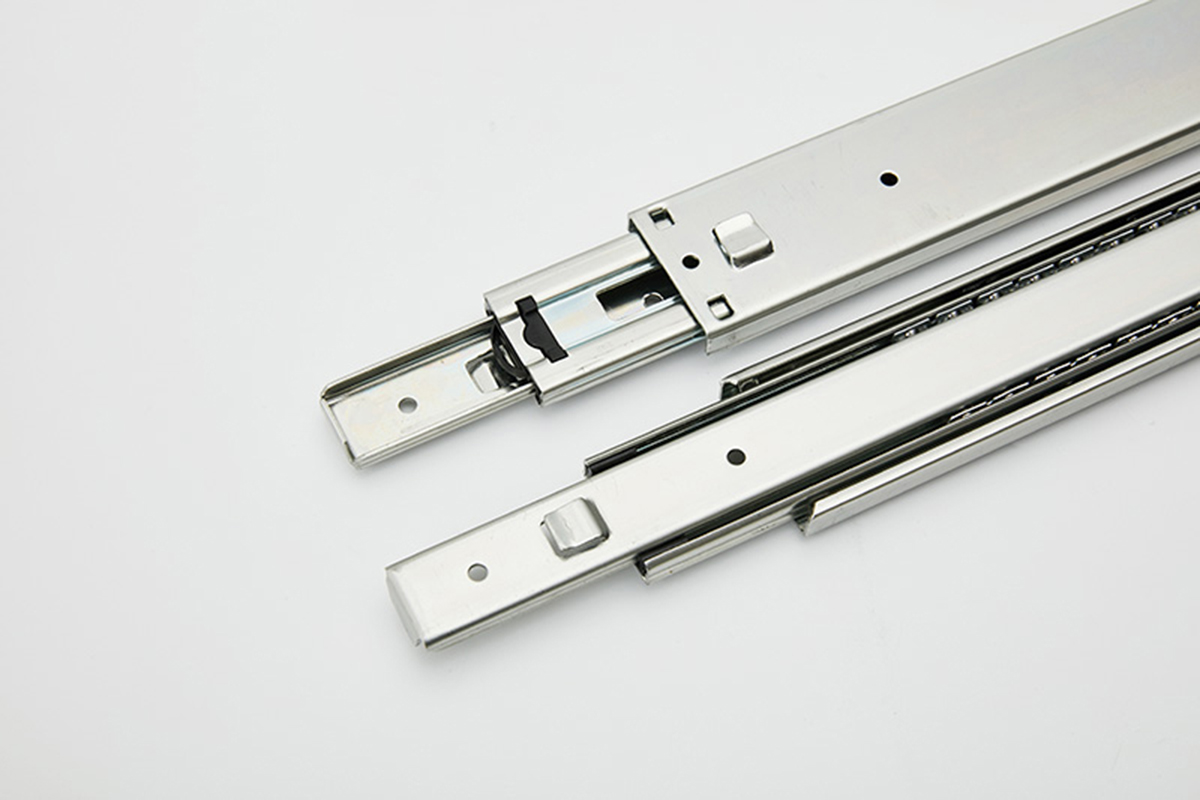

Bayonet Ball Bearing Slide 003

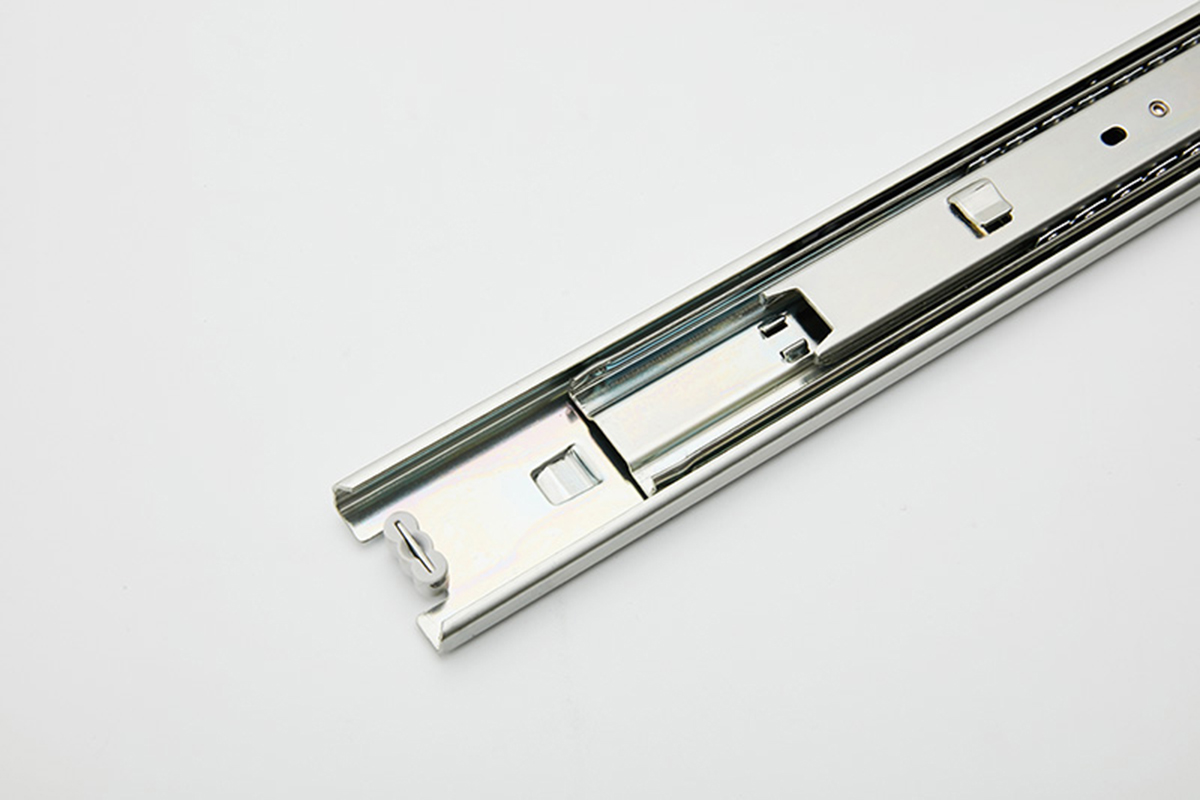

Bayonet Ball Bearing Slide 004

Specification:

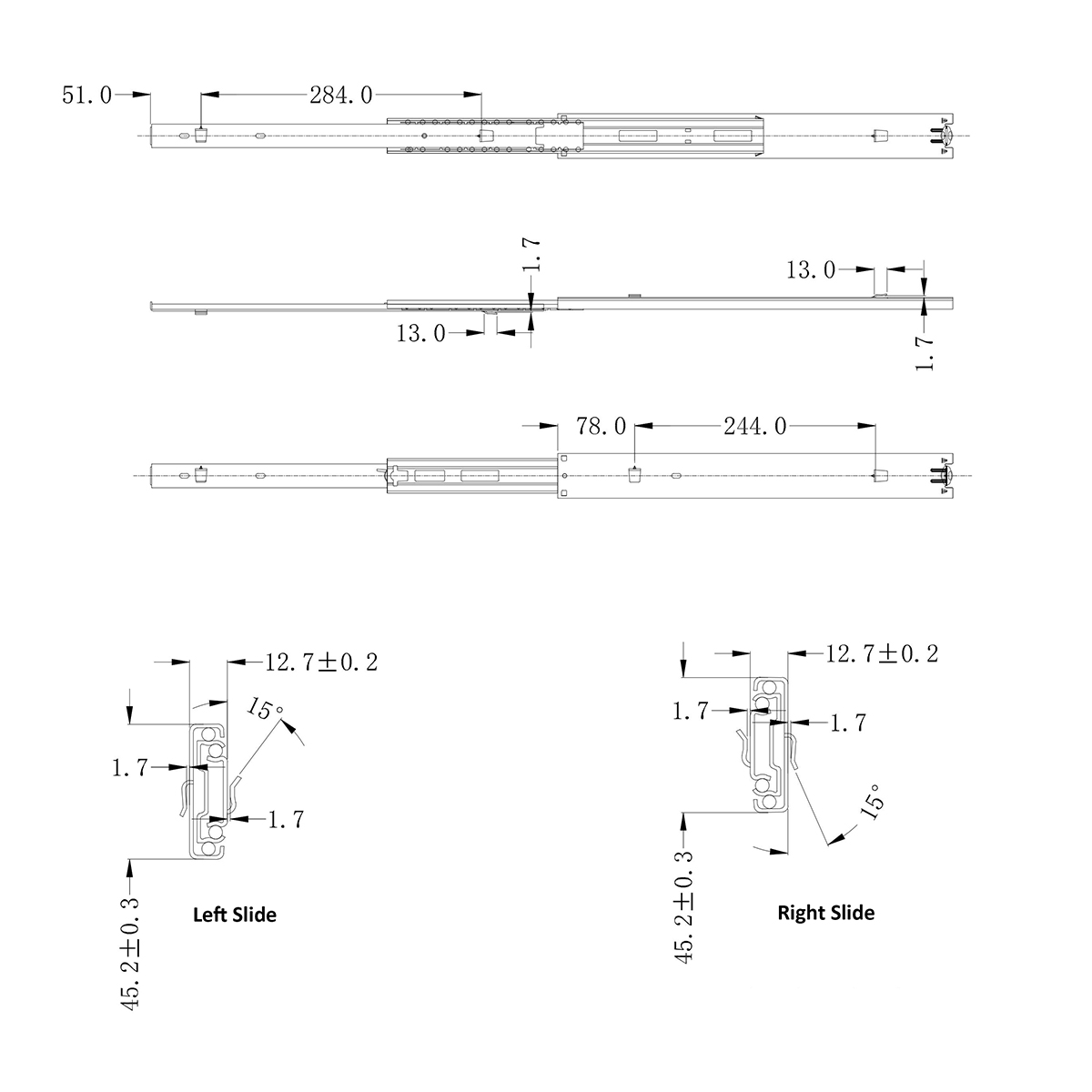

Bayonet Ball Bearing Slide Size

Installation Instruction:

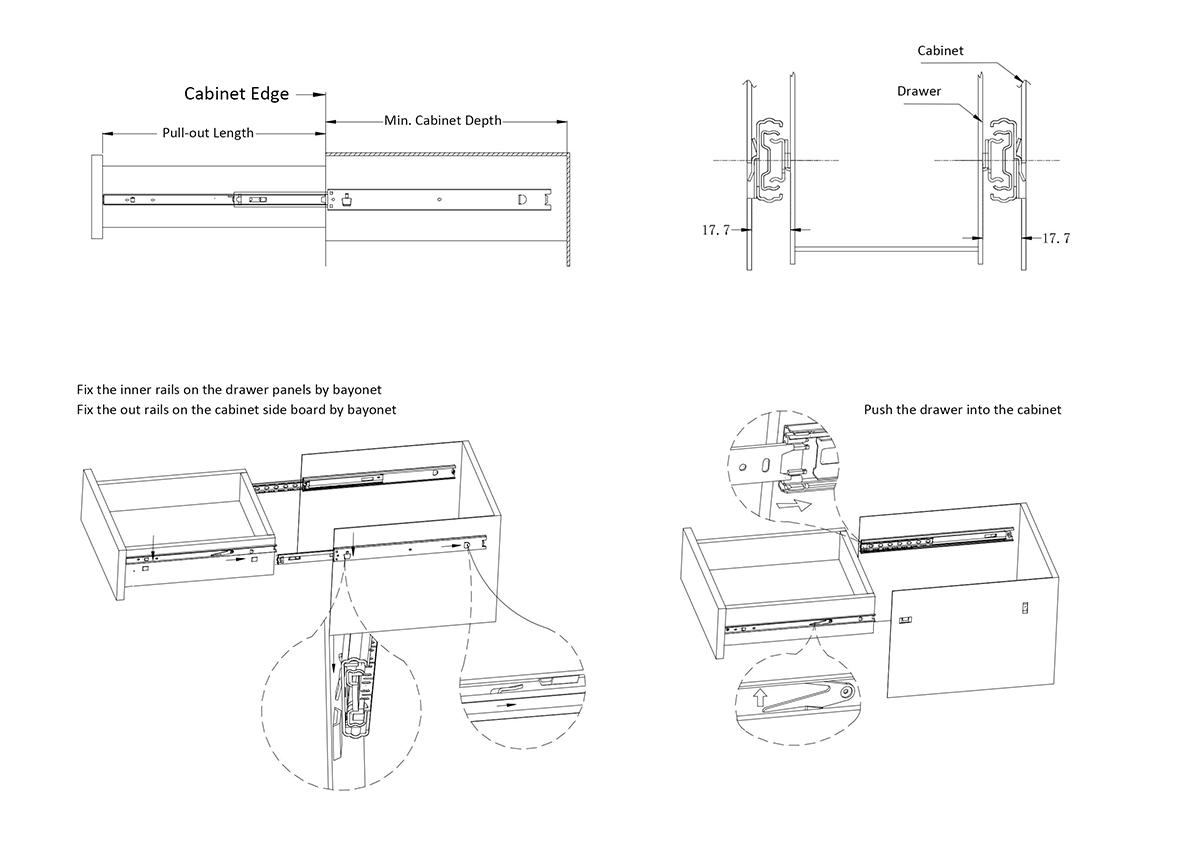

Bayonet Ball Bearing Slide Installation

Package Information:

Size Material Thickness(mm) Sets/Crn N.W(KG) G.W(KG) MEAS(cm)
Inch mm Length Width Height
10 250 1.0x1.0x1.2 15 9.30 9.55 27 20 12
12 300 1.0x1.0x1.2 15 11.16 11.41 32 20 12
14 350 1.0x1.0x1.2 15 13.02 13.27 37 20 12
16 400 1.0x1.0x1.2 15 14.88 15.18 42 20 12
18 450 1.0x1.0x1.2 15 16.74 17.04 47 20 12
20 500 1.0x1.0x1.2 15 18.60 18.90 52 20 12
22 550 1.0x1.0x1.2 15 20.46 20.76 57 20 12
24 600 1.0x1.0x1.2 15 22.32 22.67 62 20 12
10 250 1.2x1.2x1.5 15 11.25 11.50 27 20 12
12 300 1.2x1.2x1.5 15 13.50 13.75 32 20 12
14 350 1.2x1.2x1.5 15 15.75 16.00 37 20 12
16 400 1.2x1.2x1.5 15 18.00 18.30 42 20 12
18 450 1.2x1.2x1.5 15 20.25 20.55 47 20 12
20 500 1.2x1.2x1.5 15 22.50 22.80 52 20 12
22 550 1.2x1.2x1.5 15 24.75 25.05 57 20 12
24 600 1.2x1.2x1.5 15 27.00 27.35 62 20 12
