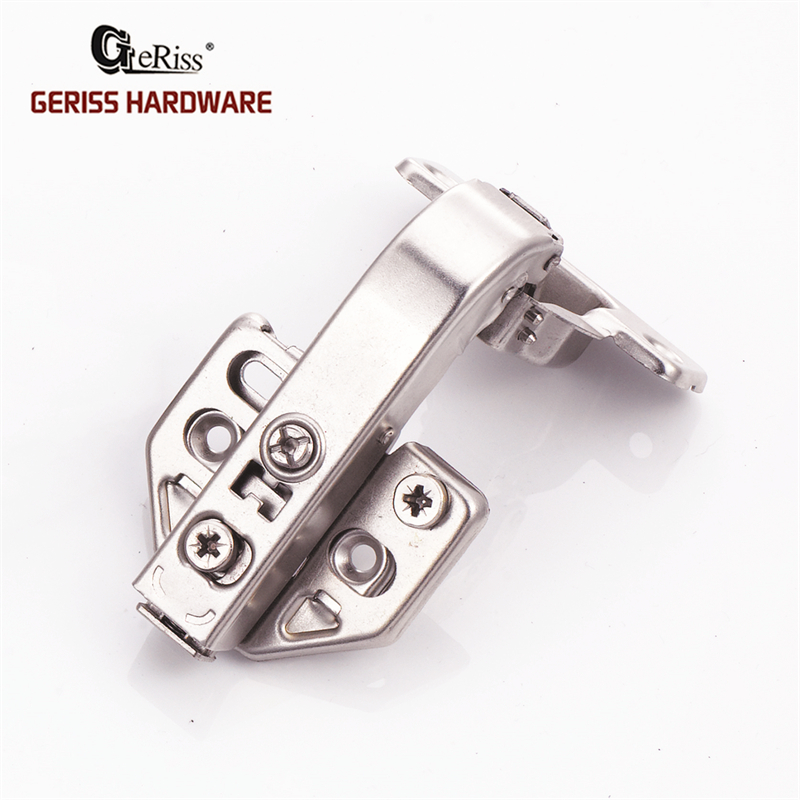

3D adjustable 90 degree corner cabinet door concealed removable hinge soft close
Description:
| Product Name: | 3D adjustable 90 degree corner cabinet door concealed removable hinge soft close |
| Material: | Cold rolled steel |
| Surface: | Nickel plated as standard, customize is available. |
| Opening angle: | 110 Degree |
| Hinge angle: | 90 Degree |
| Hinge cup diameter: | 35 mm |
| Hinge cup screw to screw distance: | 45 / 48 mm |
| Optional close type: | Soft close or non-hydraulic |
| Available accessories: | Arm cover, hinge cup cover, tapping screws |
| Available package: | - 200 pcs with bulk in a moisture barrier bag and in the carton; |
| - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements. | |
| Application: | Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc... |

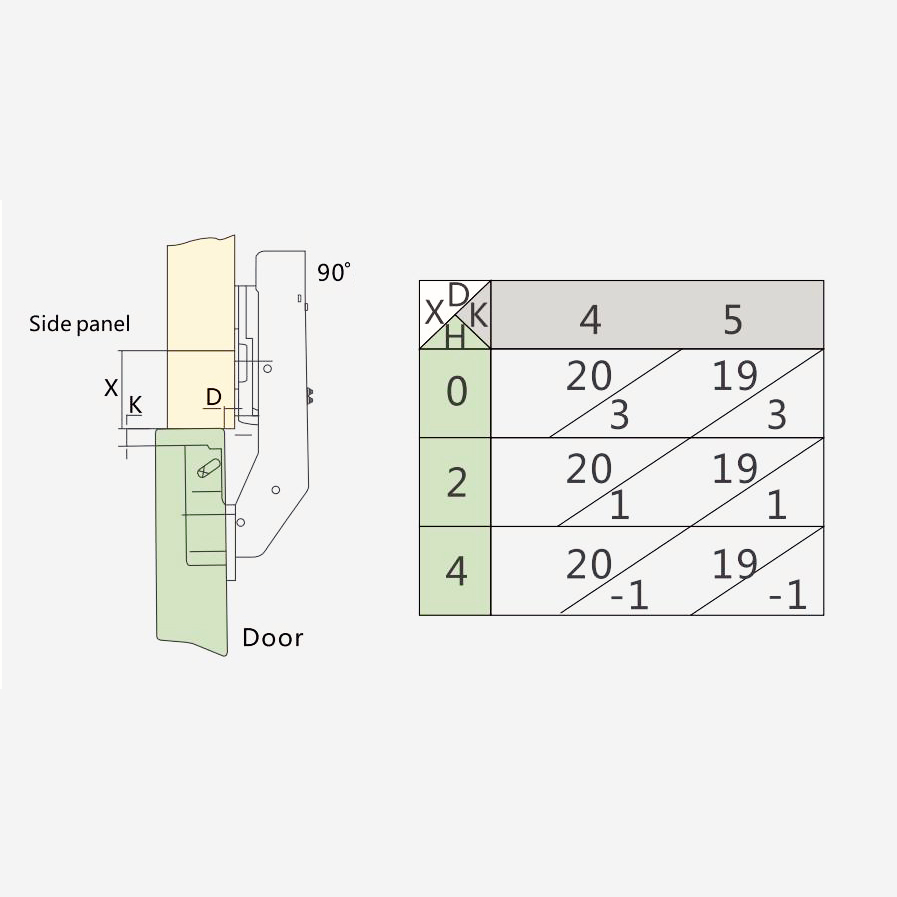

PRODUCT DETAILS:
H = Height of mounting plate
D = Required overlay on the cabinet side panel
K = Distance between door edge and drilling holes on hinge cup
A = Gap between mounting plate and side panel
ADVANTAGES AND BENEFITS:
- 3D adjustable 90 degree corner cabinet door concealed removable hinge soft close
- Soft closing function.
- Over 50,000 times fatigue test.
- Over 48 hours salt spray test.
- Nickel plated surface not easy to rust.
- Available for customize requirement. (Have MOQ)
ORDER INFORMATION:
| Hinge Type | Mounting Plates | Item No. |
| Cabinet door hinge 90° | 3D adjustable | T90CS-3D |
| 4 Holes | T90CS4 | |
| 2 Holes | T90CS2 |

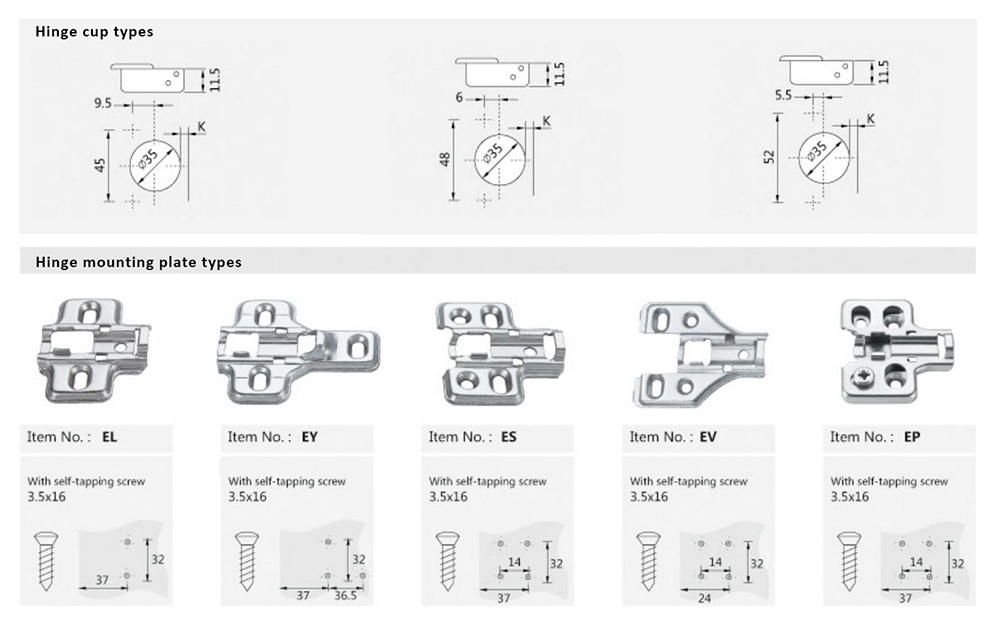

AVAILABLE HINGE CUPS & MOUNTING BASES:
PACKAGE DETAILS:
3D adjustable 90 degree corner cabinet door concealed removable hinge soft close standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
