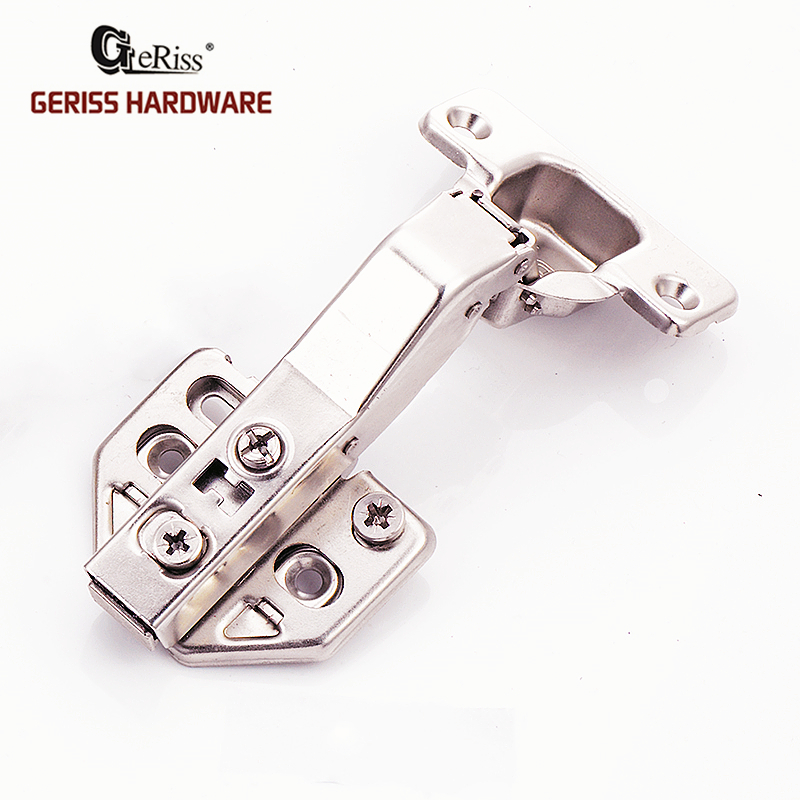

3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge Featured Image
  • 3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge

3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge

Short Description:

Item No.: T45CS-3D

3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge
Material:  Cold rolled steel
Surface:  Nickel plated as standard, customize is available.
Opening angle:  110 Degree
Hinge angle:  45 Degree
Hinge cup diameter:  35 mm
Hinge cup screw to screw distance:  45 / 48 mm
Optional close type:  Soft close or non-hydraulic
Available accessories:  Arm cover, hinge cup cover, tapping screws
Available package:  - 200 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

H = Height of mounting plate

D = Required overlay on the cabinet side panel

K = Distance between door edge and drilling holes on hinge cup

A = Gap between mounting plate and side panel

ADVANTAGES AND BENEFITS:

- 3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinge

- Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Hinge Type Mounting Plates Item No.
Cabinet door hinge 45°  3D adjustable T45CS-3D
4 Holes T45CS4
2 Holes T45CS2

AVAILABLE HINGE CUPS & MOUNTING BASES:

Soft close hinge T45CS-3D 003

PACKAGE DETAILS:

3D adjustable 45° special angle clip-on hydraulic soft close cabinet door hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
