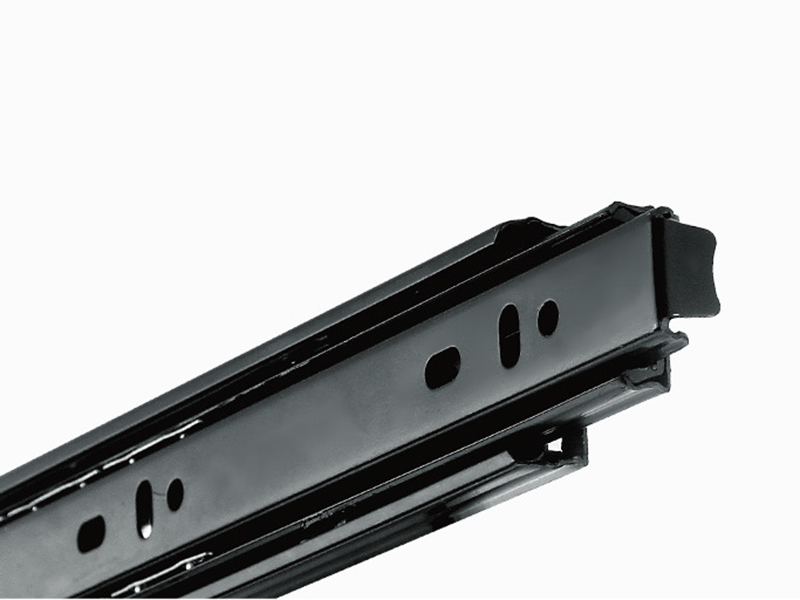

37mm Full extension three section ball drawer slide

Short Description:

Model No.: YA-3701

37mm Full extension three section ball drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

Description:

Product Name: 37mm Full extension three section ball bearing drawer slide
Material: Cold Rolled Steel
Material Thickness: 1.0*1.0*1.2mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 25 KGS (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600mm), customize is available
Installation: Side mount with screws
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

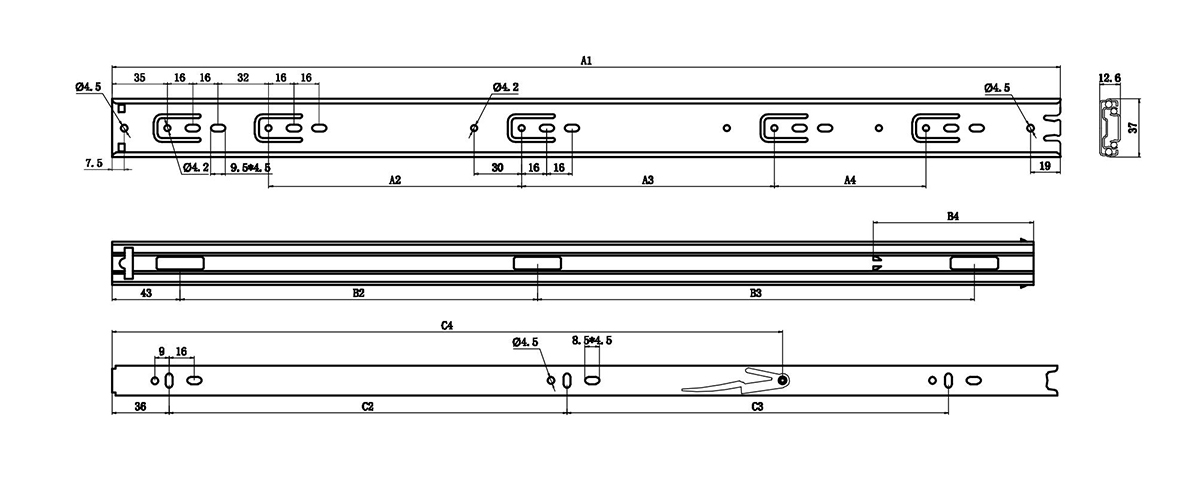

37mm Ball Bearing Slide Size
SIZE A1 A2 A3 A4 B2 B3 B4 C2 C3 C4 Z1-Z2
8" 200 / / / 82 / 35 128 / 150 3-76
10" 250 96 / / 82 87 50 160 / 186 4-110
12" 300 128 / / 107 93 70 96 128 225 4-150
14" 350 96 64 / 132 118 95 128 128 225 5-175
16" 400 160 64 / 131 168 105 128 192 275 6-200
18" 450 96 96 64 144 205 127 160 192 299 7-225
20" 500 128 128 64 200 200 128 192 224 327 8-250
22" 550 160 128 64 200 250 138 192 256 350 9-275
24" 600 175 177 64 200 245 146 224 256 375 10-300

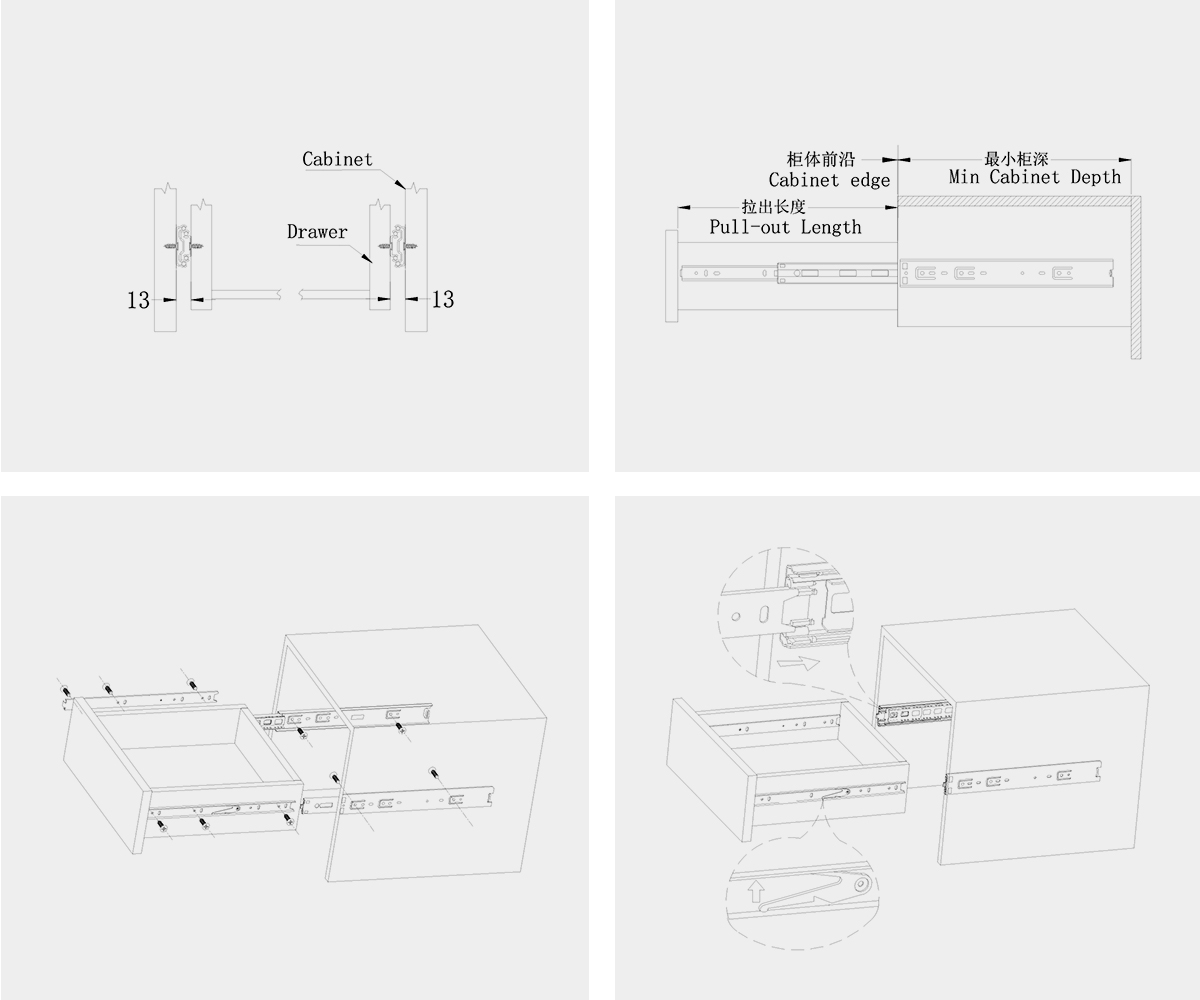

Installation Instruction:

3501 Installation

Package Information:

Package
