37-230 mm Full extension tool box cabinet ball bearing bayonet mount drawer slide

Short Description:

Model No.: YA-37HK-230

37-230 mm Full extension tool box cabinet ball bearing bayonet mount drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

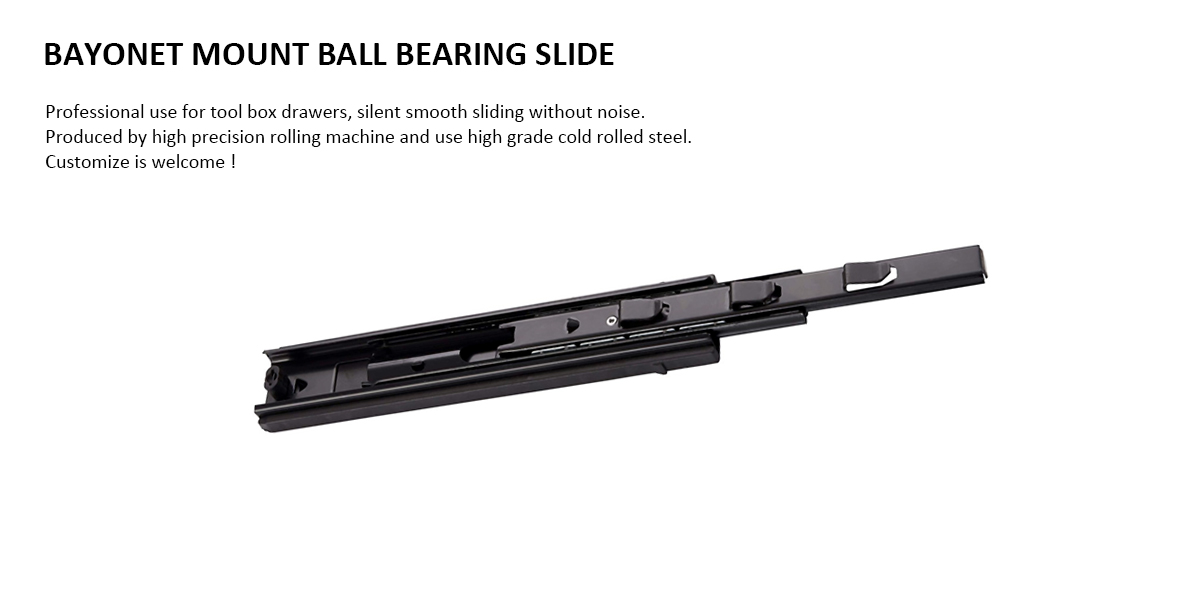

bayonet ball bearing slide

Description:

Product Name: 37mm tool box full extension bayonet mount ball bearing drawer slide
Material: Cold Rolled Steel
Material Thickness: 1.2*1.0*1.2mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 30 KG (450mm as standard)
Cycling: Over 50,000 times
Size Range: 230mm , customize is available
Installation: Bayonet mount
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

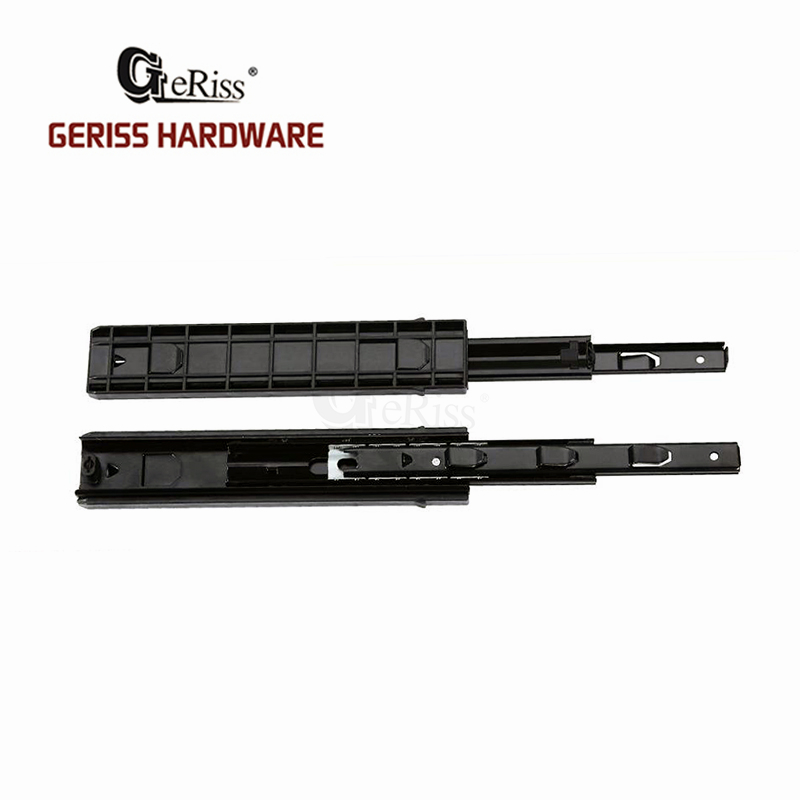

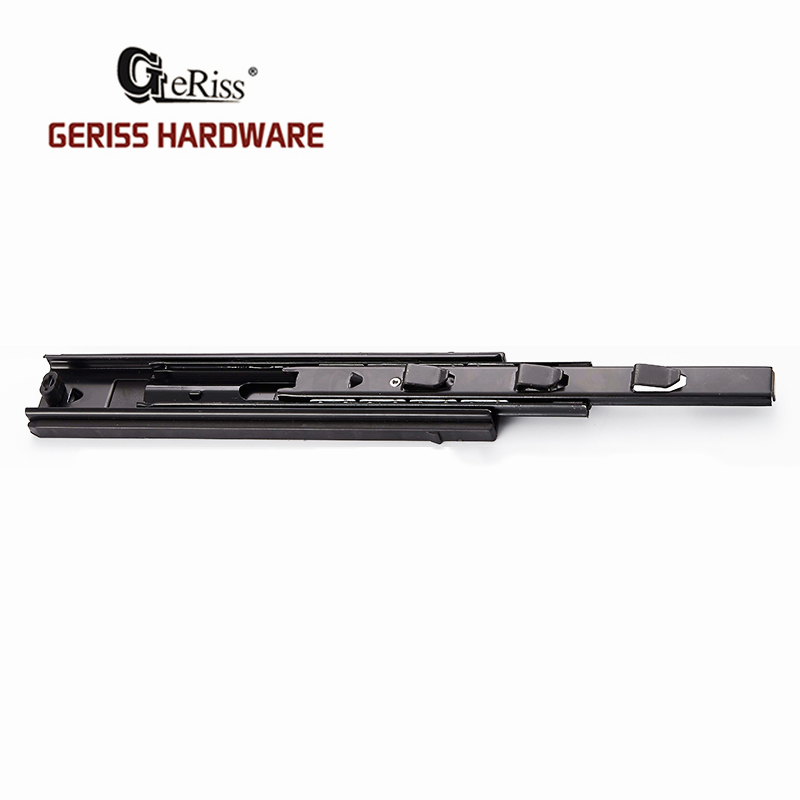

Product Details:

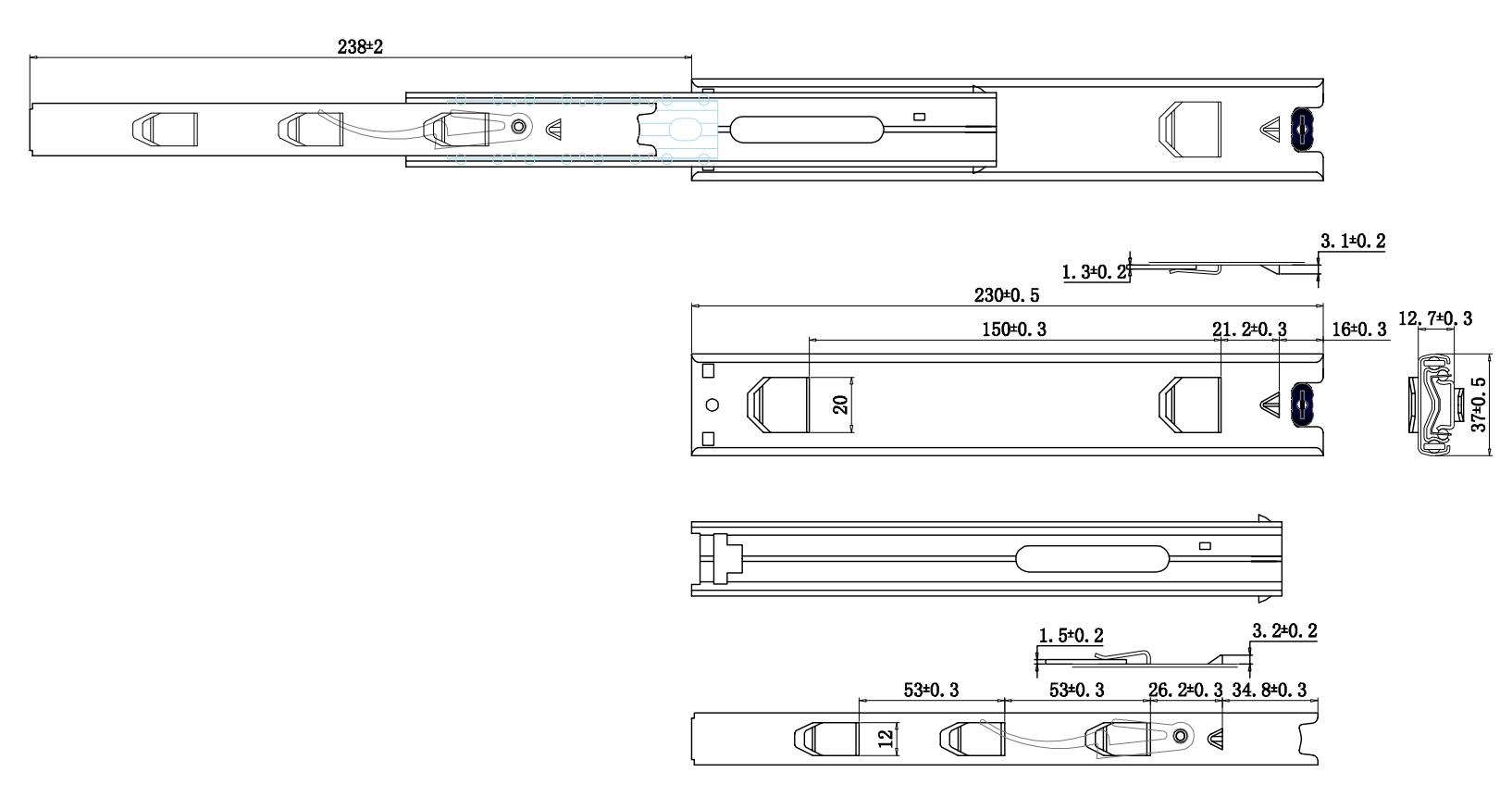

Specification:

37-230 SIZE

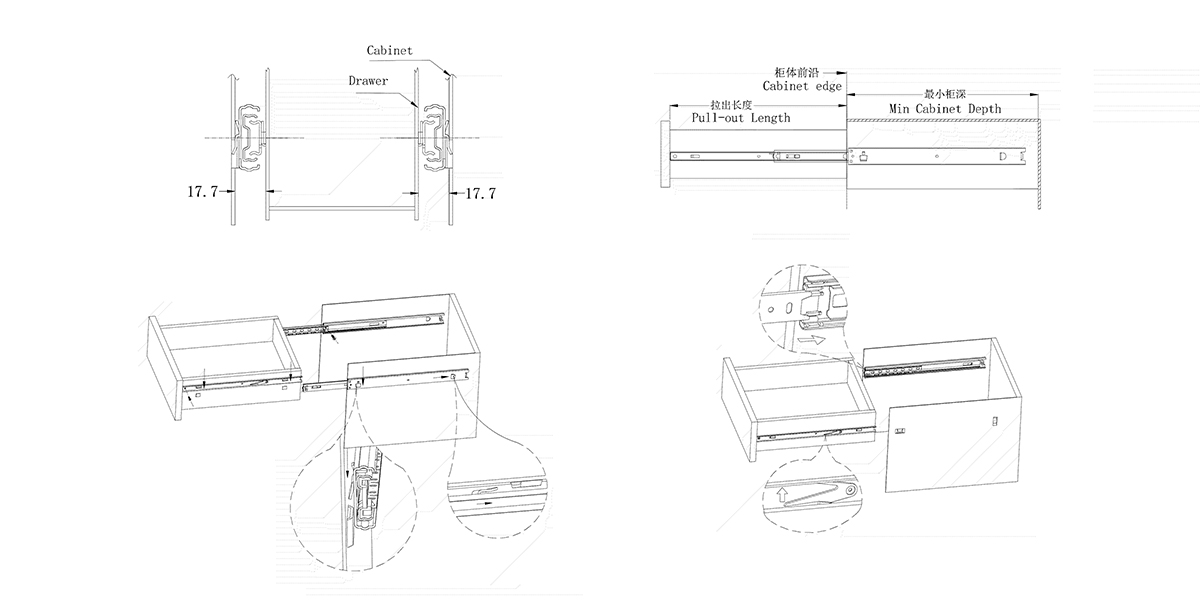

Installation:

Installation

Packing Information:

ITEM NO. SIZE N.W(KG)/CTN G.W(KG)/CTN SIZE/CTN QTY/CTN UNIT
YA-37HK-230 230 MM 13 13.5 36.5*25*15 25 SET
Package

Workshop:

WORKSHOP
