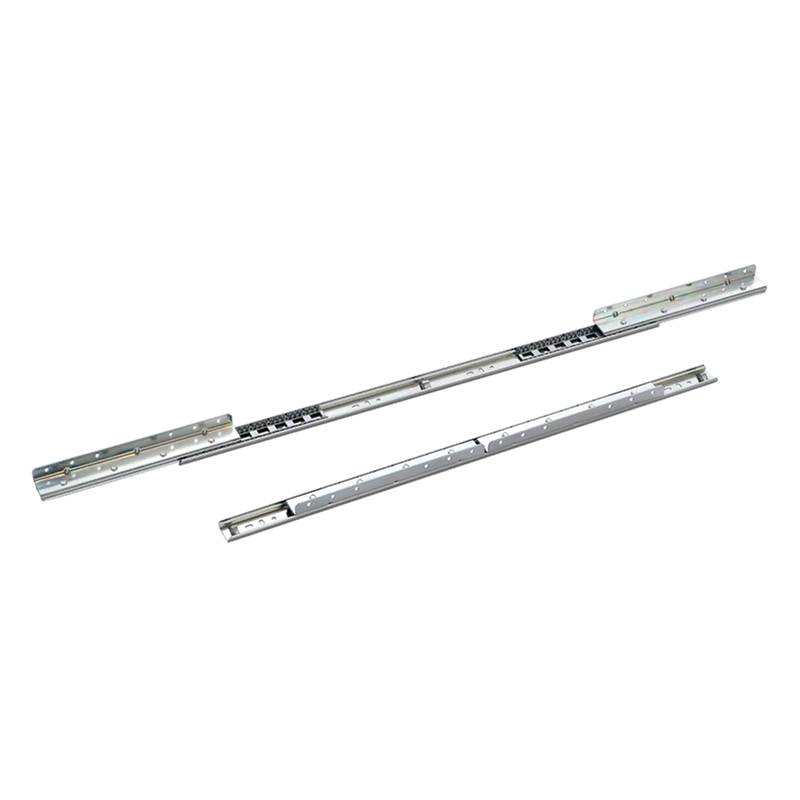

35mm Two way extension dinning table slide without synchronization

Short Description:

Introduction: Our 35mm Two way extension dinning table slide without synchronization made by high precision machine. We have width 35mm and 48mm two different types of table extension slides. We can customize the table extension runners for your table according to the design of your table. If you are interested in our extension table slides, please feel free to contact us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:
Type: 35mm Double extension synchronization dinning table slide with lock
Function: smooth moving & large load rating.
Width: 35mm
Length: 500mm - 1500mm, customized is available.
Installation thickness: 16 mm (±0.3)
Surface: Zinc plated, black, customized is available.
Load Capacity: 55-120 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.5mm or 1.8mm is available
Installation: side mount with screws
Application: Tables
