35mm Partial Extension Ball Bearing Drawer Slide

Short Description:

Model No.: YA-3502

35mm Partial extension ball bearing drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

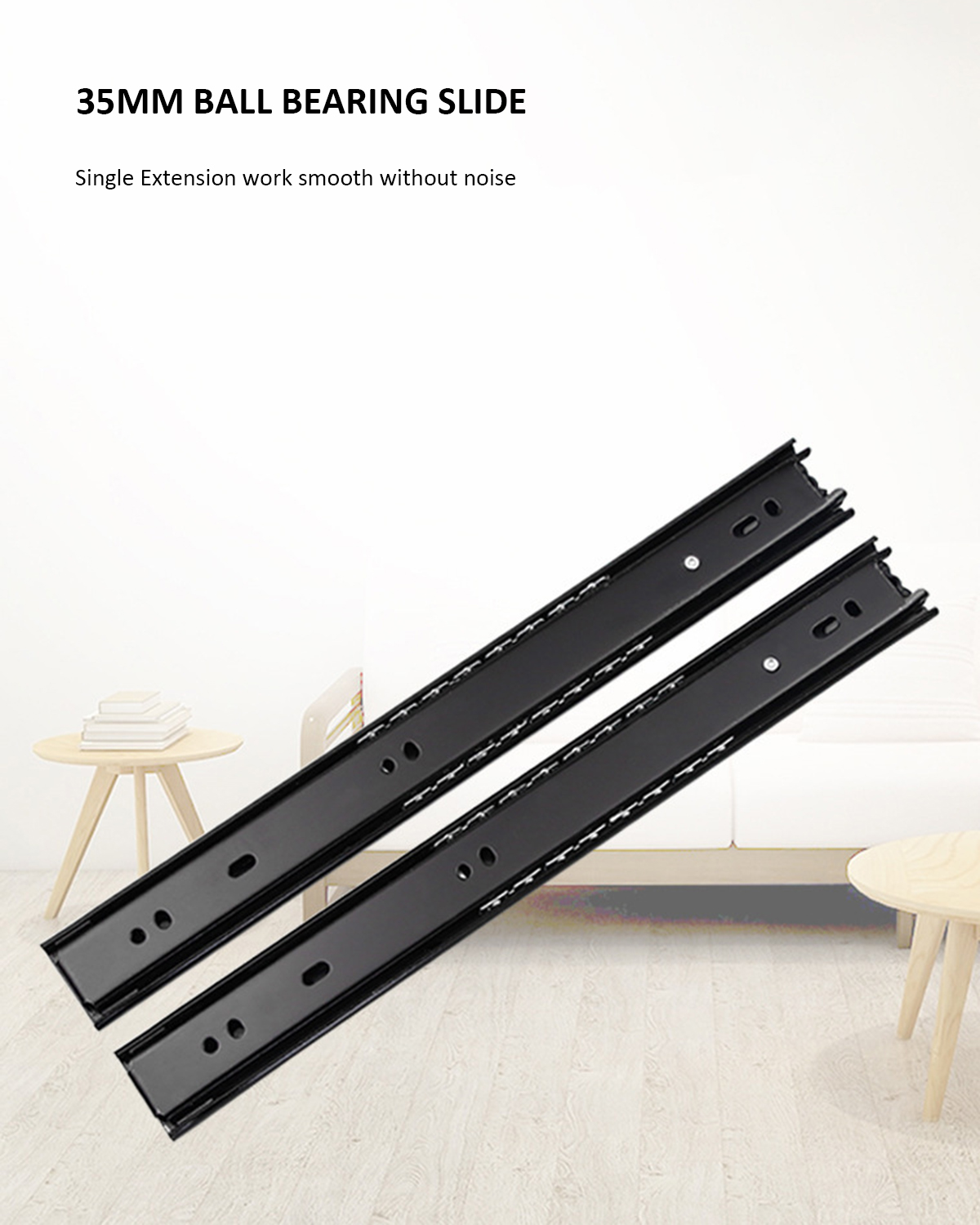

35mm Ball Bearing Slide

Description:

Product Name:

35mm Single extension ball bearing drawer slide

Material:

Cold Rolled Steel

Material Thickness:

1.2x1.2mm / 1.5x1.5mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

15 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

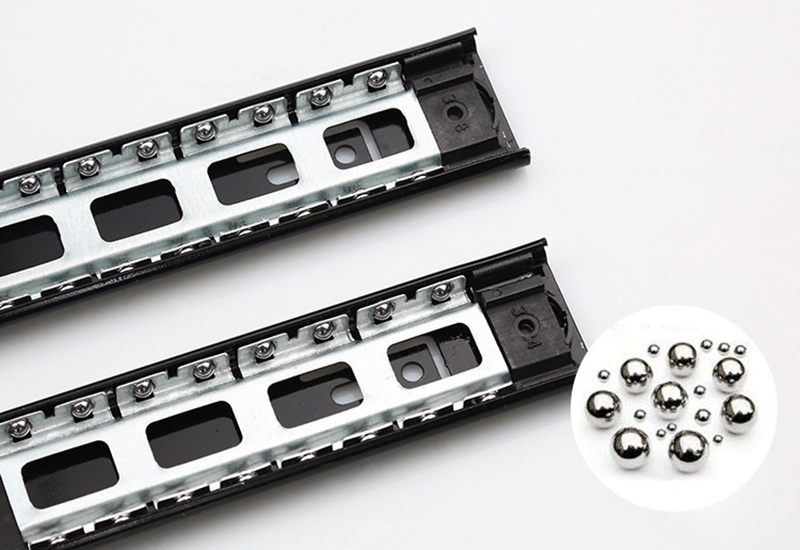

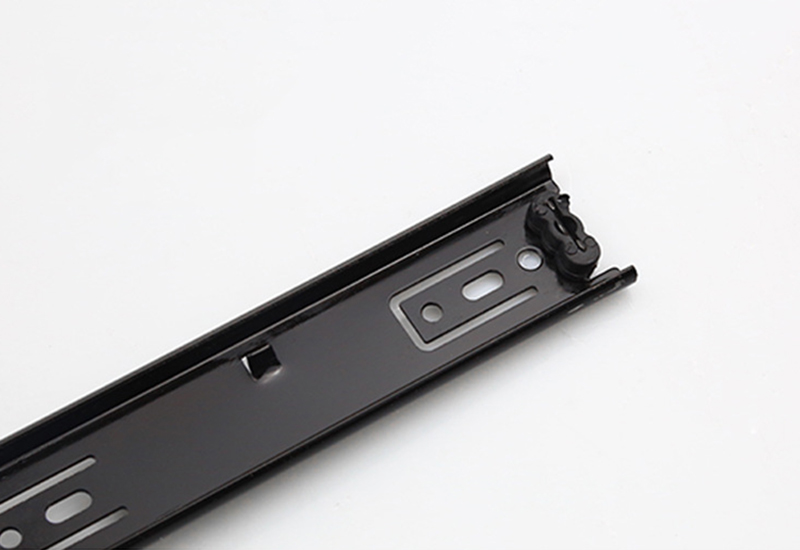

Product Details:

Specification:

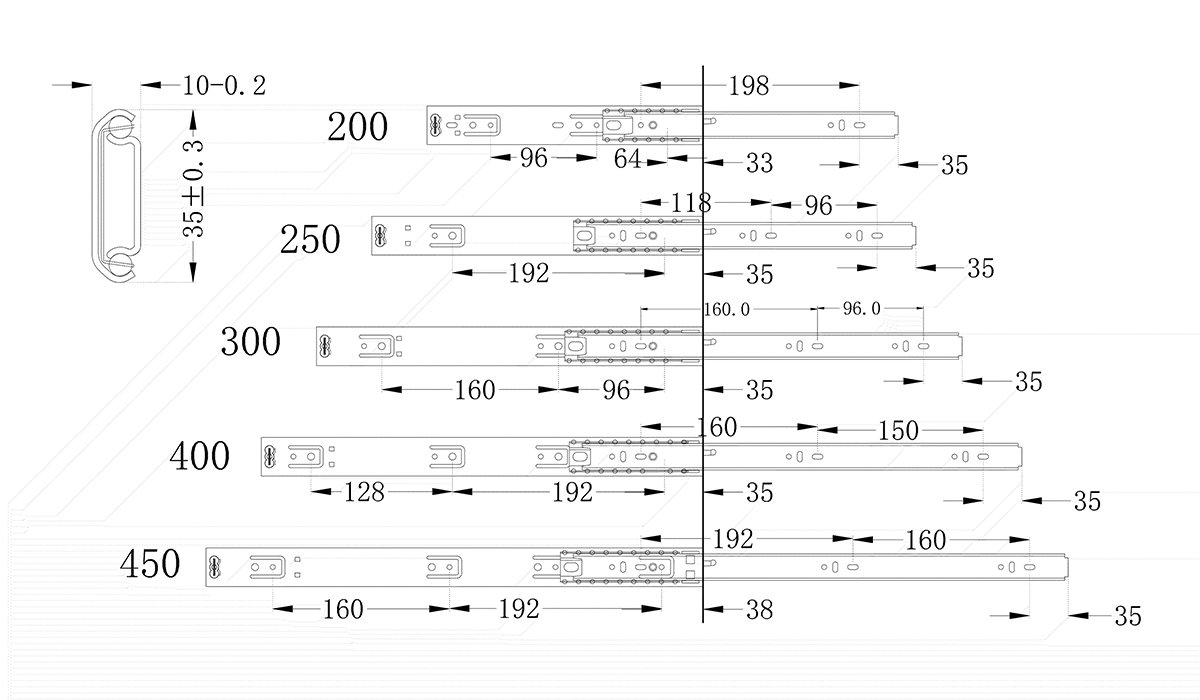

Installation Size

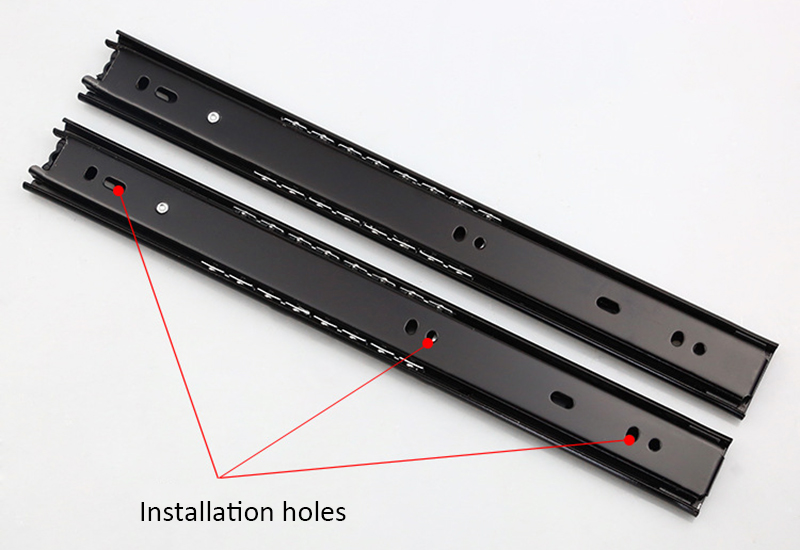

Installation Instruction:

Installation

Package Information:

Package

Workshop:
