35mm Full extension stainless steel ball bearing drawer slides

Short Description:

Model No.: YA-3501SS

35mm Full extension stainless steel ball bearing drawer slides produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

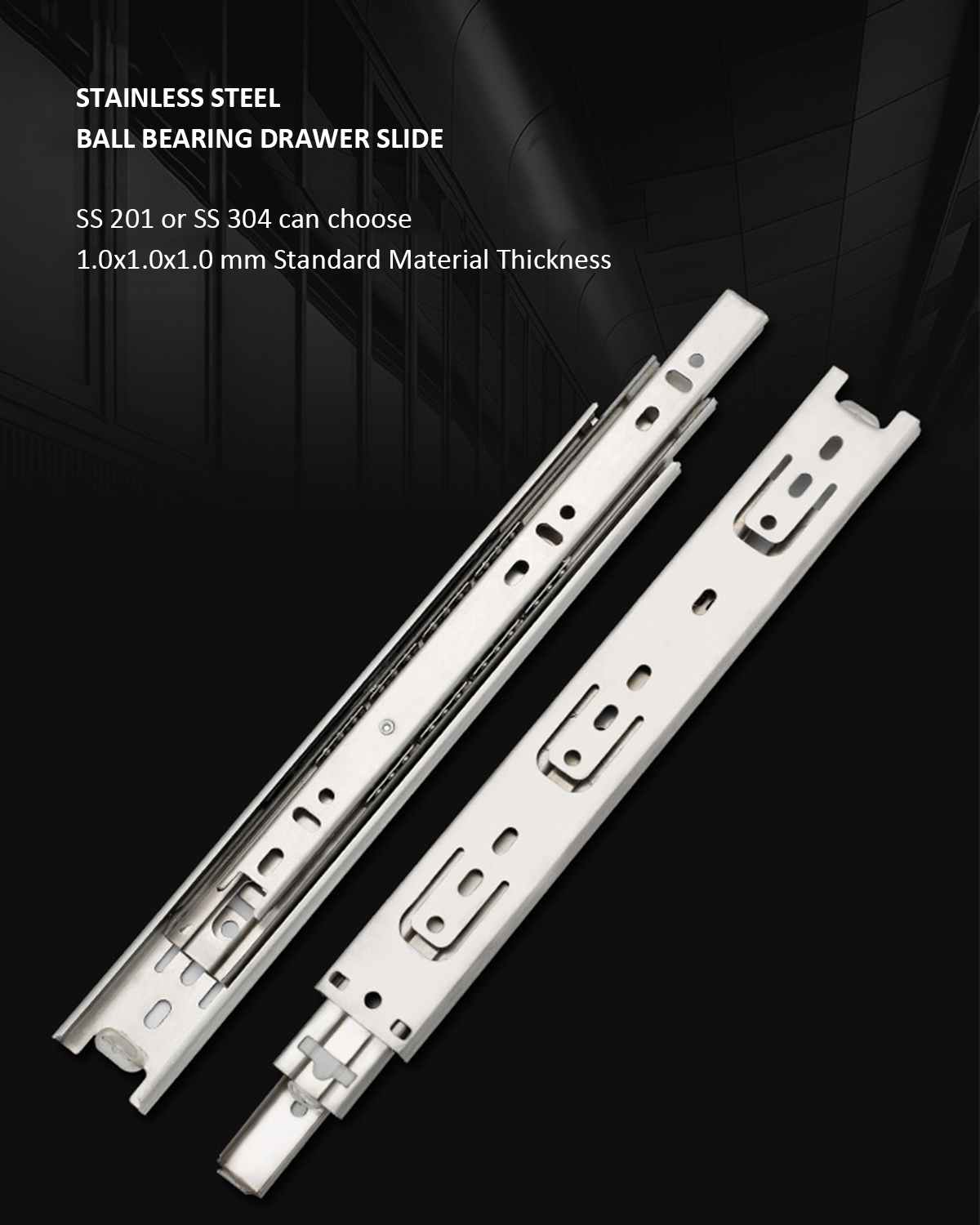

SS Drawer Slide

Description:

Product Name:

Stainless steel 35mm full extension telescopic drawer slide

Material:

Stainless steel

Material Thickness:

1.0*1.0*1.0mm

Surface:

Nickel Plated

Load Capacity:

25 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

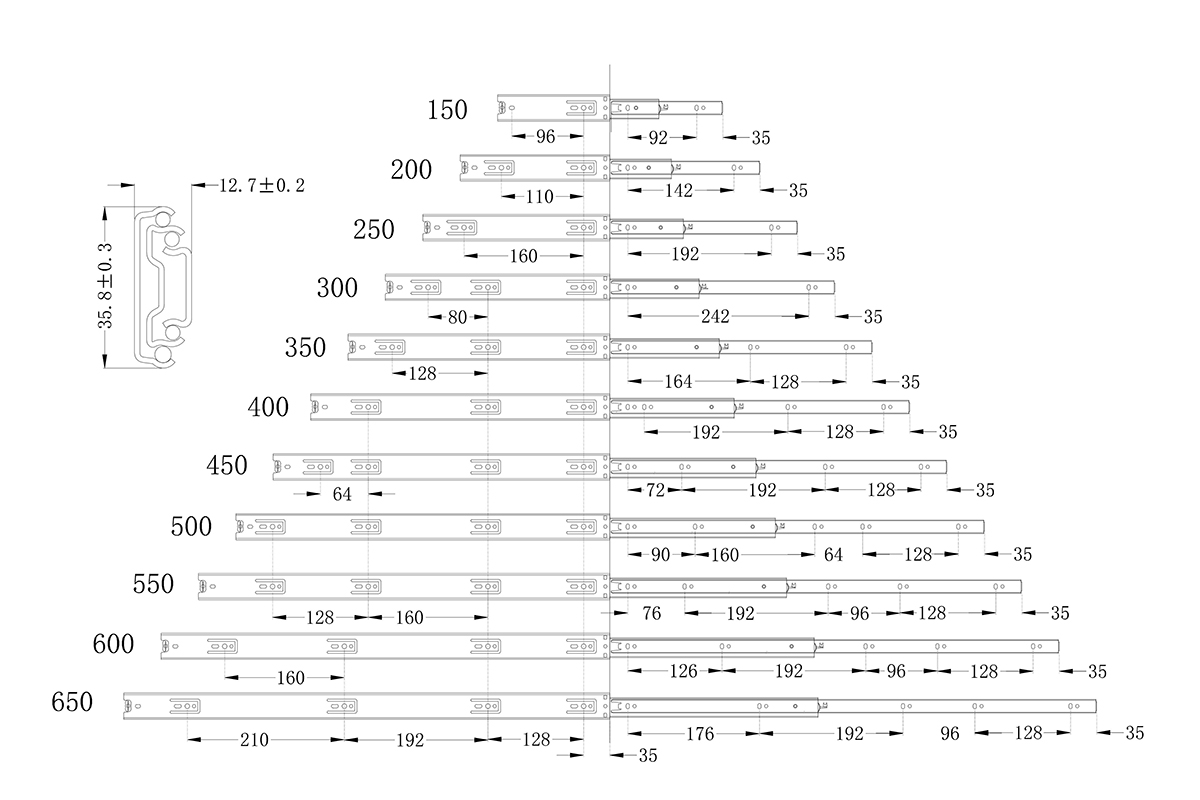

3501 Size

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit ( set/box )

YA-3501SS-10

10”/250mm

250mm

254mm

20

YA-3501SS-12

12”/300mm

300mm

304mm

20

YA-3501SS-14

14”/350mm

350mm

354mm

20

YA-3501SS-16

16”/400mm

400mm

404mm

20

YA-3501SS-18

18”/450mm

450mm

454mm

20

YA-3501SS-20

20”/500mm

500mm

504mm

20

YA-3501SS-22

22”/550mm

550mm

554mm

20

YA-3501SS-24

24”/600mm

600mm

604mm

20

Installation Instruction:

3501 Installation

Package Information:

Package

Workshop:
