35mm Full extension ball bearing drawer slide

Short Description:

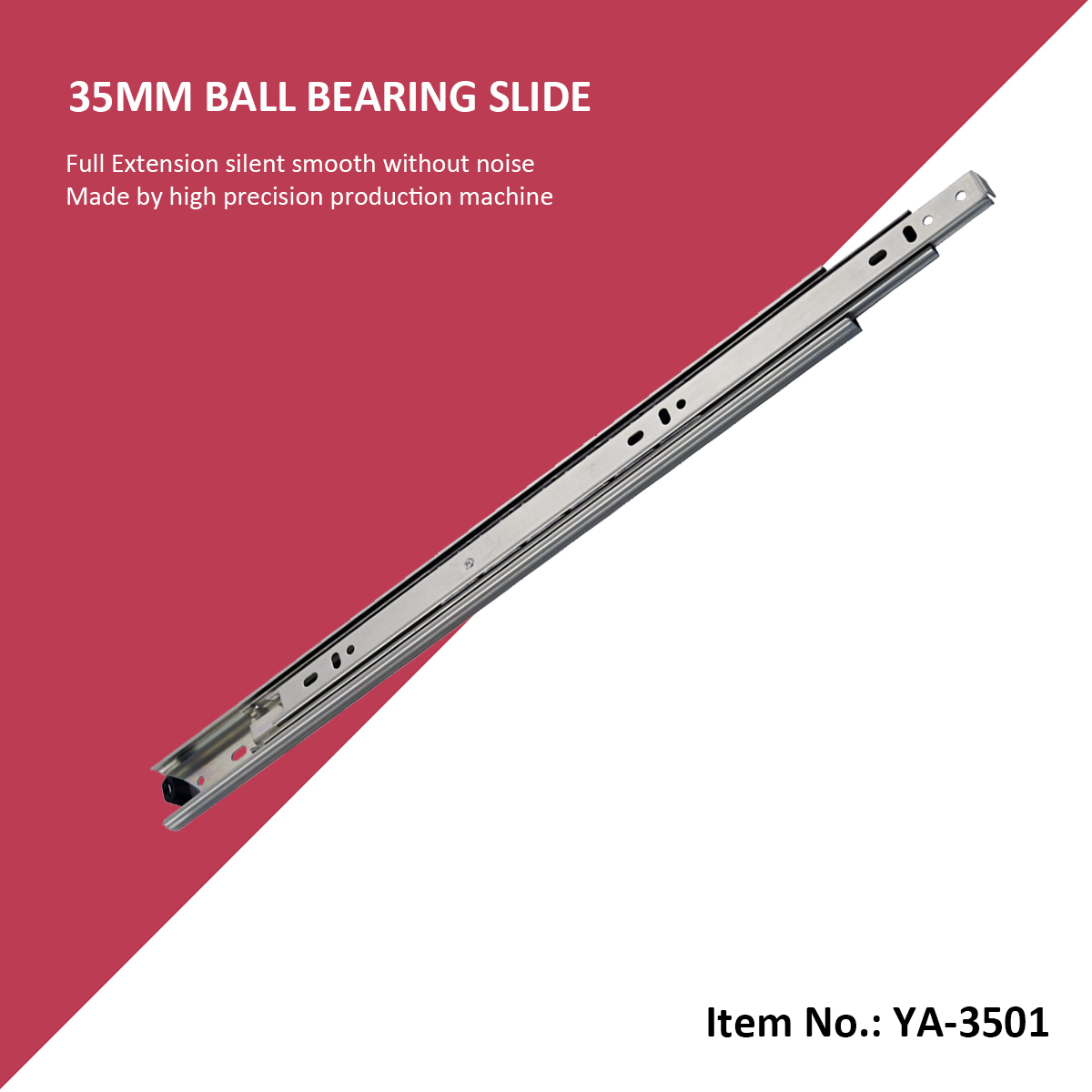

Model No.: YA-3501

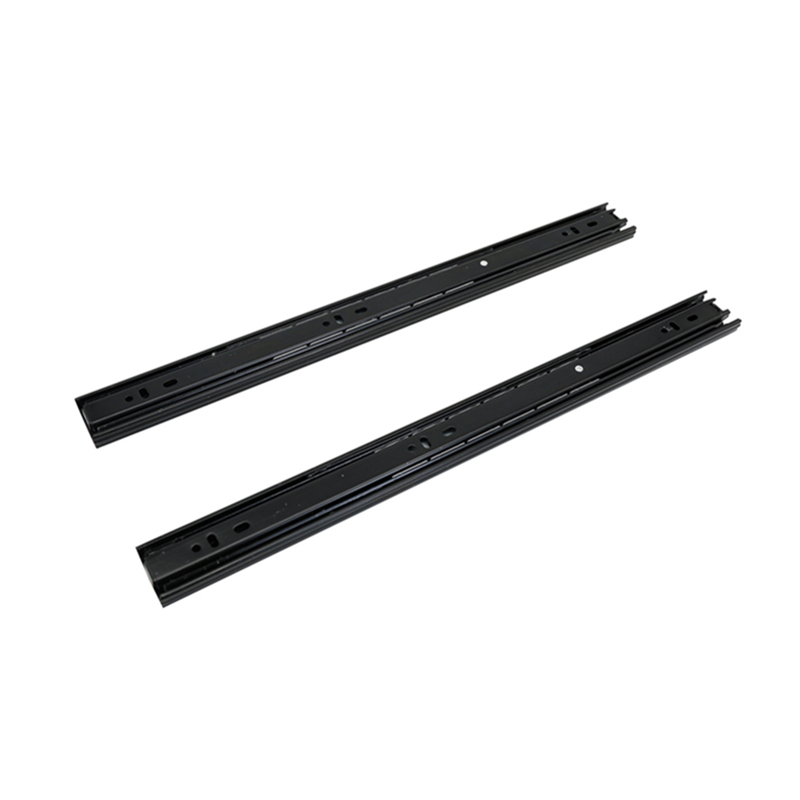

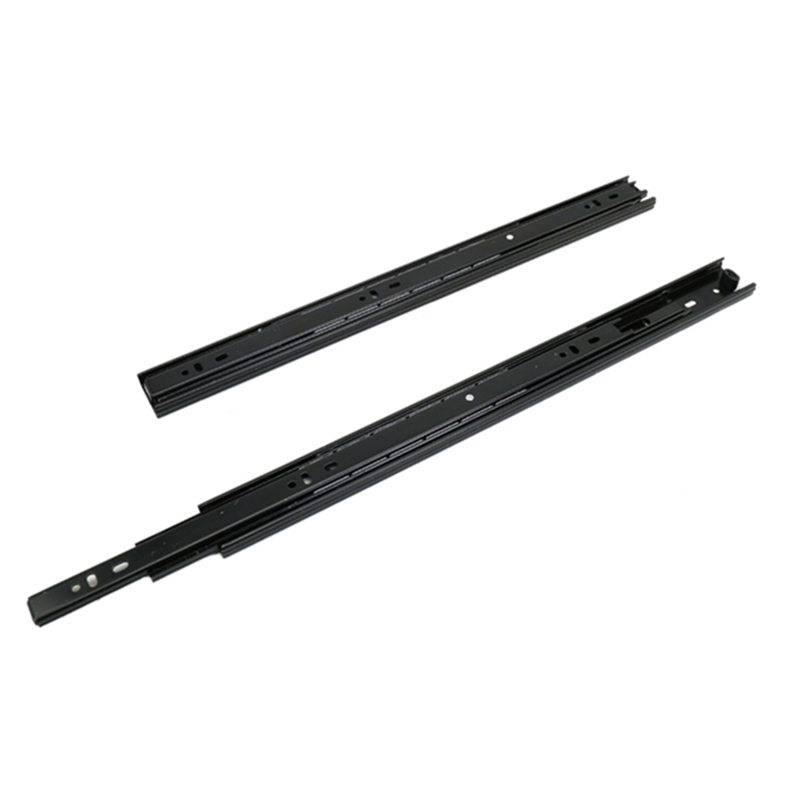

35 mm Full extension ball bearing drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	35mm Full extension ball bearing drawer slide
Material:	Cold Rolled Steel
Material Thickness:	1.01.01.0mm

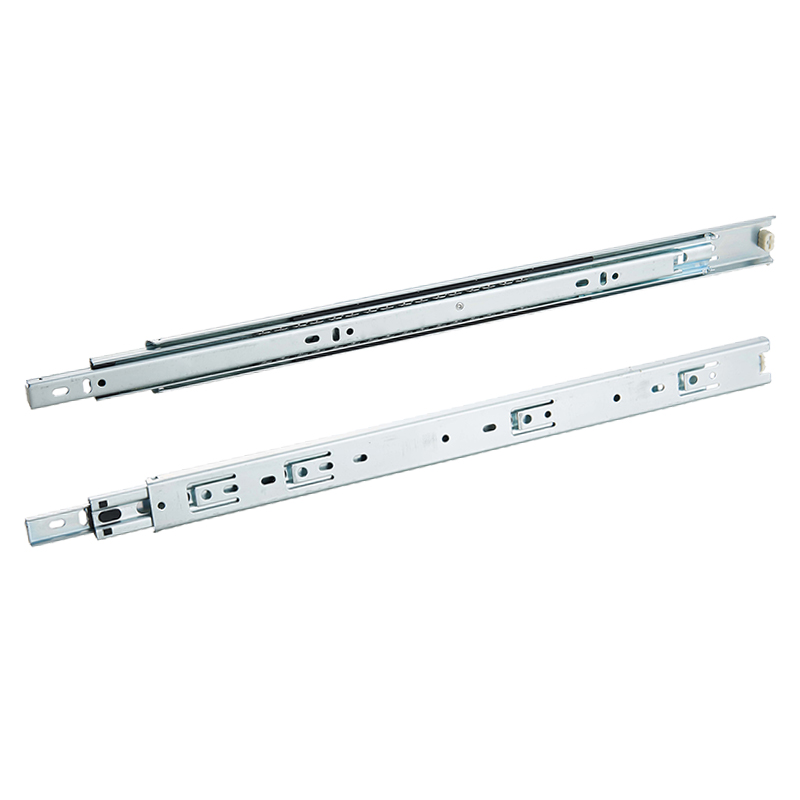

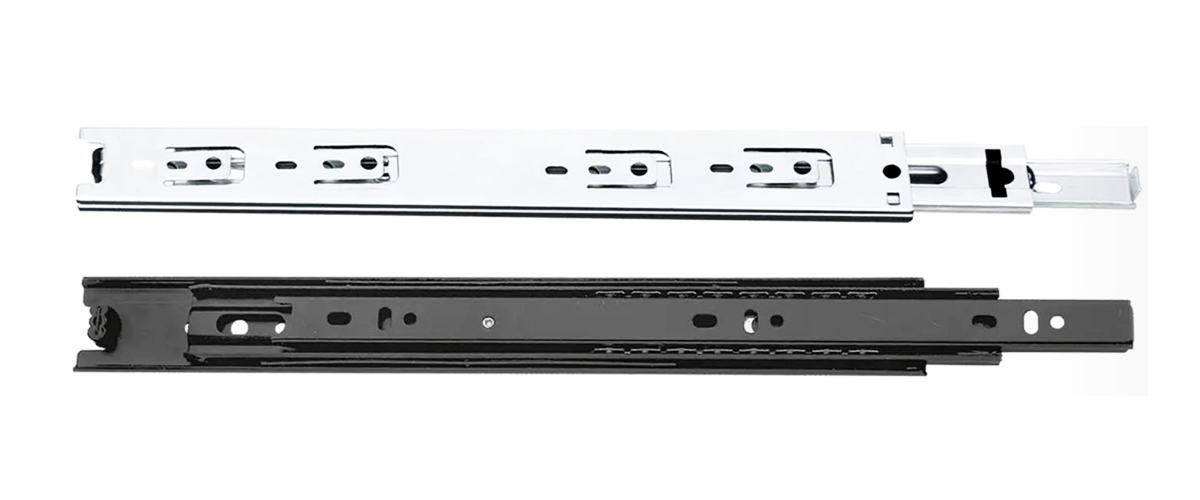

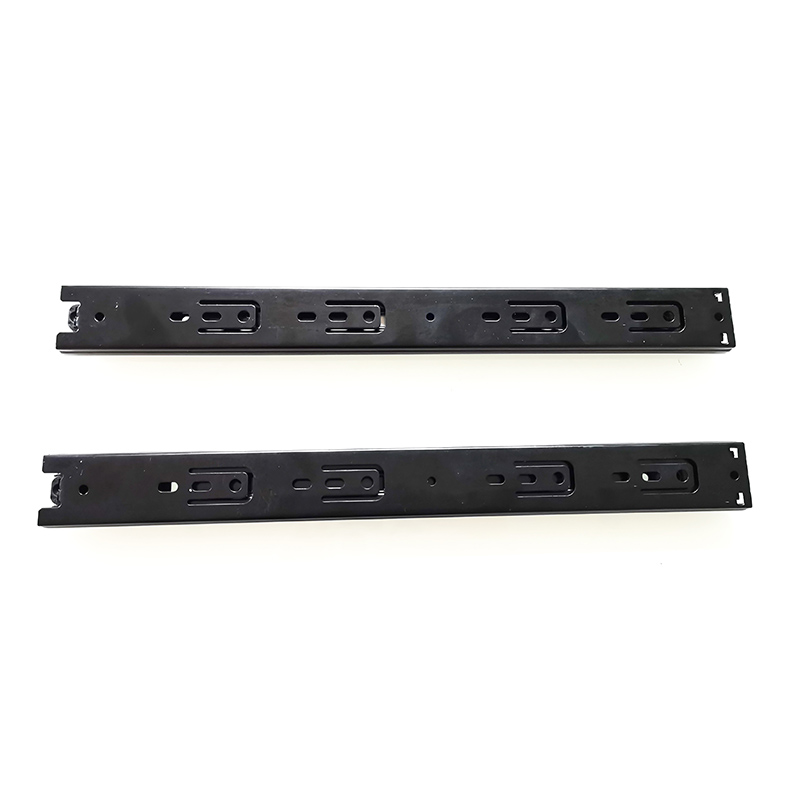

Surface:	Zinc Plated, Electrophoresis Black
Load Capacity:	30-45 KGS (450mm as standard)
Cycling:	Over 50,000 times
Size Range:	10”-24” (250-600mm), customize is available
Installation:	Side mount with screws
Feature:	Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

Item No.	Slide Length	Drawer Length	Min Cabinet Depth	Packing Unit ( set/box )
YA-3501-6	6”/150mm	150mm	154mm	20
YA-3501-8	8”/200mm	200mm	204mm	20
YA-3501-10	10”/250mm	250mm	254mm	20
YA-3501-12	12”/300mm	300mm	304mm	20
YA-3501-14	14”/350mm	350mm	354mm	20
YA-3501-16	16”/400mm	400mm	404mm	20
YA-3501-18	18”/450mm	450mm	454mm	20
YA-3501-20	20”/500mm	500mm	504mm	20
YA-3501-22	22”/550mm	550mm	554mm	20
YA-3501-24	24”/600mm	600mm	604mm	20
YA-3501-26	26”/650mm	650mm	654mm	20
