35mm Double extension synchronization dinning table slide with lock

Short Description:

Model No.: YA-35CT

Our 35mm Double extension synchronization dinning table slide with lock made by high precision machine. We have width 35mm and 48mm two different types of table extension slides. We can customize the table extension runners for your table according to the design of your table. If you are interested in our extension table slides, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

Description:

Product Light duty table extension slide
Function Double way synchronization moving
Material Cold rolled steel
Material thickness 1.5mm
Load rating 55-120KG
Finish Zinc plated, black
Cycling over 50,000 times
Size range 500-1000mm , customized is available
Installation Side mounting with screws
Application Dinning table

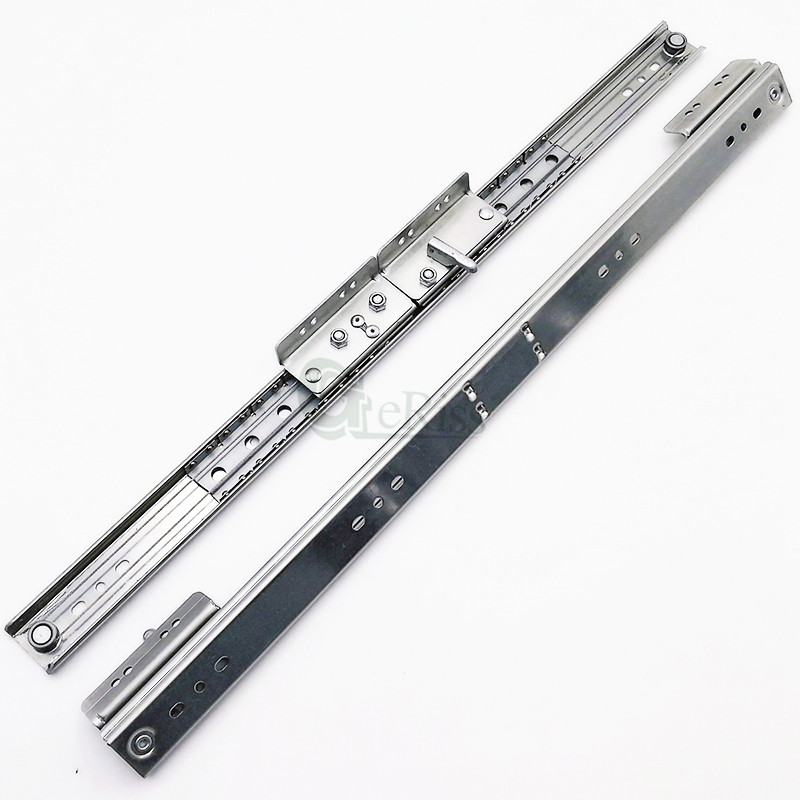

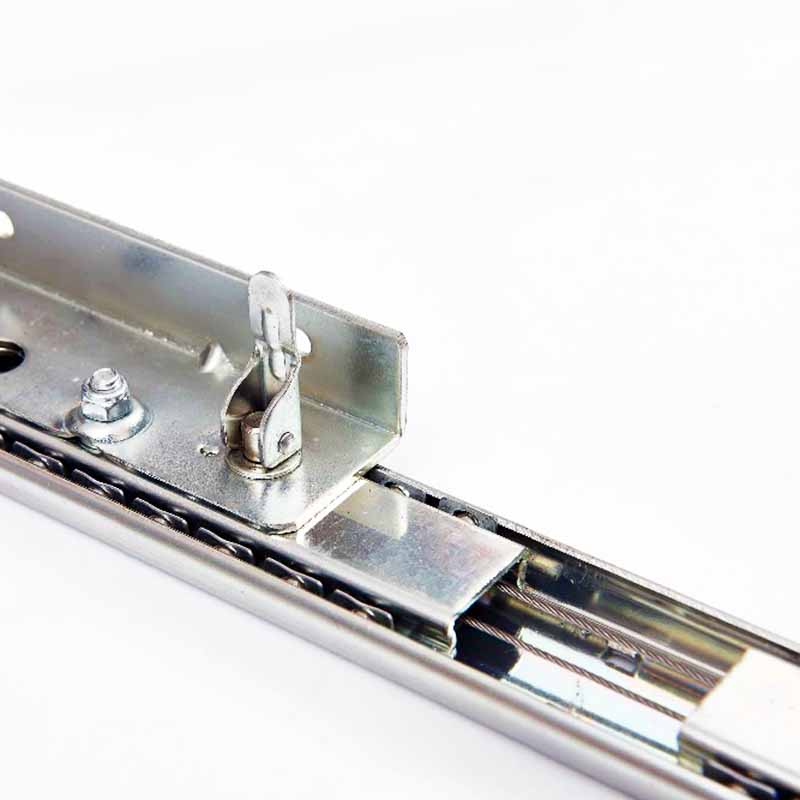

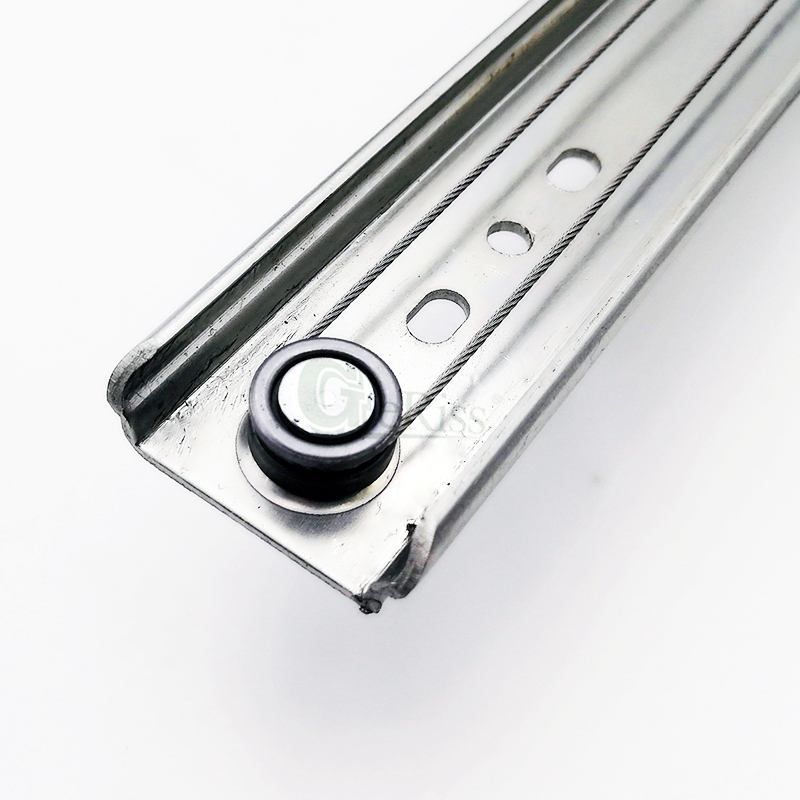

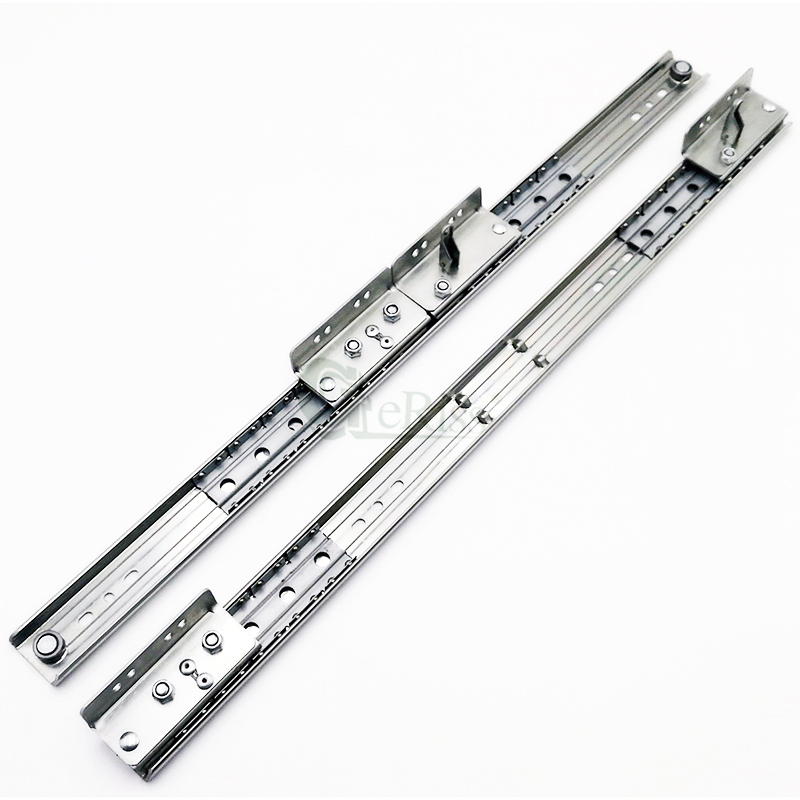

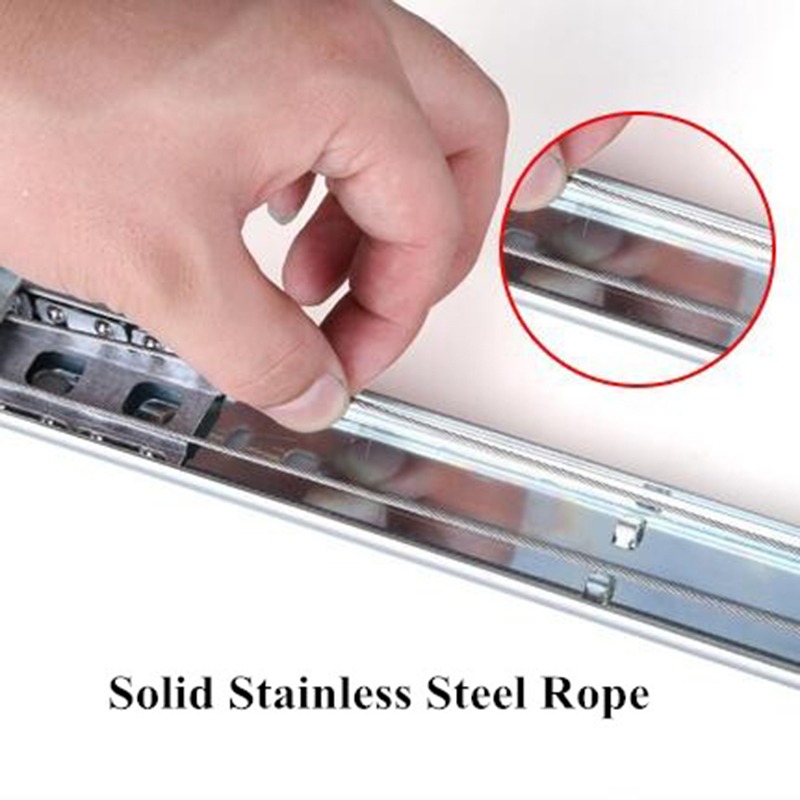

Detail Photos:

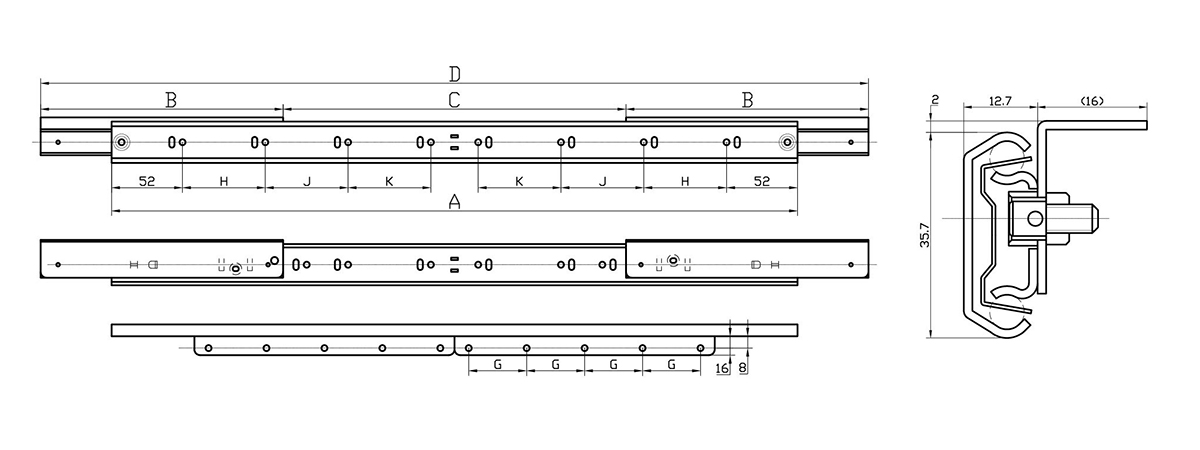

Size Drawing:

table slide size

Item No.

A

B

C

D

H

J

K

G

YA35CT-20

500

180

250

610

96

/

/

32

YA35CT-22

550

200

300

700

96

/

/

32

YA35CT-24

600

200

350

750

96

/

/

32

YA35CT-26

650

250

400

900

128

/

/

48

YA35CT-28

700

300

350

950

128

128

/

64

YA35CT-30

750

300

400

1000

128

128

/

64

YA35CT-32

800

300

450

1050

128

128

/

64

YA35CT-34

850

300

500

1100

128

128

/

64

YA35CT-36

900

300

550

1150

128

128

90

64

YA35CT-38

950

300

600

1200

128

128

100

64

YA35CT-40

1000

300

650

1250

128

128

100

64
