35mm Cup fixed-on frameless kitchen cabinet concealed soft close door hinge

Short Description:

Item No.: 1541 (Full overlay) / 1542 (Half overlay) / 1543 (Inset)

35mm Cup fixed-on frameless kitchen cabinet concealed soft close door hinge. This type of furniture hinge use for standard cabinet doors. The hinge apply to 14-22 mm cabinet doors. When you close the cabinet door, it will slow & quiet close without noise. The 35mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  35mm Cup fixed-on frameless kitchen cabinet concealed soft close door hinge
Hinge cup diameter:  35 mm
Hinge cup pattern  45 / 48 mm
Depth of hinge cup:  12.6 mm
Opening angle:  105°
Drilling distances on door (K):  3-7 mm
Door thickness:  14-22 mm
Surface:  Nickel plated
Available hinge mounting base:  2 or 4 holes plate
Available accessories:  Euro screw, tapping screw, dowels, arm cover, cup cover
Available package:  - 200 pcs with bulk in a Moisture Barrier Bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- 35mm Cup fixed-on frameless kitchen cabinet concealed soft close door hinge.

- The high technology with integrate silent system for even more convenience when soft close the door.

- Soft closing mechanism,perfect soft close function make more smooth closing.

- Three types overlay can choose, there are full overlay, half overlay, inset.

- Available cabinet door hinge's accessories: assembly dowels, hinge arm covers, tapping screws, Euro screws

ORDER INFORMATION:

ITEM NO. OVERLAY

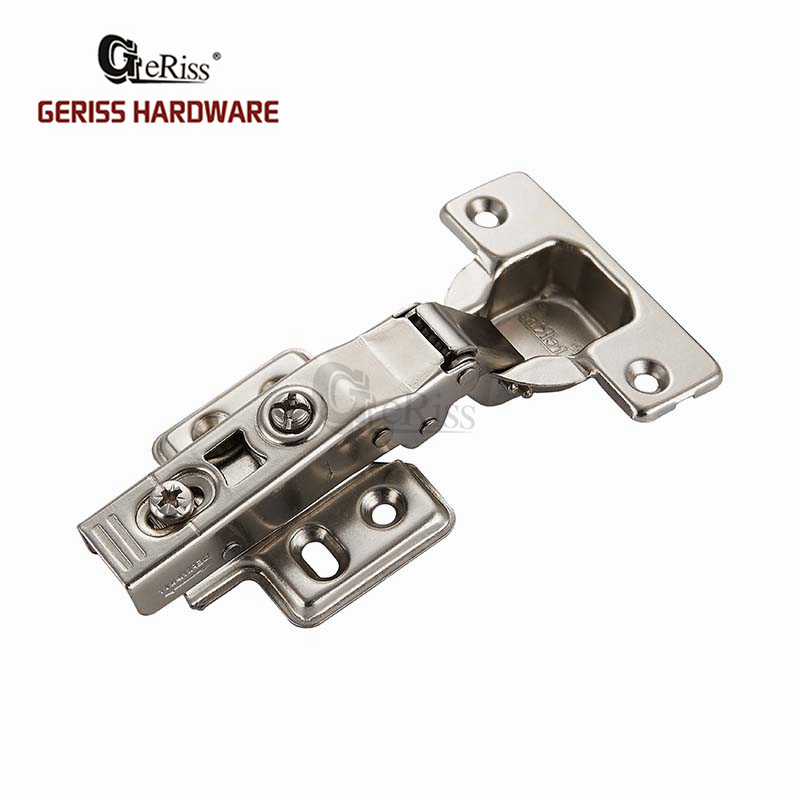

1541 FULL-OVERLAY

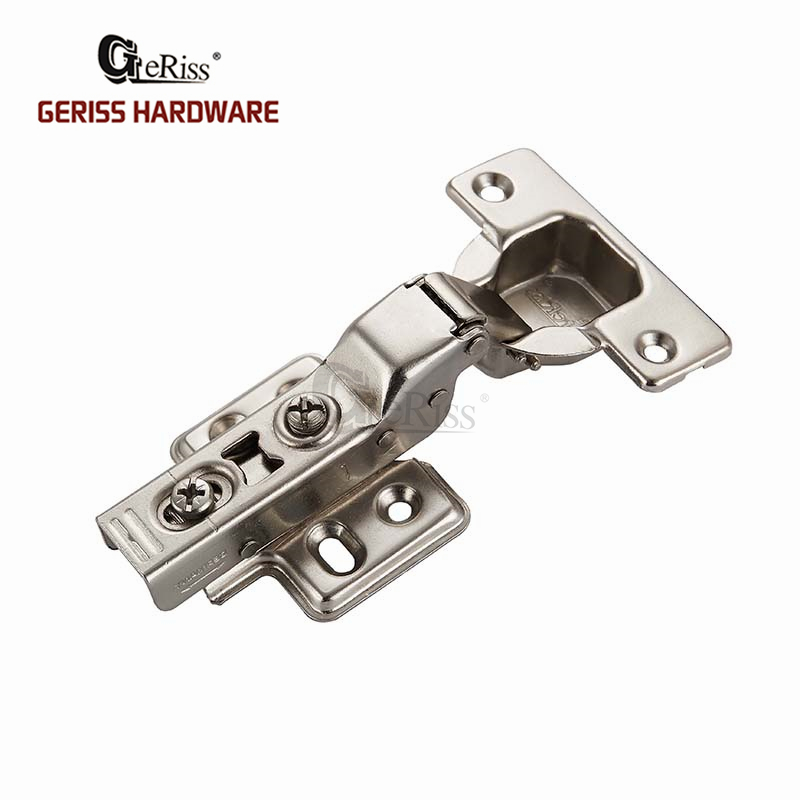

1542 HALF-OVERLAY

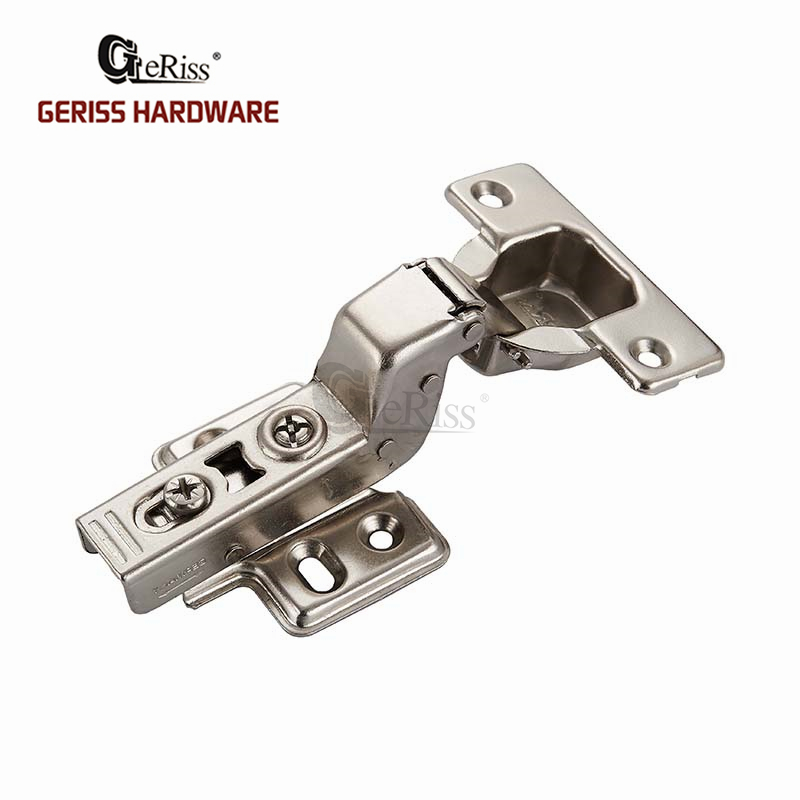

1543 INSET

>>> Click to View Installation Technical Specification

PACKAGE DETAILS:

35mm Cup fixed-on frameless kitchen cabinet concealed soft close door hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
