35mm Automatic Lifting Extension Dining Table Slide

Short Description:

Model No.: YA-35CT-AT

Our 35mm Automatic Lifting Extension Dining Table Slide made by high precision machine. We have width 35mm and 48mm two different types of table extension slides. We can customize the table extension runners for your table according to the design of your table. If you are interested in our extension table slides, please feel free to contact us.


Product Detail

Product Tags

Extension dinning table 002

Description:

Product: Automatic Lifting Extension Dining Table Slide
Height: 35mm
Material: Cold rolled steel/Galvanized sheet
Material thickness: 1.5mm
Surface: Zinc Plated/Black electrophoresis
Function: Automatic lifting extension
Customize: Available
Size range: 500mm - 1400mm
Load capacity: 50 KG
Package: 6 sets/carton

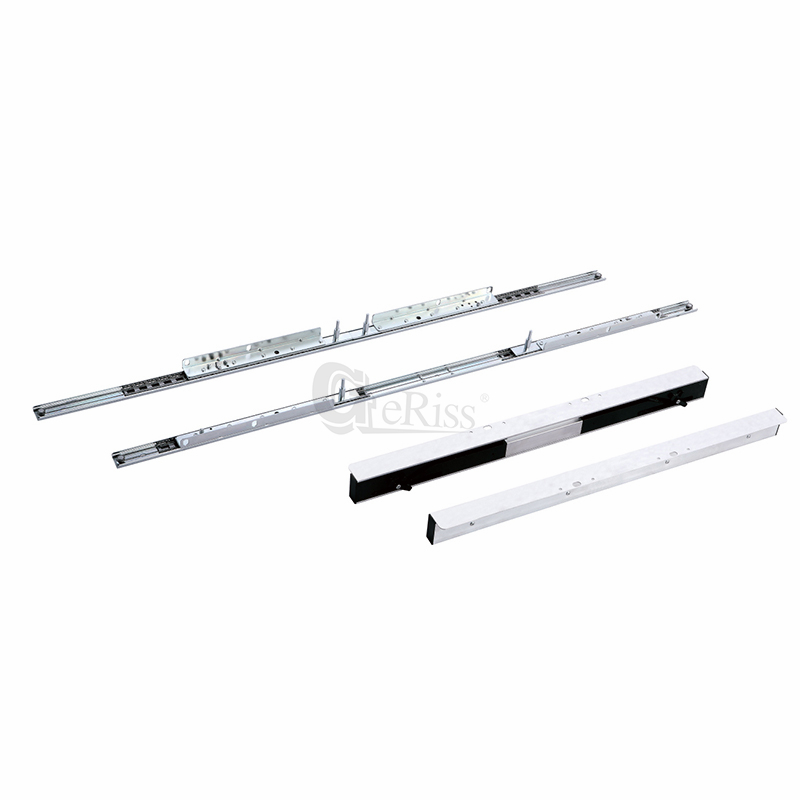

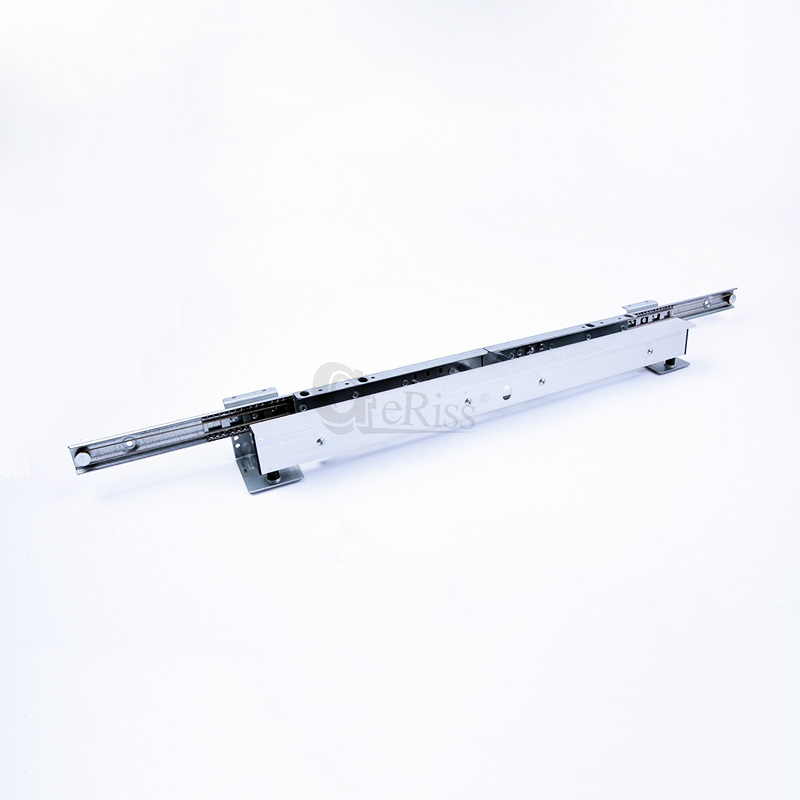

Product Photos:

Installation:

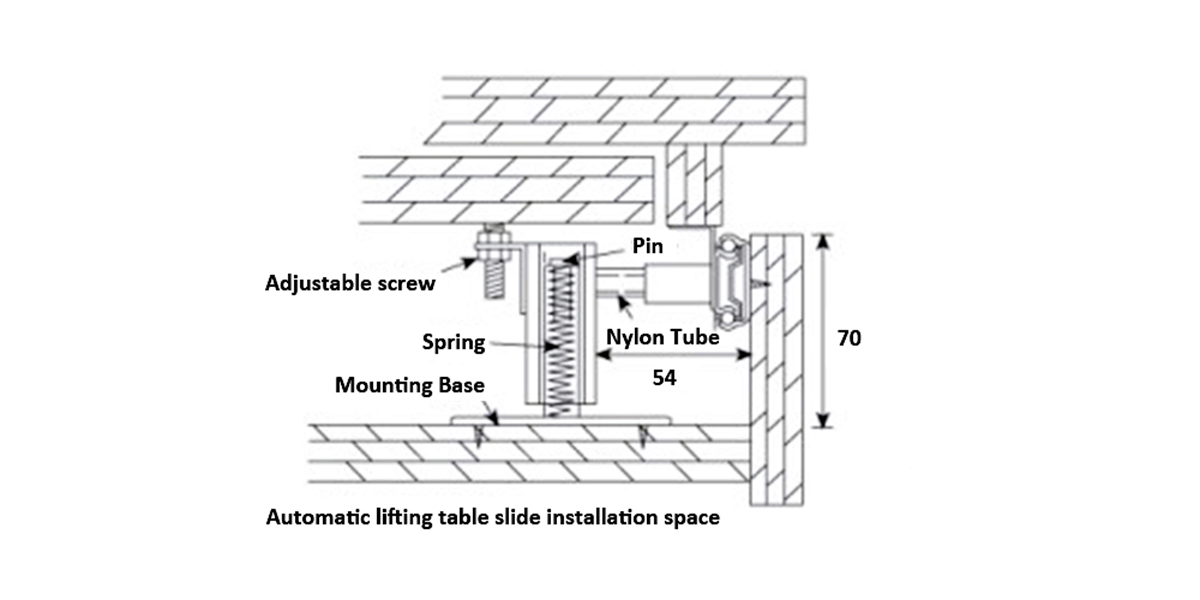

Installation size 001
Slide Length Lifting frame length Lifting width Lifting height
980 610 300 20-30
1100 610 300 20-30
1130 660 350 20-30
1200 660 350 20-30
1300 710 400 20-30
1400 760 450 20-30

Unit: mm
