27mm Single extension side mount telescopic drawer slide channel

Short Description:

Model No.: YA-2701

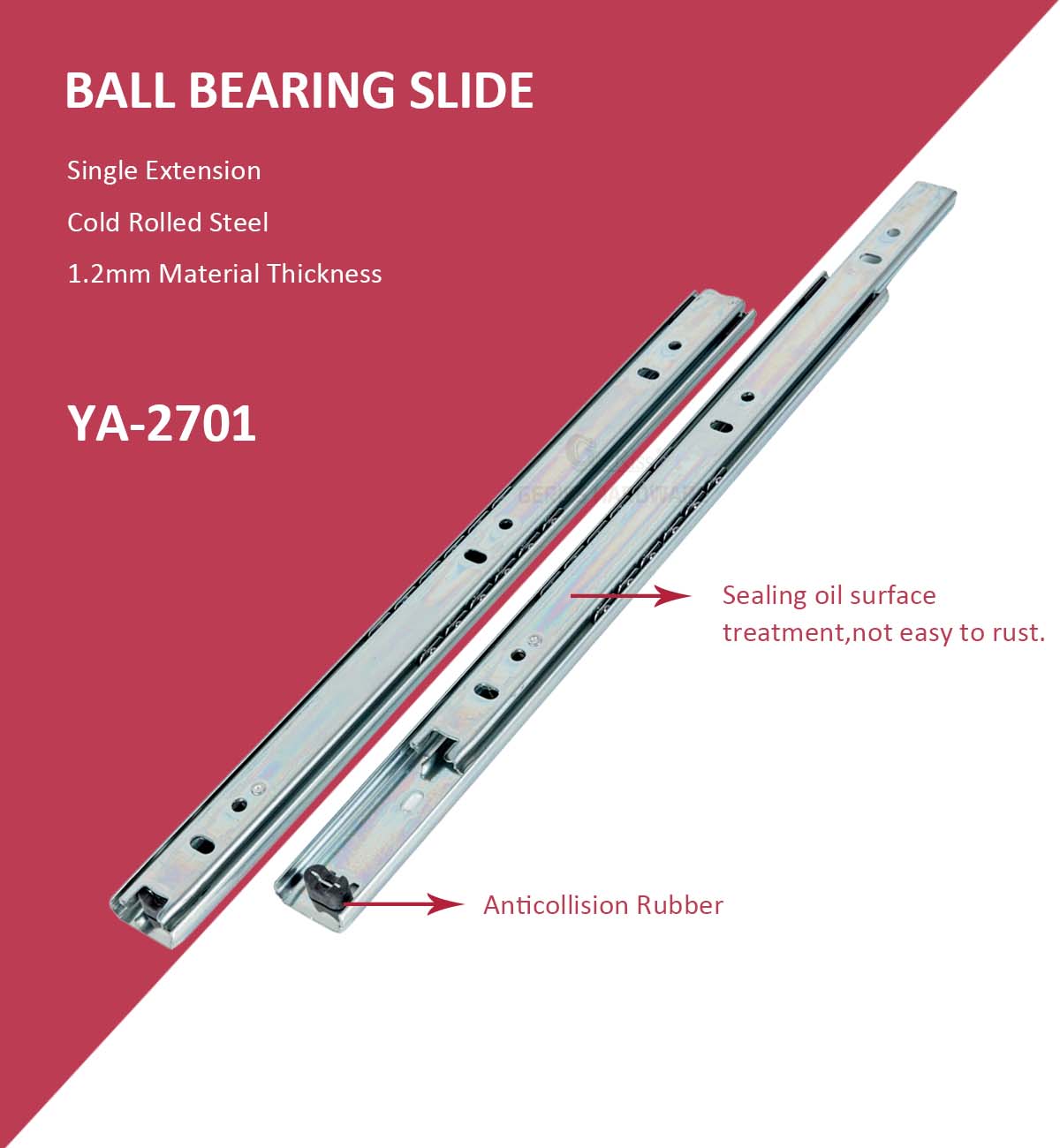

27mm Single extension side mount telescopic drawer slide channel produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

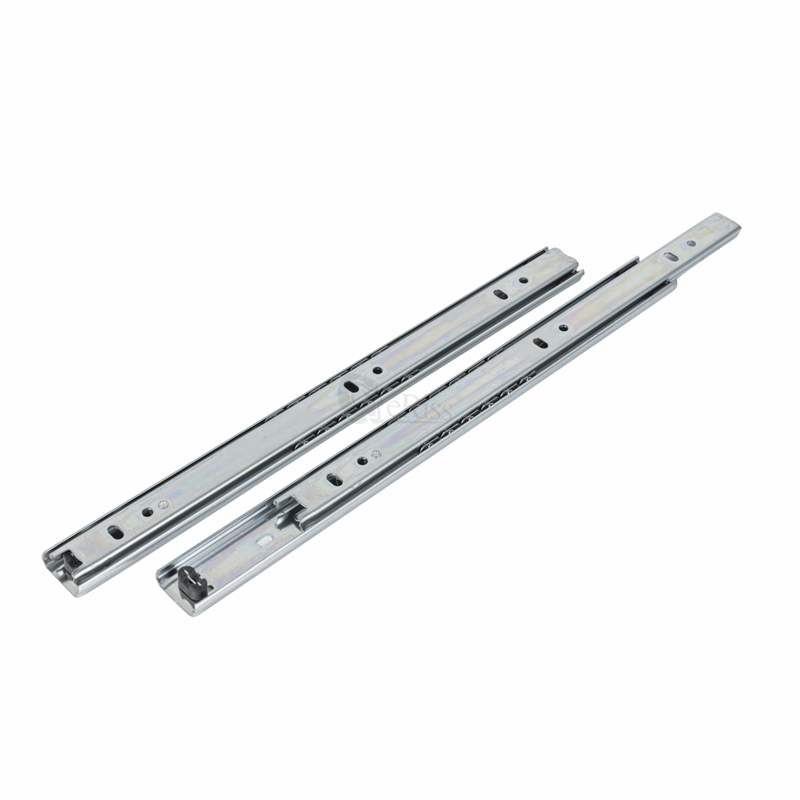

27mm Telescopic Rail

Description:

Product: 27mm Single extension side mount telescopic drawer slide channel
Function: Smooth moving without noise
Height: 27mm
Length: 250-550mm, customize is available
Installation Thickness: 10mm
Surface: Zinc Plated, Spray Paint Black
Load Capacity: 10 KG
Cycling: 50,000 times
Material: Cold Rolled Steel
Material Thickness: 1.2x1.2 mm
Installation: Side mount with screws
Application: Kitchen cabinet, bathroom cabinet,wardrobe,civil furniture, etc...

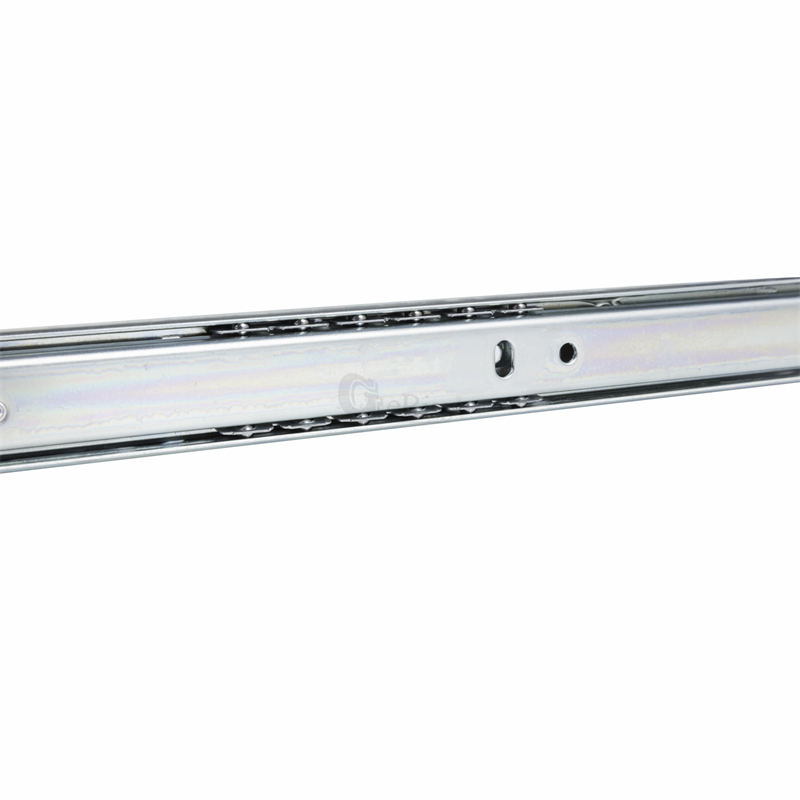

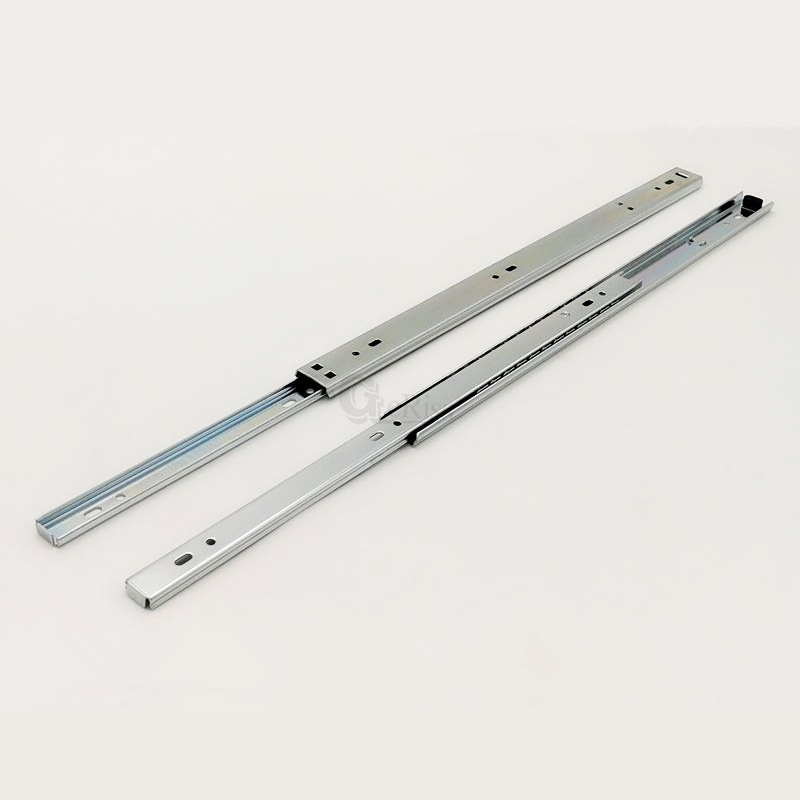

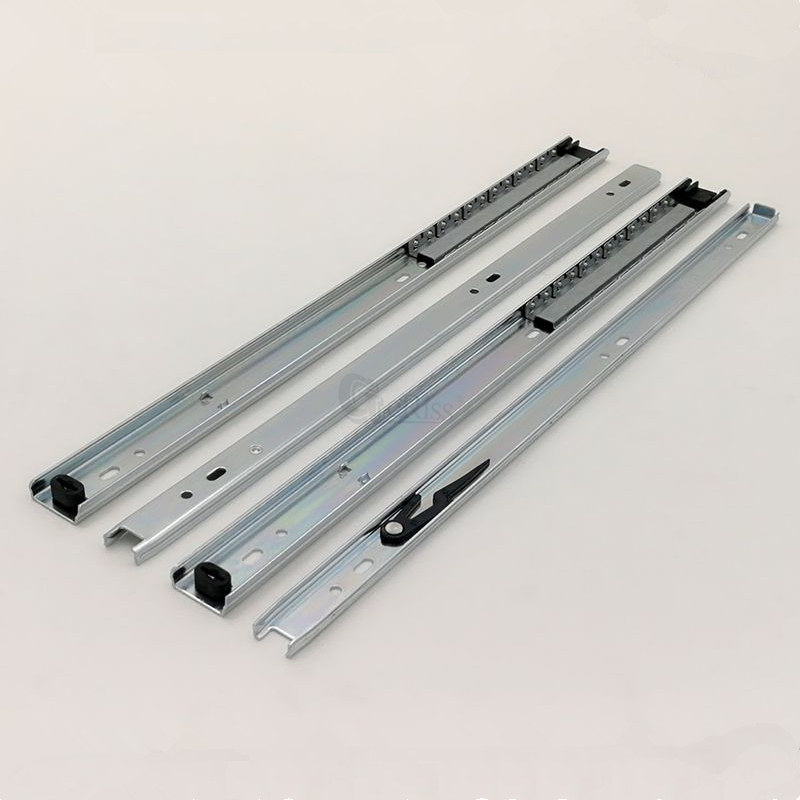

Product Details:

Specification:

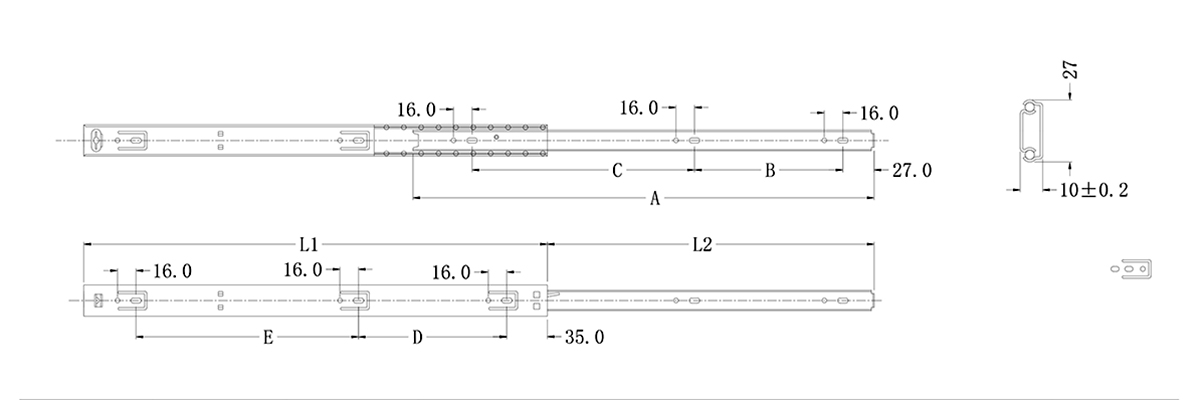

27mm Ball Bearing Drawer Runner Size

Item No

Slide Length
(LI)

Pull-out

Length(L2)

Hole Location Size

A

B

C

D

E

YA-2701-10"

250mm

177mm

248mm

192mm

-

128mm

-

YA-2701-12"

300mm

188mm

298mm

128mm

96mm

128mm

96mm

YA-2701-14"

350mm

247mm

348mm

128mm

160mm

128mm

128mm

YA-2701-16"

400mm

282mm

398mm

128mm

192mm

128mm

192mm

YA-2701-18"

450mm

317mm

448mm

160mm

192mm

160mm

192mm

YA-2701-20"

500mm

352mm

498mm

192mm

192mm

192mm

192mm

YA-2701-22"

550mm

390mm

548mm

224mm

224mm

224mm

224mm

YA-2701-24"

600mm

426mm

598mm

256mm

256mm

256mm

256mm

Note:

 Hole Location size and slide length also can cutomized,pls do not hesitate to contact us.

Installation Instruction:

Installation

Package Information:

Product Name

Length(mm)

Package(set/carton)

N.W(KGS)

G.W(KGS)

MEAS(CM)

Two-section ball bearing

drawer runners 27mm

(1.2*1.2mm Mateiral Thickness)

250

25

8.13

8.28

26*17*10

300

25

9.75

9.90

31*17*10

350

25

11.38

11.53

36*17*10

400

25

13.00

13.15

41*17*10

450

25

14.63

14.83

46*17*10

500

25

16.25

16.45

51*17*10

550

25

17.88

18.10

56*17*10

600

25

19.50

19.80

61*17*10
